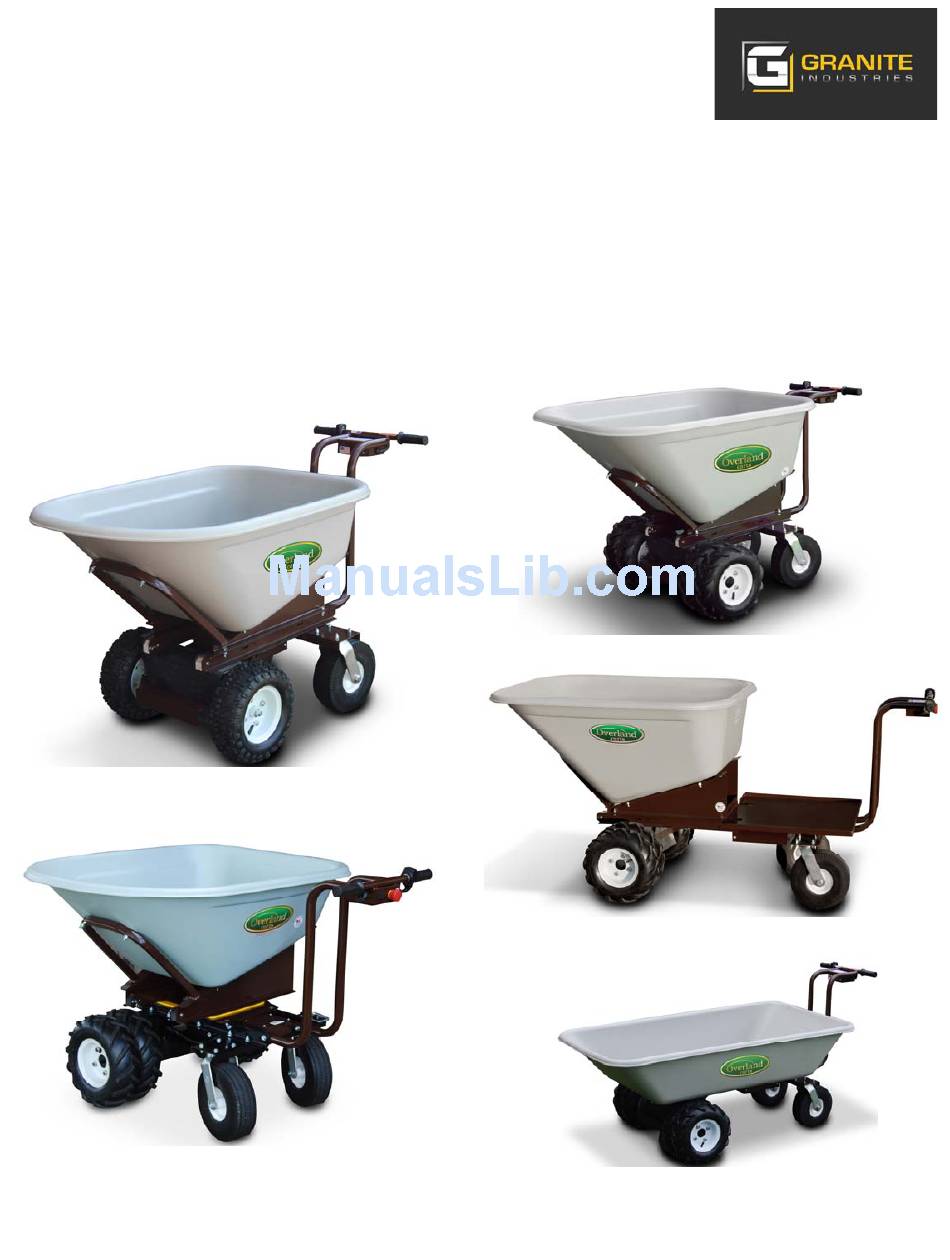

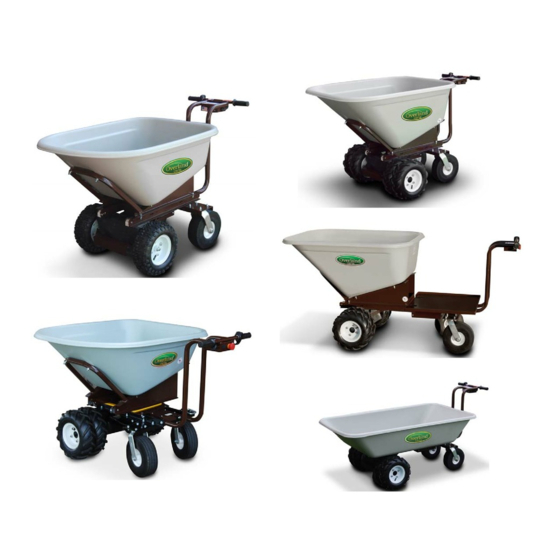

  • Page 1 595 E. Lugbill Rd. Archbold, OH 43502 419.445.4733 or 877.447.2648 Fax 419.445.3304 Electric Power Cart Owners Manual 97011-4...

  • Page 2: Warranty

    (Granite Industries will pay to ship replacement item(s) to the customer; however the customer is responsible for shipment of products to the factory.) This remedy is the sole remedy in contact, tort or otherwise, and Granite Industries is not liable for incidental, consequential or special damages.

  • Page 3: Operation And Maintenance

    How long will the batteries last before needing to be replaced? The batteries are designed to last for 300-500 charge/discharge cycles, which translate into approximately 1-2 years. The batteries are common, and can be purchased from Granite or at your local hardware store.

  • Page 4: Battery Replacement

    595 E. Lugbill Rd. Archbold, OH 43502 419.445.4733 or 877.447.2648 Fax 419.445.3304 BATTERY REPLACEMENT 24v 12amp Replacement Battery Specs: 12v, 12 amp/hr lead acid sealed, AGM type. Universal Battery model UB12120 or equivalent. Two (2) Batteries required. 1. Remove the battery pack from the cart. 2.
  • Page 5 595 E. Lugbill Rd. Archbold, OH 43502 419.445.4733 or 877.447.2648 Fax 419.445.3304 BATTERY REPLACEMENT 24v 12amp...
  • Page 6 595 E. Lugbill Rd. Archbold, OH 43502 419.445.4733 or 877.447.2648 Fax 419.445.3304 BATTERY REPLACEMENT 24v 22amp Replacement Battery Specs: 12v, 22 amp/hr lead acid sealed, AGM type. Universal Battery model UB12220 or equivalent. Two (2) Batteries required. 1. Remove the batter pack from the cart. 2.
  • Page 7 595 E. Lugbill Rd. Archbold, OH 43502 419.445.4733 or 877.447.2648 Fax 419.445.3304 BATTERY REPLACEMENT 24v 22amp...

  • Page 8: Charging System

    595 E. Lugbill Rd. Archbold, OH 43502 419.445.4733 or 877.447.2648 Fax 419.445.3304 CHARGING SYSTEM 24v Chargers battery charger is designed to charge any type of lead acid battery to full charge. The charger can be left connected to the batteries after full charge (green light) without harming the batteries. The charger uses minimum power in this standby-mode (after battery is fully charged), maintains the batteries at full charge and extends battery life.
  • Page 9 595 E. Lugbill Rd. Archbold, OH 43502 419.445.4733 or 877.447.2648 Fax 419.445.3304 Chassis Parts Diagram 27 and 44 Series CHASSIC CHANNEL MI-08-0836 (27) MI-08-0864 (44) PLASTIC CHANNEL PIVOT BLOCK MI-15-0044 S-DRIVE CONTROLLER BOX COVER MI-07-0290 RUBBER DUST GUARD MI-09-0412 TRANSAXLE PI-08-0048 MOTOR MOUNT MI-08-0844...
  • Page 10 595 E. Lugbill Rd. Archbold, OH 43502 419.445.4733 or 877.447.2648 Fax 419.445.3304 Chassis Parts Diagram 27 and 44 Series MOTOR BRACE MI-12-4066 (LEFT) MI-12-4065 (RIGHT) LATCH BRACKET MI-12-4046 DRIVE WHEEL PI-06-0097 (Dirt Hog) PI-06-0095 (Dual Ag Left) PI-06-0096 (Dual Ag Right) G-PIN LOCK KIT PI-06-0094 (Turf Saver) 18080...
  • Page 11 595 E. Lugbill Rd. Archbold, OH 43502 419.445.4733 or 877.447.2648 Fax 419.445.3304 Wiring 27 and 44 Series PI-11-0149 PI-08-0052 PI-08-0053 PI-08-0055 (27) PI-08-0039 (27) PI-08-0051 PI-08-0057 (44) PI-08-0054 (44) S-DRIVE BOX HANDLE CONTROL BOX LOCATED ON CENTER LOCATED AT CENTER OF CHASSIS OF UPPER CONTROLS...

  • Page 12: Wiring Diagram

    595 E. Lugbill Rd. Archbold, OH 43502 419.445.4733 or 877.447.2648 Fax 419.445.3304 Wiring Diagram 27 and 44 Series...
  • Page 13 595 E. Lugbill Rd. Archbold, OH 43502 419.445.4733 or 877.447.2648 Fax 419.445.3304 Chassis Parts Diagram 32 Series Power Dump LIFTING ACTUATOR PI-11-0154 POWER DUMP BOTTOM MOUNT MAIN FRAME MI-12-4631 MI-12-4564 DRIVE WHEEL PI-06-0095 (Dual Ag Left) HANDLE FRAME PI-06-0096 (Dual Ag Right) MI-12-4538 RUBBER DUST GUARD MI-09-0412...
  • Page 14 595 E. Lugbill Rd. Archbold, OH 43502 419.445.4733 or 877.447.2648 Fax 419.445.3304 Chassis Parts Diagram 32 Series Power Dump HAIR PIN BATTERY PACK PI-01-0463 AXLE MOUNTING BRACKET MI-12-3568 BATTERY PACK PIN PI-01-0462 TRANSAXLE PI-08-0048 CASTER WHEEL ASSEMBLY PI-06-0055 LIFTING ACTUATOR PI-11-0154...
  • Page 15 595 E. Lugbill Rd. Archbold, OH 43502 419.445.4733 or 877.447.2648 Fax 419.445.3304 Wiring Diagram 32 Series Power Dump...
  • Page 16 595 E. Lugbill Rd. Archbold, OH 43502 419.445.4733 or 877.447.2648 Fax 419.445.3304 Chassis Parts Diagram Articulated 34 Series Power Dump LIFTING ACTUATOR PI-11-0154 ARTICULATED FRONT FRAME MI-12-4649 POWER DUMP BOTTOM MOUNT MI-12-4631 ARTICULATED CONNECTING JOINT MI-12-4674 DRIVE WHEEL PI-06-0095 (Dual Ag Left) ARTICULATED HANDLE PI-06-0096 (Dual Ag Right) FRAME...
  • Page 17 595 E. Lugbill Rd. Archbold, OH 43502 419.445.4733 or 877.447.2648 Fax 419.445.3304 Chassis Parts Diagram Articulated 34 Series Power Dump HAIR PIN BATTERY PACK PI-01-0463 AXLE MOUNTING BRACKET MI-12-3568 BATTERY PACK PIN PI-01-0462 TRANSAXLE PI-08-0048 LIFTING ACTUATOR PI-11-0154...
  • Page 18 595 E. Lugbill Rd. Archbold, OH 43502 419.445.4733 or 877.447.2648 Fax 419.445.3304 Wiring Diagram Articulated 34 Series Power Dump...
  • Page 19 595 E. Lugbill Rd. Archbold, OH 43502 419.445.4733 or 877.447.2648 Fax 419.445.3304 Transaxle Brake Lever BRAKE OVERRIDE LEVER (ONE PER AXLE) The brake lever allows you to override the electric brake when you need to push the cart manually, when loss of power had occurred.
  • Page 20 595 E. Lugbill Rd. Archbold, OH 43502 419.445.4733 or 877.447.2648 Fax 419.445.3304 Manual Override Bucket 32 and 34 Series Carts 8 cubic Hopper MI-12-4650 MI-12-4631 10 cubic Hopper MI-12-4632 MI-12-4631...
  • Page 21 595 E. Lugbill Rd. Archbold, OH 43502 419.445.4733 or 877.447.2648 Fax 419.445.3304 Tires WARNING: When disassembling the tires, you MUST remove air pressure first. Dual Ag 13x5.00-6 Super Lug Right Side (PI-06-0096) Dual Ag 13x5.00-6 Super Lug Left Side (PI-06-0095) Air Pressure: 31psi Turf Saver 13x5.00-6 (PI-06-0094) Air Pressure: 32psi...
  • Page 22 595 E. Lugbill Rd. Archbold, OH 43502 419.445.4733 or 877.447.2648 Fax 419.445.3304 Hoppers/Trays Capacity : 9cubic feet Outside Dimensions: 35-1/2”x62-1/4”x12-1/2” Capacity : 10cubic feet Outside Dimensions: 35-3/4”x44-3/4”x19-1/2” Capacity : 6cubic feet Outside Dimensions: 25-1/2”x54-1/4”x8-1/4” Capacity : 8cubic feet Outside Dimensions: 33-3/8”x44”x16” Capacity : 7cubic feet Capacity : 6cubic feet Outside Dimensions: 23-1/2”x35-1/4”x19-1/4”...
  • Page 23 595 E. Lugbill Rd. Archbold, OH 43502 419.445.4733 or 877.447.2648 Fax 419.445.3304 Side Dump SLOTTED HEX SCREW PI-01-0426 HAIR PIN SIDE DUMP FRAME PI-01-0463 MI-12-4525 PIVOT PLATE MI-15-0053 SHIM BLOCK MI-15-0044 LOCK PIN MI-04-0015 CLEVIS PIN PI-01-0462 MOUNTING PLATE MI-03-1888 LOCK PIN SPRING PI-14-0001 BOLT 1/2”x1-1/2”...
  • Page 24 595 E. Lugbill Rd. Archbold, OH 43502 419.445.4733 or 877.447.2648 Fax 419.445.3304 Trailer Dolly Attachment (fits on 27 and 44 series carts) TRAILER DOLLY MOUNT MI-12-46.35 2” SNAP PIN 06003 2” BALL MOUNT MI-12-4636 BOLT 3/8”x2-1/2” (PI-01-0027) NYLON NUT 3/8” (PI-01-0019) 2”...
