Summary of Contents for Granite 67243-75

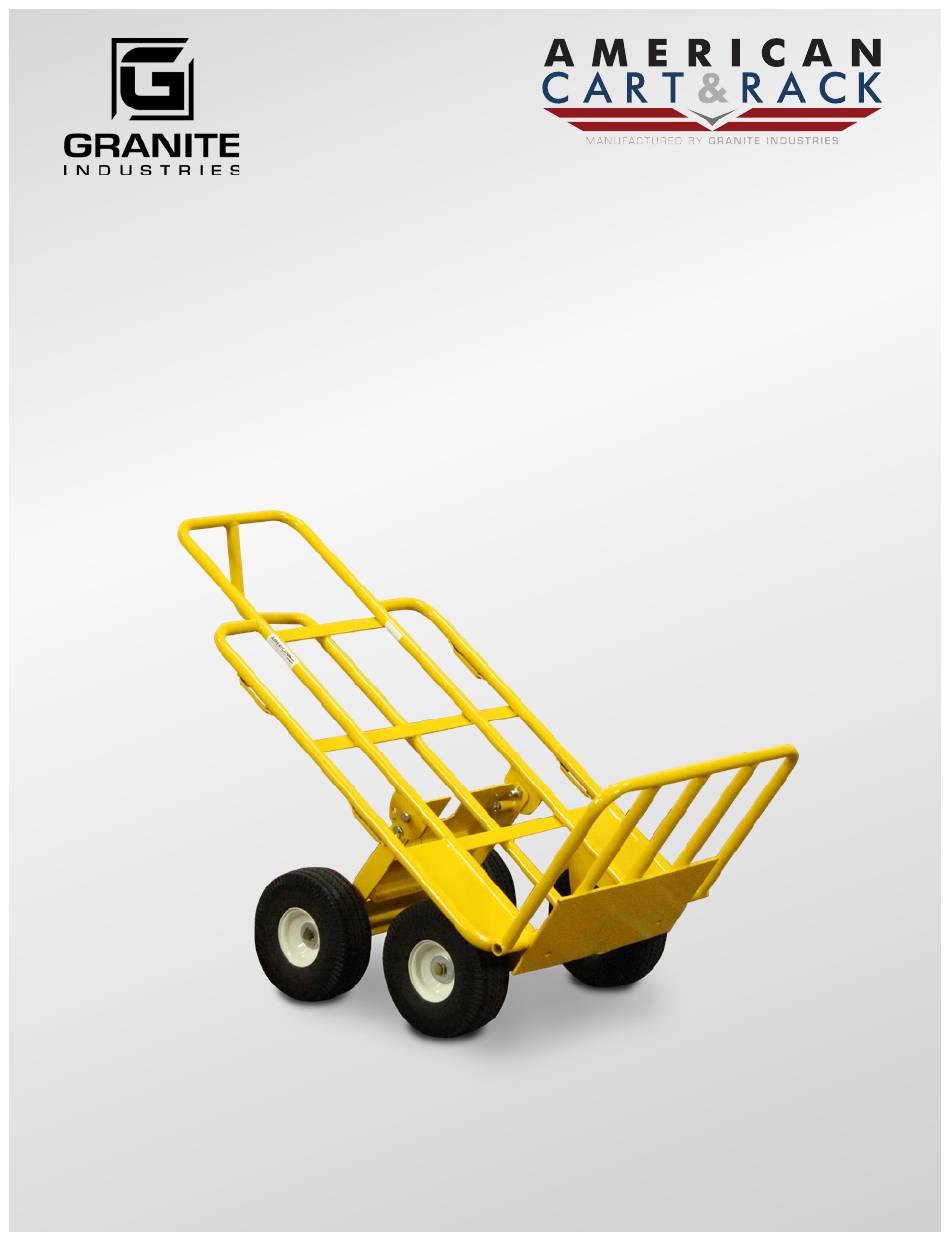

- Page 1 MULTI MOVER FOLD DOWN REAR WHEELS WITH INSTRUCTION MANUAL 67243-75 Revised: JULY 2017...
- Page 2 Granite Industries approval, may be returned to the factory STANDARD ON ALL to be repaired or replaced free of charge. (Granite AMERICAN CART PRODUCTS Industries will pay to ship replacement item(s) to the Made in the USA customer;...
- Page 3 SPECS Overall Dimensions: 24” 51” 36” Foot Plate: 23” 17” Weight: 84 lbs. Capacity: 750 lbs. *Measurements taken on 4 wheels with folding foot plate open...
- Page 4 PARTS DIAGRAM ITEM NO PART NO DESCRIPTION MI-12-4618 MULTI MOVER CART BODY PI-06-0115 10” STEEL HUB WHEEL 06003 2” SNAP PIN PI-01-0226 1-1/4” COTTER PIN PI-01-0121 1/2” NUT USE 3/4” WRENCH/SOCKET PI-01-0043 1/2” HEX BOLT (1-1/2” L) USE 3/4” WRENCH/SOCKET PI-01-0451 3/4”...
- Page 5 STEP 1: FRONT WHEEL ASSEMBLY COMPONENTS ITEM NO DESCRIPTION Multi Mover Cart Body 10” Flat Free Steel Hub Wheel 1-1/4” Cotter Pin 3/4” Washer TOOLS Needle Nose Pliers Insert the wheels onto the front axle located towards the bottom of the Multi Mover. The Slide the washer onto the axle.
- Page 6 STEP 2: REAR AXLE ASSEMBLY COMPONENTS ITEM NO DESCRIPTION 2” Snap Pin 1/2” Nut 1/2” Hex Bolt (1-1/2”L) Rear Axle Assembly TOOLS 3/4” Wrench 3/4” Socket Place the rear axle assembly over the frame. Insert the bolts through the cart body and The flat side should be against the cart rear axle assembly.
- Page 7 STEP 3: REAR WHEEL ASSEMBLY COMPONENTS ITEM NO DESCRIPTION Multi Mover Cart Body 10” Flat Free Steel Hub Wheel 1-1/4” Cotter Pin 3/4” Washer TOOLS Needle Nose Pliers Insert the wheels onto the rear wheel assembly. The offset side of the wheel Slide the washer onto the axle.
- Page 8 GRANITE INDUSTRIES 595 EAST LUGBILL ROAD 877-447-2648 SUPPORT@GRANITEIND.COM...
