MANTIS
INSTRUCTION MANUAL
67092-75
Revised: JULY 2017

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Mantis and is the answer not in the manual?

Questions and answers

Summary of Contents for Granite Mantis

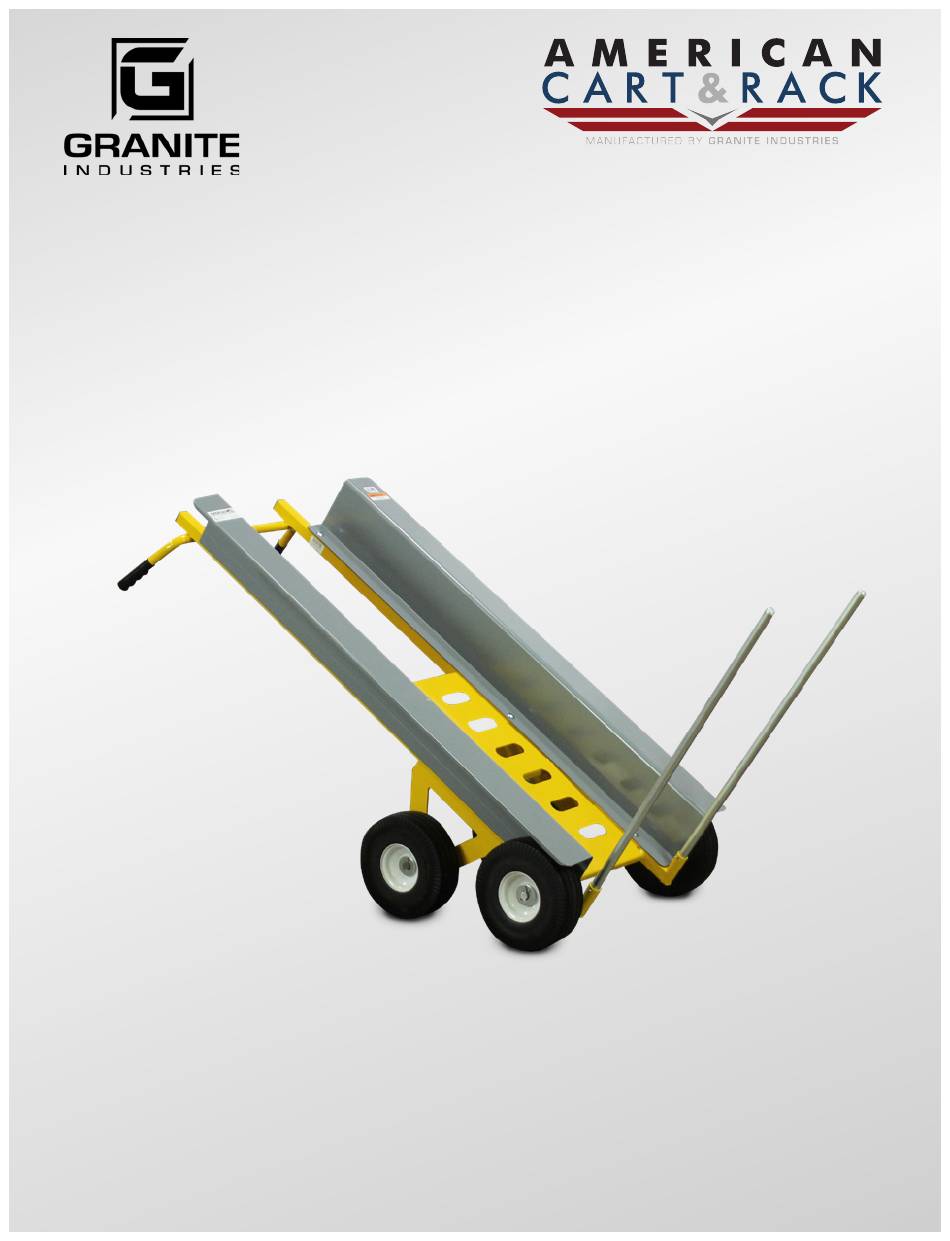

  • Page 1 MANTIS INSTRUCTION MANUAL 67092-75 Revised: JULY 2017...
  • Page 2 Granite Industries approval, may be returned to the factory STANDARD ON ALL to be repaired or replaced free of charge. (Granite AMERICAN CART PRODUCTS Industries will pay to ship replacement item(s) to the Made in the USA customer;...
  • Page 3 SPECS Dimensions:* W: 27” D: 74” H: 39” Forks: 34” Spaced 14 3/4” apart Weight: 88 lbs. Capacity: Capacity: 50 chairs 750 lbs. Typically Ships: UPS; some assembly required *Measurements taken on 4 wheels...
  • Page 4 PARTS DIAGRAM ITEM NO PART NO DESCRIPTION MI-04-0450 MANTIS FORK MI-08-0513 RIGHT MANTIS FENDER MI-08-0514 LEFT MANTIS FENDER PI-01-0158 3/8"CARRIAGE BOLT (1 3/4" L) PI-01-0226 1-1/4" COTTER PIN PI-01-0236 3/8"LOCK NUT USE 9/16” WRENCH/SOCKET PI-04-0108 1-1/4" SQUARE CAP PI-04-0109 HAND GRIP PI-01-0451 3/4"...
  • Page 5 STEP 1: INSTALL FENDERS COMPONENTS ITEM NO QTY DESCRIPTION Multi Mover Cart Body Right Mantis Fender Left Mantis Fender 3/8” Carriage Bolt 3/8” Lock Nut Cart Body TOOLS 9/16” Wrench/Socket With the cart resting on the axles, align one Insert the carriage bolts into the 3 holes.
  • Page 6 STEP 2: REAR WHEEL ASSEMBLY COMPONENTS ITEM NO DESCRIPTION 1-1/4” Cotter Pin 3/4” Washer 10” Offset steel hub wheel TOOLS Needle nose pliers Slide a 3/4” Washer onto rear axle followed by one of the steel hub wheels. Install a second 3/4” washer onto the wheel. The offset side of the wheel should be facing the cart body.
  • Page 7 STEP 3: FRONT WHEEL ASSEMBLY COMPONENTS ITEM NO DESCRIPTION 1-1/4” Cotter Pin 3/4” Washer 10” Offset steel hub wheel TOOLS Needle nose pliers Slide a 10” steel hub wheel onto the front axle. The offset side of the wheel should be Install a second 3/4”...
  • Page 8 Insert the forks into the fork pockets on the Slide a cotter pin through the fork pocket front of the cart. and fork. With a needle nosed pliers bend the ends of the cotter pin outward, locking the forks Your Mantis is now fully assembled. in place.
