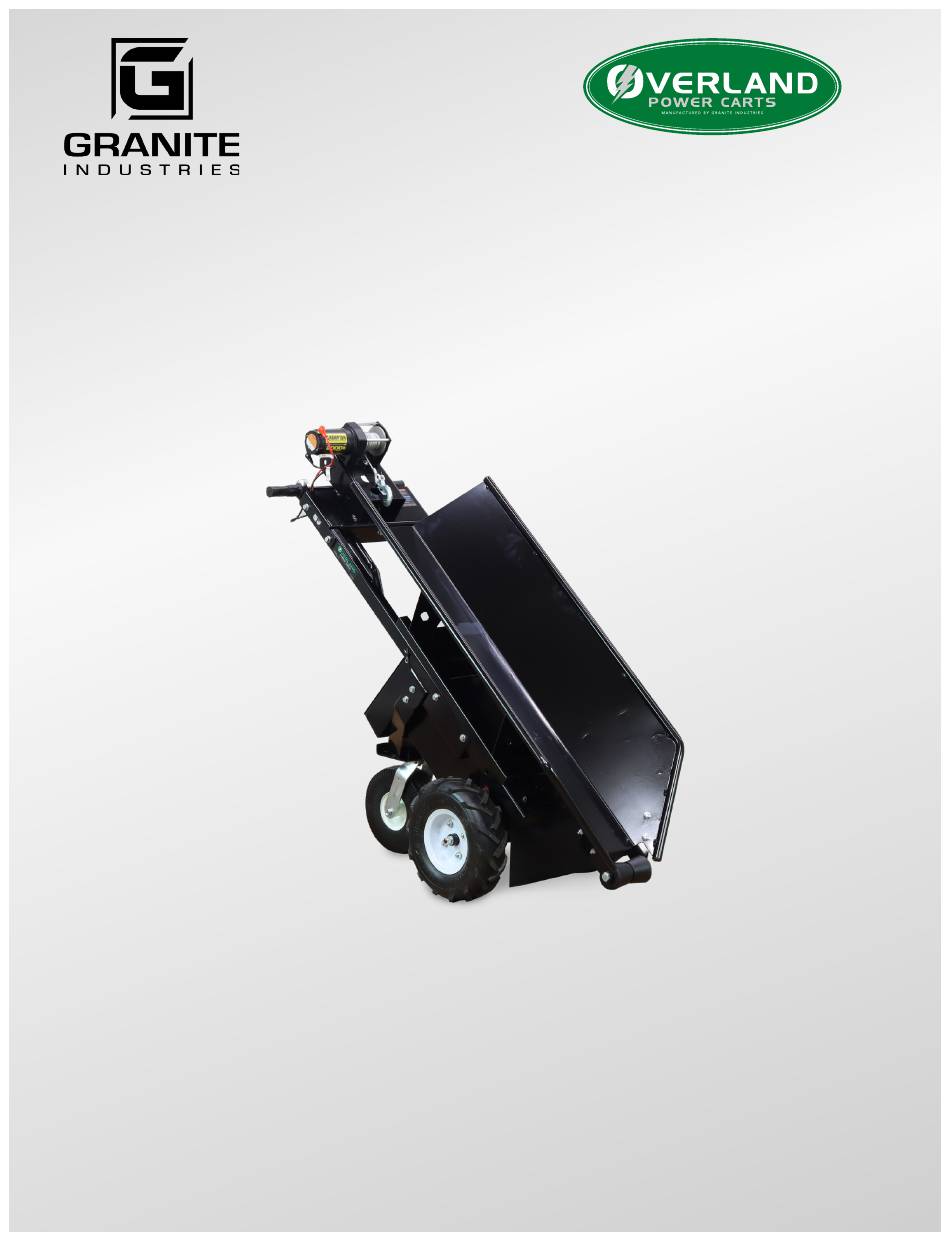

Granite VERLAND 70220 Owner's Manual

Electric powered carts

Advertisement

Quick Links

- OVERLANDCARTS.COM -
ELECTRIC POWERED CARTS
OWNER'S MANUAL
HOG HAULER CART
Part No: 70220
970202
Revised: MAR 2023

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VERLAND 70220 and is the answer not in the manual?

Questions and answers

Summary of Contents for Granite VERLAND 70220

  • Page 1 - OVERLANDCARTS.COM - ELECTRIC POWERED CARTS OWNER’S MANUAL HOG HAULER CART Part No: 70220 970202 Revised: MAR 2023...
  • Page 2: Table Of Contents

    US D752,308 S US D781,020 S US D752,837 S Overland carts are a part of the Granite Industries family. All To view more products from carts are manufactured by Granite Industries in Archbold, Ohio. Overland Carts scan the QR code with your phone or visit OverlandCarts.com...
  • Page 3: Cart Features

    Granite Industries is committed to making sure each Overland Cart meets your expectations. To ensure customer satisfaction, we offer a 15 day money back guarantee. Use the cart and see how much easier the cart makes your projects. If you’re not satisfied, simply contact Granite Industries at 877-447-2648 for a return authorization and details.
  • Page 4: Frequently Asked Questions

    The batteries are designed to last for 300-500 charge/discharge cycles, which translate into approximately 1-2 years. The batteries are common, and can be purchased from Granite, your local battery supplier, or on Amazon. Will tipping the unit hurt the batteries, electronics, or drive system? No.
  • Page 5: Charging Information

    FREQUENTLY ASKED QUESTIONS How do I identify the right and left tires? Our ag tires have a specific tread pattern and if you ever need to replace a tire, you need to identify them as right or left. To do so, stand in front of your cart, so you are looking at the hopper.
  • Page 6: Operating Instructions

    OPERATING INSTRUCTIONS SAFETY INFORMATION • Flat free semi pneumatic tires are not pressurized and do not have a valve stem. • Only use chargers and batteries issued by Overland Carts. Use of third party batteries or chargers may cause harm to the user and the cart.
  • Page 7 OPERATING INSTRUCTIONS DRIVING YOUR CART Once your cart is on, make sure your forward/reverse button is toggled upwards for forward. Twist the throttle towards you and the cart will begin moving forward. While driving your Overland Cart forward, stay directly behind the cart with both hands on the handles.
  • Page 8: Troubleshooting

    TROUBLESHOOTING Issue Possible Problem Solution Batteries are dead Charge the Overland Cart E-Stop is in the OFF position Pull e-stop out, to the ON position Unit is in sleep mode Cycle the unit OFF for a couple seconds, then back ON Cart is in freewheel mode (brake is Re-engage motor brake (see free wheel mode section) Cart will not run...
  • Page 9: Battery Information

    BATTERY INFORMATION IMPORTANT RECOMMENDATIONS • It is recommended to wear insulated gloves when handling batteries. • If equipment is to be stored for a long period of time, the batteries should be disconnected to avoid undue drain. • When replacing your batteries, fasten them tightly, but do not apply undue force to the terminals, or bend them. •...
  • Page 10: Winch Battery Replacement

    WINCH BATTERY REPLACEMENT (12v, 24 amp) TOOLS #1 or #2 Phillips Screwdriver You will notice one 12v, 24ah battery and Remove the four screws and washers from a charger inside of the box. This battery the battery box. supplies power for the winch only. Pull the battery out, loosen the screws and disconnect the wiring from the battery.
  • Page 11 WINCH BATTERY REPLACEMENT (12v, 24 amp) Reconnect the wires to the battery as shown below. Place the battery, charger and wires back into the box. Secure the lid in place with the 4 screws and washers you removed in step 3.
  • Page 12: Drivetrain Battery Replacement

    DRIVETRAIN BATTERY REPLACEMENT (24v, 24 amp) TOOLS #1 or #2 Phillips Screwdriver Lift the hog channel off of the cart and set Remove the pin from the rod holding the aside. Doing so will expose the battery box hog channel in place. for the cart.
  • Page 13 DRIVETRAIN BATTERY REPLACEMENT (24v, 24 amp) Install the new batteries. Use the diagram below to reconnect the wires to the battery.
  • Page 14: Parts Listing

    DRIVETRAIN BATTERY REPLACEMENT (24v, 24 amp) Reinstall the hog channel. Secure in place with the rod and pin PARTS LIST LARGE BATTERY BOX E-STOP BUTTON MI-12-6094 PI-08-0075 LARGE BATTERY BOX LID MI-12-6125 FWD / REV SWITCH PI-08-0145 WINCH ROCKER SWITCH PI-08-0067...
  • Page 15 PARTS LIST WINCH PI-11-0232 HOG CHANNEL ATTACHMENT MI-12-6047 CART FRAME MI-12-6046 SMALL BATTERY BOX LID MI-07-0916 DRIVE WHEEL CASTER WITH 10” WHEEL PI-06-0182 (Flat Free Single Ag Left) PI-06-0055 PI-06-0183 (Flat Free Single Ag Right)
  • Page 16 4"H x 11"W x 4"D PI-11-0215 12v 34A AGM Battery 13 lb 6.5"H x 7"W x 3"D *When looking from the front of the cart All Overland Carts are manufactured by: Granite Industries 595 East Lugbill Rd. Archbold, Ohio 43502 877-447-2648 OverlandCarts.com | GraniteInd.com...
