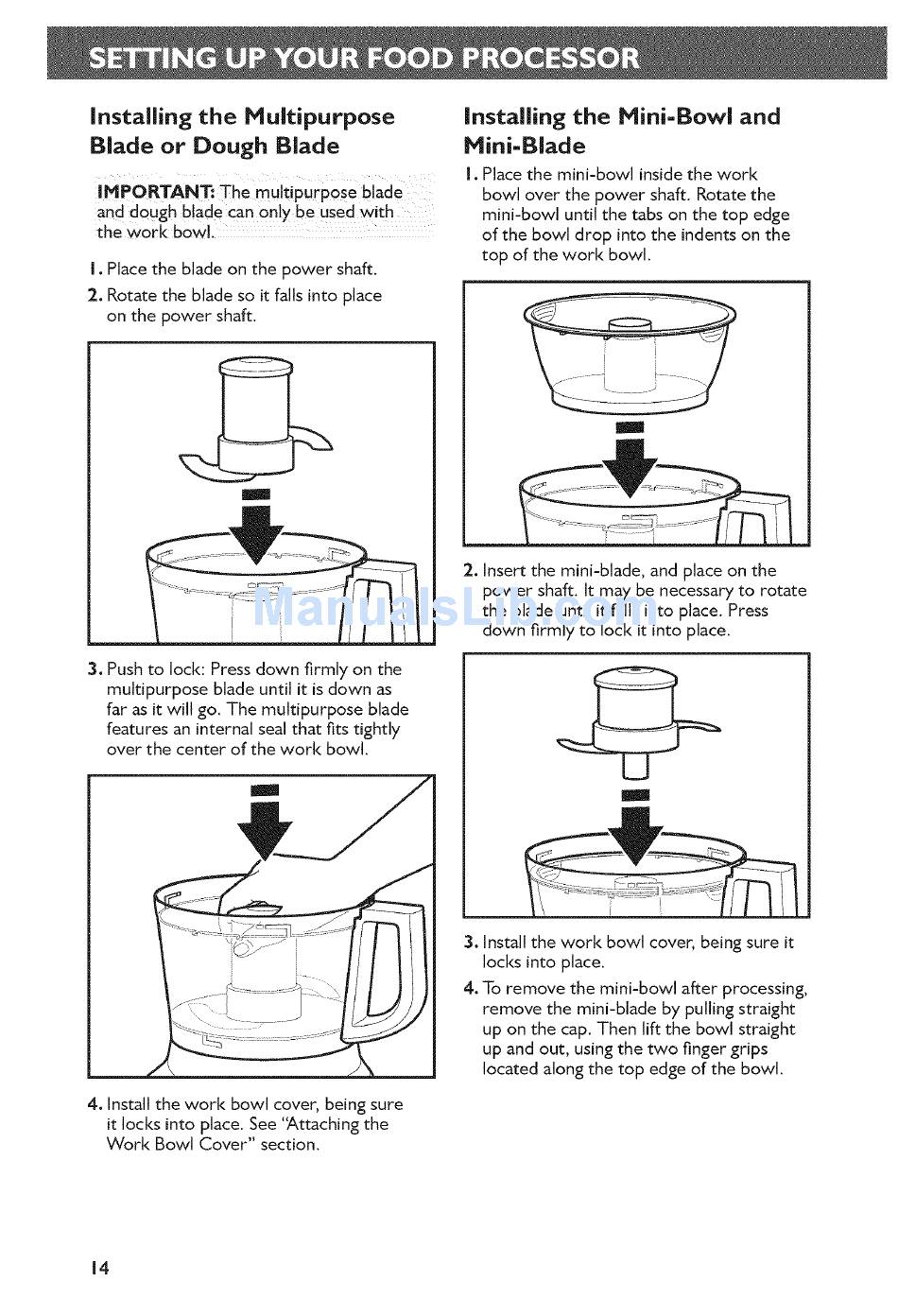

installing
the
Hultipurpose
Blade
or Dough
Blade
IHPORTANT:
The multipurpose
blade
anddough b!ade canonly beused
the work bowl.
I. Place the blade on the power shaft.
2. Rotate the blade so it falls into place
on the power shaft.
I
m
3. Push to lock: Press down firmly on the
multipurpose
blade until it is down as
far as it wilt go. The multipurpose
blade
features an internal seal that fits tightly
over the center of the work
bowl.
4. Install the work bowl cover, being sure
it locks into place. See '_ttaching
the
Work
Bowl Cover"
section.
Installing
the
Hini-Bowl
and
Hini=Blade
I. Place the mini-bowl
inside the work
bowl over the power shaft. Rotate the
mini-bowl
until the tabs on the top edge
of the bowl drop into the indents on the
top of the work bowl.
2. Insert the mini-blade,
and place on the
power shaft. It may be necessary to rotate
the blade until it falls into place. Press
clown firmly to lock it into place.
I
3. Install the work bowl cover, being sure it
locks into place.
4. To remove the mini-bowl
after processing,
remove the mini-blade
by pulling straight
up on the cap. Then lift the bowl straight
up and out, using the two finger grips
located along the top edge of the bowl.
14
