jbc DMVE-1A Manual

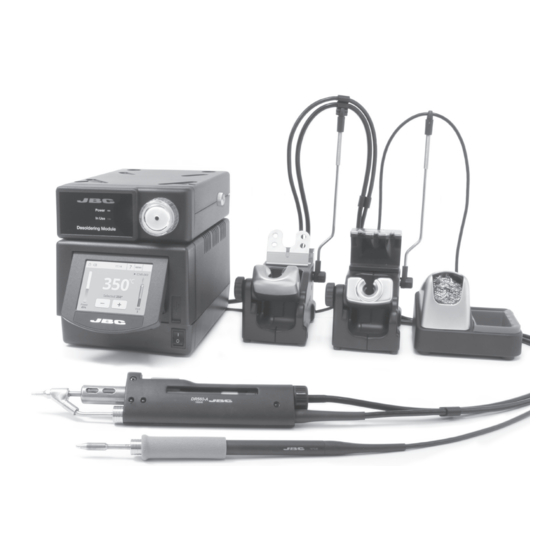

Dmve-a series premium 4 tools rework station with pneumatic pump
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
www.jbctools.com
Premium
4 Tools Rework station
with Pneumatic Pump
Ref. DMVE-A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DMVE-1A and is the answer not in the manual?

Questions and answers

Related Manuals for jbc DMVE-1A

Summary of Contents for jbc DMVE-1A

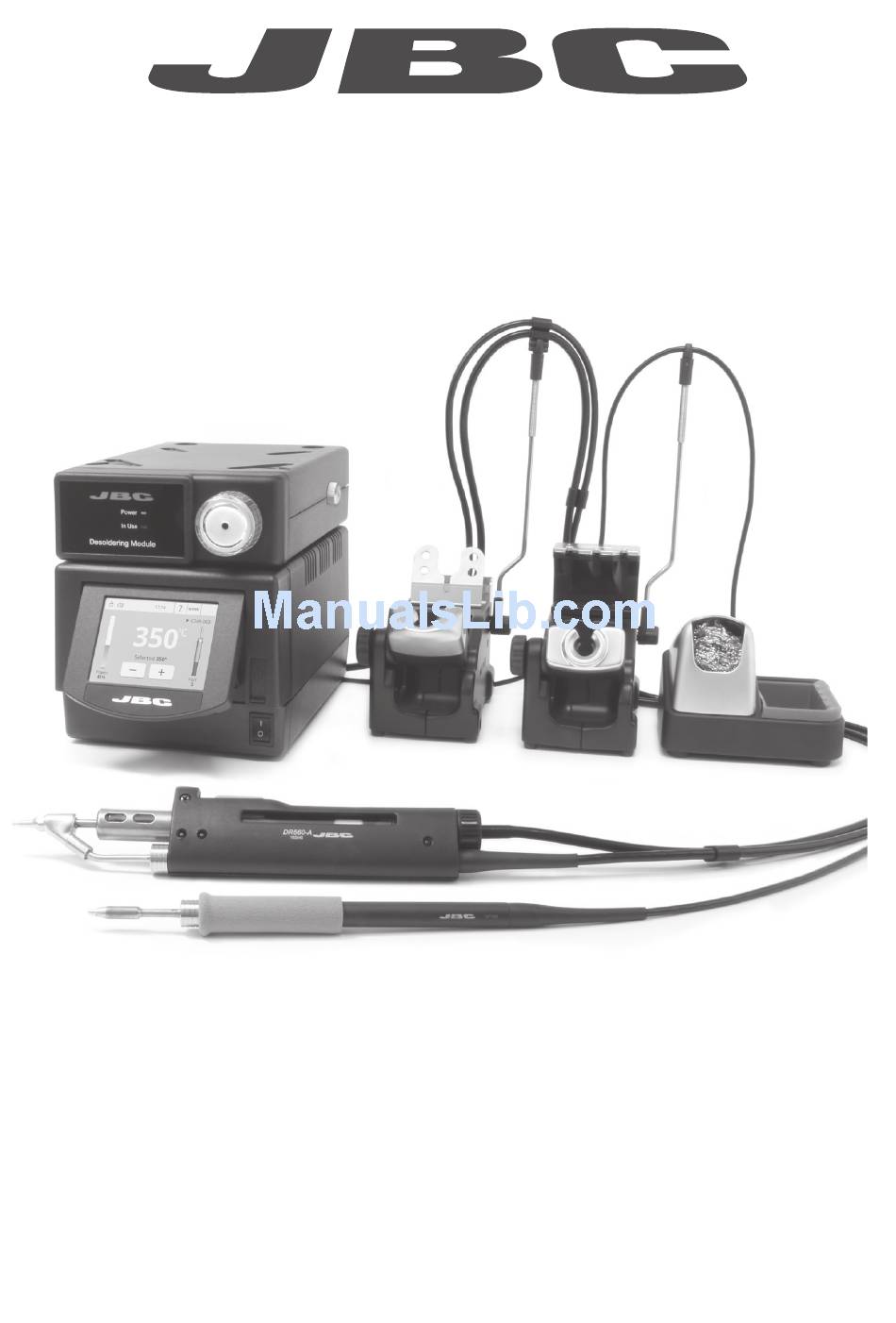

  • Page 1 www.jbctools.com Premium 4 Tools Rework station with Pneumatic Pump Ref. DMVE-A...

  • Page 2: Table Of Contents

    Packing List The following items should be included: DME Control Unit ....1 unit Pneumatic Desoldering Tip Cleaner..1 unit Ref. DME-1A (120V) Module ......1 unit Ref. CL9885 DME-2A (230V) Ref. MVE-A DME-9A (100V) General Purpose Stand ....1 unit Desoldering Stand ....
  • Page 3 w w w.jbctools.com DR560 Accessories Ref. 0010211 Tip cleaning set .......... 1 unit Long Tip Cleaning set ....... 1 unit Ref. 0965970 Ref. 0965760 Tips ......3 units Tin deposit ....1 unit Spanner ....... 1 unit Ref. C560005 Ref. 0812620 Ref.

  • Page 4: General Purpose Handle

    Features Work simultaneously with up to 2 tools and join each station port with 1 module + 1 pedal (Peripherals). Stand Cable Ref. 0011283 Equipotential connection RJ45 connector for LAN USB-B connector RJ12 connector for Robot Power Socket RJ12 connector for PSE Cartridge Ref.

  • Page 5: Pneumatic Desoldering Module

    w w w.jbctools.com USB-A connector 3.5” Color TFT Touch screen Tilt the display for easy reading Speaker Module Cable Ref. 0014874 Pneumatic Desoldering Module Ref. MVE-A To another peripheral To Pedal Ref. P-005 Air pressure (4-6 bar) Suction Filter Ref. 0821830...

  • Page 6: Ref. Dr-Sd

    Adjustable Stands Cable collector Keeps working area free of cable. Quick tip changer Quick tip changer Permits switching Holding tip system cartridges without for easy change. interrupting your work. Stand Stand Ref. AD-SD Ref. DR-SD Adjustable Adjustable tool holder cable Suits your collector work...

  • Page 7: Tip Cleaner

    w w w.jbctools.com Tip Cleaner Improve thermal transfer by cleaning the tip after each solder joint. Brass wool Sponge Ref. CL6210 Ref. S0354 Very effective cleaning The least harmful cleaning method. It leaves a small layer method. Keep the sponge damp of solder on the tip to prevent with distilled water when working oxidation between cleaning...
  • Page 8 T245 Changing Cartridges Save time and change cartridges safely without switching the station off. 1. Removing 2. Inserting 3. Fixing Place the handle in the Place the handle on top of Use the holes for fixing the extractor and pull to the new cartridge and press cartridge* as follows: remove the cartridge.
  • Page 9 w w w.jbctools.com DR560 Changing Tips This operation should be done while the tip is hot, not below 250°C, so that any tin left inside is in molten state. 250ºC minimum 1. Removing Unscrew the tip using the spanner supplied. 2.
  • Page 10 DR560 Changing the Heating Element To perform this operation, turn off the station or disconnect the tool. 1. Loosening The deposit lid needs to be loosened. 2. Removing Loosen the screw as shown and remove the Heating Element. 3. Placing Place the new Heating Element and follow the steps conversely.
  • Page 11 w w w.jbctools.com DR560 Tin Deposit Cleaning 1. Removing the lid 2. Cleaning Check internal joint Remove the coil to clean the inside of the deposit with the stick supplied. Check filter The lid must be removed with the DR560 in The filter and internal joint must be checked vertical position.
  • Page 12 DR560 Tip Care The intake tube should be periodically cleaned by the largest rod. Important DO NOT press the vacuum pump button while tinning the desoldering tip, as the fumes given off by the flux would quickly block the ducts and the air filter. Desoldering process Use a tip with a larger diameter than the pad to achieve maximum aspiration and thermal efficiency.
  • Page 13 w w w.jbctools.com MVE Initial Setup After connecting the pneumatic desoldering module (MVE-A), enter the Peripherals Menu and select the port which you want to join with the module. Peripherals 17:14 1. Select the module from the list of Peripherals Port 2-DR peripheral connections.
  • Page 14 Operation The JBC Exclusive Heating System Our revolutionary technology is able to recover tip temperature extremely quickly. It means the user can work at a lower temperature and improve the quality of soldering. The tip temperature is further reduced thanks to the Sleep and Hibernation modes which increase the tip life by 5.
  • Page 15 w w w.jbctools.com Work Screen The DME-A offers an intuitive user interface which provides quick access to the station parameters. Station Information Help for each parameter Station Lock 17:14 MENU PIN required Cartridge for unlocking C245-003 in use Introduce the ºC reference for more precise...
  • Page 16 Menu Screen Select any option and press the station information button to display each parameter description. Adjust tool settings for each port Join station ports with modules and pedals 17:14 Personalize Registers total the station: and partial Station name, PIN hours for each activation, Screen port: work, sleep,...
  • Page 17 w w w.jbctools.com Cartridge Adjustment Insert the cartridge model and the station will recognize its characteristics (size and shape) to provide more accurate temperature readings. 17:14 Tools T245 - port 3 After connecting the tool, Cartridge Adjust C245-003 introduce the last 3 reference Temperature adjust 0ºC...
  • Page 18 Process analysis Optimize your production after analysing the information provided by the graphics. By pressing Graphics in the Utilities MENU, temperature and power figures in real time are displayed for each port. This helps you decide how to adjust your process or which tip to use to obtain the best quality soldering.
  • Page 19 Remotely manage and monitor as many stations as your PC can handle. 1. Download the JBC Manager software and the user manual from www.jbctools.com/manager.html 2. Connect the stations via USB-B or LAN (RJ45) and the PC will automatically detect them.
  • Page 20 Increase x4 your DME’s possibilities Centralize control of 3 PSE Power Supply Units in a single DME and work with as many as 16 tools simultaneously. 1. Connect the DME to the PSE Power Supply Units via the PS connector (RJ12). 2.
  • Page 21 w w w.jbctools.com Working with Robots Manage and monitor the station using a Robotic system. 1. Connect the tool to the station port by means of the CHB-A Converter. 2. Connect your Robot system to the station’s Robot connector (RJ12). DB9-RJ12 Adapater available on request (Ref: 0013772).
  • Page 22 If necessary use a tool to lever it off. and replace it in the station. - Replace any defective or damaged pieces. Use original JBC spare parts only. - Repairs should only be performed by a JBC authorized technical service.
  • Page 23 w w w.jbctools.com Safety It is imperative to follow safety guidelines to prevent electric shock, injury, fire or explosion. - Do not use the units for any purpose other than soldering or rework. Incorrect use may cause fire. - The power cord must be plugged into approved bases. Be sure that it is properly grounded before use.

  • Page 24: Specifications

    Specifications 4 Tools Rework station with Pneumatic Pump DMVE-1A / DMVE-2A / DMVE-9A - Total weight: 10.1 Kg (22.3 lb) DME-1A 120V 50/60Hz. Input fuse: 6A. Output: 23.5V DME-2A 230V 50/60Hz. Input fuse: 3.15A. Output: 23.5V DME-9A 100V 50/60Hz. Input fuse: 8A. Output: 23.5V - Weight: 4.6 Kg (10 lb)
  • Page 25 w w w.jbctools.com...
  • Page 26 Exploded View · Despiece · Explosionszeichnung...
  • Page 27 w w w.jbctools.com...
  • Page 28 Warranty JBC’s 2 year warranty covers this equipment against all manufacturing defects, including the replacement of defective parts and labour. Warranty does not cover product wear due to use or mis-use. In order for the warranty to be valid, equipment must be returned, postage paid, to the dealer where it was purchased.

This manual is also suitable for:

Dmve-9aDmve-2aMve-a
