www.jbctools.com

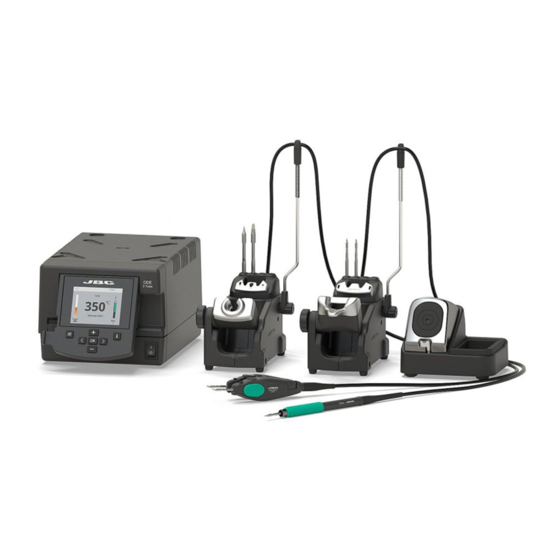

INSTRUCTION MANUAL
2 Tools DDE
Precision Station
Ref. DDPE-QB

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DDPE-QB and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for jbc DDPE-QB

Summary of Contents for jbc DDPE-QB

  • Page 1 INSTRUCTION MANUAL 2 Tools DDE Precision Station Ref. DDPE-QB...

  • Page 2: Packing List

    Ref. S0354 Ref. CL6210 Stand Cable ....2 units Power cord ..... 1 unit Manual .......1 unit Ref. 0011283 Ref. 0024080 (230V) Ref. 0025139 0023717 (120V) 0024077 (100V) w w w.jbctools.com INSTRUCTION MANUAL 2 Tools DDE Precision Station Ref. DDPE-QB...
  • Page 3 w w w.jbctools.com Connections Equipotential connection Stand Cable Ref. 0011283 USB-B connector RJ12 connector for Robot Peripherals connector Power Socket Precision Adjustable Purpose Micro Handle Tweezers Ref. T210-A Ref. AM120-A Stand Stand Ref. AD-SE Ref. AM-SA USB-A connector 2,8” Color TFT screen Tilt the display for easy reading Main Switch...
  • Page 4 DDE Work Screen The DDE offers an intuitive user interface which provides quick access to station parameters. Default PIN: 0105 Status bar 17:14 17:14 Tool T245 T470 in use ºC ºC Power Temp. Levels Temp. Levels indicator Power Power Port Port Displayed if temperature...

  • Page 5: Advanced Functionalities

    Insert a USB flash drive into the USB-A connector to save your soldering process in csv format. Files Station update Download the JBC Update File from www.jbctools.com/software.html Insert the USB flash drive with the Update file downloadedto the station. System notifications The following icons will be displayed on the screen’s status bar.
  • Page 6 MSE/MVE Initial Set up (Ref. MSE-A / Ref. MVE-A)* 1. After connecting the module, enter the 17:14 Peripherals Menu and select the port which you want to join with the module. Peripherals Port 2-DR 2. Select the module from the list of peripheral Pedal None Module...

  • Page 7: Operation

    Operation The JBC Most Efficient Soldering System Our revolutionary technology is able to recover tip temperature extremely quickly. It means the user can work at a lower temperature and improve the quality of soldering. The tip temperature is further reduced thanks to the Sleep and Hibernation modes which increase up to 5 times the life of the tip.
  • Page 8 Changing the Grips D-Q: D-Q: Easily replace the Grips for T210-A (0018658) using the slip-on tabs. 1. Inserting tabs 2. Inserting handle 3. Removing tabs tabs new grip Put the slide-on tabs into the Push the grip with the tabs To remove the tabs, hold the new grip.
  • Page 9 w w w.jbctools.com Quick Tip Changer Save time and change cartridges safely without switching the station off. Be careful, the cartridges may be hot, when placing them in the storage rack. 1. Removing 2. Inserting 3. Fixing Place the cartridge in the Place the handle on top Use the holes to fix the extractor and pull the handle...
  • Page 10 AM120 Changing cartridges 1. Removing 2. Positioning Place the cartridges in the extractor and pull Place the tweezers on top of the new cartridge the tweezers to remove them. and slightly press down. 3. Inserting *Important It is essential to insert the cartridges as far as the mark for a proper connection.

  • Page 11: Tip Cleaner

    w w w.jbctools.com Tip Cleaner Improve thermal transfer by cleaning the tip after each solder joint. Brass wool Ref. CL6210 Sponge Very effective cleaning Ref. S0354 method. It leaves a small layer of solder on the tip to The least harmful prevent oxidation between cleaning method.
  • Page 12 DDE-C Compatibility Basic working system Peripherals Control Cartridge MSE-A / Stand Tool MNE-A FSE-A P-005 Unit Range MVE-A T210-A C210 AD-SE T245-A C245 T210-NA* C210 DN-SE T245-NA* C245 AP-SE AP250-A C250 DDE-C PA-SE PA120-A C120 HT-SE HT420-A C420 DS-SE DS360-A C360 DR-SE DR560-A...

  • Page 13: Maintenance

    If necessary use a tool to lever it off. and replace it in the station. - Replace any defective or damaged pieces. Use original JBC spare parts only. - Repairs should only be performed by a JBC authorized technical service.
  • Page 14 Safety It is imperative to follow safety guidelines to prevent electric shock, injury, fire or explosion. - Do not use the units for any purpose other than soldering or rework. Incorrect use may cause fire. - The power cord must be plugged into approved bases. Be sure that it is properly grounded before use.
  • Page 15 w w w.jbctools.com 有害物质含量表 产品中有害物质的名称及含量 有害物质 部件名称 六价铬 多溴联苯 多溴二苯醚 铅(Pb) 汞(Hg) 镉(Cd) (Cr(VI)) (PBB) (PBDE) 烙铁头 手柄 电源线 主机 电源插座 保险丝 主开关 电位连接 变压器 线路板 O 表示该有害物质在该部件所有均质材料中的含量均在GB/T 26572 规定的限量要求以下。 X 表示该有害物质至少在该部件的某一均质材料中的含量超出GB/T 26572 规定的限量要求。...

  • Page 16: Specifications

    In order for the warranty to be valid, equipment must be returned, postage paid, to the dealer where it was purchased. Get 1 extra year JBC warranty by registering here: https://www.jbctools.com/productregistration/ within 30 days of purchase. This product should not be thrown in the garbage.
