Summary of Contents for jbc DIR-D

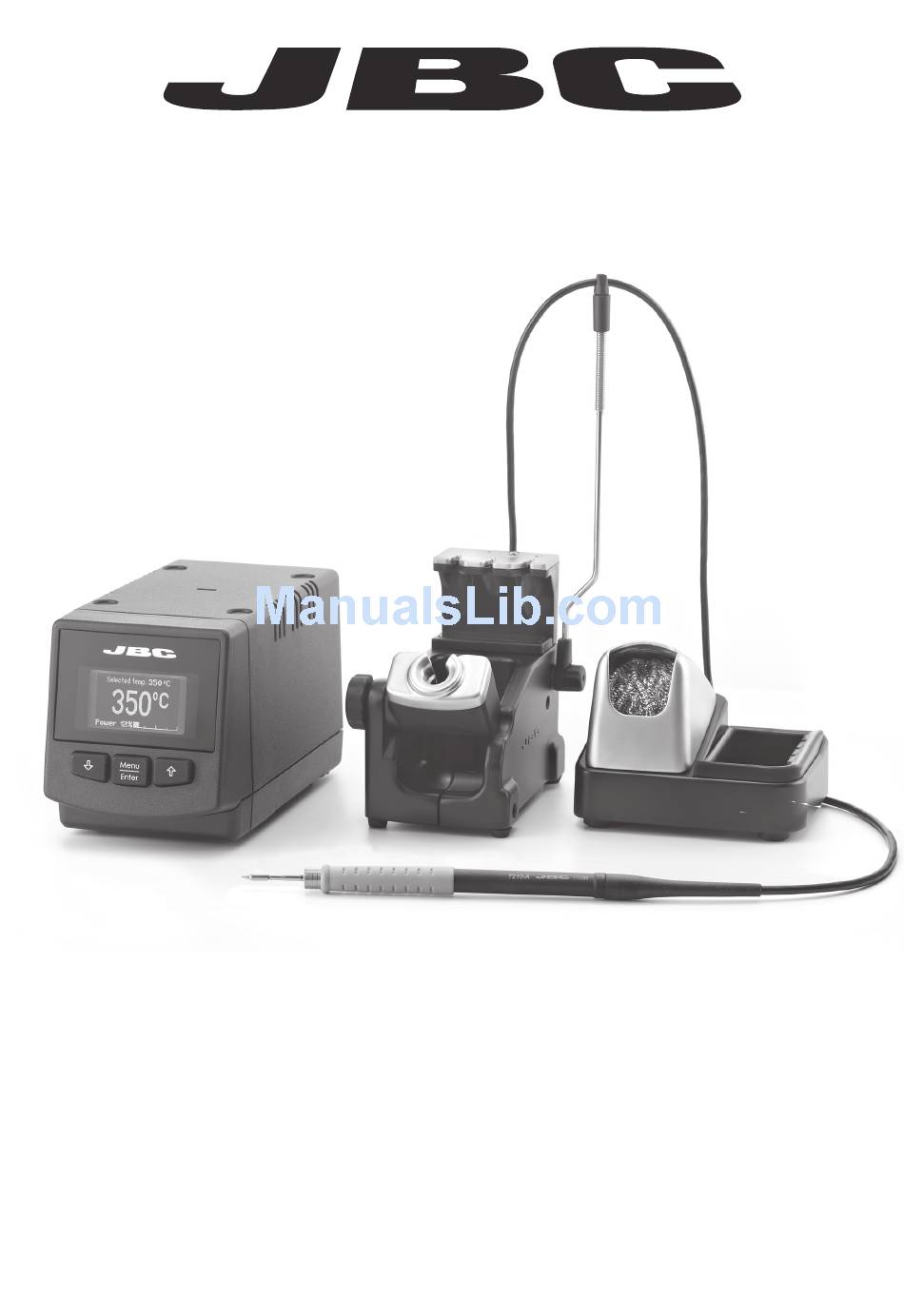

- Page 1 English Premium Precision Soldering station Ref. DIR-D...
-
Page 3: Packing List

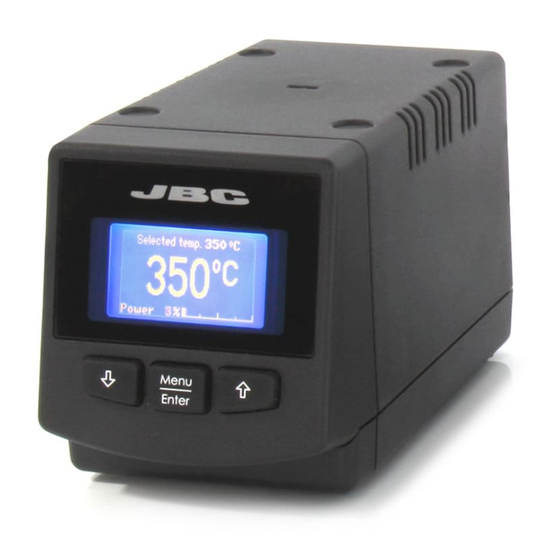

Cartridge ....... 1 unit Ref. CL6166 Ref. S0354 Ref. C210001 Stand Cable ....1 unit Power Cord ....1 unit Manual ......1 unit Ref. 0011283 Ref. 0009417 (100V/120V) Ref. 0014652 0009401 (230V) w w w.jbctools.com Premium Precision Soldering station Ref. DIR-D... - Page 4 Features DI Control Unit Ref. DI-1D (120V) DI-2D (230V) DI-9D (100V) Stand cable Ref. 0011283 Desoldering Pump connector Equipotential connector Power Socket Main switch Fuse Stand Ref. AD-SD Precision Handle Cartridge Ref. T210-A Ref. C210001...
-
Page 5: Usb Connector
Update the station software via USB connection: Cable USB AB Updater JBC Manager www.jbctools.com/manager.html Manage and monitor as many stations as your Windows PC can handle by using the JBC Manager. You can export data to other PCs. any JBC station Cable USB AB Manager Settings... -
Page 6: Adjustable Stand
Adjustable Stand Cable collector Keeps work area free of cable. Quick tip changer The cartridge extractor / inserter system permits switching cartridges without interrupting your work. Adjustable tool holder Adjustable cable collector Suits your work position. - Page 7 w w w.jbctools.com ESD Tip Cleaner Improve thermal transfer by cleaning the tip after each solder joint. Brass wool Sponge Ref. CL6210 Ref. S0354 Very effective cleaning The least harmful cleaning method. It leaves a small layer method. Keep the sponge damp of solder on the tip to prevent with distilled water when working oxidation between cleaning...
- Page 8 Compatible Handles For general use Works with C245 Cartridge range General Purpose Handle with Soft Thermal Insulator grip Ref. T245-A Blue General Purpose Handle Blue grip to quickly distinguish Ref. T245-PA from other handles Non-slip Handle Ref. T245-B Non-slip and soft touch Soft Thermal Insulator Handle Ref.
- Page 9 w w w.jbctools.com For precision use Works with C210 Cartridge range Precision Purpose Handle Ref. T210-A Blue Precision Handle Blue grip to quickly distinguish Ref. T210-PA from other handles For greater demands Important: Only work with C245 cartridges when used with a CD station. For intensive soldering jobs requiring continued high thermal power.
-
Page 10: Changing Cartridges
It is essential to insert the cartridges as far as the mark for a proper connection. Mark Compatible cartridges The DIR-D works with T210 handles and C210 cartridges. Find the model that best suits your soldering needs in www.jbctools.com ø 3,5 ø... -
Page 11: Operation
Operation The JBC Exclusive Heating System Our revolutionary technology is able to recover tip temperature extremely quickly. It means the user can work at a lower temperature and improve the quality of soldering. The tip temperature is further reduced thanks to the Sleep and Hibernation modes which increase the tip life by 5. -
Page 12: Process Control
Process Control Work Screen Displays a specific fixed temp. Fixed temp. 3 5 0 Shown when you have Levels ºC 2 7 0 3 5 0 4 0 0 selected temp. levels. Selected temp. 3 5 0 The work screen provides useful information of tool status in real time. -
Page 13: Maintenance
1. Remove the fuse by pulling the black cap. If necessary use a tool to lever it off. replace it in the station. - Replace any defective or damaged pieces. Use original JBC spare parts only. - Repairs should only be performed by a JBC authorized technical service. - Page 14 Safety It is imperative to follow safety guidelines to prevent electric shock, injury, fire or explosion. - Do not use the equipment for any purpose other than soldering or rework. Incorrect use may cause fire. - The power cord must be plugged into approved bases. Be sure that it is properly grounded before use.
-
Page 15: Exploded View
w w w.jbctools.com Exploded View... -
Page 16: Specifications
- USB connector station-PC Complies with CE standards ESD protected housing “skin effect” Warranty JBC’s 2 year warranty covers this equipment against all manufacturing defects, including the replacement of defective parts and labour. Warranty does not cover product wear due to use or mis-use.
