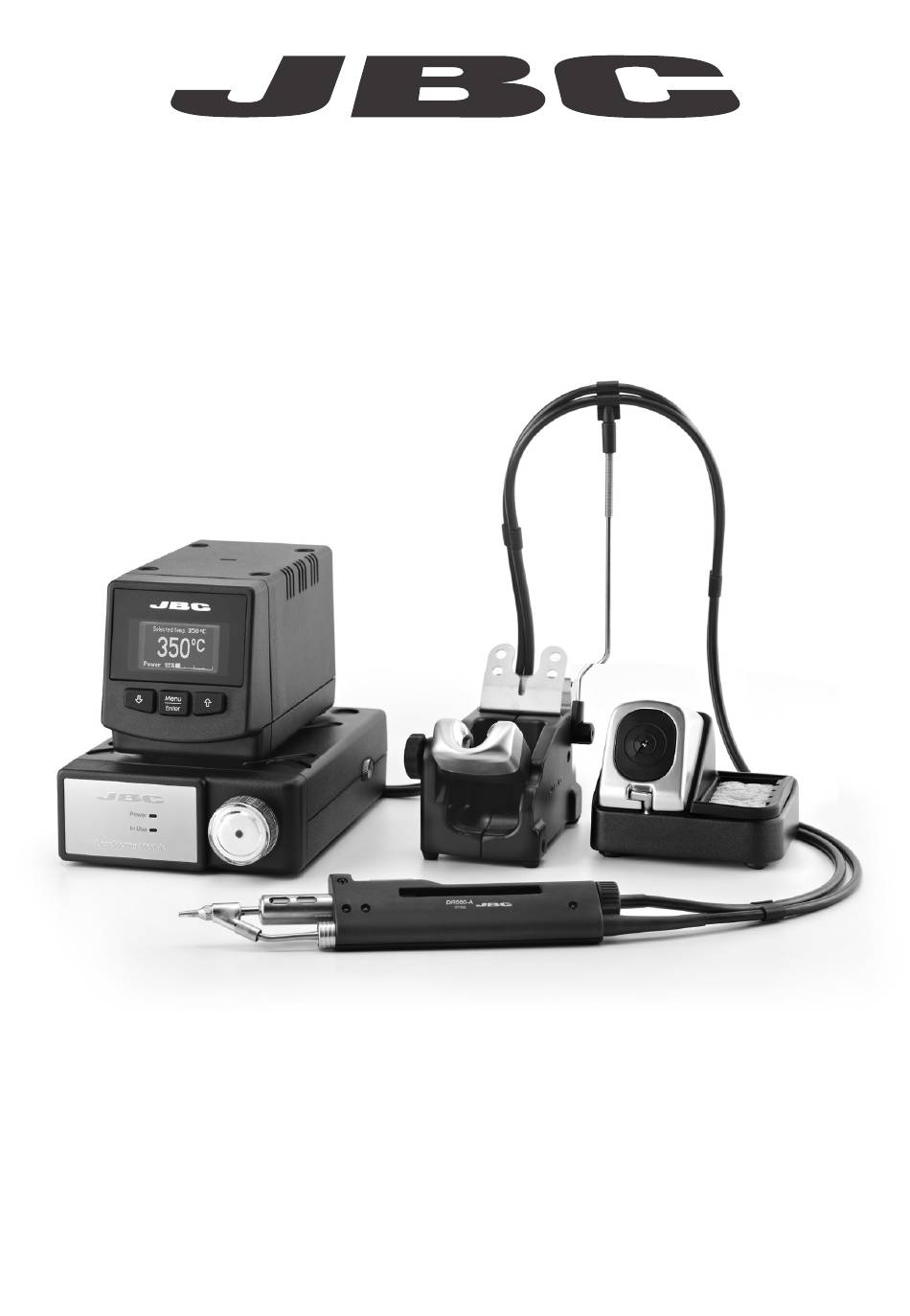

- Page 1 www.jbctools.com Premium Desoldering station with Pneumatic Pump Ref. DIV-D...
-
Page 2: Packing List
Packing List The following items should be included: DI Control Unit ..........1 unit Pneumatic Desoldering Module ... 1 unit Ref. DI-1D (120V) Ref. MV-A DI-2D (230V) DI-9D (100V) Desoldering Iron ... 1 unit Stand ........ 1 unit ESD Tip Cleaner ... 1 unit Ref. - Page 3 w w w.jbctools.com DR560 Accessories Ref. 0010211 Tip cleaning set ........1 unit Long Tip Cleaning set ....... 1 unit Ref. 0965970 Ref. 0781137 Tips ......3 units Spanner ...... 1 unit Glass solder Ref. C560005 (x1) collector ...... 1 unit Ref.
- Page 4 Features DI Control Unit Ref. DI-1D (120V) DI-2D (230V) DI-9D (100V) Stand Cable Equipotential Ref. 0011283 connection Fuse Module Cable Main Power Ref. 0010207 Switch Socket Desoldering Iron Ref. DR560-A Pneumatic Stand Desoldering Ref. DR-SD Module Ref. MV-A Suction Filter Air pressure range Ref.
- Page 5 w w w.jbctools.com Compatibility Select the equipment that best suit your soldering or desoldering needs. Basic working system Peripherals Control Cartridge MS-A FS500-1A Stand Tool MN-A P-005 Unit Range MV-A FS500-2A T210-A C210 AD-SD T245-A C245 T470-A C245 T210-NA* C210 T245-NA* DN-SE C245...
-
Page 6: Maintenance
If necessary use a tool to lever it off. and return it to the station. Fuse - Replace any defective or damaged pieces. Only use original JBC spare parts. - Repairs should only be performed by a JBC authorized technical service. - Page 7 w w w.jbctools.com Safety It is imperative to follow safety guidelines to prevent electric shock, injury, fire or explosion. - Do not use the units for any purpose other than soldering or rework. Incorrect use may cause fire. - The power cord must be plugged into approved bases. Be sure that it is properly grounded before use.
-
Page 8: Exploded View
Exploded View... - Page 9 w w w.jbctools.com...
- Page 10 有害物质含量表 产品中有害物质的名称及含量 有害物质 部件名称 六价铬 多溴联苯 多溴二苯醚 铅(Pb) 汞(Hg) 镉(Cd) (Cr(VI)) (PBB) (PBDE) 烙铁头 手柄 电源线 主机 电源插座 保险丝 主开关 电位连接 变压器 线路板 O 表示该有害物质在该部件所有均质材料中的含量均在GB/T 26572 规定的限量要求以下。 X 表示该有害物质至少在该部件的某一均质材料中的含量超出GB/T 26572 规定的限量要求。...
-
Page 11: Specifications
w w w.jbctools.com Specifications Premium Desoldering station with Pneumatic Pump DIV-1D / DIV-2D / DIV-9D - Total weight: 5,6 kg (12.3 lb) DI-1D 120V 50/60Hz. Input fuse: 2A. Output: 23.5V. DI-2D 230V 50/60Hz. Input fuse: 1A. Output: 23.5V. DI-9D 100V 50/60Hz. Input fuse: 2.5A. Output: 23.5V. - Weight: 2,153 kg (4.74 lb) - Dimensions:... - Page 12 Warranty JBC’s 2 year warranty covers this equipment against all manufacturing defects, including the replacement of defective parts and labour. Warranty does not cover product wear or misuse. In order for the warranty to be valid, equipment must be returned, postage paid, to the dealer where it was purchased.
