White Knight 44AW Service Manual

Air vented tumble dryer wiring diagram exploded views parts list
Hide thumbs
1
2
3
4
5
6
7

Advertisement

Table of Contents

SERVICE MANUAL
Air Vented Tumble Dryer - UK
White Knight - 44AW
0312 44A 15000
Wiring Diagram
Exploded Views
Parts List
January 2007

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 44AW and is the answer not in the manual?

Questions and answers

TIM
March 17, 2025

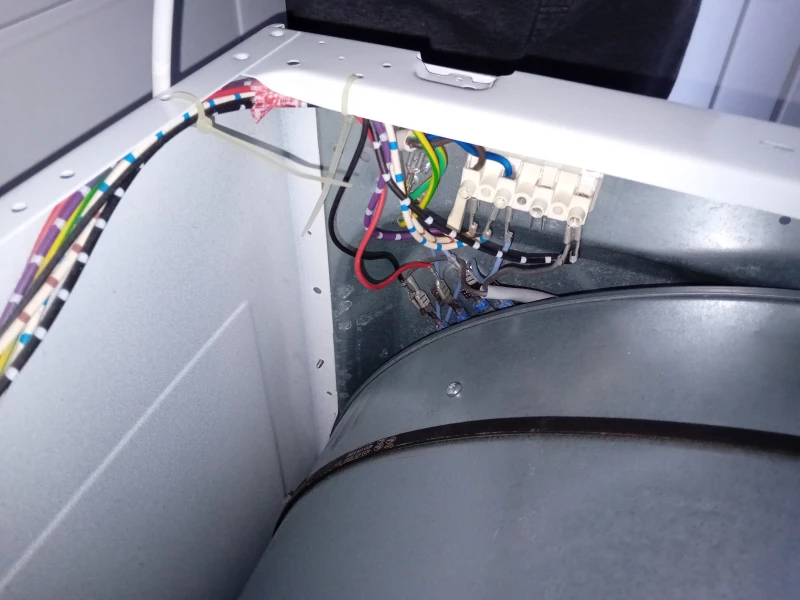

Hi, I've repaired a white knight 44aw but in doing so the wires came off the terminal block. I don't suppose you have the sequence for the wires do you? Help would be greatly appreciated. The wires are definitely wrong as it's blowing fuses. There is no mention of a white and purple wire on the wiring diagram. Thanks.

User image 67d88d5fb500e
0
1 comments:
Mr. Anderson
March 17, 2025

The wiring diagram for the White Knight 44AW indicates the terminal block (TB) connections as follows:

1. TB-L
2. TB-N
3. TB-4

Additionally, the wire color codes are:
- A - Black
- B - Brown
- C - Red
- G - Blue

The specific sequence for wiring the terminal block should follow the provided terminal labels and corresponding wire colors in the diagram.

This answer is automatically generated

0

Related Manuals for White Knight 44AW

Summary of Contents for White Knight 44AW

  • Page 1 SERVICE MANUAL Air Vented Tumble Dryer - UK White Knight - 44AW 0312 44A 15000 Wiring Diagram Exploded Views Parts List January 2007...

  • Page 2: Exploded View

    White Knight 44AW - Air Vented Tumble Dryer - Exploded View 1 235a 203a 367...
  • Page 3 White Knight 44AW - Air Vented Tumble Dryer - Exploded View 2...
  • Page 4 White Knight - Air Vented Tumble Dryer - Exploded View 3 445a 447a...

  • Page 5: Wiring Diagram

    Wiring Diagram 1.25 EC Timer TB-L Mains Cable TB-N Timer Connections HE-SW EX-TH IN-TH A B C 0.75 0.75 TB-4 Wire Colour Code Component Code Black Terminal Block Brown Door Switch Motor Orange EX-TH Exhaust Thermostat Yellow IN-TH Inlet Thermostat Green Heater Blue...

  • Page 6: Spare Parts List

    White Knight 44AW AIR VENTED TUMBLE DRYER - SPARE PARTS LIST ITEM DESCRIPTION CODE EXPLODED VIEW Motor & 8uf Capacitor Assembly 4213 092 25611 8uf Capacitor 4213 078 49401 Drive Belt 4213 092 18601 Mains Cable & Plug 4213 076 35123...
  • Page 7 White Knight 44AW AIR VENTED TUMBLE DRYER - SPARE PARTS LIST 4213 077 40896 2 & 3 Access Cover Assembly 4213 092 18081 2 & 3 447a Access Cover 4213 077 40888 Spring Clip (Fan) 4213 075 71162 Filter 4213 092 17821...
