Related Manuals for White Knight 44AW
Summary of Contents for White Knight 44AW

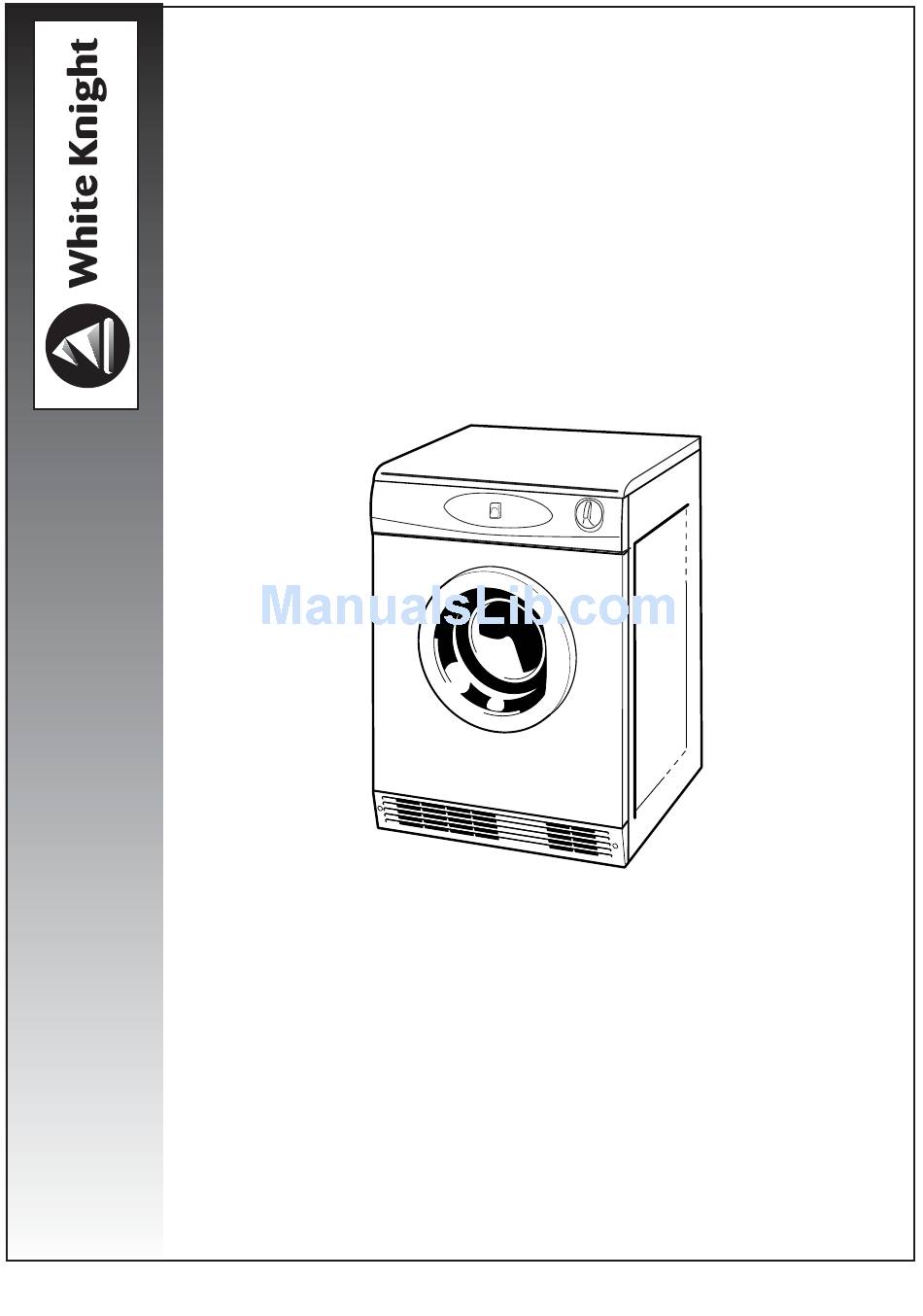

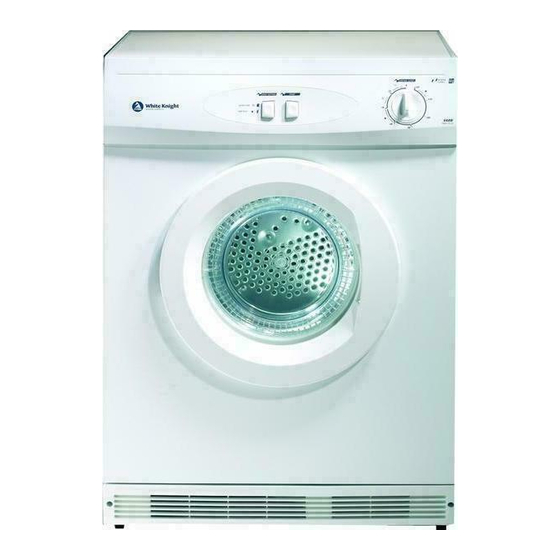

- Page 1 SERVICE MANUAL Air Vented Tumble Dryer - UK White Knight - 44AW 0312 44A 15001 Wiring Diagram Exploded Views Parts List March 2011...
- Page 2 White Knight 44AW - Air Vented Tumble Dryer - Exploded View 1...
- Page 3 White Knight 44AW - Air Vented Tumble Dryer - Exploded View 2...
- Page 4 White Knight 44AW - Air Vented Tumble Dryer - Exploded View 2a 228a 390a 230a...
- Page 5 White Knight - Air Vented Tumble Dryer - Exploded View 3 445a...
- Page 6 White Knight 44AW Wiring Diagram 1.25 EC Timer TB-L Mains Cable TB-N Timer Connections HE-SW EX-TH IN-TH A B C 0.75 0.75 TB-4 Wire Colour Code Component Code Black Terminal Block Brown Door Switch Motor Orange EX-TH Exhaust Thermostat Yellow...
- Page 7 White Knight 44AW AIR VENTED TUMBLE DRYER - SPARE PARTS LIST ITEM DESCRIPTION CODE EXPLODED VIEW Motor & 8uf Capacitor Assembly 4213 092 25611 8uf Capacitor 4213 092 08091 Drive Belt 4213 092 18601 Mains Cable & Plug 4213 076 35123...
- Page 8 White Knight 44AW AIR VENTED TUMBLE DRYER - SPARE PARTS LIST Motor Mount Bracket 4213 080 0675A Rear Vent Assembly 0312 002 01000 Banjo Assembly 4213 092 17811 Front Bearing (short) 4213 077 40952 Front Seal 4213 077 40941 Lifter...
