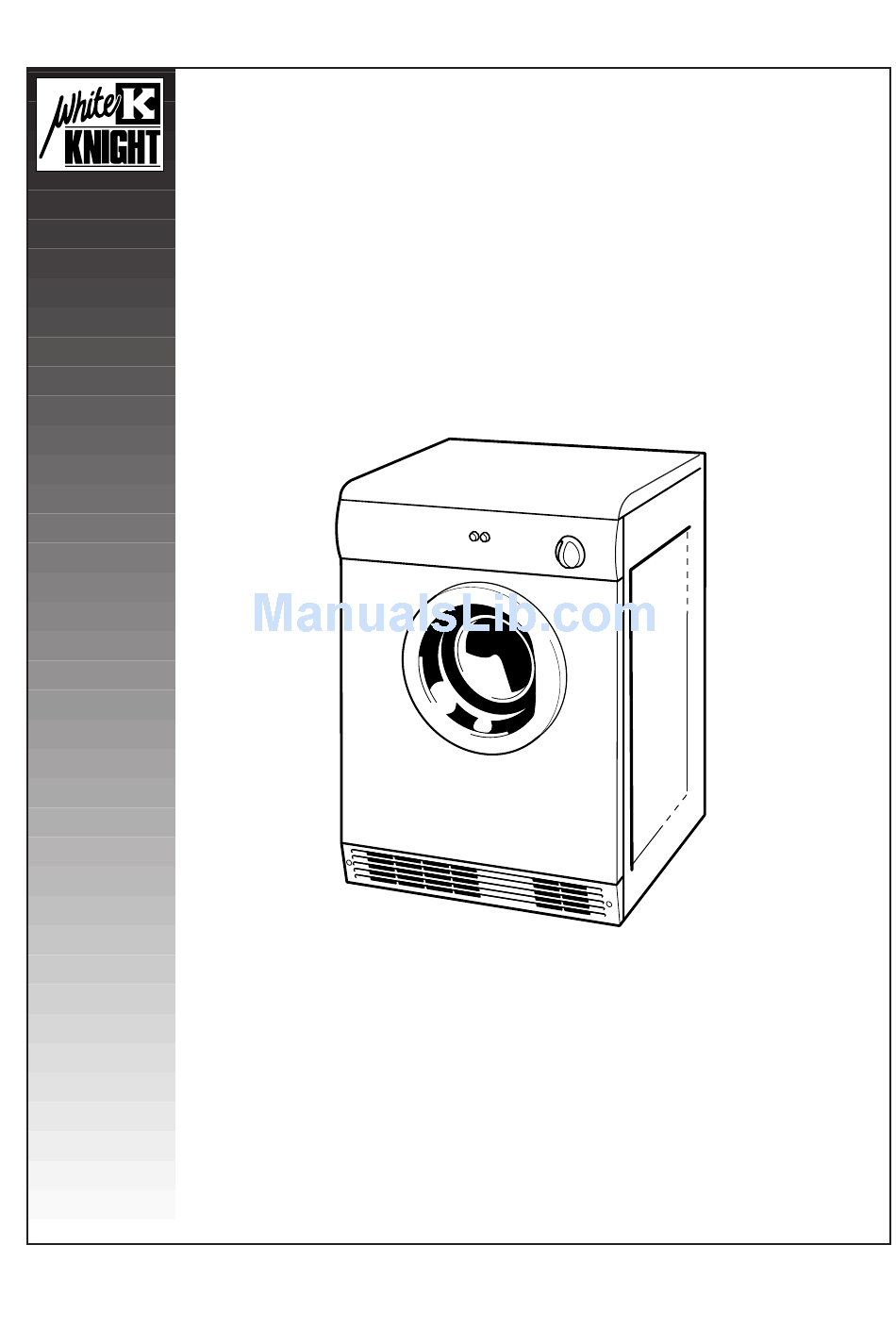

- Page 1 SERVICE MANUAL White Knight CL42 Basic Air Vented Dryer 0312 427 15003 Wiring Diagram Exploded Views Parts List March 2005 4213 094 86242...
- Page 2 White Knight CL42 Basic Air Vented Dryer - Exploded View 1 363a 203a...
- Page 3 White Knight CL42 Basic Air Vented Dryer - Exploded View 2...
- Page 4 White Knight CL42 Basic Air Vented Dryer - Exploded View 3 445a 447a 537a...
- Page 5 White Knight CL 427 Air Vented Dryer - Wiring Diagram N L 3 4 TH(E) 60ºC TH(I) 146ºC MINS 10 K APPROX. Colour Code Black Brown Orange Yellow MRTL Green Blue Violet White TH(I) Thermostat (inlet) Temperature Limiter Connecting Link...
- Page 6 White Knight Basic Air Vented Dryer - Parts List Item Description Code Expl.View Motor & 8µf Capacitor Assembly 4213 092 25611 Pulley 4213 075 13932 8µf Capacitor 4213 092 08091 Drive Belt 4213 092 18601 Mains Cable & Plug 4213 076 35123...
- Page 7 White Knight Basic Air Vented Dryer - Parts List Banjo Insert No 1 White 4213 077 40952 U' Type Captive Nut 2513 483 12036 W' Button Plug 4213 078 26311 Timer Shaft Support 4213 077 60081 Not Shown On Exploded Views...
