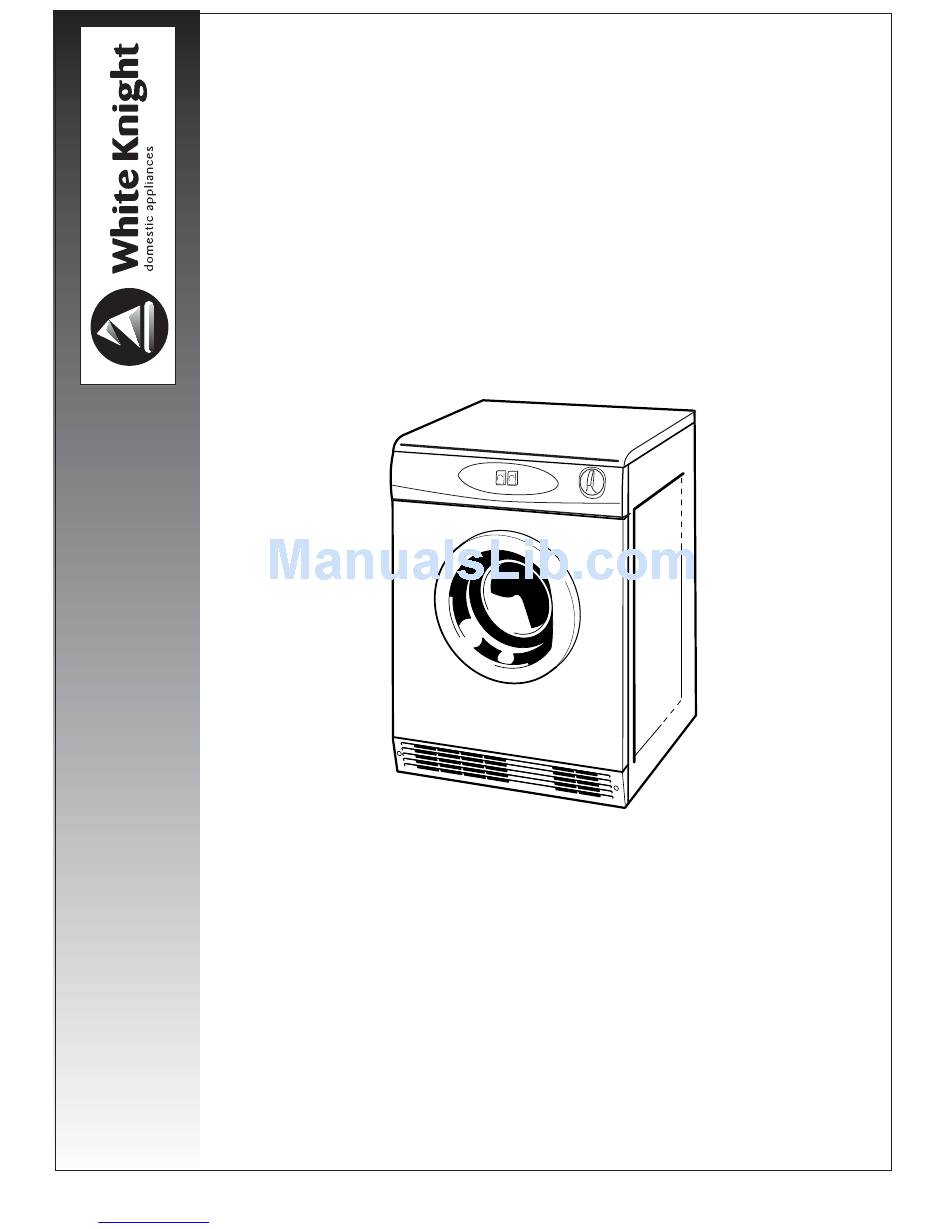

- Page 1 SERVICE MANUAL Air Vented Tumble Dryer - UK White Knight - 44AW 0312 44A 15000 Wiring Diagram Exploded Views Parts List January 2007 Downloaded from www.Manualslib.com manuals search engine...
- Page 2 White Knight 44AW - Air Vented Tumble Dryer - Exploded View 1 235a 203a 367 Downloaded from www.Manualslib.com manuals search engine...
- Page 3 White Knight 44AW - Air Vented Tumble Dryer - Exploded View 2 Downloaded from www.Manualslib.com manuals search engine...
- Page 4 White Knight - Air Vented Tumble Dryer - Exploded View 3 445a 447a Downloaded from www.Manualslib.com manuals search engine...
- Page 5 Wiring Diagram 1.25 EC Timer TB-L Mains Cable TB-N Timer Connections HE-SW EX-TH IN-TH A B C 0.75 0.75 TB-4 Wire Colour Code Component Code Black Terminal Block Brown Door Switch Motor Orange EX-TH Exhaust Thermostat Yellow IN-TH Inlet Thermostat Green Heater Blue...
-
Page 6: Item Description
White Knight 44AW AIR VENTED TUMBLE DRYER - SPARE PARTS LIST ITEM DESCRIPTION CODE EXPLODED VIEW Motor & 8uf Capacitor Assembly 4213 092 25611 8uf Capacitor 4213 078 49401 Drive Belt 4213 092 18601 Mains Cable & Plug 4213 076 35123... - Page 7 White Knight 44AW AIR VENTED TUMBLE DRYER - SPARE PARTS LIST 4213 077 40896 2 & 3 Access Cover Assembly 4213 092 18081 2 & 3 447a Access Cover 4213 077 40888 Spring Clip (Fan) 4213 075 71162 Filter 4213 092 17821...
