Summary of Contents for White Knight 0312 427 15310

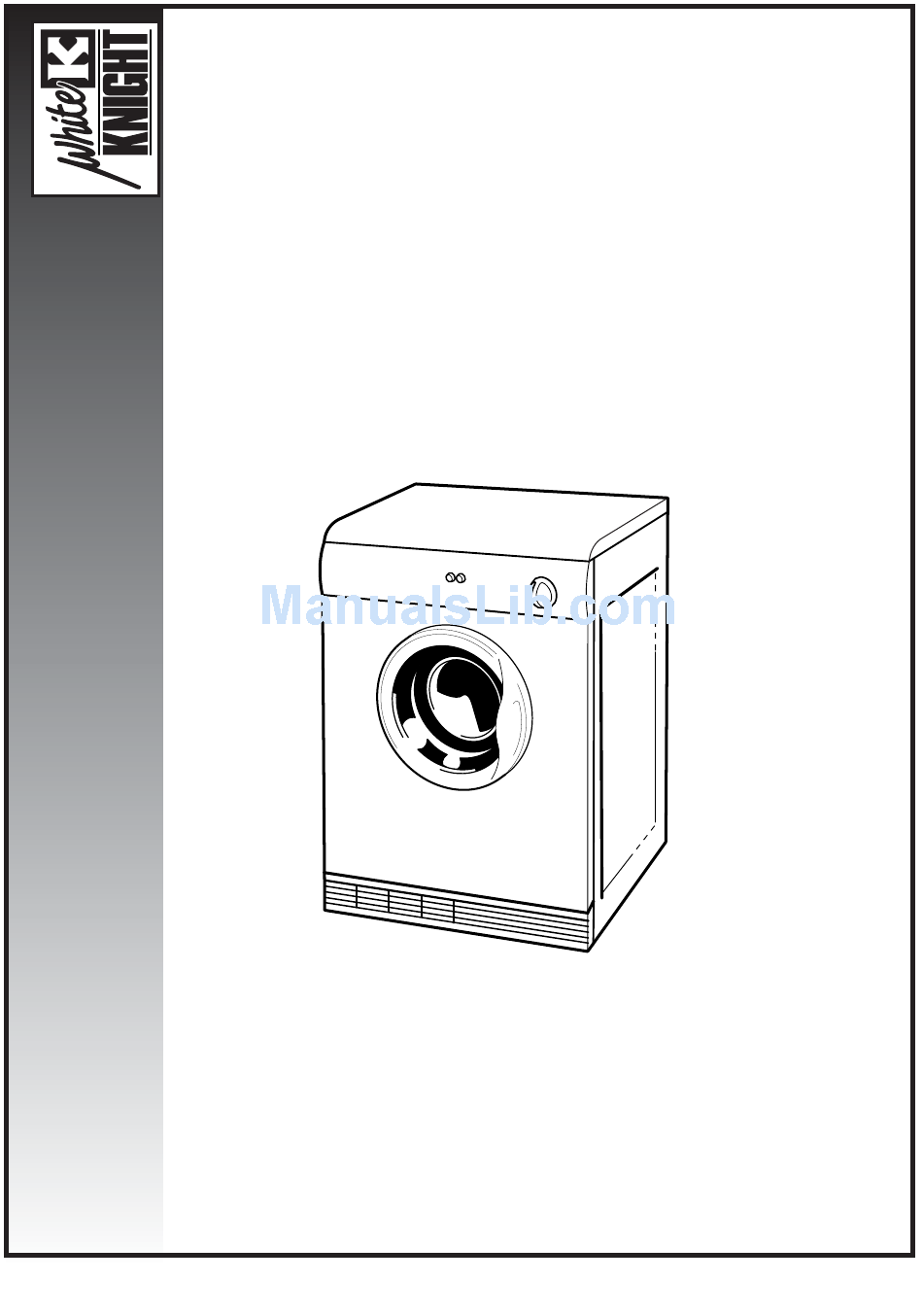

- Page 1 SERVICE MANUAL WHITE KNIGHT 427SVNC Air Vented Dryer - UK 0312 427 15310 Wiring Diagram Exploded Views Parts List May 2007...
- Page 2 White Knight Air Vented Dryer - Exploded View 1 203a 363a...
- Page 3 White Knight Air Vented Dryer - Exploded View 2...
- Page 4 White Knight Air Vented Dryer- Exploded View 3 445a 447a 537a...
- Page 5 White Knight 427SVNC Air Vented Dryer - Wiring Diagram N L 3 4 TH(E) 60ºC TH(I) 146ºC MINS 10 K APPROX. Colour Code Black Brown Orange Yellow MRTL Green Blue Violet White TH(I) Thermostat (inlet) Temperature Limiter Connecting Link Door Switch...
- Page 6 White Knight 427SVNC - Parts List Item Description Code Expl.View Motor & 8µf Capacitor Assembly 4213 092 25611 8µf Capacitor 4213 092 08091 Drive Belt 4213 092 18601 Mains Cable & Plug 4213 076 35123 Terminal Block 4213 078 44613...
- Page 7 White Knight 427SVNC - Parts List 4213 077 40896 2 & 3 Access Cover Assembly 4213 092 18081 2 & 3 Spring Clip (Fan) 4213 075 71162 Button Switch Spring 4213 075 71151 Switch Bracket 4213 070 11631 Filter 4213 092 17821...
