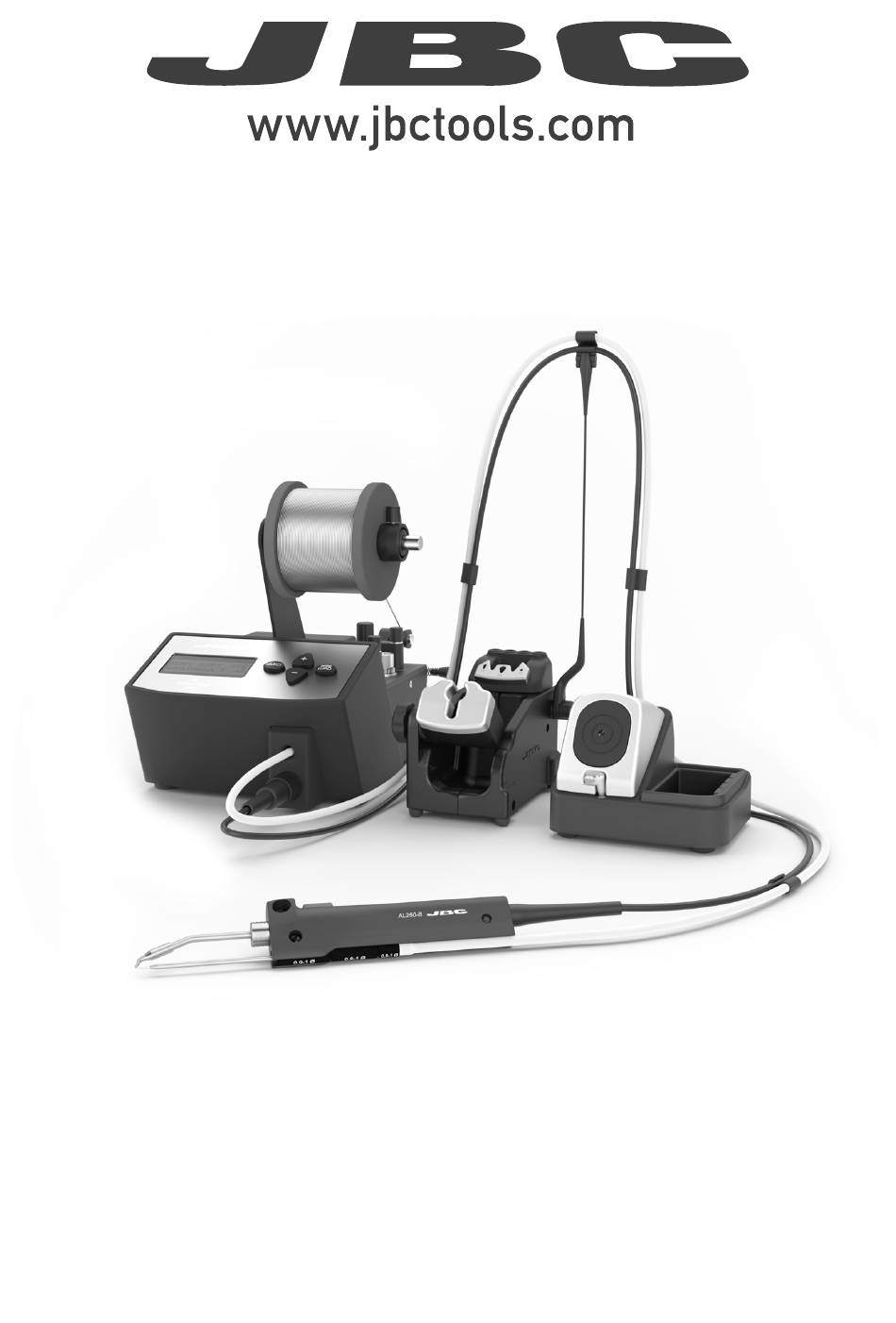

INSTRUCTION MANUAL
AL-A
Auto-Feed Soldering Station

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AL-A Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for jbc AL-A Series

Summary of Contents for jbc AL-A Series

  • Page 1 INSTRUCTION MANUAL AL-A Auto-Feed Soldering Station...

  • Page 2: Packing List

    This manual corresponds to the following references: - AL-1A (120V) - AL-2A (230V) - AL-9A (100V) Packing List The following items are included: Auto-Feed Stand ....... 1 unit Auto-Feed Iron ..... 1 unit Soldering Station ..1 unit Ref. AL-SF Ref.

  • Page 3: Features And Connections

    w w w.jbctools.com Features and Connections Main Switch Fuse Power Socket Equipotential Connection Pedal Connection (optional) Auto-Feed Iron Stand Ref. AL250-B Ref. AL-SF...
  • Page 4 Reel Stand Assembly 1. Assemble the Reel Stand to the Station 3. Assemble the Solder Reel 2. Tighten the screws. 4. Tighten the screws. Adjusting System Assembly Guide Set Dragging Mechanism 1. Open the dragging mechanism moving the lever downwards (the dragging mechanism releases the solder wire).
  • Page 5 w w w.jbctools.com 3. Take the solder wire from the reel until the guide tube start. 4. Close the dragging mechanism moving the lever upwards (the dragging mechanism moves toward the Solder wire). Guide Tube Start Dragging Mechanism...
  • Page 6 5. Connect the handpiece to the station and switch the station on. With the handpiece out of the stand, press the WIRE LOAD key at the station till the solder wire comes out at the guide tube end. Fast Wire Dragging LOADING SOLDER WIRE Solder Wire Dragging Button...

  • Page 7: Control Screen

    w w w.jbctools.com Control Screen Tool Temperature Tool Status TEMP. 230ºC disc. L 10 S 11 Working Method Wire Lengthw Speed There are 4 tool status: The tool is ready to work. USE (Use). STD (Stand). The tool is placed in the stand but still not in the sleep mode. SLP (Sleep).
  • Page 8 Parameters Modification of the Tool and the Station To enter into this mode, you must hold the SELECT key for 3 seconds. 300 units* units* between 5 and 300 u between 5 and 300 units* * (1 unit = 0.1 mm/sec / 0.039 in/sec)
  • Page 9 w w w.jbctools.com units*...

  • Page 10: Maintenance

    If necessary use a tool to lever it off. and return it to the station. Fuse Holder - Replace any defective or damaged pieces. Only use original JBC spare parts. - Repairs should only be performed by a JBC authorized technical service.
  • Page 11 w w w.jbctools.com Safety It is imperative to follow safety guidelines to prevent electric shock, injury, fire or explosion. - Do not use the units for any purpose other than soldering or rework. Incorrect use may cause fire. - The power cord must be plugged into approved bases. Be sure that it is properly grounded before use.

  • Page 12: Specifications

    In order for the warranty to be valid, equipment must be returned, postage paid, to the dealer where it was purchased. Get 1 extra year JBC warranty by registering here: https://www.jbctools.com/productregistration/ within 30 days of purchase. This product should not be thrown in the garbage.

This manual is also suitable for:

Al-1aAl-2aAl-9a
