Page 1: Quick Start

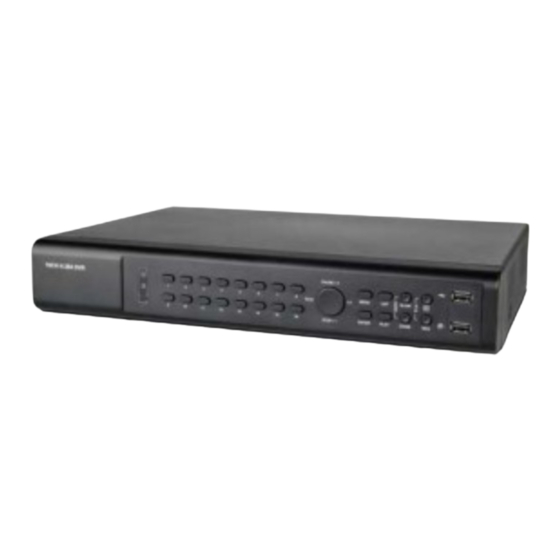

H.264 DVR Quick Start GUI Display with USB Mouse Control Please read instructions thoroughly before operation and retain it for future reference. For the actual display & operation, please refer to your DVR in hand. 163_086_083_082_046_043b_042b_Quick_V1.2... -
Page 2: Connect Usb Mouse
1. GUI DISPLAY WITH USB MOUSE CONTROL 1.1 Connect USB Mouse Connect your USB mouse to one of the USB ports on the DVR front panel, and check if there’s a mouse icon ( on the screen, indicating the USB mouse is detected properly. Move your mouse to enter the DVR password with the password keypad. -
Page 3: Main Menu Structure
Main Menu Structure QUICK START GENERAL CHANNEL TITLE EVENT STATUS DATE DISPLAY MOUSE SENSITIVITY IMAGE SIZE (For Selected Models Only) QUALITY (For Selected Models Only) I.P.S. (For Selected Models Only) RECORD CONFIG (For Selected Models Only) TIME SETUP DATE TIME DATE SETUP DATE INFO DISPLAY DATE OF MODE... -
Page 4: Front And Rear Panels
2. FRONT AND REAR PANELS 2.1 Front Panel LED Indicators HDD is reading or recording. DVR is powered on. (▲) / (▼) / (◄) / (►) Press ▲ / ▼ / ◄ / ► to move up / down / left / right. In the playback mode: Press “... -
Page 5: Rear Panel
2.2 Rear Panel VIDEO 1 ~ 16 / 1 ~ 8 / 1~4: Connect to the video connector of a camera. Note: The DVR will automatically detect the video system of the camera, please make sure that the cameras are properly connected to the DVR and power-supplied before the DVR is turned on. AUDIO IN Connect to the audio connector of a camera if the camera supports audio recording. -
Page 6: Basic Operation
3. BASIC OPERATION 3.1 Live Page Icon Function Icon Function Icon Function Live audio channel (1~4) Playback audio channel (1~4) Audio channel off Digital zoom on Digital zoom off Timer recording Network disconnected Internet connected LAN connected USB mouse connected USB flash drive / device connected No USB device connected Key lock... -
Page 7: Playback Control
Note: There must be at least 8192 images of recorded data for playback to work properly. If not, the device will stop playback. For example, if the IPS is set to 30, the recording time should be at least 273 seconds (8192 images / 30 IPS) for the playback to work properly. Note: During playback, the image size of the recording (FRAME, FIELD or CIF) will be shown on the screen. -
Page 8: Video Output Switch
When the operator password is entered, will be shown on the status bar of the screen, and the main menu is NOT allowed to access. The operator user level needs to be set in the main menu “SYSTEM” “TOOLS”. To switch between these two user levels, click the current user level icon to switch to the key lock mode, and move your mouse to show the password input keypad, and enter the password of the user level you want.
