Avtech DG1648 Quick Start Manual

16ch/8ch/4ch mpeg-4 dvr
Hide thumbs Also See for DG1648:

Advertisement

Quick Links

S
E
C
U
S
E
C
U
R
I
T
Y
R
I
T
Y
Please read instructions thoroughly before operation and retain it for future reference.

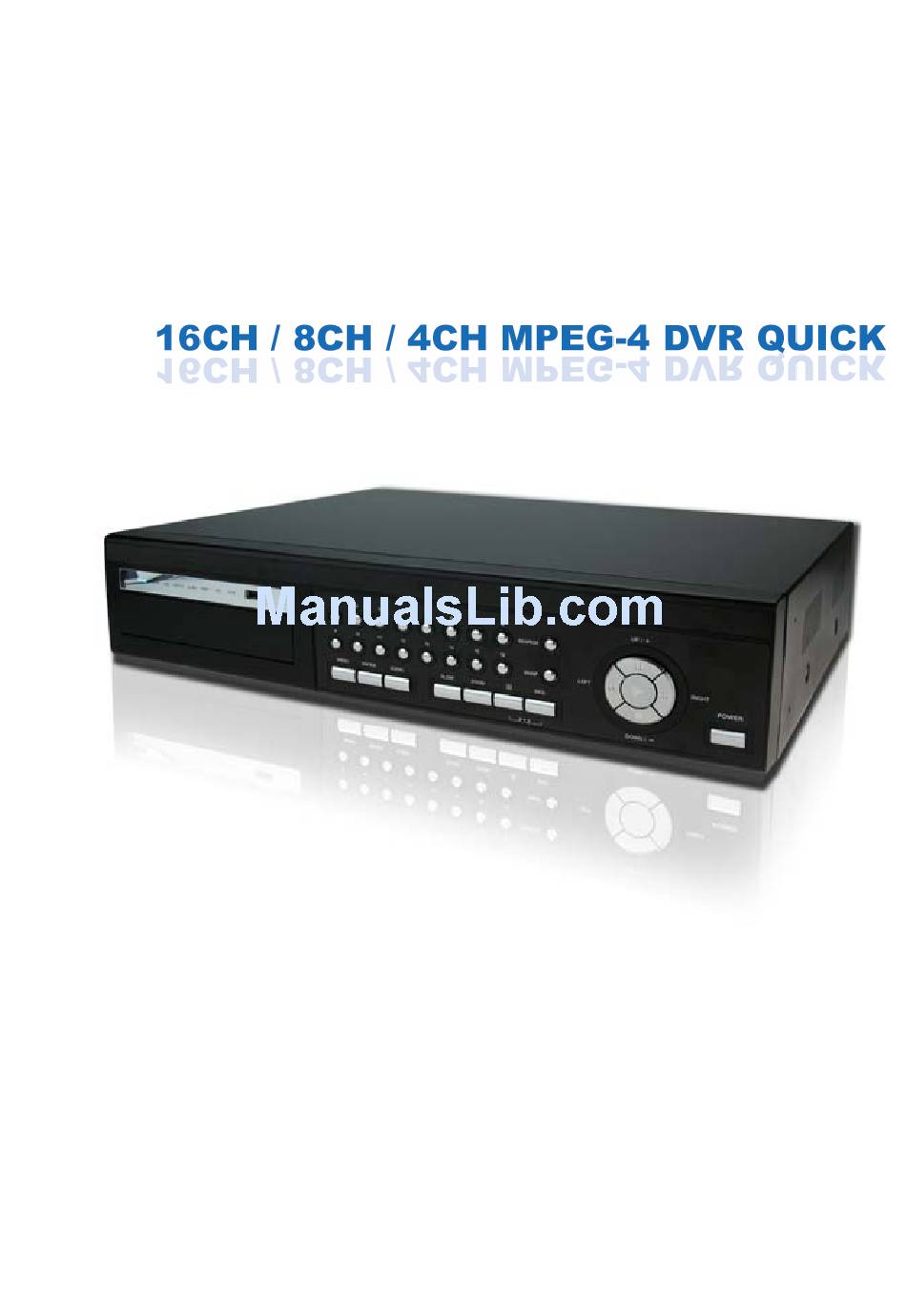

The image shown above may differ from the actual product appearance.
B
E
S
T
B
E
S
T
G
U
A
R
G
U
A
R
D
I
G
I
D
I
G
I
D
S
E
R
D
S
E
R
DG1648, 0824, 0412 quick_V1.3
240Z
T
A
L
T
A
L
I
E
S
I
E
S

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DG1648 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Avtech DG1648

  • Page 1 240Z Please read instructions thoroughly before operation and retain it for future reference. The image shown above may differ from the actual product appearance. DG1648, 0824, 0412 quick_V1.3...
  • Page 2: Front And Rear Panels

    1. FRONT AND REAR PANELS 1.1 Front Panel LED Indication The following LEDs will be on when: POWER: DVR is powered on. STANDBY: DVR is powered off normally till the next time DVR is powered on. HDD: HDD is reading or under recording. HDD Full: HDD is full.
  • Page 3 When the DVR is under quad channel display, press “SEQ” button the DVR will enter quad screen sequence mode. Press again to exit the sequence mode. (Audio) Use these two buttons to select the live or playback sound of the audio channels. Icon “...
  • Page 4: Rear Panel

    Note: Under the recording mode, please stop recording before turning off your DVR. 18) “MENU” + “ENTER” (KEY LOCK) Press “MENU”+ “ENTER” button on the DVR front panel at the same time to lock keys. Press any button on the DVR front panel and enter the DVR password to exit the key lock mode. 1.2 Rear Panel ‧...
  • Page 5 MONITOR Connect to a CRT monitor for video output. CALL Connect to CALL monitor to show the channel display one by one. When any alarm is triggered, CALL monitor will show the image of the triggered channel for a period of time. Audio IN Connect to audio sources, such as cameras equipped with the audio function.
  • Page 6: Basic Operation

    BASIC OPERATION 2. BASIC OPERATION (Take 16CH DVR as an example) 2.1 Live Page In this live page of the DVR, you can see the live viewing of 1- / 4- / 9- / 16-cut screen. Icon Function Icon Function Icon Function Icon Function...
  • Page 7: Key Lock And Unlock

    BASIC OPERATION 2.3 Playback Press the “ ” (PLAY) button on the DVR control panel, and the device will playback the latest recorded video. Note: There must be at least 8192 images of recorded data for playback to work properly. If not, the device will stop playback.
  • Page 8 MAIN MENU 2.5 Upgrade Note: Do not disconnect the power of your DVR while the upgrade process is in progress, or the DVR functions may not work properly or be unable to use. ‧ Firmware / Multilanguage OSD Upgrade Use USB to upgrade firmware or OSD: Step 1.

This manual is also suitable for:

Dg0824Dg0412

Table of Contents
