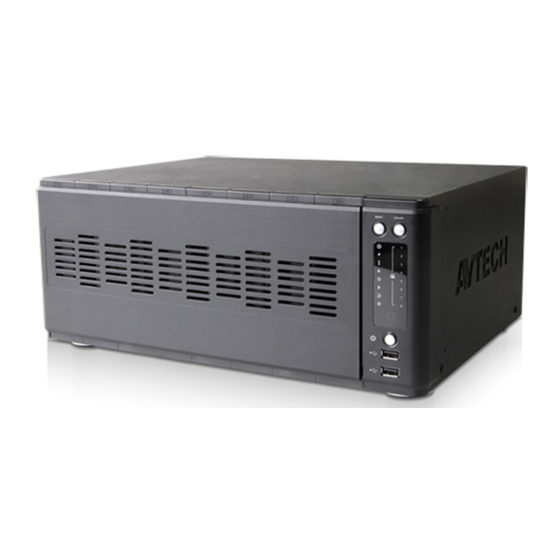

36CH / 32CH XVR
SERIES
USER MANUAL
Please read instructions thoroughly before operation and retain it for future
reference. For the actual display & operation, please refer to your device in hand.
To check the complete user manual, scan the QR code on the right,
or go to the site: www.surveillance-download.com/user/z8136.swf.
To get the free PC CMS software (CMS Lite), check the supplied CD
or go to the site: www.surveillance-download.com/user/z8136.swf.
z8136_8132_manual_V0.9

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DGD8132 and is the answer not in the manual?

Questions and answers

Related Manuals for Avtech DGD8132

Summary of Contents for Avtech DGD8132

  • Page 1 36CH / 32CH XVR SERIES USER MANUAL Please read instructions thoroughly before operation and retain it for future reference. For the actual display & operation, please refer to your device in hand. To check the complete user manual, scan the QR code on the right, or go to the site: www.surveillance-download.com/user/z8136.swf.
  • Page 2 IMPORTANT SAFEGUARD All lead-free products offered by the company comply with the requirements of the European law on the Restriction of Hazardous Substances (RoHS) directive, which means our manufacture processes and products are strictly “lead-free” and without the hazardous substances cited in the directive. The crossed-out wheeled bin mark symbolizes that within the European Union the product must be collected separately at the product end-of-life.
  • Page 3 MPEG4 Licensing THIS PRODUCT IS LICENSED UNDER THE MPEG4 VISUAL PATENT PORTFOLIO LICENSE FOR THE PERSONAL AND NON-COMMERCIAL USE OF A CONSUMER FOR (i) ENCODING VIDEO IN COMPLIANCE WITH THE MPEG4 VISUAL STANDARD (“MPEG-4 VIDEO”) AND/OR (ii) DECODING MPEG4 VIDEO THAT WAS ENCODED BY A CONSUMER ENGAGED IN A PERSONAL AND NON-COMMERCIAL ACTIVITY AND/OR WAS OBTAINED FROM A VIDEO PROVIDER LICENSED BY MPEG LA TO PROVIDE MPEG4 VIDEO.

  • Page 4: Table Of Contents

    TABLE OF CONTENTS 1. HARDWARE OVERVIEW ........................1  1.1 Front Panel ..............................1   1.2 Rear Panel ..............................2   2. CONNECTION ............................ 3  2.1 Hard Disk Installation ..........................3   2.2 Camera Connection ..........................4   2.2.1 HD CCTV camera & our brand’s speed dome camera ..................4  ...
  • Page 5 6.7.2 GROUP ................................39   6.8 NETWORK .............................. 40   6.8.1 E-MAIL ................................40   6.8.2 FTP ................................. 41   6.8.3 EaZy ................................41   6.9 TIME ................................ 41   6.9.1 TIME SETUP ..............................41   6.9.2 DAYLIGHT ..............................42  ...

  • Page 6: Hardware Overview

    HARDWARE OVERVIEW 1. HARDWARE OVERVIEW 1.1 Front Panel Note: The functions on the front panel and rear panel may vary, depending on the mode you have. 1) Select & Unlock These two buttons are used to unmount a hard disk. Press Select and check the HDD indicator (red & always on) to ensure the hard disk you want to unmount is chosen.

  • Page 7: Rear Panel

    HARDWARE OVERVIEW 1.2 Rear Panel 1) HDMI1 This port is used to connect the monitor which supports HDMI interface for main monitor output 2) HDMI2 This port is used to connect a secondary monitor which supports HDMI interface for secondary monitor output.

  • Page 8: Connection

    CONNECTION 2. CONNECTION 2.1 Hard Disk Installation Note: It’s necessary to install a hard disk first before firmware upgrade to ensure the upgrade process works properly. Step1: Find the HDD tray and its accessories in the sales package, and place the rubber to the HDD tray as shown below.

  • Page 9: Camera Connection

    CONNECTION Step6: Power on the recorder and wait till the initialization is completed. Check if the HDD indicator on the front panel is flashing in red, meaning the system is detecting the hard disk now, and wait till the indicator is flashing in green, meaning the hard disk is mounted.

  • Page 10: Ip Camera

    Click  to assign the camera to a channel from CH33 ~ CH36 automatically and choose ADD to complete. IP SEARCH ASSIGN EDIT DEVICE TYPE NETMASK GATEWAY PRIMARY DNS PORT VENDOR  CH35 IPCAM 192.168.1.12 255.255.255.0 192.168.1.1 8.8.8.8 00:0E:53:31:06:E5 AVTECH  IPCAM 192.168.1.12 255.255.255.0 0.0.0.0 8.8.8.8 00:0E:53:31:06:E5 ONVIF  IPCAM 192.168.1.13 255.255.255.0 192.168.1.1 8.8.8.8 00:0E:53:31:15:D1 AVTECH ...

  • Page 11: For Initial Use

    FOR INITIAL USE 3. FOR INITIAL USE For the first time to power on this device, you might be prompted to: Go through the setup wizard  Clear hard disk  Change default user name and password  3.1 Setup Wizard The setup wizard is prompted to guide you finishing the most common settings you might need to do.
  • Page 12 FOR INITIAL USE SETUP WIZARD DATE 2015/MAR/05 TIME 14:33:46 FORMAT Y/M/D  GMT+08:00  SKIP PREV NEXT Set the date and time. If you don’t want to set the date and time now, just skip to the next step. However, it’s necessary to keep the date and time right to ensure the accuracy of the recorded data.

  • Page 13: Mount / Unmount Hard Disk

    FOR INITIAL USE SETUP WIZARD DDNS SYSTEM NAME Eagleeyes  HOST NAME MAC000E533A3D E-MAIL CURRENT HOST ADDRESS MAC000E533A3D4A.ddns.eagleeyes.tw SKIP PREV NEXT Enable DDNS if needed. Note: To enable the DDNS later, please go to MENU  NETWORK  DDNS. 3.2 Mount / Unmount Hard Disk When this device is powered on and hard disks are inserted, you’ll see the hard disk indicators are flashing in red, indicating the hard disks are now detected by this recorder.
  • Page 14 FOR INITIAL USE To change later, go to MENU  ACCOUNT  USER LIST, and choose to change the default user name and password of SUPERVISOR. USER LIST USER LIST EDIT USER NAME GROUP GROUP admin SUPERVISOR...

  • Page 15: User Interface

    USER INTERFACE 4. USER INTERFACE 4.1 Local Access Connect your USB mouse to one of the USB ports on the front panel, and move your mouse to enter the password with the password keypad. The default user name and password are both admin. When you log into the system, the display is in the full screen mode.

  • Page 16: Status & Operation

    USER INTERFACE 4.3 Status & Operation 4.3.1 Device Status Note: The functions shown may vary based on the model or the access user level you use. Key lock Key unlock USB flash drive / device connected No USB device connected Timer record on Timer record off Overwrite on...

  • Page 17: Main Menu

    FREQUENTLY-USED FUNCTIONS 4.3.3 Main Menu Click MENU on the bottom left corner to show the main menu list and its sub items: CAMERA CONNECTION IP SEARCH* DEVICE IMAGE BRIGHTNESS CONTRAST SATURATION DETECTION RECORD LIVE STREAM RECORD STREAM SUBSTREAM SCENARIO* IVS* IVS MODE FLOW COUNTING ONEWAY...
  • Page 18 FREQUENTLY-USED FUNCTIONS DISPLAY CHANNEL TITLE EVENT STATUS AUTO KEY LOCK(S) HDD DISPLAY MODE DISPLAY OUTPUT LANGUAGE HDMI2 DISPLAY SPOT MONITOR PERIPHERAL LOCAL MOUSE SENSITIVITY REMOTE CONTROL ID JOYSTICK DEVICES MAINTAIN SYSTEM BACKUP CONFIG RESTORE CONFIG RESET DEFAULT DEVICE TITLE ENABLE AUTO PLUG AND PLAY BIND MAC ADDRESS UPGRADE LOCAL...

  • Page 19: Playback Panel

    FREQUENTLY-USED FUNCTIONS 4.3.4 Playback Panel Click to go to the playback panel. Step1: In CHANNEL, choose the channel(s) you want to search. Step2: In DATE, the date(s) which includes video footage of the selected channel(s) will be marked in blue. Choose the date you want.

  • Page 20: Frequently-Used Functions

    You’ll see the list of every connected IP camera with its connection status and MAC address. IP SEARCH ASSIGN EDIT DEVICE TYPE NETMASK GATEWAY PRIMARY DNS PORT VENDOR  IPCAM 192.168.1.12 255.255.255.0 192.168.1.1 8.8.8.8 00:0E:53:31:06:E5 AVTECH  IPCAM 192.168.1.12 255.255.255.0 0.0.0.0 8.8.8.8 00:0E:53:31:06:E5 ONVIF  IPCAM 192.168.1.13 255.255.255.0 192.168.1.1 8.8.8.8 00:0E:53:31:15:D1 AVTECH ...

  • Page 21: User Account Creation

    FREQUENTLY-USED FUNCTIONS 5.2 User Account Creation To create different user account for different access privilege, go to MENU  ACCOUNT  USER LIST, and choose to create a new account. USER LIST USER LIST EDIT USER NAME GROUP GROUP admin SUPERVISOR Four user levels are pre-defined in the system for you to quickly choose: SUPERVISOR, POWER USER, USER &...

  • Page 22: System Logout

    FREQUENTLY-USED FUNCTIONS 5.3 System Logout When different user accounts are created for system management, make sure you log out after your access in case other people access the system with your account. Choose MENU → POWER CONTROL, and choose to log out the system. Note: The default user name and password are both admin, which is the highest user level.
  • Page 23 FREQUENTLY-USED FUNCTIONS Camera Control These two buttons are designed for the PTZ camera which uses Pelco-D to control. Iris + / Iris - To know the actions after clicking Iris + and Iris -, please refer to the camera’s user manual.

  • Page 24: Video Backup

    REMOTE OPERATION 5.6 Video Backup Note: Before using the USB flash drive, please use your PC to format the USB flash drive to FAT32 format first. For the list of compatible USB flash drives, please refer to “APPENDIX 3 COMPATIBLE USB FLASH DRIVE LIST at page 59.

  • Page 25: Main Menu

    CHANNEL INTERFACE EDIT ENABLE PORT DEVICE VENDOR MODEL STREAM METHOD PATH1 PATH2 TITLE TYPE PROTOCOL  CH33 IPCAM 192.168.1.11 IPCAM AVTECH RTP-Unicast  CH34 IPCAM 192.168.1.12 IPCAM ONVIF RTP-Unicast  CH35 IPCAM  CH36 IPCAM IP SEARCH 6.1.2 DEVICE DEVICE...
  • Page 26 MAIN MENU 2) ENABLE Here shows the functions you can enable or disable: Note: The icons available depend on the camera you connected. Icon Meaning Description Time stamp Display the recording time or not. on / off Enable this function to allow video recording directly to the microSD card Edge recording inserted in the IP camera when the recorder is disconnected to the camera on / off...

  • Page 27: Image

    MAIN MENU 5.1.3 IMAGE Click to manually adjust the brightness / contrast / saturation / hue by channel. IMAGE EDIT CHANNEL TITLE BRIGHTNESS CONTRAST SATURATION 6.1.4 DETECTION DETECTION CHANNEL TITLE ALARM INTERNAL ALARM SENSITIVITY MOTION AREA ADVANCED CONFIG EDIT EDIT N.C.
  • Page 28 MAIN MENU 5) AREA Click EDIT to set the motion detection area. There are 16 × 12 grids per camera for all channels. Pink blocks represent the area that is not being detected while the transparent blocks are the area under detection. Note: To exit area setting and return to the detection page, right click your mouse.

  • Page 29: Record

    MAIN MENU Select REGION 1 or REGION 2, and choose EDIT to change the setting.  REGION OF INTEREST – EDIT ENABLE QUALITY AREA SETUP APPLY  Camera Guard This function is used to lock the camera to a fixed point and no pan action could be made until the lock mode is disabled.
  • Page 30 MAIN MENU h) BITRATE CONTROL: Configure the upper bit rate limit for the selected channel if necessary. VBR - When the bit rate of the camera exceeds the value you set, the video fluency may be affected; CBR - When the bit rate of the camera exceeds the value you set, the image quality may be affected. i) G.O.V.: “Group of VOPs”...

  • Page 31: Scenario (For Selected Models Only)

    MAIN MENU 6.3 SCENARIO (For selected models only) This function allows you to customize a series of actions which will be run automatically after the specified event occurs. Several scenario rules are pre-defined for you to quickly choose and apply. If none of these rules are suitable for you, you can choose to create your own rule from several scenario templates.
  • Page 32 MAIN MENU 5) PUSH VIDEO TRIGGERED BY EXTERNAL ALARM When motion & alarm events occur simultaneously, you’ll receive Push Video on your mobile device. Scenario template used: ALL OF (EVENTS) TO DO (ACTION) AND THEN (ACTION). Note: The alarms here refer to the alarm devices connected to the cameras or the recorder. For the alarm events triggered by the PIR sensor built into the camera, please choose PIR instead.

  • Page 33: Scenario Customization

    MAIN MENU 6.3.2 Scenario Customization and choose a template where you can press the button of EVENT, RECORD, TIME or ACTION to Click customize all your events and further actions: 1. ONE OF (EVENT) TO (RECORD) 2. ONE OF (EVENT) AT (TIME) TO DO (ACTION) AND THEN (ACTION) 3.
  • Page 34 MAIN MENU RECORD Option Description START RECORDING EVENT GROUP Choose the record profile group you want defined in MENU  RECORD  RECORD STREAM CHANNEL when event recording is on. TIME Option Description EVERYDAY Choose the pre-defined time range within which you want to activate the scenario rule.
  • Page 35 MAIN MENU Option Description CAMERA PRESET Choose the channel with a speed dome camera connected, and choose a preset point you want the camera to move to. To know how to set a preset point, please refer to “5.5 PTZ Control” at page 17. AUTO TRACKING Choose the channel with a speed dome camera connected, and the camera supports auto...

  • Page 36: Ivs (For Selected Models Only)

    MAIN MENU 6.4 IVS (For selected models only) This function is available for the cameras connected to CH1 to CH4. If you need to use IVS to monitor an area, please connect this camera to any channel from CH1 to CH4. IVS MODE DISPLAY LINE SCENE CHANGE...
  • Page 37 MAIN MENU IVS APPLICATION   Step1: Click to enter the setting page and draw a detection line with your mouse, and decide the detection direction by selecting REVERSE. Step2: Click APPLY to finish the IVS setting and return to the live view. When anyone walks across the detection line, the system will determine his movement is in or out, and add one count to the corresponding channel on the flow counting panel.
  • Page 38 MAIN MENU   Step1: Click to enter the setting page and draw a detection line with your mouse, and decide the detection direction by selecting REVERSE. Step2: Click APPLY to finish the IVS setting and return to the live view. When anyone walks across the detection line, the system will determine his movement is in or out, and: An event happens for anyone walking across the detection line, and “...

  • Page 39: Export

    MAIN MENU 6.5 EXPORT 6.5.1 BACKUP Note: Before using your USB flash drive for video backup, please format it to "FAT32” first with your PC or laptop. For the list of compatible USB flash drives, please refer to “APPENDIX 3 COMPATIBLE USB FLASH DRIVE LIST at page 59.

  • Page 40: Schedule

    MAIN MENU Step4: (Optional) If USB DEVICE is chosen, specify the directory in STORAGE if needed. Step5: Choose BACKUP to start. The backup video will be in the AVI format. 6.5.2 SCHEDULE This function is used to schedule video backup regularly, uploading security footages to a FTP site (remotely) or saving to an USB device connected to this device (locally).

  • Page 41: Regular Report

    MAIN MENU 6.5.3 REGULAR REPORT This function is used to send event reports to the specified E-mail address. Users could configure up to 5 profiles to receive different reports about specific channels at different time. Note: This function is available only when a hard disk is installed, and the recorder is connected to Internet.

  • Page 42: Storage

    MAIN MENU 6.6 STORAGE To copy recorded data for video backup, click to add an item for backup. You can add several items to copy different data you need. STORAGE HDD NEARLY FULL (GB) HDD OVERHEAT ALERT (°C) OVERWRITE KEEP DATA LIMIT(DAYS) TEMPERATURE TO ENABLE FAN TYPE STATUS...

  • Page 43: Account

    MAIN MENU 6.7 ACCOUNT Note: This function is available only for SUPERVISOR. 6.7.1 USER LIST This function is used to create a new user account, or modify or delete an existing account for different access privilege. USER LIST EDIT USER NAME GROUP admin SUPERVISOR...

  • Page 44: Group

    MAIN MENU 6.7.2 GROUP This function is used to create a new group with customized user access rights for different functions if needed, and you can create a user account and assign it to your customized group. Note: The default user groups are SUPERVISOR, POWER USER, USER and GUEST, and they’re not allowed to be removed.

  • Page 45: Network

    MAIN MENU 6.8 NETWORK  WAN is used to connect this recorder to Internet for remote access from anywhere as long as Internet access is available.  DDNS is used when the Internet access is available. Note: For more details about these three functions and network configurations, please get the setup manual from www.surveillance-download.com/user/network_setup/network_setup_recorder.pdf.

  • Page 46: Ftp

    MAIN MENU 6.8.2 FTP Configure up to 7 FTP sites here to upload event notifications or reports. FTP 1 FTP 2 FTP 3 FTP 4 FTP 5 FTP 6 FTP 7 NAME Profile1 SERVER 211.75.33.2144 PORT USER NAME office PASSWORD ...

  • Page 47: Daylight

    MAIN MENU Note: You may receive NTP-based DDoS attacks when this function is enabled. Please make sure your network is secured to prevent this kind of attack. 6.9.2 DAYLIGHT DAYLIGHT DAYLIGHT SAVING START TIME 06:00 END TIME LAST 10:00 ADJUST 01:00 Depending on the time zone you’re in: 1) DAYLIGHT SAVING...
  • Page 48 MAIN MENU 6) LANGUAGE Select the language of the OSD. 7) HDMI2 DISPLAY Specify how the second HDMI port is used for video output: CALL MONITOR / EVENT MONITOR / LIVE / MAIN MONITOR. CALL MONITOR is used for sequence display. When this option is selected, go to CALL SCREEN ...
  • Page 49 MAIN MENU 8) SPOT MONITOR Specify how VGA / composite port is used for video output: CALL MONITOR / EVENT MONITOR / LIVE. Note: For some models, only the VGA or composite port supports this function. The available output options are depending on the model you have. CALL MONITOR is used for sequence display.

  • Page 50: Peripheral

    MAIN MENU 6.11 PERIPHERAL 6.11.1 LOCAL LOCAL MOUSE SENSITIVITY REMOTE CONTROL ID 1) MOUSE SENSITIVITY Select the mouse sensitivity. The higher the value, the more sensitive the mouse. 2) REMOTE CONTROL ID This function is available when users need to control two or more recorders with one IR remote controller. The ID set here is used to identify the recorder the remote controller is going to control.
  • Page 51 MAIN MENU For connecting other brand’s speed dome camera, select PTZ. 2) ID Click the current value to set the ID number (0 ~ 255) for the connected camera if necessary. Make sure the ID setting of the camera is the same as the setting here, or the recorder will not be able to control the device.

  • Page 52: Maintain

    MAIN MENU 3) PROTOCOL Select NORMAL (our protocol), P-D (PELCO-D), P-P (PELCO-P), S-T (SAMSUNG-T) or S-E (SAMSUNG-E) protocol. 4) DEVICE Select the baud rate for the connected speed dome camera (2400 / 4800 / 9600 / 19200 / 38400 / 57600 / 115200).

  • Page 53: Upgrade

    MAIN MENU 6.12.2 UPGRADE In this menu, you can choose to upgrade your recorder (LOCAL) or the connected our brand’s IP cameras (CAMERA). LOCAL Save the upgrade files obtained from your installer or distributor in a compatible USB flash drive, and insert it into the USB port.

  • Page 54: Alert

    MAIN MENU 6.12.3 ALERT ALERT EXT. ALERT INT. BUZZER KEY BUZZER VLOSS BUZZER MOTION BUZZER ALARM BUZZER HDD BUZZER ALARM BUZZER DURATION (SEC) 1) EXT. ALERT Select to enable or disable the sound when any external alarm is triggered (ON / OFF). 2) INT.

  • Page 55: Online

    MAIN MENU 6.12.5 ONLINE ONLINE ANONYMOUS VIEWER LOGIN DROP ALL CONNECTION SUBMIT LOGIN FAILURE TIMES LOCK TIME FOR LOGIN FAILURES 10 MINS 1) ANONYMOUS VIEWER LOGIN Switch to ON to allow anonymous login, meaning there’s no need to enter user name and password for remote access.

  • Page 56: Remote Operation

    REMOTE OPERATION 6. REMOTE OPERATION You can also control this recorder remotely via the web browser and iOS / Android devices. 6.2 Web Browser You can view the images or operate your recorder with a web browser, for example, Microsoft Internet Explorer. Note: The supported PC operation systems are Windows 10, Windows 8, Windows 7 and Windows Vista.

  • Page 57: Mobile Devices

    REMOTE OPERATION 6.3 Mobile Devices Note: For more details about mobile surveillance via your mobile device, please visit http://info.eagleeyes.tw/iphone/index.html. EagleEyes is a mobile phone program used with our surveillance system for remote surveillance. It’s compatible with iOS and Android mobile devices, and it’s free (Except EagleEyes Plus for iOS OS, and EagleEyes Plus+ for Android OS).
  • Page 58 REMOTE OPERATION Step3: In the setting page, enter all the information needed to access this device in the REQUIRED column, and click Get Type to examine if the information you entered is correct. The device type will be detected properly. Step4: (Optional) Configure the settings in the OPTIONAL column as needed.

  • Page 59: Appendix 1 Product Specifications

    APPENDIX 1 PRODUCT SPECIFICATIONS APPENDIX 1 PRODUCT SPECIFICATIONS Model 1 Model 2  Video Video System NTSC / PAL (auto detection) Video Compression Format H.264 Video Signal IP / TVI / CVI / Analog HD / 960H TVI / CVI / Analog HD / 960H Video Input 32 quadbrid channels 32 channels...
  • Page 60 APPENDIX 1 PRODUCT SPECIFICATIONS Model 1 Model 2  General Video Adjustable Hue / Saturation / Contrast / Brightness Date Display Format YY/MM/DD, DD/MM/YY & MM/DD/YY Daylight Saving Power Source (±10%) 19V / 4.7A Operating Temperature 10℃ ~ 40℃ (50℉~104℉) Operating Humidity 10% ~ 85% Dimensions (mm)***...

  • Page 61: Appendix 2 Push Video Configuration

    APPENDIX 2 PUSH VIDEO CONFIGURATION APPENDIX 2 PUSH VIDEO CONFIGURATION Note: This function is for selected models only. A2.1 Alarm Sensor Connection Connect the alarm sensor, such as magnetic contacts, to the alarm-in port on the rear panel. Alarm-in 1 corresponds to video channel 1, alarm-in 2 corresponds to video channel 2, and so on.

  • Page 62: A2.2 Configuration

    APPENDIX 2 PUSH VIDEO CONFIGURATION A2.2 Configuration Before configuring Push Video, make sure: 1. The system is set up as described in “2. CONNECTION” at page 3. 2. This recorder is connected to Internet. 3. You’ve installed the app, EagleEyes, on your iOS or Android mobile devices. For details, please refer to “6.3 Mobile Devices”...

  • Page 63: A2.3.2 From Android Mobile Device

    APPENDIX 2 PUSH VIDEO CONFIGURATION Step2: Open EagleEyes, and switch Guard to ON. You’ll receive the message indicating that Push Video is Step3: Return to the main page or standby page. You’ll receive event notifications when there’s an alarm event. Follow the on-screen instruction to immediately play the recorded clip.

  • Page 64: Appendix 3 Compatible Usb Flash Drive List

    APPENDIX 3 COMPATIBLE USB FLASH DRIVE LIST APPENDIX 3 COMPATIBLE USB FLASH DRIVE LIST Please upgrade the firmware of the recorder to the latest version to ensure the accuracy of the following table. If the USB flash drive is not supported by the recorder, you will see on the screen.

  • Page 65: Appendix 4 Compatible Hard Disk List

    APPENDIX 4 COMPATIBLE HARD DISK LIST APPENDIX 4 COMPATIBLE HARD DISK LIST Please upgrade the firmware of the device to the latest version to ensure the accuracy of the following table. Note: It’s necessary to install a hard disk first before firmware upgrade to ensure the upgrade process works properly.

  • Page 66: Appendix 5 Battery Replacement

    APPENDIX 5 BATTERY REPLACEMENT APPENDIX 5 BATTERY REPLACEMENT The time reset after power failure, for example, caused by a power outage, will cause the disorder of the recorded data, and users may have problems in searching the event clip they want. To keep the device time from resetting, a non-chargeable lithium battery, CR2032, is installed in the device.

  • Page 67: Appendix 6 Disk Array Compatible List

    APPENDIX 6 DISK ARRAY COMPATIBLE LIST APPENDIX 6 DISK ARRAY COMPATIBLE LIST Here's the compatible list for disk arrays. Note: For the compatible hard disks used for those disk arrays listed below, please check their respective user manuals or official websites. Brand Model Number Proware...

  • Page 68: Appendix 7 Eazy Networking

    APPENDIX 7 EAZY NETWORKING APPENDIX 7 EAZY NETWORKING EaZy Networking is a free P2P cloud service to connect our devices to the Internet automatically by plug-and-play, enabling you to check the live view via your mobile device or laptop at anytime (in 64 kbps). Should you feel the live view is not fluent enough and would like to speed it up, we provide several data plans for you to subscribe.
  • Page 69 APPENDIX 7 EAZY NETWORKING Step3: Open EagleEyes on your mobile device, and select “…” on the top left corner in the address book. Then, click “EaZy”. Step4: Click “Login” and register an account for “Cloud Service”. If you’ve got an account, please just log in. Step5: Go back to the address book and click “+”...
  • Page 70 APPENDIX 7 EAZY NETWORKING Step6: Click “ ” in the section of “MAC address” to open the QR code scan page, and scan the QR code on the DVR screen mentioned in Step2. The MAC address will be filled automatically. Fill in the Captcha code manually, and click “Apply”.
  • Page 71 APPENDIX 7 EAZY NETWORKING A8.1.2 Checking Remaining Data Allowance Step1: Log into the cloud service. Step2: Select “Details” to go to account information, and select “Available Data Allowance”. A8.1.3 Sharing Cloud Device Access with Other Account(s) Note: One cloud device could be shared up to 30 cloud accounts, but the access to the device might be failed because it is still restricted to the maximum online user setup of the device.
  • Page 72 APPENDIX 7 EAZY NETWORKING Step3: Choose the device you want to share with. Step4: Enter the cloud account or the E-mail registered by the account, and select “Add”. Step4: Check again the account with which you want to share your cloud device, and select “Next” to confirm and continue.

  • Page 73: A8.2 Via Internet Explorer On Pc / Laptop

    APPENDIX 7 EAZY NETWORKING Step6: Check again the configurations you made for the account to which you want to share your cloud device, and select “Share!” to confirm. Step7: (Optional) Configure the data allowance shared to other accounts to use. Step8: Return to the address book of EagleEyes.
  • Page 74 APPENDIX 7 EAZY NETWORKING Step2: In the same menu, select EaZy. Enable EaZy Networking, and leave this page open. You’ll need to scan the QR code later. EaZy ENABLE EAZY NETWORKING DDNS E-MAIL EaZy Step3: Open Internet Explorer on a PC / laptop, and enter https://ez.eagleeyes.tw. In the login page, register an account for “Cloud Service”.
  • Page 75 APPENDIX 7 EAZY NETWORKING Step5: Enable EaZy Wizard, and click “Start” to go to the login page. Log into the cloud service. Step6: Select the recorder picture, or choose “DVR / NVR” on the bottom right corner. Then, enter the MAC address you wrote down in Step2, and the security code.
  • Page 76 APPENDIX 7 EAZY NETWORKING Step8: You’ll see the newly-added device with a cloud icon on the left pane. Drag and hold the device to the display area on the right pane to show in the same window, or simply double-click the device to open the device view in another window.
  • Page 77 APPENDIX 7 EAZY NETWORKING Step3: Choose the cloud device you want to share, and click “Next” to enter the cloud account or the E-mail registered by the account you want to share with. Then, select “Add”. Step4: Check again the account to which you want to share your cloud device. To add more accounts, select “Add”;...

  • Page 78: A8.3 Icons

    APPENDIX 7 EAZY NETWORKING Step8: Return to the main page. You’ll see the device being shared is marked with an icon of two people. A8.3 Icons Icon Color Indication Teal This device is a DVR or NVR. Blue This device is a DVR or NVR. Orange This device is an IP speed dome camera.

This manual is also suitable for:
