Summary of Contents for Toyota VSS3-Hilux

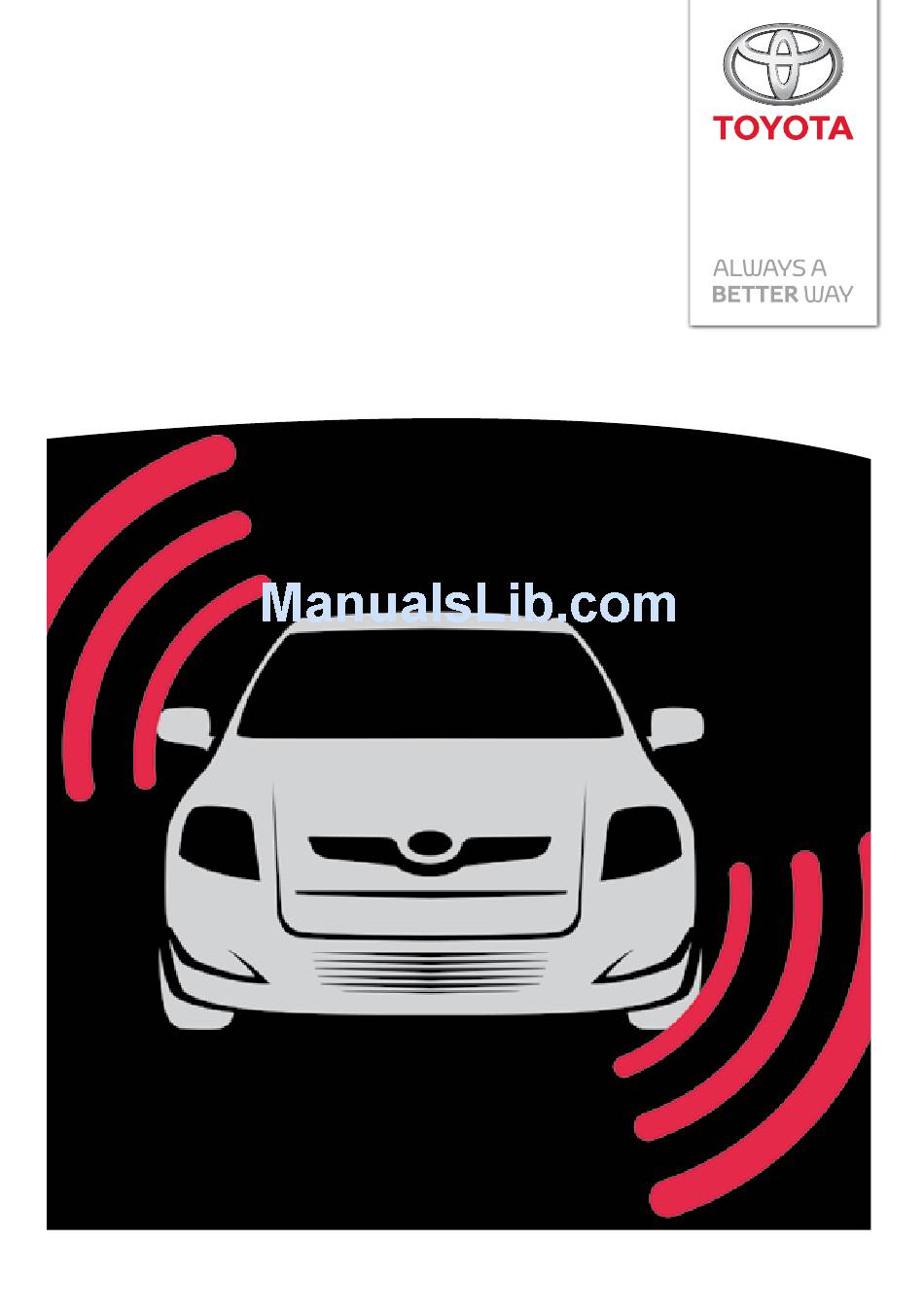

- Page 1 Vehicle Security System VSS3 - Hilux Owner’s manual...
- Page 2 Toyota Motor Europe NV/SA is not liable for any incidental loss caused by the use or non-use of this product. Toyota Motor Europe NV/SA is not liable for any damages or incidents consequent to intentional misuse, accidental misuse, or third party use of the device.
-
Page 3: Table Of Contents
Content 1. PIN code ........................ 2. Arm / Disarm ......................2.1. To ARM the alarm system ..................2.2. To DISARM the alarm system ..................2.3. Stop the siren sounding ................... 2.4. Arm without intrusion sensor ..................2.5. Arm without additional sensors ................. 2.6. - Page 4 This alarm system is operated by the original high security remote control described in the car’s owner’s manual. To programme extra remote controls consult your Toyota authorised retailer. The alarm system can only be armed and disarmed with the original car remote control. The protection of your car is assured by interior movement and perimetric sensors.
-
Page 5: Pin Code
1. PIN code If the alarm system has been installed in your vehicle, you did receive from the authorized retailer a card (credit card size) with a PIN code (Personal Identification Number) consisting of 4 numbers. The PIN code is used to deactivate the alarm system in case the remote control stops working. It will also be used by your authorised dealer to change your system configuration. -
Page 6: Arm / Disarm
2. Arm / Disarm LOCK (Arm) UNLOCK (Disarm) The alarm system will be armed when you lock the car, and disarmed when you unlock the car using the remote key. 2.1. To ARM the alarm system Important: To prevent false alarm, check that there is no one in the car, and that all windows and sliding roofs are closed before locking the car (see how to deactivate the interior intrusion sensor in paragraph 2.4). -
Page 7: To Disarm The Alarm System
2.2. To DISARM the alarm system Action Hazard light indication Alarm status light (LED) Remote control: Press the Flashes twice. Stops flashing. unlock button once. Note: – If no door is opened within 30 seconds after disarming, the system will re-arm automatically and the doors will be locked again. –... -
Page 8: Arm Without Intrusion Sensor
2.4. Arm without intrusion sensor If you have to lock the car with somebody inside (passenger, children, dog, …), or if you want to leave the window open, you must deactivate the intrusion sensor. Activation steps Hazard light Alarm status Buzzer indication light (LED) Lock the car by the Flashes once. -
Page 9: Arm Without Additional Sensors
2.5. Arm without additional sensors For example, if you have an inclination sensor, you need to deactivate it when you are travelling by boat or train, or if you are parking in a car park served by lifts. If your alarm system has additional sensors, you can deactivate them as follows: Activation steps Hazard light Alarm status... -
Page 10: Alarm Status Light (Led)
2.7. Alarm status light (LED) The status LED is used to give information to the user, during normal operation, and as a diagnostic tool. Condition Alarm status light (LED) Disarm state: LED off Pre-arm state (30 sec LED on arming time): Arm state: LED blinking Alarm state: LED blinking... -
Page 11: Features
3. Features As well as the alarm function, some extra features are available which can be activated/deactivated. To activate or deactivate any of them, please contact your authorised retailer. 3.1. Door ajar warning This option is enabled as default. If any door or the boot is opened when the lock button is pressed, the buzzer will sound for 10 times. -
Page 12: Ignition Controlled Door Lock
3.3. Ignition Controlled door lock This option is disabled as default. To enable it, please contact your authorised retailer. When you turn the ignition key ON, the system will lock the doors. The alarm system will unlock all doors when the ignition is turned OFF. 3.4. -
Page 13: Alarm Memory
3.5. Alarm memory If the alarm went off during your absence, the hazard lights will flash 5 times when the doors are unlocked, and the buzzer will sound 5 times. The system memorizes the last alarm causes. They can be identified counting the number of flashes of the LED before switching the ignition ON. -
Page 14: Arming Buzzer
To exit: 1. Turn IG ON. 2. A long push on the remote unlock button, or on the LED push button. Note: During garage mode, the LED will flash at each ignition ON. The exit from garage mode will be confirmed by 5 hazard flashes. 3.8. -
Page 15: Technical Specifications
4. Technical Specifications Nominal rated operating voltage: +12 V DC Operating voltage range: +9 to +16 V DC Maximum overvoltage: +24 V DC per 1 minute Maximum reverse voltage: −18 V DC per 1 minute Current consumption – Disarm state: <... -
Page 16: Troubleshooting Guide
5. Troubleshooting guide Problem Possible causes Possible solutions System is beeping 10 beeps 1 door/boot or bonnet is open. Check that all doors are correctly closed. 5 beeps at unlock Alarm went off while system was Contact your authorised retailer to armed. find the cause. 8 beeps Wire harness connection problem/ Contact your authorised retailer to... -
Page 17: Glossary
Problem Possible causes Possible solutions LED Always ON You are in programming mode. Close bonnet to exit program mode. Always OFF System problem. See No arming. 30 seconds ON System is still in pre-arm phase. Wait 30 sec. to enter arm state. Blinking fast at IG Garage mode is activated. - Page 18 Publication no. AOM 001 340-1 PZ464-00134-EN...
