Toyota RS3200PLUS Troubleshooting Manual

2003-

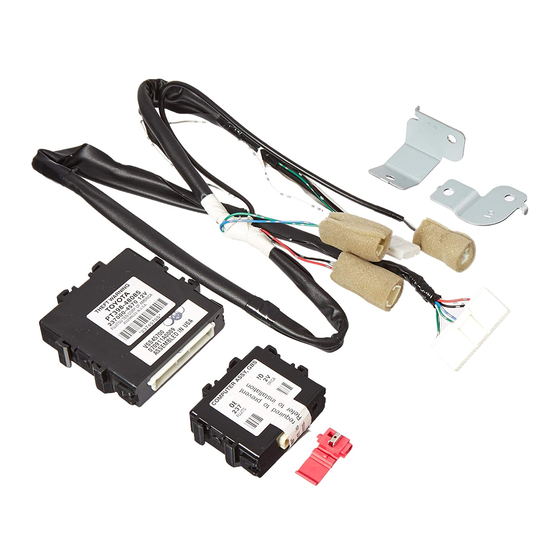

RS3200PLUS SECURITY SYSTEM

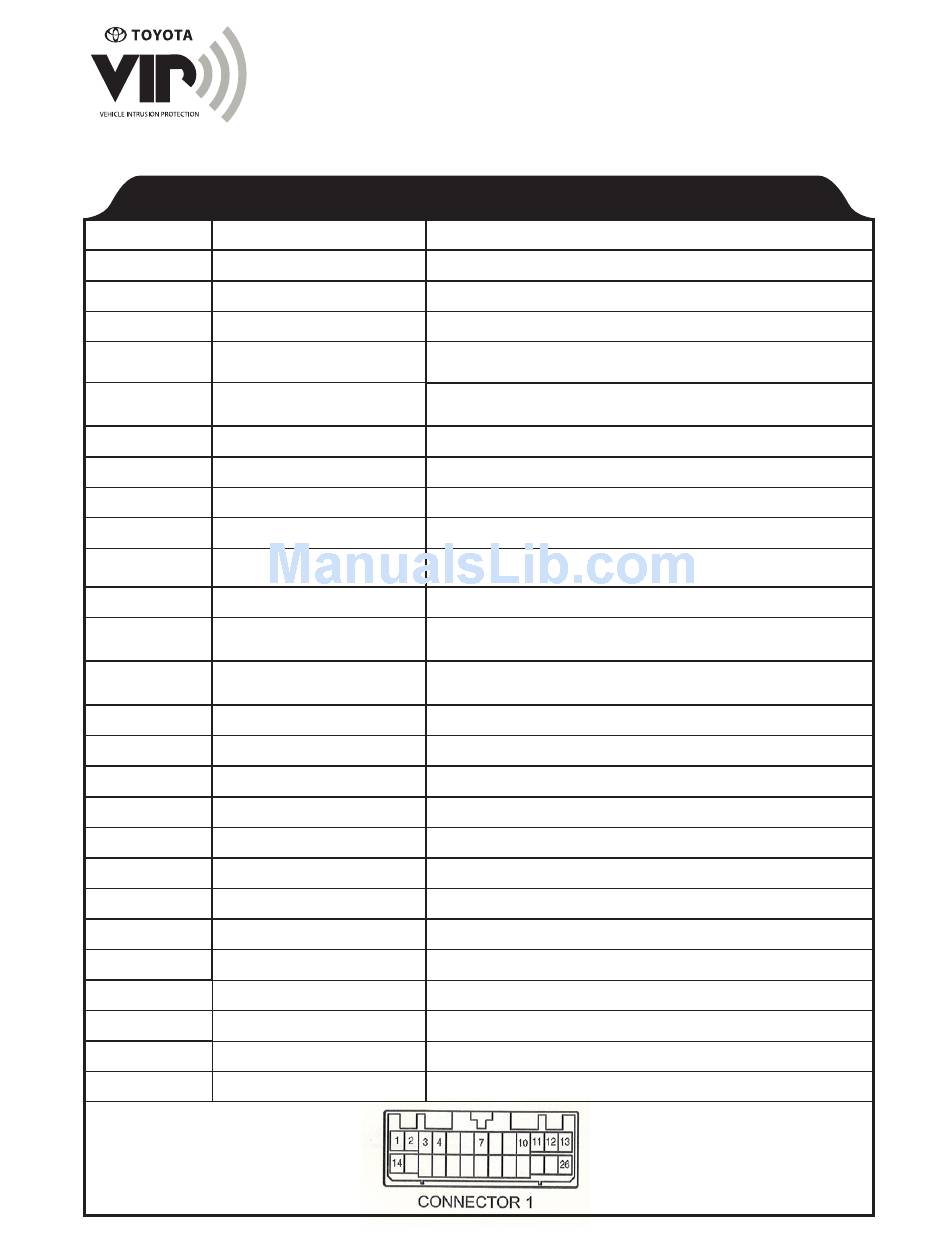

CONNECTOR1
1 - Ground SUB +B Power (Dome)
2 - Ground +B Power (Dome)
3 Trunk Key Input
4 - Ground Key Unlock Warning Input
5 N/C
6 - Ground
7 - Ground G.B.S. Input
8 - Ground N/C
9 - Ground N/C
10 MPX signal
11 Ground ECU Ground
12 - Ground LED Output
13 - Ground Starter Cut Input
14 Ground IG Input
15
16 N/C
17 N/C
18 N/C
19 N/C
20 N/C
21 N/C
22 N/C
23 N/C
24 N/C
25 N/C
26 - Ground Starter Cut Output
4RUNNER TVIP V5

TROUBLESHOOTING

INFORMATION
CIRCUIT
Always Approx. 12V
Always Approx. 12V
Continuity when key turned to open
Continuity when key is in the ignition switch
0V (Pulsed) when window hit
Continuity
Approx. 1.8V when LED on, 0V when LED off 0V during trig-
gering
Approx. 12V when ignition switch at ST position, 0V during
triggering
Approx. 12V when ignition switch is in ON position
N/C
Approx 12V when ignition switch is in ON position
RS3200 PLUS
TROUBLESHOOTING GUIDE
MEASUREMENT
