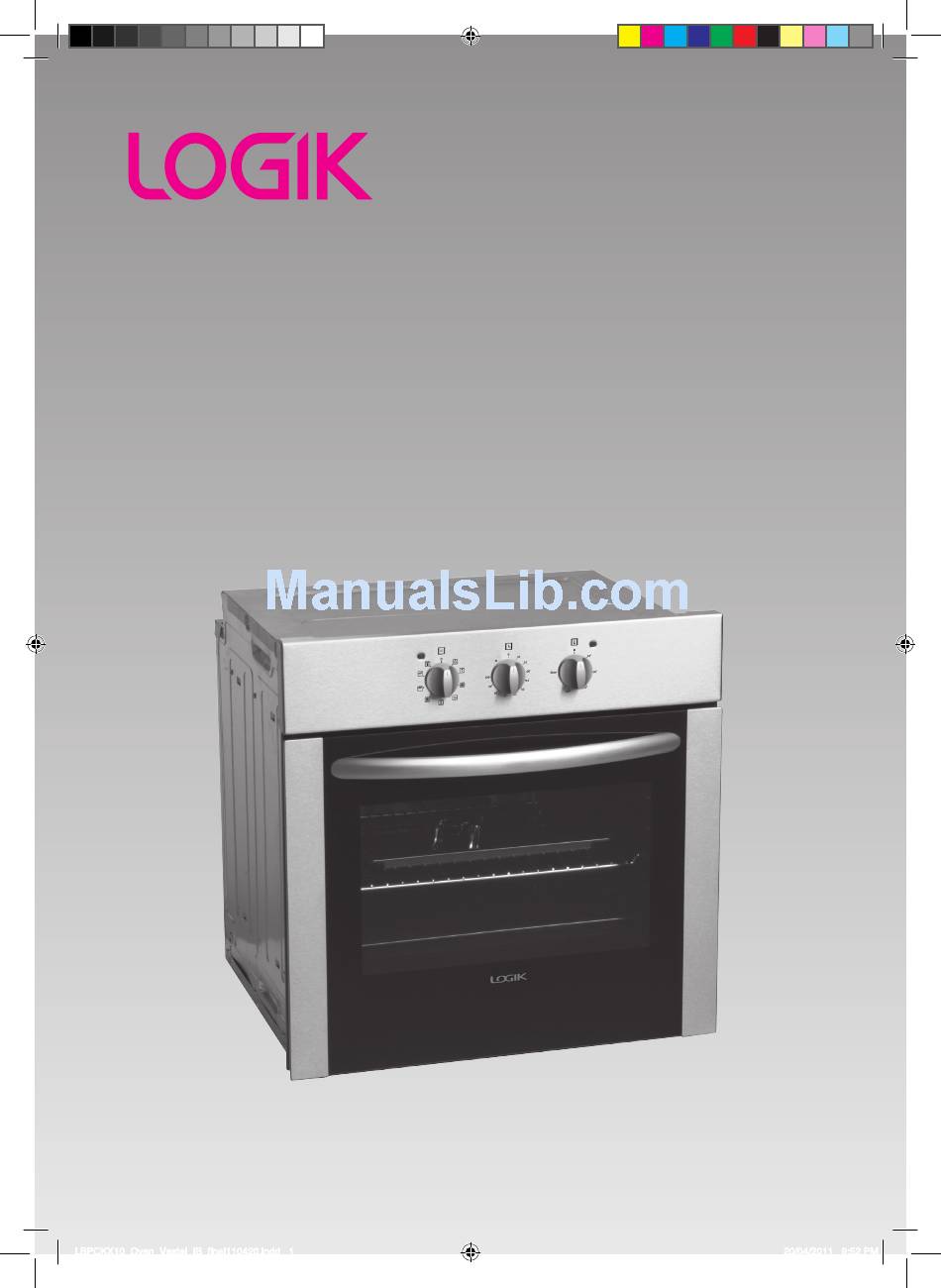

- Page 1 Electric Multifunction Fan Oven Instruction / Installation Manual LBPCKX10 LBPCKX10_Oven_Vestel_IB_final110420.indd 1 20/04/2011 9:52 PM...
- Page 2 LBPCKX10_Oven_Vestel_IB_final110420.indd 2 20/04/2011 9:52 PM...
-
Page 3: Table Of Contents
Contents Unpacking ............................. 4 Product Overview ......................... 5 Front View ...................................5 Control Panel ................................5 First Time Use of the Oven ......................6 Function Selector Control ......................6 Thermostat Control ........................6 Timer Control ..........................7 Using the Oven ..........................7 Replacing the Anti-tilting Oven Shelf .................. -
Page 4: Unpacking
Thank you for purchasing your new Logik Electric Multifunction Fan Oven. You must read this manual in order to fully understand how to install and operate it correctly. Read all the safety warnings carefully before use and keep this manual for future reference. -
Page 5: Product Overview
Product Overview Front View 50 ° 100 ° 150 ° 200 ° Control Panel Shelf guide slots Control Panel 50 ° 50 ° 50 ° 100 ° 100 ° 100 ° 150 ° 150 ° 150 ° 200 ° 200 ° 200 °... -
Page 6: First Time Use Of The Oven
First Time Use of the Oven Unpack the oven. Remove any insert cards or plastic bags. Use a damp cloth to carefully wipe the inner cavity wall and housing. Clean all the detachable parts in hot, soapy water before using. Heat the oven on maximum for 45 minutes. -
Page 7: Timer Control
Timer Control The timer can be set from 0-100min for timer operation or set to "M" for manual operation. (See the "Using the Timer Control" on page 9 for details) 200 ° Using the Oven • Under no circumstances should the oven be lined with aluminium foil as overheating may occur. Do not place dishes or baking trays directly onto the base of the oven as it becomes very hot and damage may occur. -
Page 8: Using The Functions And Temperature Controls
Using the Functions and Temperature Controls Symbol Function Description The oven light will be turned on. Defrost Function To use the defrost function, take your frozen food and place it in the oven on a shelf placed in the 3rd guide slot from the bottom. It is recommended that you place an oven tray under the defrosting food, to catch the water accumulated due to melting ice. -
Page 9: Using The Timer Control
Using the Timer Control Manual Operation To use the oven without the timer set you must turn the control counter clockwise to the "M" position, the oven can be operated continuously. The oven will not operate with the timer control in the "0" position. Timer Operation To use the oven with the timer turn the control in the clockwise direction to set a time up to 100 minutes. -
Page 10: Cleaning Tips
Cleaning Tips Ensure that the appliance is switched off and isolated before cleaning the oven to avoid the possibility of electric shock. Allow the oven to fully cool before cleaning. Remove the wire shelves, wash them separately in hot soapy water and dry thoroughly. -
Page 11: Replacing The Oven Light
Replacing the Oven Light Ensure that the appliance is switched off before replacing the light to avoid the possibility of electric shock. Turn off the oven and make sure that it is cold. Switch off its isolation switch. After removing the cover in front of the light, take out the bulb by turning anti-clockwise. -
Page 12: Specifications
Specifications Model LBPCKX10 (Oven) Rated Voltage 230 – 240 V Rated Frequency 50 Hz Power 3200 – 3500 W Current 13 – 14 A Bulb Specifications 230V~ 50Hz, 25W, E14 Top Element 1200 W Bottom Element 1100 W Grill 2000/3200 W Net Weight 30.2 kg... -
Page 13: Installation
Installation • The electrical connection of this oven should be carried out by a qualified electrician. Following the instructions in the installation section of this manual and in compliance with the current regulations. • The oven is intended for household use only. Use as Competent Person or Qualified Electrician • This oven must be installed in compliance with local safety standards. -
Page 14: Installing The Built-In Oven
Installing the Built-in Oven The space where the oven will be placed needs to be at least 60cm wide, 58cm deep and 59.5cm high. A minimum gap of 2.5cm between the work surface and the control panel, and a distance of 5cm between the work surface and top of the oven is needed, in order to be able to get to the back of the oven if necessary and for easy access when sliding the oven out. -
Page 15: Making An Electrical Connection
Making an Electrical Connection An approved suitable cable must be connected from the Consumer Unit (main fuse box)and be protected by its own 30amp fuse or Micro Circuit Breaker (MCB). The electrician must provide a fused double-pole isolation switch, which disconnects both the line (live) and neutral conductors, with a contact separation of at least 3 mm incorporated into the fixed wiring. -
Page 16: Safety Warnings
Safety Warnings Installation Operation and Maintenance General Warnings • The appliance must be installed only by an authorized person in compliance with the • If the mains cable is damaged, the cord must be instructions provided. Incorrect installation may replaced by the manufacturer, its service agent cause harm to persons, animals or may damage or similarly qualified persons in order to avoid a property. - Page 17 • During use this appliance becomes hot. Care should be taken to avoid touching hot surfaces, e.g. oven door, heating elements. • To avoid burns and scalds children should be kept away. • Accessible parts may become hot when in use. Children should be kept away.
- Page 18 If you require a replacement for any of the items listed below, please quote their corresponding part numbers: Replacement Part Part Number Grill Pan, Grid and Handle Set 20627919 Tray 20612977 Wire Shelf 37010933 Visit Partmaster.co.uk today for the easiest way to buy electrical spares and accessories.
- Page 19 LBPCKX10_Oven_Vestel_IB_final110420.indd 19 20/04/2011 9:52 PM...
- Page 20 LBPCKX10_Oven_Vestel_IB_final110420.indd 20 20/04/2011 9:52 PM...
