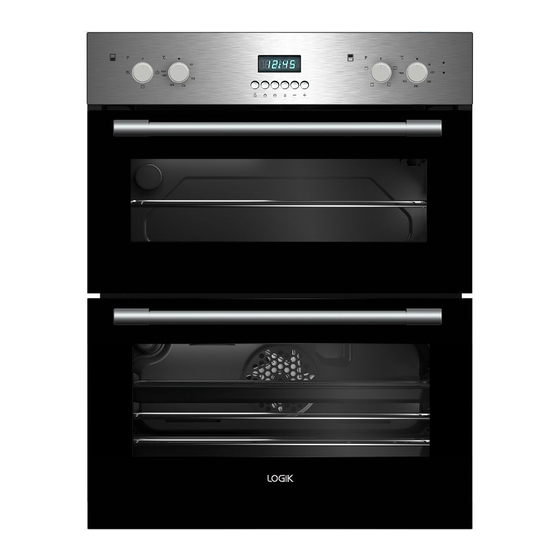

To remove the inner glass from a Logik LBUDOX16 oven lower door:

1. Remove the top decor located on the lid.
2. Pull to remove the front door inner glass.
3. Remove the middle glass by pulling it.
4. Use an apparatus to insert into the signet gap on the glass and move the glass up.

This answer is automatically generated

Summary of Contents for Logik lbudox16

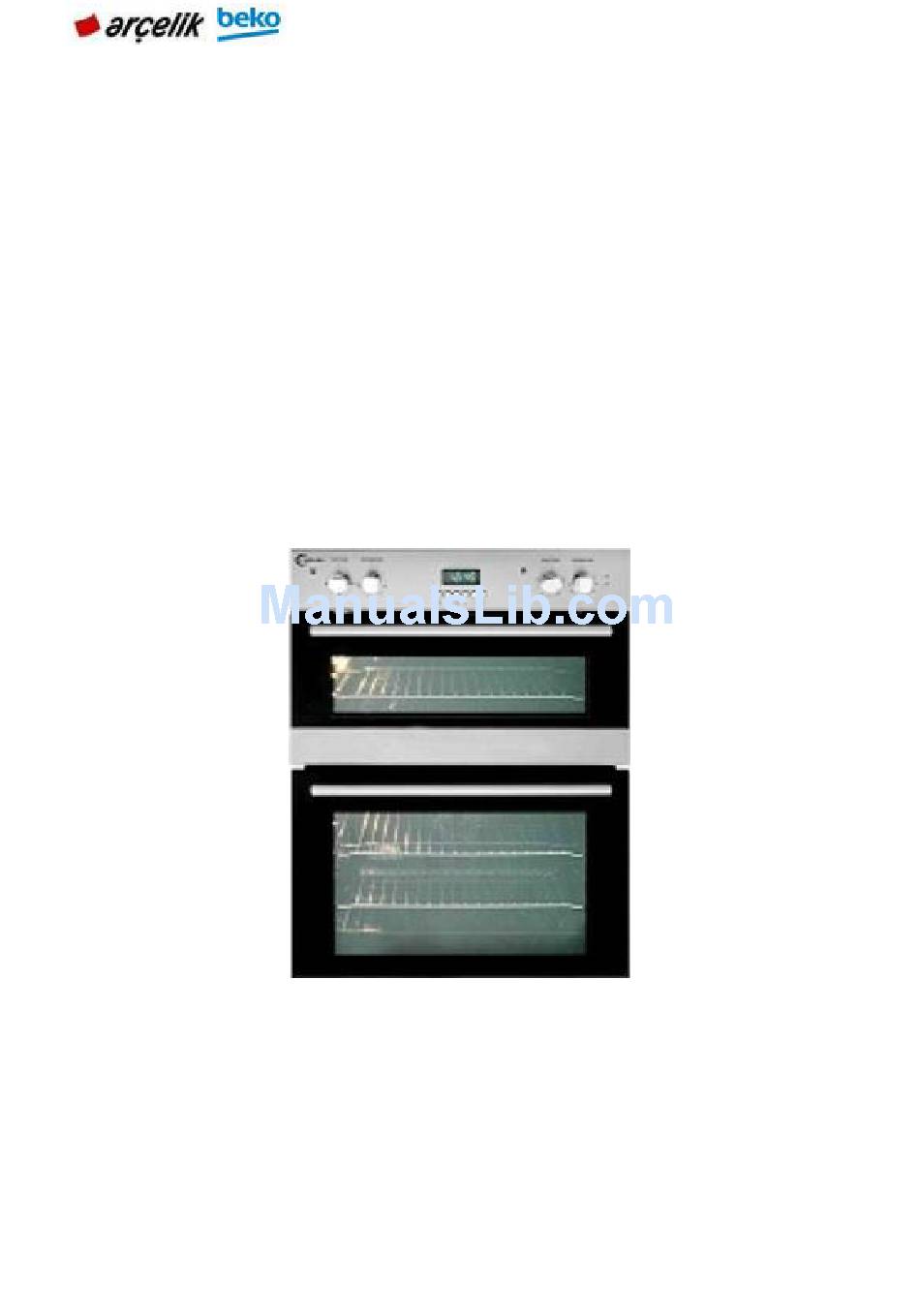

Page 1 DOUBLE BUILT IN OVEN SERVICE MANUAL 1 | EN...
Page 2: Table Of Contents
1.COVER 2.INDEX 1. COVER 2.INDEX 1.COVER ............................2 3. SAFETY WARNING ........................5 3.1 G ..........................5 ENERAL AFETY 3.2. S ......................5 AFETY FOR ONFİGURATİONS 3.3 I ......................6 NFORMATİONS FOR ONSUMER 4. TECHNICAL SPECIFICATIONS ..................... 7 5. PRODUCT ASSEMBLY/ ASSEMBLY RULES/ SETTINGS ..............8 5.1 P ........................
Page 3 10.4 T ......................... 48 HERMİNAL AULT 10.4.1There is no power from the terminal does not diffuse into the electric furnace ....48 10.4.2 When the fuse blows the oven is plugged into the Wall socket......... 49 12. COMPONENT ASSEMBLY / DISASSEMBLY BE USED IN EQUIPMENT ........52 13.COMPONENT ASSEMBLY / DİSASSEMBLY................
Page 4 14.4 C ................... 107 HANGING THE PYRO COOLING ENGINES 14.5 R ................. 108 EPLACING THE ENGINE COOLING THERMOSTAT 4 | EN...
Page 5: Safety Warning
3. SAFETY WARNING This section contains safety instructions that will help protect from risk of personal injury or property damage. Throughout this user manual the following symbols are used. Important information or useful hints about usage. Warning of hazardous situations with regard to life and property. Warning of electric shock..
Page 6: Informations For Consumer
3.3 Informations for Consumer  Product may be hot during the usage.Do not touch with hot parts ,inside the oven,heating components etc. .When the product is working it is hot so do not put combustable materials near the product.  Do not wash the product with water! It is dangerous for electrick shock!Ürünü, üzerine s ...
Page 7: Technical Specifications
4. TECHNICAL SPECIFICATIONS Refer to the product specifications manusoft. 7 | EN...
Page 8: Product Assembly/ Assembly Rules/ Settings
5. PRODUCT ASSEMBLY/ ASSEMBLY RULES/ SETTINGS 5.1 Product Transportation To carry or move the product, do not use door or handle of the product. Door, handle or hinges can be harmed. Product should be carried by two person for safety of the product and ergonomics When the product is being carried or the product is being put to the ground, do not put it keenly, do not drag it and do not skid it from...
Page 9: Unpacking Product
5.2 Unpacking Product To consider product changing in the mounting process, please do not harm package, product and the product package when extracting. Extract package with a knife without harming top and bottom carton. Take the top carton. Take lathes on the product’s front and behind sides, like shown in below. 9 | EN...
Page 10 Take stripers which are left and right side of the products. Symbols on the package of the products and meaning of them; Do not carry Carry the product Carry with Preserve the product in this way by Do not step on Fragile barrow in from damp...
Page 11: Controlling The Setup Place And Energy Sources
5.3 Controlling the setup place and energy sources 5.3.1 Measurement control of the mounting place In the setup of the product, local standards about electric and gas should be applied. Product is designed according to kitchens’ bench so it is placeable. Appropriate safety interval should be between kitchen wall and the furniture.
Page 12: Electrical Connection
5.4 Electrical connection Connect the product to a grounded outlet/line protected by a fuse of suitable capacity as stated in the "Technical specifications" table. Have the grounding installation made by a qualified electrician while using the product with or without a transformer. Our company shall not be liable for any damages that will arise due to using the product without a grounding installation in accordance with the local regulations.
Page 13: Use Of Products
6. USE OF PRODUCTS 6.1 Operating functions The sequence of operating modes shown here may differ from the arrangement on your appliance. Oven lamp The oven is not heated. Only the oven lamp is turned on. Possibly, the external cooling fan will also operate to avoid heating of the compartments Top and bottom heating Top and bottom heating are in operation.
Page 14 Grill Small grill at the ceiling of the oven is in operation. Suitable for grilling. • Put small or medium-sized portions in correct shelf position under the grill heater for grilling. • Set the temperature to maximum level. Turn the food after half of the grilling time. Full grill Large grill at the ceiling of the oven is in operation.
Page 15: Use Of Product Hours
The oven heats up to the set temperature and maintains this temperature. During heating, temperature lamp illuminates. Turning off the electric oven Function button and the temperature knob off (upper) position. 6.3 Use of Product Hours 6.3.1 Digital clock products (6 keys) Plug in the power cord and turn on the insurance of the device.
Page 16 Keys: Alarm key Cooking time End of cooking time Unscheduled cooking Time adjustment keys: Minus key Plus key Keep keys (1) and (2) pressed. 16 | EN...
Page 17: Using The Oven Clock
Press (5) or (6) keys to set the time. Press the key with short intervals to increase or reset the time with increments of 1 minute. If you keep the relevant key pressed, the minutes will increase and reset faster. Using the oven clock Keys: 1 Alarm key...
Page 18 Make sure that the clock is correct. Put your dish into the oven and close the door. Keep the key (3) pressed. Press (5) or (6) keys to set the end of cooking time. Press the key with short intervals to increase or reset the time with increments of 1 minute.
Page 19 Release the key (3). Keep the key (2) pressed. Press (5) or (6) keys to set the cooking time. Press the key with short intervals to increase or reset the time with increments of 1 minute . If you keep the key pressed, the minutes will increase and reset faster. 19 | EN...
Page 20 Release the key (2). Select operation mode and temperature. The oven will be heated up to the preset temperature and will maintain this temperature until the end of the cooking time you selected. The cooking symbol appears on the display during the cooking process.
Page 21 Turn off the oven with the Temperature knob and/or Function knob. Press the key (4). AUTO symbol on the display disappears. Switch on semi-automatic operation In this operation mode, oven starts cooking once you enter the cooking time. Keep the key (2) pressed. 21 | EN...
Page 22 Press (5) or (6) keys to set the cooking time. Press the key with short intervals to increase or reset the time with increments of 1 minute. If you keep the key pressed, the minutes will increase and reset faster. »...
Page 23 Press (5) or (6) keys to set the cooking time. » AUTO symbol appears on the display. Press the key with short intervals to increase or reset the time with increments of 1 minute. If you keep the key pressed, the minutes will increase and reset faster. Release the key (2).
Page 24 The cooking symbol appears on the display during the cooking process. Press the key (4). AUTO symbol on the display disappears. Turn off the oven with the Temperature knob and/or Function knob. Keep the key (2) pressed. 24 | EN...
Page 25: Using The Clock As An Alarm
Keep the key ( ) pressed until "0.00" appears on the display as the remaining cooking time. Release the key (2). Press the key (4). Using the clock as an alarm You can use the clock of the product for any warning or reminder apart from the cooking programme.
Page 26 Keys: Alarm key Cooking time End of cooking time Unscheduled cooking Time adjustment keys: Minus key Plus key Setting the alarm clock Keep Alarm key (1) pressed. Press (5) and (6) keys to determine how long after the alarm will sound. Press the key repeatedly to increase or reset the time with increments of 1 minute.
Page 27: Adora Clock Products
Turning off the alarm Press End of Cooking Time key (3) when the alarm sounds. If you want to cancel the alarm Keep Alarm key (1) pressed. Keep the key (5) pressed until "0.00" appears on the display as the remaining time.
Page 28 Program key Cooking time End of cooking time Alarm symbol Minus key Plus key Screen brightness setting Alarm volume Current time 10 Keylock 11 Adjustment key NOTE: Before you can use the oven, the time must be set. If the time is not set, oven will not operate.
Page 29 Press (11) key to activate current time symbol . Press „–“ or „+“ (5/6) keys to set the current time. Changing screen brightness adjustment Press (11) key to activate screen brightness symbol for screen brightness adjustment. Press „–“ or „+“ (5/6) keys to set the current time.
Page 30 Cooking by specifying the cooking time: You can set the oven so that it will stop at the end of the specified time by setting the cooking time on the clock. Program key Cooking time End of cooking time Alarm symbol Minus key Plus key Screen brightness setting...
Page 31 To adjust the cooking time, press Program key (1) and activate the Cooking Time symbol .Adjust the cooking time with Minus (5) and Plus (6) keys. » Cooking Time symbol remains lit (displayed continuously) after setting the cooking time. To set the End of Cooking Time, Press Program key (1) and activate the Cooking Time symbol (3) .
Page 32 After the cooking process is completed, "End" appears on the displayed and the alarm will sound. Alarm signal will sound for 2 minutes. To stop the alarm signal, just press any key. Alarm will be silenced and current time will be displayed.
Page 33 Press the key (11) to activate Keylock symbol (10) . "OFF" will appear on the display. Press '+' key (6) to activate the keylock.. Once the keylock is activated, "On" appears on the display and the Keylock symbol (10) remains lit. When the Keylock function is activated, control panel buttons except for the key (11) cannot be used.
Page 34 Press '–' (5) to deactivate the keylock. OFF" will be displayed once the keylock is deactivated. Using the clock as an alarm You can use the clock of the product for any warning or reminder apart from the cooking programme. The alarm clock has no influence on the functions of the oven.
Page 35 Press Program key (1) to activate the alarm time symbol (4). Maximum alarm time can be 23 hours and 59 minutes. Adjust the alarm time using „+“ „–“ (5/6) keys. Alarm symbol will remain lit and the alarm time will appear on the display once the alarm time is set.
Page 36 Changing alarm tone Press Setting key (11) to activate the Alarm Tone symbol (8) Adjust the desired tone using „+“ „–“ (5/6) keys. Selected alarm tone will appear as "b- 01", "b-02" or "b-03" on the display. 36 | EN...
Page 37: By Products/Products Labels Used
7.BY PRODUCTS/PRODUCTS LABELS USED 7.1 Accessories Oven Tray Cake Tray Wire Grid 37 | EN...
Page 38: Tags And Descriptions Used In The Product
7.2 Tags and Descriptions used in the product 7.2.1 Type the label Given information on the product nameplate label on the product gas. Sticker on the location; According to the type of product, or the product can be seen in the front door or the rear wall of the lower lid is opened.
Page 39: Barcode Label
7.2.2 Barcode Label Product bar code label of the product produced in the country, defining the characteristics of the brand and model, defined lines and spaces according to the rules of international label. Barcode label location; Product packaging is pasted on cardboard. 7.3.3 Energy Label Product energy label product energy class, the label shows the volume of the product.
Page 40 Energy Label lacatıon; Energy label products are in a group of periodicals. 40 | EN...
Page 41: General Working Principle
8. GENERAL WORKING PRINCIPLE Mechanical control circuit used in the mechanical clock-controlled oven (Module) control of the oven function, showing the mechanical formats, such as furnace uptime, choose food from the cooking guide, cooking demonstration of recipes, automatic cooking made from the cooking guide, showing the cooking time, the timer (set the time counting backwards , making a sound when time runs out) and gives the internal temperature of the oven control facilities.
Page 42: List Of Components / Component Working Principle
9. LIST OF COMPONENTS / COMPONENT WORKING PRINCIPLE 9.1 Technical specifications of the components; Grid Resistance Grid resistance is controlled by the control button under the commutator. Oven Heatıng Clemens Oven heating is controlled by the control button under the commutator. It is located between chasis and metal sheet of bottom.
Page 43 Turbo Heater Turbo heater is used in multifunction and turbo ovens. It is located in inner back wall of chasis. Bi Metal When thermal circuit breaker does not work, bi metal works and cuts the power. It Works dangerous situation, not normal situation. 43 | EN...
Page 44: Fault Flow / Fault Finding Diagrams
10. FAULT FLOW / FAULT FINDING DIAGRAMS 10.1.Resistance Faults 10.1.1 Resistance does not work;the food is not cooked 44 | EN...
Page 45: Lamp Fault
10.2 Lamp Fault 10.2.1 Furnace is working but the oven does not illuminate 45 | EN...
Page 46: Oven Does Not Work,Oven Lamp Does Not Light
10.2.2 Oven does not work,oven lamp does not light, 46 | EN...
Page 47: Termostat Fault
10.3 Termostat Fault 10.3.1 Furnace runs continuosly,the thermostat is not tripped. 47 | EN...
Page 48: Therminal Fault
10.4 Therminal Fault 10.4.1There is no power from the terminal does not diffuse into the electric furnace 48 | EN...
Page 49: When The Fuse Blows The Oven Is Plugged Into The Wall Socket
10.4.2 When the fuse blows the oven is plugged into the Wall socket. 49 | EN...
Page 50 11.COMPONENTS CONTROL Current and power drawn by components on the product with the instrument called a multimeter measured. The current drawn by the components on the product and the power is measured with a multimeter name given instrument. For the measurement of resistance Turbo example; Multimeter to measure resistance is brought into position to measure the resistance of the resistor Turbo.
Page 51 The work of the look of a resistance value in the multimeter display shows that in the case. a resistance value in a secure, avometer resistance is seen. resistance value does not appear damaged. 51 | EN...
Page 52: Component Assembly / Disassembly Be Used In Equipment
12. COMPONENT ASSEMBLY / DISASSEMBLY BE USED IN EQUIPMENT Screwdrivers Needlenose Nippers 52 | EN...
Page 53: Component Assembly / Di̇sassembly
13.COMPONENT ASSEMBLY / DİSASSEMBLY NOTE: The following components disassembly operations are related below. For component installations apply this operations in reverse order. 13.1 Replacement of the knob Pull knob to yourself to remove. Push the new knob against the control panel. Rounded sufoces on the knobs shaft and commutators shaft must overlap.
Page 54: Replacement Of The Control Panel
13.3 Replacement of the control panel Unscrew two screws mounted on both right and left side of the panel. 54 | TR...
Page 55 Lit the contro panel until pins become free form the housing.Pull the control panel by taking care of cables.Pull the cable sockets.Away form the panel. 55 | EN...
Page 56: Replacement Of The Front Door
13.4 Replacement of the front door Open the oven door. As shown in the picture,pull down the hinge clips on both sides ot the oven door. 56 | EN...
Page 57: Replacement The Front Door Hinge
.Position the door halt open as shown. Remove the oven door by pulling it away trom the oven as it is in the halt open position. Important: Don't forget to close the hinge clips when reassembling the door.Other wise,the door can't be closed. 13.5 Replacement the front door hinge Remove the front cover with the screws with a screwdriver after removal of the side of the hinges.
Page 58: Replacement Of The Removable Glass Cover 3
After removing the screws on the hinges to pull the empty slot and change with a new hinge. 13.6 Replacement of the removable glass cover 3 Remove the top decor, located on the lid first. Pull yourself to remove the front door inner glass. 58 | EN...
Page 59 Get in the middle of the glass remaining in pulling yourself. After removing the screws pull as seen in the picture below. 59 | EN...
Page 60: Replacement Of The Removable Glass Cover 2
13.7 Replacement of the removable glass cover 2 Before replacement ot the oven door according to instructions in user manuel. Remove door inner glass by apparatus tor removing the inner glass.Insert apparatus to signet gap on the glass and move the glass up. 60 | EN...
Page 61 61 | EN...
Page 62 Before remove the bottom sheet metal unscrew the screws both sides of the bottom sheet metal. Unscrews placed bottom in the oven door. 62 | EN...
Page 63 Remove plastic parts (protiles) figure as shown. Ventilation decors can be changed by apparatus for removing the inner glass. 63 | EN...
Page 64 Glass fixing locks can be replaced. 64 | EN...
Page 65: Replacement Of The Removable Glass Cover 4
13.8 Replacement of the removable glass cover 4 Remove of the plastic part mounted upper side of the oven door by pulling yourself. Lift in mast glass up then remove then glass by pulling in direction as shown in the figure. Repair this operation to remove the second and third inner glass.
Page 66 Important: It is important in mounting all inner glasses to position the bottom corners ot glasses in to the bottom plastic housings properly. 66 | EN...
Page 67 Screw glass carrying plastic to locking springs. Fix,group to door left / right profiles. Bands are sticked to in mast door metal sheet on both sides of the door profiles. 67 | EN...
Page 68: Replacement Of The Handle
13.9 Replacement of the handle First disassemble the oven door. Use an alien key sited 2 to remove the handle screws placed two sides ot the handle. Remove the handle by pulling away trom the oven door. 68 | EN...
Page 69: Replacement Of The Comutators
Cover and insert the remaining 2 screws holding the screwdriver handle with the help of the clipboard. 13.10 Replacement of the comutators Firstly,remove the knobs and disassemble the control panel. Unplug the electrical connection plugs ot the comutator to be replaced. Unbend the pins ot control panel.Demount the pin ot comutator plasic placed in to hole on the control panel.Turn the comutator plastic in clockwise direction to the plastic trom demount.
Page 70: Replacement Of The Oven Thermostat
13.11 Replacement of the oven thermostat First remove the thermostat knob and disassamble the conrol panel.Unbend the panel pin and demount the thermostat plastic pin trom the control panel. Turn commutator plastic clockwise direction to remove the group trom the panel. 70 | EN...
Page 71: Replacement Of The Thermostat Bulb
13.12 Replacement of the thermostat bulb Thermostat bulb is placed on the right top ot the rear wall ot the cavity To reach thermostat bulb,upper and rear cover sheets should be demounted unscrew the screw ot bulb support sheet. Pull the sheet away trom the cavity. 71 | EN...
Page 72 Pull the bulb away trom the support sheet.Replace the bulb with new one and do operations ot demounting in reverse order to assemble the new bulb. View ot the bulbin oven cavity can be seen in the picture. 72 | EN...
Page 73: Replacement Of The Bi-Metal Thermostat
13.13 Replacement of the bi-metal thermostat First remove the thermostat knob and disassambie the control panel.Unbend the panel pin and demount the thermostat plastic pin trom the control panel.Turn comutator plastic clockwise direction to remove the group trom the panel. 13.14 Replacement of the engine cooling To reach the cooling motor upper cover sheet should be demounted.
Page 74: Replacement Of The Ventilation Plate
Cooling up tor is placed on the upper wall ot oven cavity Turn the cooling motor and support sheet group clock wise direction to demount. 13.15 Replacement of the ventilation plate First replace the upper cover sheet. Unscrew 2 screws which hold the ventilation sheet metal,are placed the cavity inner ceilling.
Page 75: Replacement Of The Ventilation Thermostat
Ventilation sheet metal could be removed by pulling it as shown in the figure. 13.16 Replacement of the ventilation thermostat Firstly remove oven cover upper sheet metal. Ventilation thermostat is tixed to ventilation hole by two screws. 75 | EN...
Page 76 Change / remove ventilation thermostat by unscrew the screws. 76 | EN...
Page 77: Replacement Of The Rear Cover Sheet
13.17 Replacement of the rear cover sheet Unscrew 8 screws lased for mounting the rear cover sheet and remove the sheet. Oven back wall will be side opening position. This rear back wall can be dismount from notched. 77 | EN...
Page 78: Replacement Of The Side Walls
13.18 Replacement of the side walls Unscrew 7 screws and remove the free side wall. Dismount the side wall in order to remove the front side profiles. Afterwords, unscrews the three screws replace by the new one. 78 | EN...
Page 79: Replacement Of The Bottom Plate
13.19 Replacement of the bottom plate Unscrew ten screws on the oven floor sheet. Remove the oven floor sheet as shown in the figure. 79 | EN...
Page 80: Replacement Of The Switch
13.20 Replacement of the switch Top wall should be removed in order to diassembie the switch. Unscrew the screw which hold switch to side wall. Afterwords,displaced the switch from oven side wall. 80 | EN...
Page 81 Pull the switch and the change by the new one. 81 | EN...
Page 82: Replacement Of Cataliytic Side Walls
Switch 13.21 Replacement of cataliytic side walls 82 | EN...
Page 83: Replacement Of Top Heating Element
Firstly, remove the wire shelf that are in front of the catalytic side walls. Then screw off wire rack screws. 13.22 Replacement of top heating element Dismount rear and top cover sheets. Dismount electrical connections. 83 | EN...
Page 84 Screw off 2 screws. Open the front cover and ground grid resistance 2 Remove the screw that connects to the wall. 84 | EN...
Page 85: Replacement Of The Bottom Heating Element
Get off the grid’s idled resistance from the plate. Then, insert new resistance’s terminales by following electrical schematic, and close the back wall. 13.23 Replacement of the bottom heating element Fisrt dismount the rear cover sheet. Dismount electrical connections. 85 | EN...
Page 86: Replacement Of The Ring Heater
Resistor connection Unscrew the screws with a screwdriver. Pull the heaters towards yourself to dismount. 13.24 Replacement of the ring heater Firstly,remove the oven top and back wall. Disconnect the wiring for ring heater. 86 | EN...
Page 87 Remove the fan cover sheet by unscrewing the screws. Afterwords,unsscrew the two screws that fixed the ring heater to cavity. 87 | EN...
Page 88: Replacement Of The Seal Oven
Take the ring heater from inside cavity.Connect the wire to terminal according to wiring diagram and close in back wall. 13.25 Replacement of the seal oven Open the oven door. Remove the seal from hole on the cavity and replace with new one. 88 | EN...
Page 89: Replacement Of The Turbo Motor
13.26 Replacement of the turbo motor Firstly,remove the oven top wall,back wall and tan cover sheet. Disconnect the wire. 89 | EN...
Page 90 Turbo fan Unscrew the nut and fan with the help of forceps taken. Turbo engine that connects to the chassis by removing 3 screws, replace the turbo engine. Then the electrical terminals according to the scheme of the new turbo engine and rear walls turn off your jewelry.
Page 91: Replacement Of The Terminal Box
13.27 Replacement of the terminal box Firstly,remove the back wall. Open the terminal cover. 91 | EN...
Page 92 Terminal that connects to the rear wall and right in the box on the left (marked in the picture) Unscrew the screws with a screwdriver. Remove the cables in the back wall of the terminal block. Terminals and the cable from the wall and replace it with a new scheme by removing the electrical connection structure according to your.
Page 93: Replacing The Runners
13.28 Replacing the runners Located in the side walls of the furnace to get the wire rack wire rack wire rack bolts from the housing and replace it with a new wire rack. 13.29 Replacing the oven lamp Located in the oven to duy lamb + glass group just to change the lamp Unscrew the glass. Located in the oven replace it with a new lamp.
Page 94: Replacement Of The Oven Square Lamp
Hear the oven light bulb with lamp + glass behind the bakery to change your senses in the upper right side of your nails unscrew the rescue. 13.30 Replacement of the oven square lamp Located on the side walls within the chassis frame, freeing you from the lamp, remove the nail and replace it with a new one.
Page 95: Replacement Of The Signal Lamp
13.31 Replacement of the signal lamp Firstly remove the burner plate. Depends on the signal lamp socket, plug socket, remove the signal lamp behind the dashboard. 95 | EN...
Page 96: Replacement Of The Glass Wool
Sticking Pull the plug and replace the signal lamp 13.32 Replacement of the Glass Wool For this operation must remove the first side walls and the rear housing Disconnect the frame wire around the wire wrapped with glass wool. Glass wool loose change with a new one. 96 | TR...
Page 97 97 | EN...
Page 98: Replacement Of The 6 Button Hours
13.33 Replacement of the 6 button hours This process must be removed before the control panel. Pull the cables according to the time taken. Unscrew the panel under 2 hours support plate screws. Take the clock support sheet. Remove the cover tabs depending on the hours of pushing over time with the help of the screwdeiver.
Page 99: Replacement Of The Adora Timer
13.34 Replacement of the adora timer Unscrew the top of the wall to change the time. Remove the cable groups on the hour. 99 | EN...
Page 100 Remove the upper screw screwdriver to remove the clock. Remove the screw under the hour. 100 | EN...
Page 101 The void with their nails screwdriver in the right and left of the clock. Replace the old time with new ones. 101 | EN...
Page 102: Pyro Oven Specifications Assembly / Di̇sassembly
14. PYRO OVEN SPECIFICATIONS ASSEMBLY / DİSASSEMBLY 14.1 Isolation sheet metal connection Before remove isolation sheet metal firstly displace back wall and bottom sheet metal. In pyro ovens different from others isolation sheet metal covers isolation. As shown from the figure.
Page 103: Displacement Of Catalysor
14.2 Displacement of Catalysor Firstly,remove oven top sheet metal and ventilation sheet. As shown from the figure catalysor fix to the oven top sheet by 3 boits.These screws are placed inside the cavity celling Unscrew 3 screws and change catalysor why new one. 14.3 Replacement door lock Remove the top wall.
Page 104 There is a part tor tixing ot lock.Turn this part opposite direction to arrow. 104 | EN...
Page 105: Replacement Of The Ventilation Sheet
14.3 Replacement of the ventilation sheet Firstly,remove the oven top wall. Remove the ventilation sheet plastic. 105 | EN...
Page 106 Unscrew the two screws that is tor ventilation sheet plastic and take the plastic. Unscrew the two screws as shown figure. 106 | EN...
Page 107: Replacement Of The Pyro Ventilation Sheet Metal
14.3 Replacement of the pyro ventilation sheet metal Remove the ventilation sheet metal opposie directon to arrow as shown figure. 14.4 Changing the pyro cooling engines Unscrew the top of the wall before you remove the cooling engine. Insert the engine cooling ventilation plate to connect the 3 screws screwdriver assistance.
Page 108 14.5 Replacing the engine cooling thermostat Remove the top of the wall before you change the thermostat. Insert the thermostat ventilation plate to connect the 2 screws, and you change the thermostat with a new one. 108 | EN...
