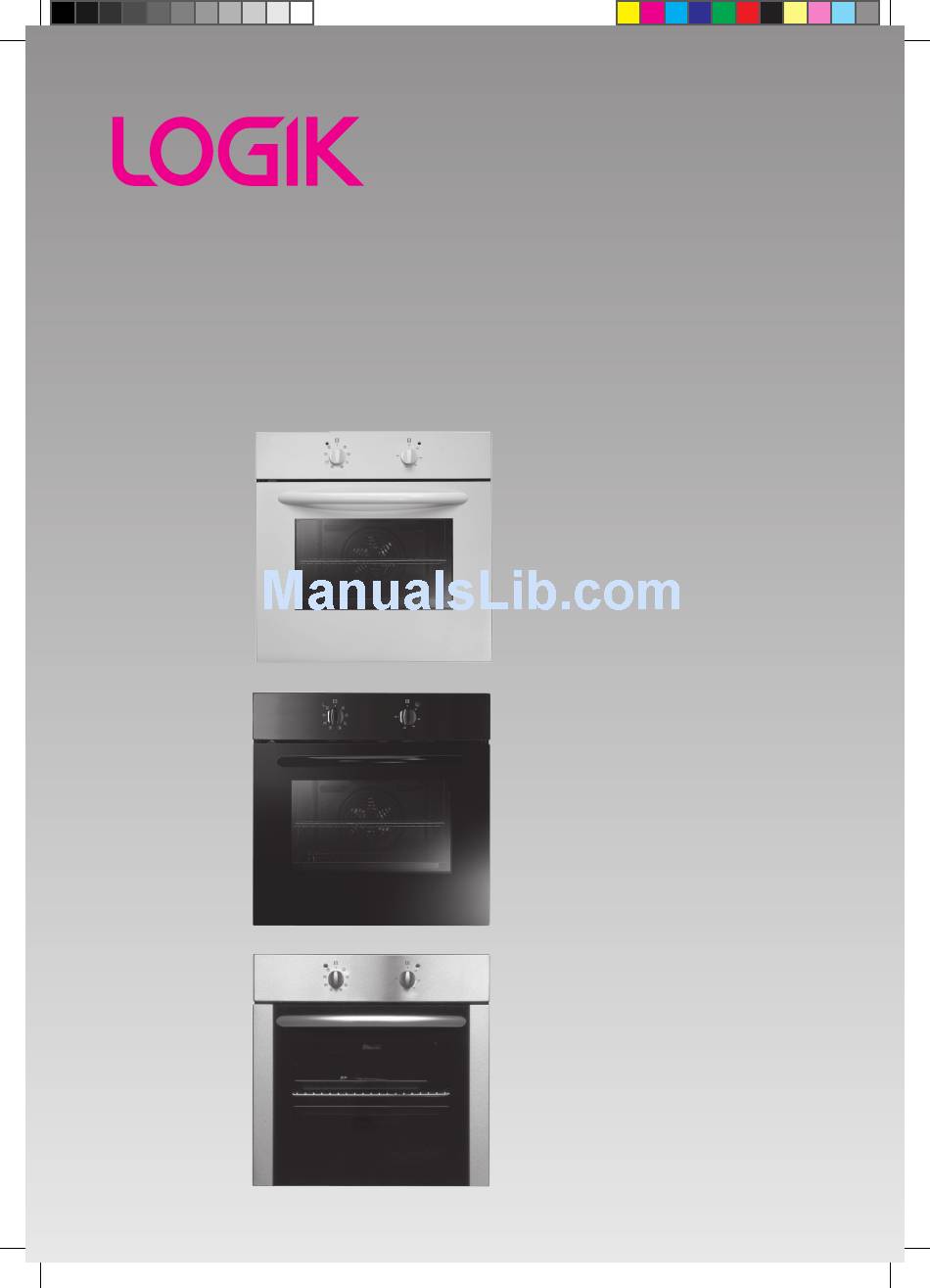

- Page 1 Built-in Oven Instruction / Installation Manual LBFANW10 LBFANB10 LBFANX10 LBFANW_B_X10_IB_110524_glo.indd 1 24/05/2011 5:40 PM...
- Page 2 LBFANW_B_X10_IB_110524_glo.indd 2 24/05/2011 5:40 PM...
-
Page 3: Table Of Contents
Contents Unpacking ............................. 4 Product Overview ......................... 5 Front View ...................................5 Control Panel ................................5 First Time Use of the Oven ......................6 Function Selector Control ......................6 Thermostat Control ........................6 Using the Oven ..........................7 Using the Functions ........................8 Baking Tips ............................ -
Page 4: Unpacking
Thank you for purchasing your new Logik Built-In Oven. You must read this manual in order to fully understand how to install and operate it correctly. Read all the safety warnings carefully before use and keep this manual for future reference. -
Page 5: Product Overview
Product Overview Front View Control Panel Shelf guide slots Control Panel 240° Oven Indicator Lamp Thermostat Lamp Function Selector Control Thermostat Control LBFANW_B_X10_IB_110524_glo.indd 5 24/05/2011 5:40 PM... -
Page 6: First Time Use Of The Oven
First Time Use of the Oven Unpack the oven. Remove any insert cards or plastic bags. Use a damp cloth to carefully wipe the inner cavity wall and housing. Clean all the detachable parts in hot, soapy water before using. Heat the oven on maximum for 45 minutes. -
Page 7: Using The Oven
Using the Oven • Under no circumstances should the oven be lined with aluminium foil as overheating may occur. • Do not place dishes or baking trays directly onto the base of the oven as it becomes very hot and damage may occur. -
Page 8: Using The Functions
Using the Functions Symbol Function Description Defrost Function To use the defrost function, take your frozen food and place it in the oven on a wire shelf on the third guide slot from the bottom. It is recommended that you place an oven tray under the defrosting food, to catch the water accumulated due to melting ice. -
Page 9: Energy Saving
Energy Saving To save energy and to help protect the environment, we recommend these hints: • Preheat the oven only if expressly required by the recipe or guidelines. • Dark baking tins have a higher degree of heat absorption. • In the case of longer baking times, you can switch off the oven 5–10 minutes before the full baking time and use the residual heat. -
Page 10: Replacing The Oven Light
Replacing the Oven Light Ensure that the appliance is switched off before replacing the light to avoid the possibility of electric shock. Turn off the oven and make sure that it is cold. Switch off its isolation switch. After removing the cover in front of the light, take out the bulb. Insert the new bulb, which should be resistant to 300°C. -
Page 11: Specification
Specification Model LBFANW10 / LBFANB10/ LBFANX10 Rated Voltage 230 – 240 V Rated Frequency 50 Hz Power 3200 – 3500 W Current 13 – 15 A Top Element 1200 W Bottom Element 1100 W Grill 2000/3200 W Net Weight 31.2 kg Product Dimensions 59.5 x 59 x 57 cm... -
Page 12: Installation
Installation • The electrical connection of this oven should be carried out by a qualified electrician. Following the instructions in the installation section of this manual and in compliance with the current regulations. • The oven is intended for housedhold use only. Use as Competent Person or Qualified Electrician • This oven must be installed in compliance with local safety standards. -
Page 13: Installing The Built-In Oven
Installing the Built-in Oven The space where the oven will be placed needs to beat least 60cm wide, 58cm deep and 59.5cm high. A minimum gap of 2.5cm between the work surface and the control panel, and a distance of 5cm between the work surface and top of the oven is needed, in order to be able to get to the back of the oven if necessary and for easy access when sliding the oven out. -
Page 14: Making An Electrical Connection
Making an Electrical Connection An approved suitable cable must be connected from the Consumer Unit (main fuse box)and be protected by its own 30amp fuse or Micro Circuit Breaker (MCB). The electrician must provide a fused double-pole isolation switch, which disconnects both the line (live) and neutral conductors, with a contact separation of at least 3 mm incorporated into the fixed wiring. -
Page 15: Safety Warnings
Safety Warnings Installation Operation and Maintenance • The appliance must be installed only by an General Warnings authorized person in compliance with the instructions provided. Incorrect installation may • If the supply mains cable is damaged, the cord cause harm to persons, animals or may damage must be replaced by the manufacturer, its service property. - Page 16 • Children should be supervised to ensure that they do not play with the appliance. • During use this appliance becomes hot. Care should be taken to avoid touching hot surfaces, e.g. oven door, heating elements. • To avoid burns and scalds children should be kept away.
- Page 17 If you require a replacement for any of the items listed below, please quote their corresponding part numbers: Replacement Part Part Number Grill Pan, Grid and Handle Set 20627919 Tray 20612977 Wire Shelf 37010933 Visit Partmaster.co.uk today for the easiest way to buy electrical spares and accessories.
