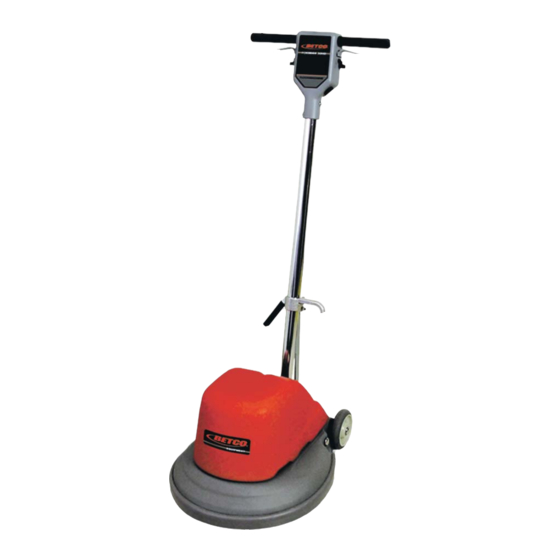

BETCO FOREMAN 17DS Operator And Parts Manual
17”, 20"
floor machines
Hide thumbs
Also See for FOREMAN 17DS:
- Operator's manual (13 pages) ,
- Operator and parts manual (9 pages) ,
- Operator's manual (6 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Related Manuals for BETCO FOREMAN 17DS
Summary of Contents for BETCO FOREMAN 17DS
- Page 1 E83014-00 17”, 20" FOREMAN 17DS CREWMAN 17HD ® ™ Floor Machines FOREMAN 20DS CREWMAN 20HD ® ™ Operator and Parts Manual 1001 Brown Avenue • Toledo, Ohio 43607-0127 Customer Service: 888-GO-BETCO • Fax: 800-445-5056 • Technical Service: 877-856-5954 • www.betco.com...
-
Page 2: Specifications
Specifications Operating Instructions Length – 24.25 in. Check machine for damage to cord or plug. Width – 20. in. Use suitable pads or brushes. Height – 48 in. To install or change the pad: 1. Unplug the machine. Weight – 85.5 Lbs. 2. - Page 3 ELECTRICAL Power Cord Power Cord Micro Micro Switch Switch Rocker Switch Cntrl Handle Cord Handle Cord Motor Motor Standard Machines Two Speed Machines...
-
Page 4: Handle Assembly
CREWMAN HD HANDLE ASSEMBLY 30/30A... - Page 5 Cable Tie 4.125 Lg x 0.125 W E83691 Decal, Warning E83711 Main Handle Tube E83723 Decal, Betco Crewman 20HD E83789 Strain Relief Nut, Metal E83790 Cord, 14-3 x 50 ft STW Yellow E85032 Switch, 25 AMP, 1/5 HP, 125 VAC...
- Page 6 FOREMAN DS HANDLE ASSEMBLY 34/34A...
- Page 7 E83662 Speed Control, Dual Speed Machine E83691 Decal, Warning E83711 Main Handle Tube E83747 Decal, Betco Foreman 20DS E83789 Strain Relief Nut, Metal E83790 Cord, 14-3 x 50 ft STW Yellow E85032 Switch, 25 AMP, 1/5 HP, 125 VAC E89602...
-
Page 8: Base Assembly
BASE ASSEMBLY 11/11A 6/6A... -
Page 9: Base Parts
E83425 Truss Head Screw, 1/4-20 x 3/4 Lg E83452 Axle, 0.500 OD x 12.375 Lg, Zinc E83641 Hex Hd Bolt, 5/16-18 x 1-1/2 Lg, Zinc E83773 Decal, Betco Equipment (for Crewman only) FOREMAN DS COVER ITEM PART DESCRIPTION QTY. NUMBER E81078 Lock Washer 0.250 Zinc... - Page 12 Service Distributor. If the original part is returned within the warranty policy period from date of delivery for inspection by Betco and is found to be defective the owner will be credited for the cost of replacement parts plus shipping and handling.
