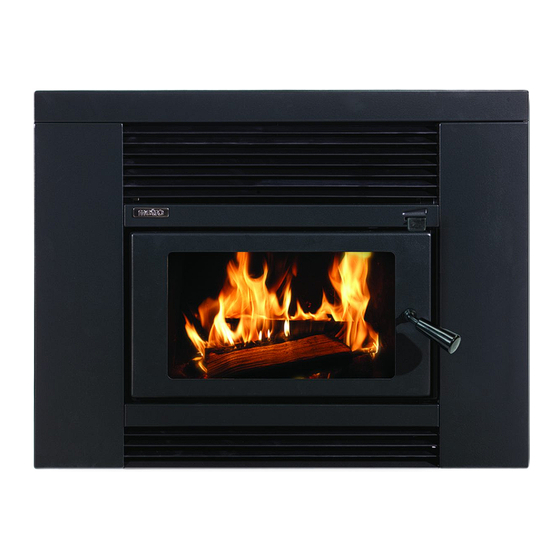

Wood Fire Installation & Owner's Operation Manual
ECO Smart Insert
Installation Important information ..........2
Assembling your Metro.........................2-3
Floor protector requirements ...................4
Installing your Metro ................................4
Operation Important information ...........6
Getting to know your Metro ....................7
Operating your Metro ..............................7
Cleaning and maintenance ...............8-9
Parts Guide ..............................................9
Troubleshooting .....................................10
Metro warranty.......................................11
Pioneer wood fire accessories ..............12
PO Box 11, Inglewood 4347, New Zealand
Ph (06) 756 6520 • Fax (06) 756 6540
info@metrofires.co.nz • www.metrofires.co.nz
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for metrofires ECO Smart Insert
Summary of Contents for metrofires ECO Smart Insert
-
Page 1: Table Of Contents
Wood Fire Installation & Owner’s Operation Manual ECO Smart Insert Installation Important information ..2 Getting to know your Metro ....7 Assembling your Metro......2-3 Operating your Metro ......7 Floor protector requirements ....4 Cleaning and maintenance ....8-9 Installing your Metro ........4 Parts Guide ..........9 Water heater installation information ..5... -
Page 2: Installation Important Information
WARNING! CAUTION! Important Information Important Information • WE HIGHLY RECOMMEND YOU READ THIS ENTIRE • Mixing of appliance or flue-system components MANUAL AS INCORRECT OPERATION, MISUSE AND/OR from different sources or modifying the dimensional LACK OF MAINTENANCE WILL VOID THE WARRANTY specification or components may result in hazardous conditions. - Page 3 All Metro Insert wood fires are packed in two heavy-duty Pre Installation cartons. The ECO Smart Insert firebox is supplied in a heavy Prior to installing your Metro fireplace insert into a fireplace duty palletised carton, this carton is clearly labelled. The...
-
Page 4: Floor Protector Requirements
672mm Dimension Installing your Metro Position the Metro ECO Smart Insert which is still attached to its 6. With the flue pipe in position and sealed with a high wooden pallet directly in front of the fireplace cavity with the temperature fire cement into the flue stub, drill through the rear of the insert facing the fireplace opening. -
Page 5: Water Heater Installation Information
ECO Smart Insert to the hot water 10. Next pivot the water heater using the first bolt just refitted as storage cylinder;... -
Page 6: Operation Important Information
WARNING! CAUTION! Important Information Important Information • WE HIGHLY RECOMMEND YOU READ THIS ENTIRE • This appliance should be maintained & operated at all MANUAL AS INCORRECT OPERATION, MISUSE AND/OR times in accordance with this instruction manual LACK OF MAINTENANCE WILL VOID THE WARRANTY •... -
Page 7: Where To Install A Metro In Your Home
Where to install a Metro wood fire in your home Wood fires are usually installed in the main living area, which is gutters etc are directly above your preferred site. If you the section of the home that is usually kept the warmest, being have a two storey dwelling you need to consider the the area in the home most frequently occupied. -
Page 8: Cleaning And Maintenance
Metro fascia Ash removal The front panelling of your Metro ECO Smart Insert will be coated Over a period of time ash will build up in the base of the with one of two coating systems, which can be cleaned with a Metro’s firebox and require removal. -
Page 9: Parts Guide
Cleaning and maintenance for your Metro wood fire • The seasoning of the wood. If not properly seasoned you • Once on the roof, remove the cowl from the top of flue will require frequent flue pipe cleans. system and sweep the flue pipe using a 150mm-diameter flue pipe brush as detailed in the instructions provided with •... -
Page 10: Troubleshooting
Troubleshooting your Metro wood fire If your Metro did not smoke, but its starting too and If your Metro is installed correctly, your fuel is dry and you operate your fire correctly, you will find it to be a pleasure to is getting worse: use. -
Page 11: Metro Warranty
Warranty details for your Metro wood fire Metro wood fires are manufactured in New Zealand, using • It is critical that the fire not be operated with over worn, faulty the highest quality of materials, workmanship and the latest or missing door seals. Door seals will harden over time and manufacturing techniques, which is why we offer a full 10 year become over-worn (3-4 year’s) this will cause air to leak into firebox warranty and 1 year parts warranty for peace of mind. -
Page 12: Pioneer Wood Fire Accessories
See your Metro retailer to obtain a copy, or visit www.metrofires.co.nz metrofires.co.nz Visit the Metro website: www.metrofires.co.nz to view Metro’s ‘video demos’ showing the latest in wood fire technology energy saving options. You can view the entire Metro product range,...
