Model: B86012
Instruction Manual
DC: 072915

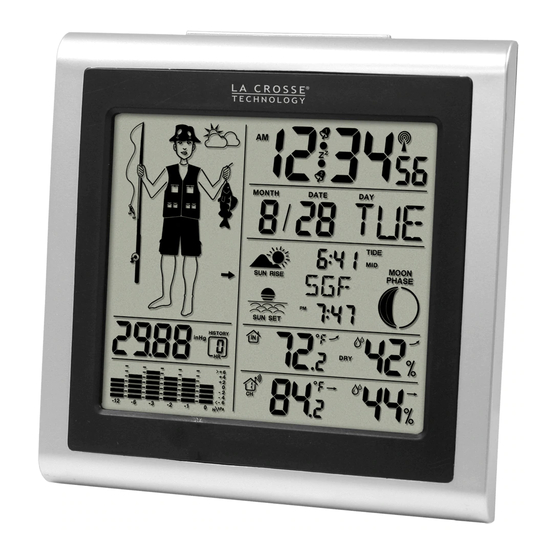

WIRELESS FORECAST STATION
Table of Contents
INITIAL SETUP ............................................................................. 2
LCD FFEATURES ........................................................................... 3
BUTTONS .................................................................................... 3
SET TIME, DATE, ETC. .................................................................. 4
BACKLIGHT ................................................................................. 6
CITY SELECTION-SUNRISE/SUNSET TIMES ..................................... 5
COMFORT STATEMENT .................................................................. 5
TIDE ........................................................................................... 6
MOON PHASE .............................................................................. 6
ALARMS and ALERTS .................................................................... 7
TIME ALARMS .............................................................................. 7
OUTDOOR TEMPERATURE ALERTS .................................................. 8
FROST ALARM ............................................................................. 8
TEMPERATURE TREND ICONS ........................................................ 9
pg. 1
Model: B86012
www.lacrossetechnology.com/support
Advertisement
Table of Contents
Related Manuals for La Crosse B86012
Summary of Contents for La Crosse B86012
-
Page 1: Table Of Contents
Model: B86012 Instruction Manual DC: 072915 WIRELESS FORECAST STATION Table of Contents INITIAL SETUP ................2 LCD FFEATURES ................3 BUTTONS ..................3 SET TIME, DATE, ETC..............4 BACKLIGHT ................. 6 CITY SELECTION-SUNRISE/SUNSET TIMES ........5 COMFORT STATEMENT ..............5 TIDE ................... -
Page 2: Initial Setup
Step 1: Insert 2 new AA batteries (not included) into the TX142THv2 sensor. Observe the correct polarity. Step 2: Insert 3 new AA Alkaline batteries (not included) into the forecast station. Observe the correct polarity. pg. 2 Model: B86012 www.lacrossetechnology.com/support... -
Page 3: Lcd Ffeatures
Sunrise/sunset Times wear to prepare with Moon Phase for the current outdoor temperature. Indoor Temperature, Absolute Pressure Humidity + Alerts + History Outdoor Temperature, 12-hour Pressure Humidity + Alerts History Graph in hPa or InHg BUTTONS pg. 3 Model: B86012 www.lacrossetechnology.com/support... -
Page 4: Set Time, Date, Etc
1. WWVB Time On/Off 2. Time Zone 3. DST Indicator 4. 12Hr/24Hr Time 5. Fahrenheit/Celsius 6. Hours 7. Minutes 8. Seconds 9. Year 10. Month 11. Date Press the SET button to exit or wait 20 seconds. pg. 4 Model: B86012 www.lacrossetechnology.com/support... -
Page 5: City Selection-Sunrise/Sunset Times
The comfort statement is based on the indoor humidity. WET: Humidity is above 70% COMFORTABLE: Temperature is between 68°F and 82°F. Humidity is between 40% and 70% DRY: Humidity is below 40% pg. 5 Model: B86012 www.lacrossetechnology.com/support... -
Page 6: Backlight
Note: With the moon shown against a light background, the phases will show opposite to a paper calendar. For instance, the moon will be blank during a new moon and dark during a full moon. pg. 6 Model: B86012 www.lacrossetechnology.com/support... -
Page 7: Alarms And Alerts
4. Press the + button and the bell icon will disappear. Snooze: 1. When either alarm sounds, press the SNOOZE/LIGHT button to activate the snooze feature for 10 minutes. 2. The letters Zz will appear. 3. Press any button to deactivate the snooze feature. pg. 7 Model: B86012 www.lacrossetechnology.com/support... -
Page 8: Outdoor Temperature Alerts
The alert icon will disappear. FROST ALARM The Frost Alert sounds when outdoor temperature is between: (34°F～37°F (1.1 °C～2.7°C)) 1. Activate: Press the TEMP ALERT button twice to activate the Frost Alarm. pg. 8 Model: B86012 www.lacrossetechnology.com/support... -
Page 9: Temperature Trend Icons
Set each sensor to a different channel with the switch. Insert batteries into all sensors. Hold the CH button to search for sensors. Press the TX button on each sensor. After 15 minutes place, sensors in shaded locations. pg. 9 Model: B86012 www.lacrossetechnology.com/support... -
Page 10: Absolute Pressure Number
If the bars go down, it means the air pressure has dropped and the weather is expected to get worse from the present time. Note: The bar graph will scroll to prevent LCD burnout. pg. 10 Model: B86012 www.lacrossetechnology.com/support... -
Page 11: Weather Forecast Icons
FISHERMAN CLOTHING BASED ON OUTDOOR TEMPERATURE CHANNEL 1 The fisherman’s clothing updates with changes in the measured Outdoor Temperature from the sensor on channel 1. The fisherman icon represents CURRENT TRENDS in Temperature. pg. 11 Model: B86012 www.lacrossetechnology.com/support... -
Page 12: View/Reset Min/Max Values
Mount the outdoor sensor on a north-facing wall or in any well shaded area. Under an eave or deck rail is preferred. The maximum transmitting range to the forecast station is over 300 feet (91 meters) in open air, not including walls. pg. 12 Model: B86012 www.lacrossetechnology.com/support... -
Page 13: Specifications
(40 x 20 x 130mm) LOW BATTERY ICON When displayed in Outdoor Temperature section, replace batteries in the outdoor sensor. Battery When displayed in Indoor Temperature section, Icon replace batteries in the forecast station. pg. 13 Model: B86012 www.lacrossetechnology.com/support... -
Page 14: Care And Maintenance
Remove expired batteries promptly. WARRANTY AND SUPPORT INFORMATION La Crosse Technology, Ltd. provides a 1-year limited time warranty (from date of purchase) on this product relating to manufacturing defects in materials & workmanship. Before returning a product, please contact our friendly... -
Page 15: Fcc Statement
The information it contains is regularly checked and corrections are included in subsequent editions. We disclaim any responsibility for any technical error or printing error, or their consequences. All trademarks and patents are recognized. pg. 15 Model: B86012 www.lacrossetechnology.com/support...
