Speco CVC-130R Specifications

Specifications subject to change
Speco Technologies 200 New Highway, Amityville, NY 11701 Web: www.specotech.com
Toll Free: 1-800-645-5516 In Metro NY: 631-957-8700 Fax: 631-957-9142 or 631-957-3880

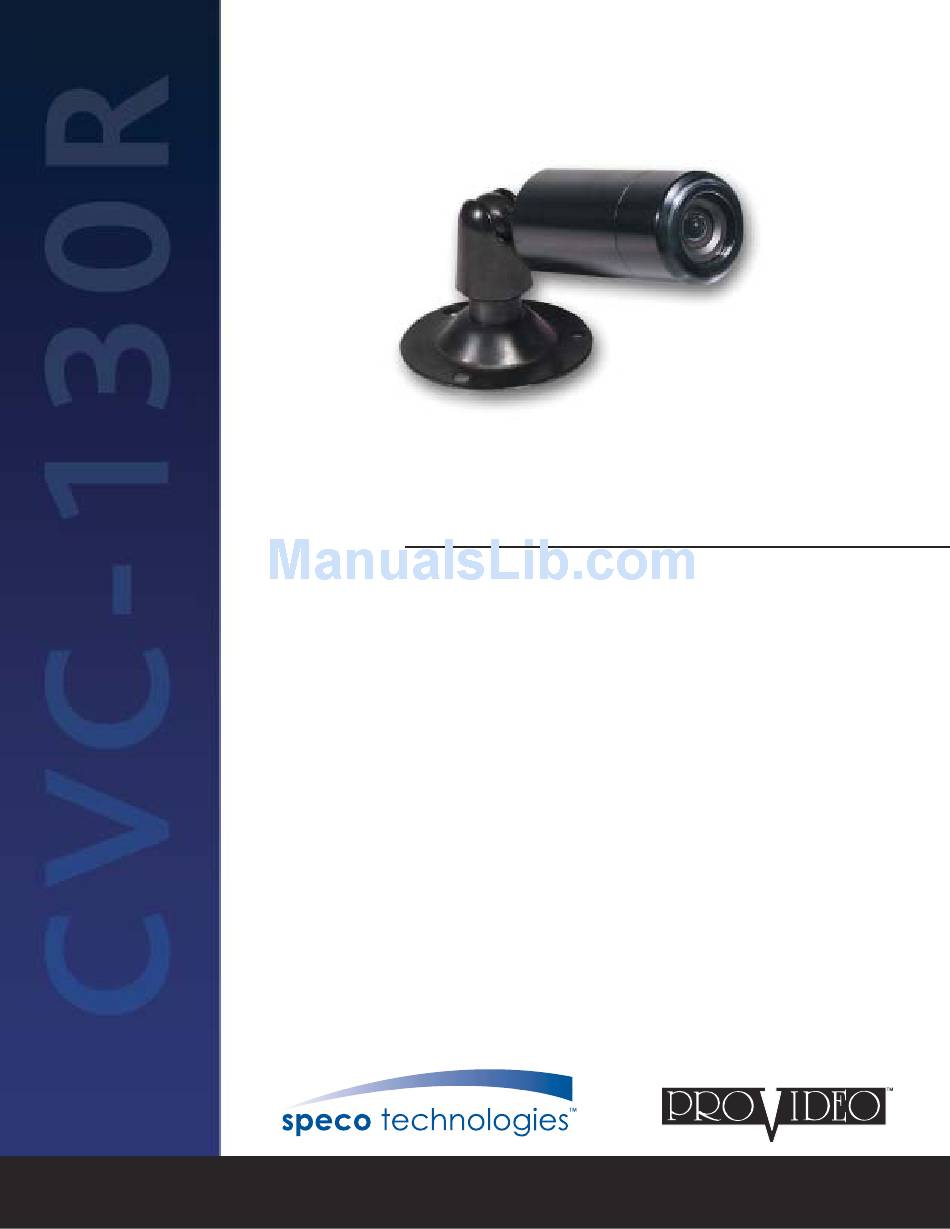

CVC-130R
Weatherproof B/W CCTV Camera
The CVC-130R is a fully encased weatherproof B/W bullet camera. It is great for any
indoor or outdoor application where concealed surveillance is desired. The CVC-130R
includes a universal mounting bracket and 12V DC power supply and cable.

Specifications

Image Device
Interlace
Synchronizing System
Resolution
Electronic Shutter Control
Lens/Angle of View
Minimum Illumination
Video Output Level
Video S/N Ratio
Outputs/Connections
Operating Tempurature
Humidity
Power Requirements
Power Consumption
Dimensions
Housing
Camera Mount
Weight
Scanning System
Scanning Frequency
For more information contact us at:
1/3" CCD Image sensor
512 (H) x 492 (V) picture elements
2:1
Internal
420 TV lines
Auto 1/60-1/100,000 sec.
3.6mm, wide angle
.02 lux
1.0 Vp-p, 75 ohm composite, BNC connector
Greater than 48dB
BNC video output, Power - DC jack
-20°F to 120°F
Within 95% RH
12V DC power supply included - UL & CSA listed
110 ma
1"(Dia) X 2.2"(D)
Black - Aluminum
Included
5oz.
EIA standard 525 TV lines 60 fields/sec
Hor. 15.75 KHz Vert. 60 Hz
