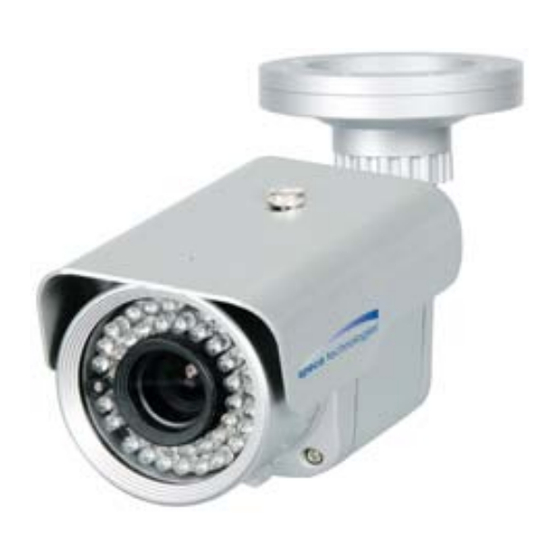

Speco CVC627VFSCS Installation Manual

Speco CVC627VFSCS Installation Manual

True day/night digital color camera built-in 42-power infrared leds with cds sensor camera osd control

Advertisement

Quick Links

Hood Camera
WEATHERPROOF
True Day/Night Digital Color Camera
Built-in 42-power infrared LEDs with CDS sensor
Camera OSD Control
1/3"
Minimum
Illumination
NIGHT
DAY
0.0002Lux
CCD
Auto White
Auto
DAY & NIGHT
FILTER CHANGE
Balance
Gain
Control
IP65
Anti Vandal
Weather
Hood Camera
Registant
DC 12V
Function
Specification
MODEL
Image Pick-Up Device
TV System
Effective Pixels
Scanning Frequency
NTSC=15.734KHz(H) / 59.94Hz(V) / PAL=15.625KHz(H) / 50.00Hz(V)
Scanning System
Synchronization
Resolution
Minimum Illumination
S/N Ratio
White Balance
Gamma Characteristic
Video Output
Electronic Shutter Speed
NTSC=Auto/Manual(1/60sec~1/100,000sec) / PAL=Auto/Manual(1/50sec~1/100,000sec)
OSD
BLC
AGC
Day&Night(Color / B/W)
Display Adjust
Privacy
Power Supply
Power Consumption
Lens
Operational Temp.
Storage Temp.
Dimension
Weight
CVC627VFSCS
CVC627VFSCS
540TV Lines
Built-in 42ea of 850nm IR LED
DC Auto iris Varifocal Lens(2.8mm-12mm)
True Day/Night Capability
ICR-IR Cut Filter Removable
OSD Control
540
BLC
High Speed
Shutter
Backlight
Motion
DC/VIDEO
Horizontal
Compensation
Detection
OSD
LENS
Resolution
CVC627VFSCS
1/3" SONY SUPER HAD CCD
NTSC
NTSC=768(H) * 494(V) / PAL=752(H) * 582(V)
2:1 Interlace
Internal
540TV Lines
CDS OFF 0.1 LUX / CDS ON 0.0002 LUX
More than 50dB
ATW/AWB/FIXED/MANUAL
0.45
CVBS : 1.0Vp-p 75ohm
Built-in
ON / OFF
ON / OFF
Color / Auto / B/W
Contrast / Sharpness / CB-Gain / CR-Gain
On/OFF (4 Programmable Zone)
DC 12V / 24V AC (Dual Voltage)
CDS ON:800mA Max
DC Auto iris Varifocal Lens(2.8mm-12mm)
-10 ~ +50 Deg C. RH 95% Max.
-20 ~ +60 Deg C. RH 95% Max.
88mm(W) * 115mm(H) * 245mm(D)
1600g
* INSTALLATION
Dimension
360˚
SIDE
180˚
360˚
OSD Control
UP
LEFT
RIGHT
SET-UP
DOWN
IR Control
VIDEO TEST
Volume
FRONT
OSD CONTROL BOARD
Built-in 42 IR LEDs, it can capture clear
images as far as 30~50m away even completely darkness.
OUTDOOR
INDOOR
0M
10M
20M
30M
40M
50M
60M
70M
80M
90M
100M

* How to Install

Sunshield
CDS Sensor
DC Auto Iris Varifocal Lens
(2.8mm-12mm)
IR LED
* Camera Adjustment
① Connect Video & Power Line (
DC 12V / 24V AC Regulated Power)
② Please set the position where you want to connect the camera.
③ Loosen the locking screws and adjusting camera angle.
④ Combine each camera parts and lock & tight the each locking screws.
* SETTINGS
Settings can be made using the OSD button
located onto the bottom of the camera.
UP
LEFT
RIGHT
SET-UP
DC
SHUTTER SPEED
DOWN
WHITE BAL
BLC
AGC
IR Control
VIDEO TEST
DNR
SENS-UP
Volume
SPECIAL
EXIT
OSD CONTROL BOARD
OSD
CAMERA OPERATION (
SET-UP
UP
DOWN LEFT RIGHT
LENS
* MANUAL
* DC / VIDEO
SHUTTER
* AUTO
* MANUAL
* FLK
* FIXED
BLC
* ON
* OFF
AGC
* ON
* OFF
* MIDDLE
WHITE BALANCE
* ATW
* AWB
* FIXED
* MANUAL
FUNCTION
* CAMERA ID
* MIRROR
* DAY NIGHT
* MOTION
* PRIVACY
* GAMMA
* RESET
ADJUST
* CONTRAST
* SHARPNESS
* CB-GAIN
* CR-GAIN
EXIT
Base
Bracket
Case
NIGHT
DAY
OSD Control
FILTER CHANGE
Focus Control
True Day & Night
(ICR-IR Cut Filter Removable)
Power (+)
Video Signal
Power (-)
Video GND
Power Jack
Video Jack
Cable Connection
DC
ELC
ATW
HIGH
OFF
LOW
OFF
)
