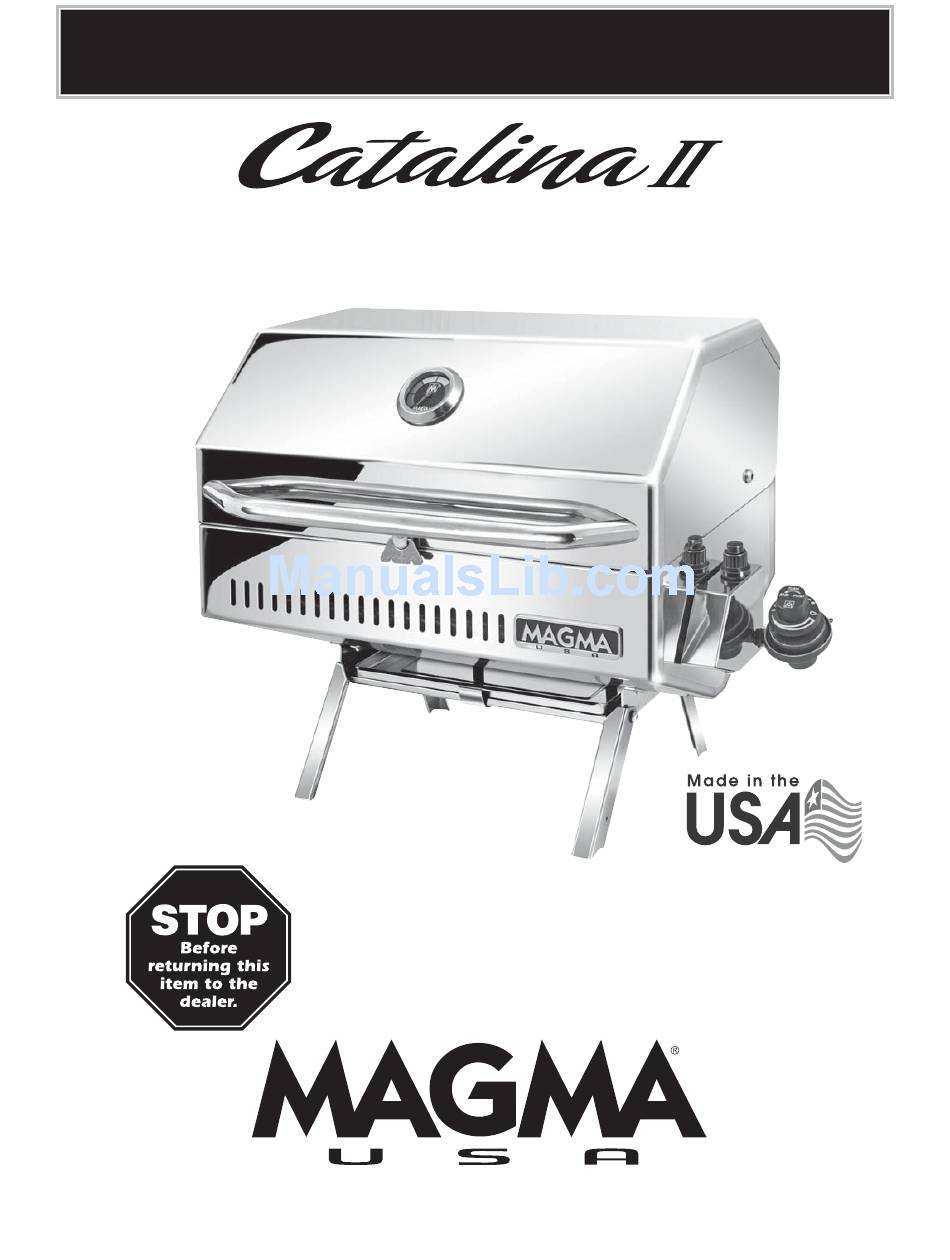

OWNER'S MANUAL
™

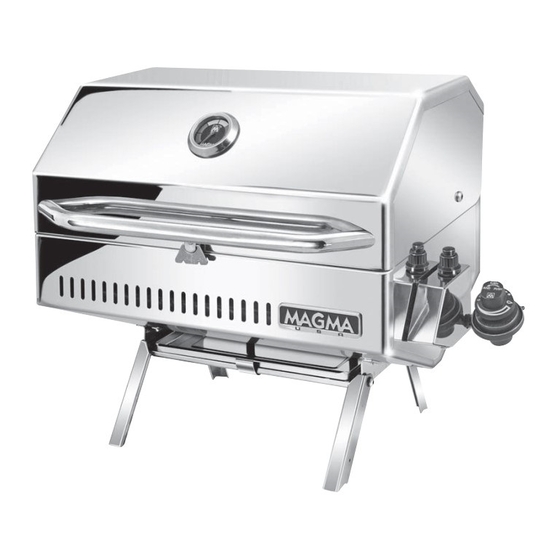

Gourmet Series Marine Gas Grill
Model A10-1218-2
For questions regarding performance, assembly,
operation, parts, or returns, contact the experts
at MAGMA by calling (562) 627-0500
7:00 a.m. - 5:00 p.m. Pacific Time Monday thru
Friday or e-mail us at mail@MagmaProducts.com
IMPORTANT, read these instructions carefully before use. Familiarize yourself with the appliance
before connecting it to its gas container. Keep these instructions for future reference.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Magma Catalina II A10-1218-2
Summary of Contents for Magma Catalina II A10-1218-2
- Page 1 Model A10-1218-2 For questions regarding performance, assembly, operation, parts, or returns, contact the experts at MAGMA by calling (562) 627-0500 7:00 a.m. - 5:00 p.m. Pacific Time Monday thru Friday or e-mail us at mail@MagmaProducts.com IMPORTANT, read these instructions carefully before use. Familiarize yourself with the appliance...
-
Page 2: Important Safety Warnings
IMPORTANT SAFETY WARNINGS READ ALL INSTRUCTIONS BEFORE OPERATING. Each Magma Gas Grill is individually fire tested before it leaves the factory. ® For this reason, the burner on your grill may be slightly discolored. INSTALLATION INSTRUCTIONS CONTROL VALVE REGULATOR Valve will feel loose and will rotate easily. Even though the valve feels loose, it will not leak. - Page 3 MOUNT HARDWARE Fasteners are supplied for both Single Mount and Dual Mount grill mounting options. See Magma Catalog or Website for best mount selection. Single mount through-bolt applications Dual mount applications 4 Carriage bolts & lock nuts. 4 Carriage bolts & lock nuts. Only 4 bolts required for grill mounting.
-
Page 4: Operating Procedures
OPERATE ONLY ON “LOW” WHEN LID IS CLOSED. ALWAYS OPERATE WITH GREASE TRAY IN PLACE. WARNING: Do not overheat grill. Magma Grills do not require pre-heating. Stainless Steel loses anti-corrosive characteristics when subjected to extreme heat. Most grilling is done on low temperature with the lid closed. -
Page 5: Disassembly And Reassembly
ELECTRODE SPARK ADJUSTMENT CAUTION: Spark can cause small shock. Do not leave fingers on or near electrode wire while engaging igniter. approximately 1/8” from gas . Carefully adjust wire if required. DISASSEMBLY & RE-ASSEMBLY right slot (see C). To remove liner from outer shell you must disconnect the electrode wire (see remove electrode from liner. -
Page 6: Maintenance
Control Valve - All valves are set and tested at our factory. Do not attempt to adjust or disassemble the valve in any way. Call Magma if you suspect it is not adjusted properly. Clean valve with a cloth and remove any debris obstructing the orifice. - Page 7 FROM A NON-REGULATED TANK DIRECTLY TO GRILL. Magma's grills are designed for use with small disposable propane canisters or with pre-regulated low-pressure propane and optional low-pressure valves. Running high-pressure propane fuel supply lines on a boat is in violation of American Boat & Yacht Council (ABYC) guidelines and is not considered a safe application.
-
Page 8: Troubleshooting Guide
TROUBLE SHOOTING GUIDE Problem Possible Cause Possible Solution Electrode covered with grease or residue Clean electrode Igniter/electrode too far from burner Adjust electrode until proper spark appears (see page 5) Electrode wire loose, disconnected, or Clean, adjust & reconnect wire between corroded igniter &... -
Page 9: Limited Warranty
Corrosion caused by exposure to excessive heat or failure to properly clean and care for the stainless steel surfaces. If the product fails to oper- ate due to a defect in materials or workmanship during the warranty period, the defective part will be repaired or replaced at Magma's option.
