OWNER'S MANUAL
ChefsMate
™

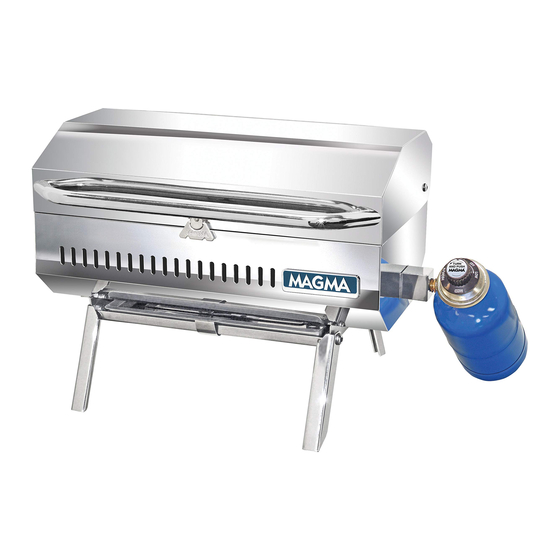

Connoisseur Series Gas Grill
Model A10-803
For questions regarding performance, assembly,
operation, parts, or returns, contact the experts
at MAGMA by calling (562) 627-0500
7:00 a.m. - 5:00 p.m. Pacific Time Monday thru
Friday or e-mail us at mail@MagmaProducts.com
Read these instructions carefully before use. Familiarize yourself with the appliance before
connecting it to its gas container. Keep these instructions for future reference.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Magma ChefsMate Connoisseur Series
Summary of Contents for Magma ChefsMate Connoisseur Series
- Page 1 Model A10-803 For questions regarding performance, assembly, operation, parts, or returns, contact the experts at MAGMA by calling (562) 627-0500 7:00 a.m. - 5:00 p.m. Pacific Time Monday thru Friday or e-mail us at mail@MagmaProducts.com Read these instructions carefully before use. Familiarize yourself with the appliance before...
-
Page 2: Important Safety Warnings
• USE PROPANE GAS ONLY. FUEL STORAGE SHOULD BE IN COMPLIANCE WITH THE AMERICAN BOAT AND YACHT COUNCIL (ABYC) STANDARDS A-1 (9), MARINE LIQUIFIED PETROLEUM GAS (LPG) SYSTEMS. • FOR NATURAL GAS APPLICATION CONTACT MAGMA. • ALWAYS LIGHT GRILL WITH LID OPEN. - Page 3 MOUNT HARDWARE Fasteners are supplied for both Single Mount and Dual Mount grill mounting options. See Magma Catalog or Website for best mount selection. Single mount through-bolt applications Dual mount applications 4 Carriage bolts, washers & lock nuts. 4 Carriage bolts, washers & lock nuts. Only 4 bolts required for grill mounting.
-
Page 4: Operating Procedures
OPERATE ONLY ON “LOW” WHEN LID IS CLOSED. ALWAYS OPERATE WITH GREASE TRAY IN PLACE. WARNING: Do not overheat grill. Magma Grills do not require pre-heating. Stainless Steel loses anti-corrosive characteristics when subjected to extreme heat. Most grilling is done on low temperature with the lid closed. If medium or high heat is required, grill with lid open. - Page 5 DISASSEMBLY & RE-ASSEMBLY A - Lift radiant plate up & out of left slot. B - Remove by sliding it out of right slot. C - Remove burner screw and remove burner. Check burner for grease residue or spider webs that may obstruct gas flow. CAUTION: WHEN REPLACING BURNER, CUT SLOTS IN BURNER MUST FACE DOWN.
-
Page 6: Maintenance
Control Valve - All valves are set and tested at our factory. Do not attempt to adjust or disassemble the valve in any way. Call Magma if you suspect it is not adjusted properly. Clean valve with a cloth and remove any debris obstructing the orifice. - Page 7 • DO NOT CONNECT A HIGH-PRESSURE SUPPLY HOSE FROM A NON-REGULATED TANK DIRECTLY TO GRILL. Magma's grills are designed for use with small disposable propane canisters or with pre- regulated low-pressure propane and optional low-pressure valves. Running high-pressure propane fuel supply lines on a boat is in violation of American Boat & Yacht Council (ABYC) guidelines and is not considered a safe application.
-
Page 8: Troubleshooting Guide
USING GRILL WITH ON-BOARD CNG (NATURAL GAS) SYSTEMS •For on-board CNG (Natural Gas) Systems, use Magma Type 4-Low Output-Low Pressure Natural Gas Control Valve. Check your local dealer for proper hose and fittings. TROUBLE SHOOTING GUIDE Problem Possible Cause Possible Solution... -
Page 9: Limited Warranty
If the product fails to operate due to a defect in materials or workmanship during the warranty period, the defective part will be repaired or replaced at Magma's option. If you wish to obtain performance under this limited warranty, you should contact Magma's Customer Service Department via telephone at (562) 627-0500, or via e-mail at mail@MagmaProducts.com, or via U.S.
