OWNER'S MANUAL

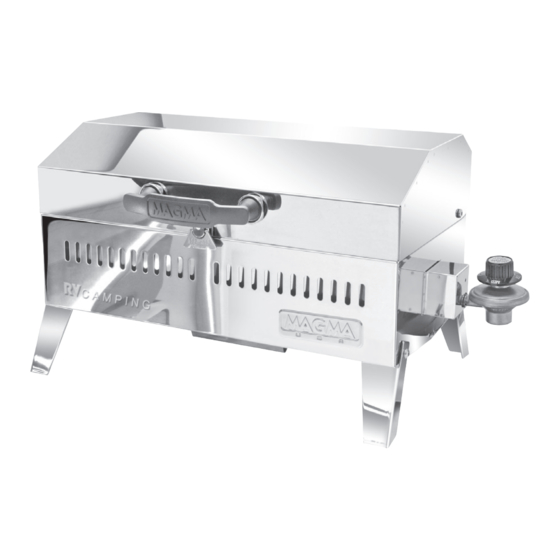

ADVENTURER RV CAMPING SERIES
™
C10-601A
C10-603A
C10-601A-CSA
C10-603A-CSA
•
•
•
For questions regarding performance,
assembly, operation, parts, or returns,
contact the experts at MAGMA directly
by calling TOLL FREE
1 - 800 - 86 - MAGMA
7:00 a.m. - 5:00 p.m.
Pacific Time Monday thru Friday
or e-mail us at
magmamail@aol.com
IMPORTANT, read these instructions carefully before use. Familiarize yourself with the
appliance before connecting it to its gas container. Keep these instructions for future reference.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Magma ADVENTURER RV CAMPING Series
Summary of Contents for Magma ADVENTURER RV CAMPING Series
- Page 1 For questions regarding performance, assembly, operation, parts, or returns, contact the experts at MAGMA directly by calling TOLL FREE 1 - 800 - 86 - MAGMA 7:00 a.m. - 5:00 p.m. Pacific Time Monday thru Friday or e-mail us at magmamail@aol.com...
-
Page 2: Important Safety Warnings
• USE PROPANE GAS ONLY. FUEL STORAGE SHOULD BE IN COMPLIANCE WITH THE NATIONAL FIRE PROTECTION ASSOCIATION (NFPA) STANDARD 58 LIQUID PETROLEUM GAS CODE AND OCCUPATIONAL HEALTH AND SAFETY ADMINISTRATION (OSHA) STANDARD 29 CFR 1910.101 • FOR NATURAL GAS APPLICATION CONTACT MAGMA. • ALWAYS LIGHT GRILL WITH LID OPEN. • NEVER LEAVE HOT GRILL UNATTENDED. -
Page 3: Installation Instructions
INSTALLATION INSTRUCTIONS CONTROL VALVE REGULATOR •Uses standard 1 lb. disposable propane canisters (DOT-39 NRC). •Prior to installing valve, become familiar with the valve function & graphics on valve knob. Never force the knob. Always turn or push gently. •Turn control valve to “lock” and install gas canister being careful not to cross the threads. -
Page 4: Operating Procedures
OPERATE ONLY ON “LOW” WHEN LID IS CLOSED. ALWAYS OPERATE WITH GREASE TRAY IN PLACE. WARNING: Do not overheat grill. Magma Grills do not require pre-heating. Stainless Steel loses anti-corrosive characteristics when subjected to extreme heat. Most grilling is done on low temperature with the lid closed. If medium or high heat is required, grill with lid open. -
Page 5: Disassembly And Reassembly
DISASSEMBLY & RE-ASSEMBLY 1. Release locking 3. Release locking pin pin & lift up 2. Slide out RADIANT PLATE TURBO BURNER 1. To remove radiant plate pull locking 3. To remove burner pull locking pin. pin to release and lift plate up from left side 2. -
Page 6: Maintenance
Control Valve - All valves are set and tested at our factory. Do not attempt to adjust or disassemble the valve in any way. Call Magma if you suspect it is not adjusted properly. Clean valve with a cloth and remove any debris obstructing the orifice. -
Page 7: Troubleshooting Guide
USING GRILL WITH NATURAL GAS • Magma Natural Gas valves allow Magma grills to be installed to Natural Gas. • Use only Magma Type 4 Low Pressure Natural Gas control valves. TR O U BLE SH OOTING GUID E Problem... - Page 8 CONTENTS Contents A) (1) 3/16” Hex key wrench for lid removel. B) Pack of (4) 1/4”-20 x 5/8” carriage bolts and lock nuts for dual mount and single mount applications. C) Match Light Holder (included with CSA Models only) Looking for grills & smokers? Visit our website.
