Summary of Contents for Windsor CMPS2

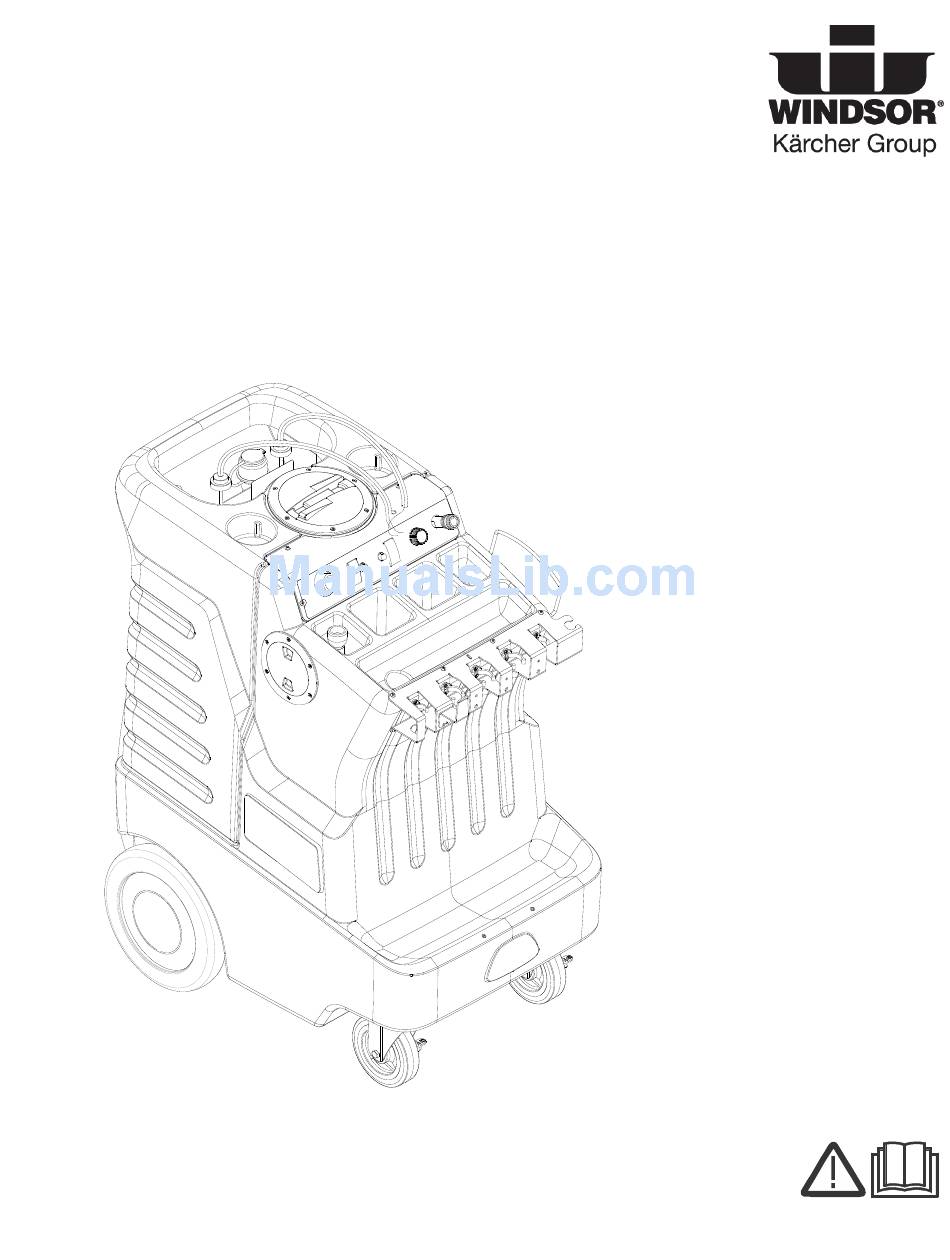

- Page 1 Compass 2 Multi-Functional Cleaning Machine Operating Instructions (ENG) MODELS: CMPS2 10070560 CMPS2E 10070570 From Serial Number (Ref No. 1*) * See Serial Number page or call manufacturer 86398820-B 04/29/15...
-
Page 2: Machine Data Label
Thank you for purchasing a Kärcher North America product. Warranty registration is quick and easy. Your registration will allow us to serve you better over the lifetime of the product. To register your product go to : http://warranty.karcherna.com/ For customer assistance: 1-800-444-7654 86398820 Operator Manual CMPS2... -
Page 3: Table Of Contents
Trouble Shooting......26 Suggested Spare Parts..... . 28 86398820 Operator Manual CMPS2... -
Page 4: How To Use This Manual
NOTE: The number on the lower right corner of the Serial Number: front cover is the part number for this manual. Dealer: Address: Phone Number: Sales Representative: The model and serial number of your machine is located on the back of the machine. 86398820 Operator Manual CMPS2... -
Page 5: Safety
This machine is suitable for commercial use, for example in hotels, schools, hospitals, factories, shops and offices for more than normal housekeeping purposes. Maintenance and repairs must be done by qualified personnel. If foam or liquid comes out of machine, switch off immediately. READ AND SAVE THESE INSTRUCTIONS 86398820 Operator Manual CMPS2... - Page 6 à des fins plus étendues qu'un simple entretien de la maison. Les travaux de maintenance et de réparation doivent absolument être effectués par du personnel qualifié. Si de la mousse ou du liquide s'échappe de la machine, éteignez-la immédiatement. CONSERVEZ CES CONSIGNES 86398820 Operator Manual CMPS2...
-
Page 7: Hazard Intensity Level
In Flammable or Explosive areas. In areas with possible falling objects WHEN SERVICING MACHINE: Avoid moving parts. Do not wear loose clothing; jackets, shirts, or sleeves when working on the machine. Use manufacturer approved replacement parts. 86398820 Operator Manual CMPS2... - Page 8 LORS DE L'ENTRETIEN DE LA MACHINE : Éviter les parties amovibles. Ne pas porter de vêtements amples, tels que des vestes, des chemises ou des vêtements avec manches lors de l'utilisation de la machine. Utiliser les pièces détachées Windsor homologuées. 86398820 Operator Manual CMPS2...
-
Page 9: Grounding Instructions
GFCl does not reset. Check circuit will not fit the outlet, have a proper outlet installed by a breakers or outlet. If circuit breaker is not tripped and qualified electrician. unit will not reset, contact local service center. 86398820 Operator Manual CMPS2... -
Page 10: Safety Label Location
EMPLACEMENT DE L'ÉTIQUETTE DE SÉCURITÉ REMARQUE : Ces dessins indiquent l'emplacement des étiquettes de sécurité sur la machine. Si, à tout moment, les étiquettes deviennent illisibles, contactez votre représentant autorisé pour un remplacement rapid WARNING LABEL 86242230 86398820 Operator Manual CMPS2... -
Page 11: Operations
à moins qu'ils aient été donnés la surveillance ou l'instruction au sujet de l'utilisation de l'appareil par une personne chargée de leur sûreté. Des enfants devraient être dirigés pour s'assurer qu'ils ne jouent pas avec l'appareil. 86398820 Operator Manual CMPS2... -
Page 12: How The Machine Works
The vacuum motor provides suction to draw the dirty solution off the floor and into the recovery tank. The float shut-off protects the vacuum fan from over filling. The recovery tank stores the dirty solution. 86398820 Operator Manual CMPS2... -
Page 13: Components
8. Recovery Tank Drain Hose 2. Solution Tank 9. Chemical Siphon Caps 3. Solution Tank Lid 10. Electrical Cord 4. Solution Tank Drain Hose 11. High Pressure Hose Storage 5. Solution Tank Fill Hose 6. Recovery Tank 86398820 Operator Manual CMPS2... -
Page 14: Controls
5. Solution Accessory Tool Hook-Up 1. Caster Lock 6. Vacuum Accessory Tool Hook-Up 2. Chemical Selector and Metering Valve 7. Vacuum Circuit Breaker 3. Pump Circuit Breaker 8. Vacuum Switch 4. Pump Switch/Pump Chemical Switch 9. Main Switch (230V only) 86398820 Operator Manual CMPS2... - Page 15 Locks the wheels in place to keep the machine from moving. 7. VACUUM CIRCUIT BREAKER 10 Amp. Protects the vacuum motor. 8. PUMP CIRCUIT BREAKER 8 Amp. Protects the pump motor. 9. MAIN SWITCH Power on and off switch 230V (ONLY). 86398820 Operator Manual CMPS2...
-
Page 16: Filling The Machine
Use COLD WATER. Add 1 ½ oz of Compass- 4. Position the Compass 2TM machine in the door Rinse TM to each full solution tank. way, lock front casters. Start at furthest point in the room and work towards the door. 86398820 Operator Manual CMPS2... - Page 17 5. Always Spray chemical using low pressure. 7. Turn Chemical off. Pressure clean by rinsing surfaces at high pressure. 6. Use brush or grout tool for heavy soiled areas. 8. Use Squeegee or Gulper tool to remove standing water. 86398820 Operator Manual CMPS2...
- Page 18 NOTE: Lowering the pressure in this way will reduce both of the high pressure and low pressure setting simultaneously. 10. Drain machine at proper disposal areas. Use pressure gun to rinse and clean recovery tank. 86398820 Operator Manual CMPS2...
-
Page 19: Chemicals
Do not let pump run dry. Ne pas laisser la pompe fonctionner à sec. Do not let pump run unattended. Ne pas laisser la pompe fonctionner sans surveil- lance. 86398820 Operator Manual CMPS2... - Page 20 Notes 86398820 Operator Manual CMPS2...
- Page 21 Maintenanc 1. ‘Float Shut-Off 5. Pump 2. Strainer 6. Adjustable Unloader Valve 3. Circuit Breakers 7. Injector Assembly & Coil 4. Vacuum Motor 86398820 Operator Manual CMPS2...
-
Page 22: Maintenance
Clean out the debris from the wire mesh and reassemble. Make sure the o-ring gasket is in place when reassembled. 120V 7 AMP 5 AMP VACUUM MOTOR PUMP MOTOR 230V 86398820 Operator Manual CMPS2... -
Page 23: Vacuum Motor
Spring inside brush housing will damage motor if brushes are allowed to wear away completely. [9.5 mm] Periodically check the length of the carbon brushes. Replace both carbon brushes when either is less than 3/8" (9.5mm) long. 86398820 Operator Manual CMPS2... -
Page 24: Solution Pump Replacement
5. Reverse process to install. 5. Remove the unloader. 6. Reverse process to install. PUMP REPLACEMENT KITS CAM & BEARING 86311080 120V 86305510 230V VALVE & O-RING KIT (BOTH SIDES) 86201030 PLUNGER & SEALS KIT 86201080 86398820 Operator Manual CMPS2... -
Page 25: Periodic Maintenance
Check vacuum intake screen for damage; replace if necessary Check pump pressure; observe spray pattern and check with gauge if necessary Check and clean solution screen Check cables for fraying Check overall performance of machine Check vacuum motor carbon brushes 86398820 Operator Manual CMPS2... -
Page 26: Trouble Shooting
Connect unit to 3 prong grounded outlet Pump will not run Loose wiring See dealer Clean with steel wool. Soak in acetic acid (white Solution hose fitting hard to Corrosion on fittings vinegar). Lubricate lightly with silicone base lubri- connect cant. 86398820 Operator Manual CMPS2... - Page 27 Notes 86398820 Operator Manual CMPS2...
-
Page 28: Suggested Spare Parts
Suggested Spare Parts 86241930 KIT, SQUEEGEE BLADES 86301920 NOZZLE 86199840 FLOAT SCREEN CAGE ASSY 86135330 BRUSH SET 230V VAC 86305460 STRAINER 86305460 STRAINER 86135320 BRUSH SET 120V VAC 86300070 HUBCAP 86323840 WHEEL 86232620 CASTOR 86323860 BUSHING 86271380 NUT 86398820 Operator Manual CMPS2... - Page 29 Notes 86398820 Operator Manual CMPS2...
