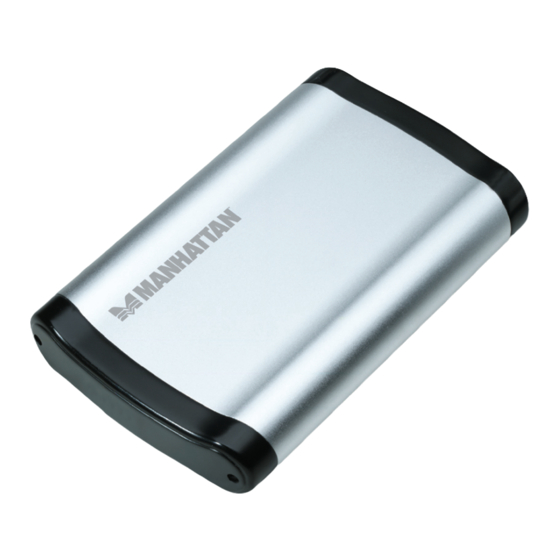

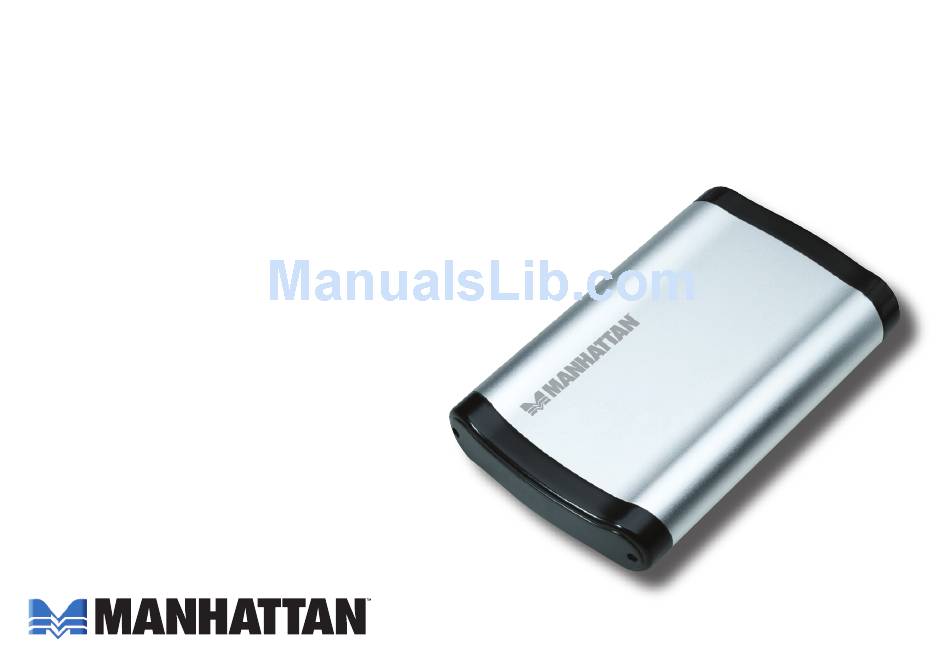

- Page 1 2.0 esATA, 3.5” exTernAl enclosure user MAnuAl MODEL 700511 MAN-700511-UM-0407-02...
- Page 2 Thank you for purchasing the MANHATTAN eSATA, 3.5” External Enclosure, Model 700511. ® Fully SATA-capable and equipped with SATA L-type internal and eSATA I-type external data ports, it quickly transfers data without conversion between SATA-enabled systems. Hi-Speed USB 2.0 connections offer convenient and versatile data storage, transfer and recovery solutions. Plus: •...
-
Page 3: Hardware Installation
hArdwAre insTAllATion Follow these steps to prepare the device for installation, then see Step 6 of Software Installation. 1. Open the enclosure. 3. Tighten the sides screws 2. Connect the power and to secure the HDD. SATA cables to the HDD. 12 V DC in On/Off port... -
Page 4: Software Installation
sofTwAre insTAllATion Windows 98SE Driver Installation (USB port only) 1. Insert the installation CD in the CD-ROM. 2. Double-click the Setup icon. - Page 5 3. When the Welcome screen appears, click "Next." 4. When the "Ready to install" screen appears, click "Install."...
- Page 6 5. When prompted, select "Yes, restart the computer now"; then click "Finish." 6. Connect the External Enclosure with hard disk drive to the USB port of the computer.
- Page 7 7 . A new Removable Disk icon will appear in the My Computer window for formatting the hard disk drive.
- Page 8 Windows 2000/XP Installation 1. Click on the My Computer icon, then click "Manage" to initialize the hard disk drive.
- Page 9 2. Click "Disk Management," then click "Removable Disk," then click "Format."...
- Page 10 3. Confirm that "Removable" and "FAT32" are entered/selected in the "Volume label" and "File system" fields, respectively. Click "OK." 4. When the warning prompt appears, click "OK."...
-
Page 11: Specifications
5. Click "My Computer" and confirm that the new "Removable" icon appears. The External Enclosure with hard disk drive is now ready for use. specificATions • SATA L-type internal data and power connections • Hi-Speed USB 2.0 B-Type and eSATA I-type external connections •... - Page 12 Are you completely satisfied with this product? Please contact your MANHATTAN dealer with comments or questions. ® Copyright © MANHATTAN All products mentioned are trademarks or registered trademarks of their respective owners.
