Manhattan 702911 User Manual

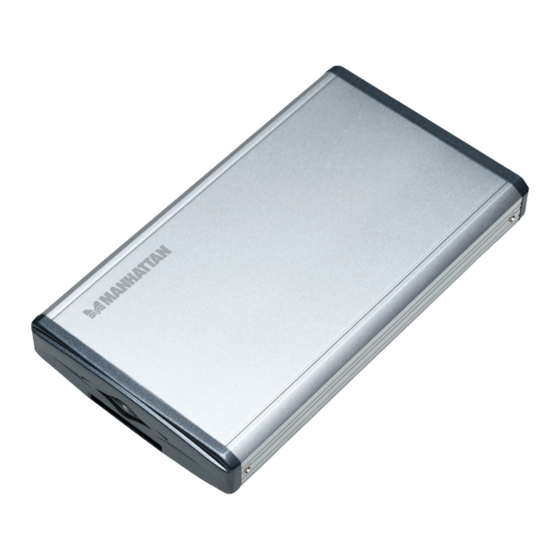

Hi-speed usb 2.0 8-in-1 2.5" external enclosure with card reader
Hide thumbs
1
2
3
4
5
6
7
8

Advertisement

Table of Contents

hi-speed UsB 2.0
8-in-1 2.5"
external
enclosUre
with card reader
User
ManUal
MODEL 702911
MAN-702911-UM-0706-03

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 702911 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Manhattan 702911

Summary of Contents for Manhattan 702911

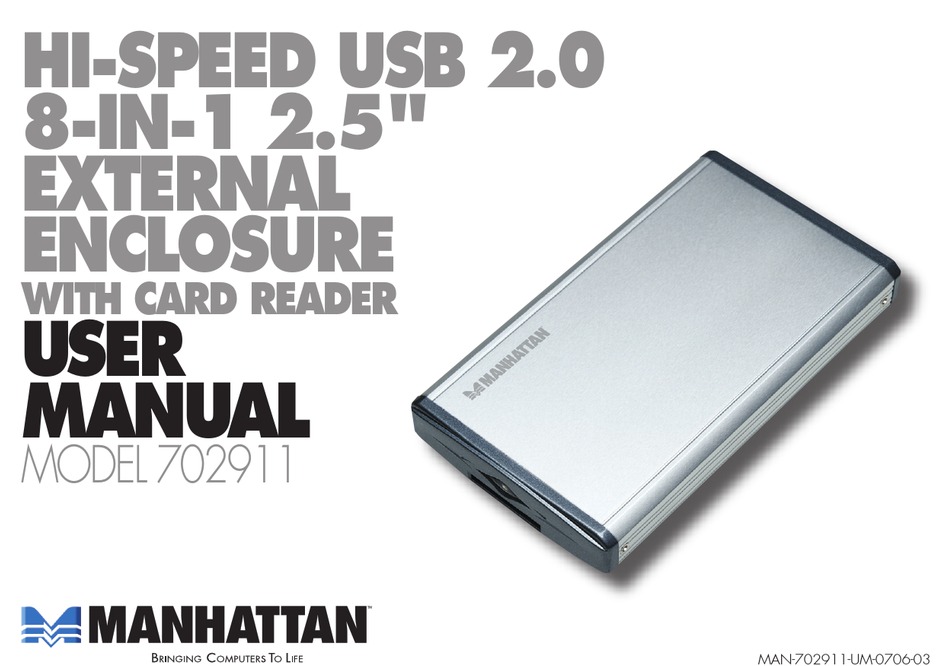

  • Page 1 UsB 2.0 8-in-1 2.5" external enclosUre with card reader User ManUal MODEL 702911 MAN-702911-UM-0706-03...
  • Page 2 Hi-Speed USB 2.0 8-in- 1 2.5" External Enclosure ® with Card Reader, Model 702911. This device will let you quickly and easily transfer, share and archive data, and expand storage capacities for desktop and notebook PCs. Plus, the battery- power feature allows photo download anywhere to keep your digital cameras ready for use.
  • Page 3 Gb. You can then format the IDE drive to FAT32. It’s recommended that you create a copy of your original data to prevent the possibility of data loss should a mistake be made during the setup procedure. MANHATTAN accepts no responsibility for lost data.
  • Page 4 2. Carefully connect the interface to the hard disk 1. Remove the tray drive. from the enclosure. 4. Insert the hard disk drive back into the 3. Use the screws to enclosure and attach secure the hard the back cover with disk drive.
  • Page 5 E:\UR250\Win98 driver\wind98drv," click "Next." With the prompt "Windows has finished installing the software that your new hardware device requires," click "Finish." Installation is complete; just restart your computer. NOTE: For Windows Me/2000/XP/Vista, there is no need to install the additional driver: It’s already installed.

  • Page 6: Specifications

    specifications General • 44 pin IDE internal connection • Hi-Speed USB 2.0 mini B external connection • VIA (VT6205A) and PMC Flash (MKRL4) chipsets • Supports - Memory Stick - Memory Stick PRO - Memory Stick Duo* - Memory Stick PRO Duo* - SecureDigital (SD) - TransFlash* - MultiMediaCard (MMC)
  • Page 7 • 78 g (2.5 oz.) * Adapter required (not included) System Requirements • Windows 98/Me/2000/XP/Vista Package Contents • External Enclosure with Card Reader and One-Touch Copy • USB cable, A-type male to mini B male, 4 ft. (1.2 m) • Battery power adapter with cable (4 AA batteries required; not included) •...
  • Page 8 PC Components, Peripherals, Cables ® and Accessories. Ask your local computer dealer for more information or visit us online at www.manhattan-products.com Copyright © MANHATTAN All products mentioned are trademarks or registered trademarks of their respective owners.
