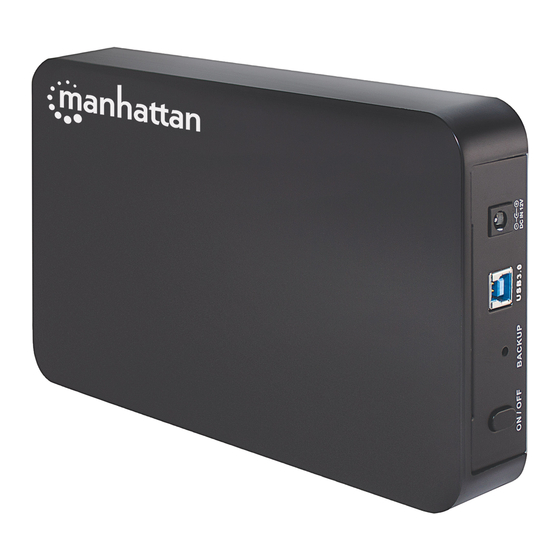

Manhattan 130295 User Manual

Drive enclosure
Hide thumbs Also See for 130295:
Table of Contents

Advertisement

Quick Links

Download this manual
DRIVE
ENCLOSURE
USER
MANUAL
MODEL 130295
MAN-130295-UM-0712-01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 130295 and is the answer not in the manual?

Questions and answers

Related Manuals for Manhattan 130295

Summary of Contents for Manhattan 130295

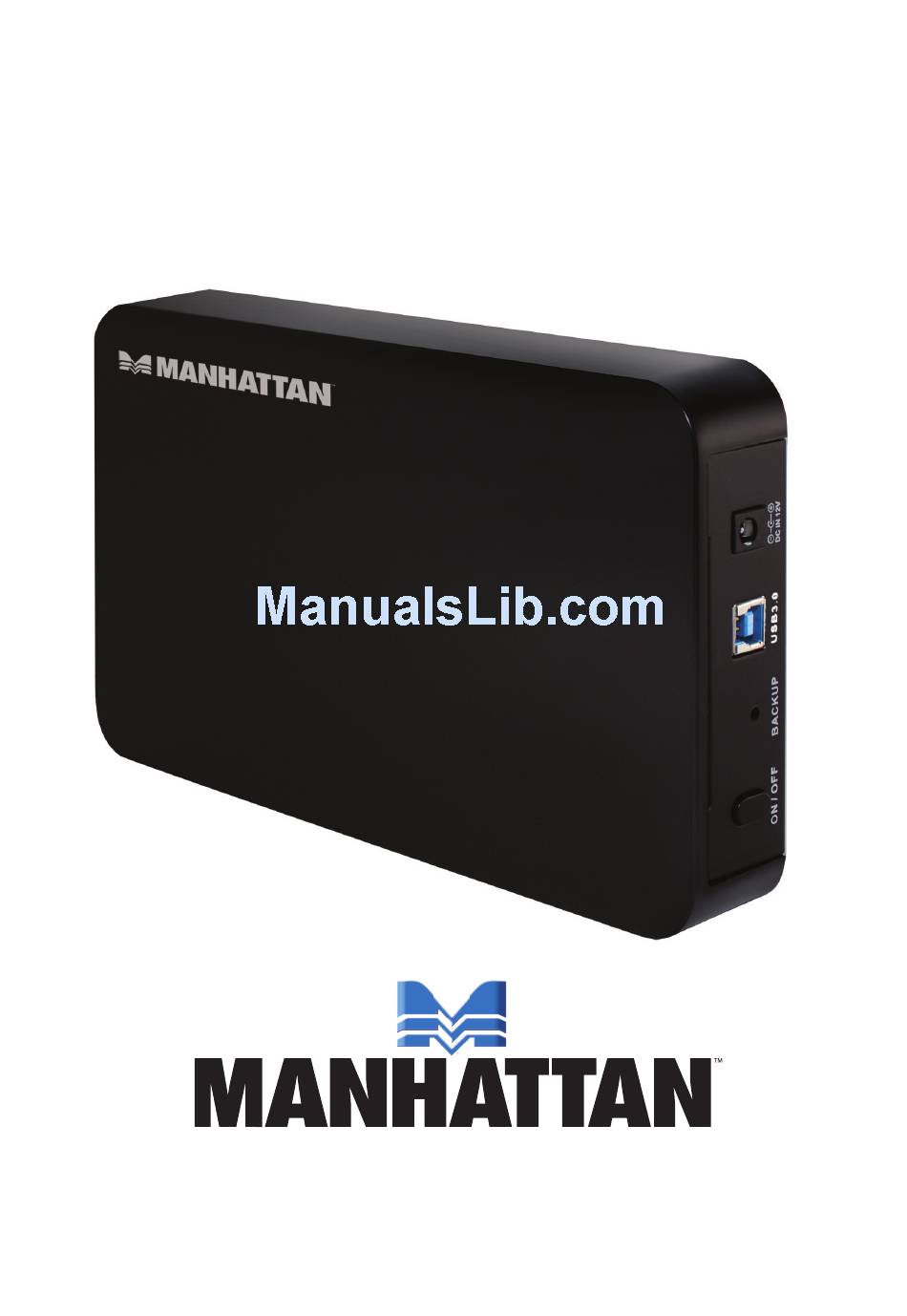

  • Page 1 DRIVE ENCLOSURE USER MANUAL MODEL 130295 MAN-130295-UM-0712-01...

  • Page 2: Hardware & Driver Installation

    INTRODUCTION Thank you for purchasing this MANHATTAN Drive Enclosure, Model 130295. ® With support for large-capacity 3.5-inch SATA drives and with SuperSpeed USB (3.0) data transfer rates of up to 5 Gbps (up to 3 TB for large-capacity drives), this device helps you optimize high-performance computer storage applications.

  • Page 3: Software Installation

    1. Remove the 4 screws on the bottom of the enclosure (A) and lift off the top (B). 2. Connect the hard drive to the SATA data and power connectors on the enclosure, then secure it to the enclosure using the included screws (C). 3.

  • Page 4: Backing Up Files

    BACKING UP FILES 1. When the Prolific icon displays on the desktop (below), double-click it to launch the program (or go to Start / Programs / Prolific Storage on your desktop). 2. When the backup program is opened, the Welcome screen presents two options for Backup Files: Create or Restore.
  • Page 5 items. Backed-up files will be stored in a subfolder called “PL2X7X Backup.” Otherwise, you can select: - “Compress Backup Files,” which requires that files be restored before opening (see Restoring Backup Files). If you also select “User-defined file name,” you’ll first be prompted to enter a specific filename and folder (and these files will still need to be restored...
  • Page 6 6. Go to your USB storage drive (“MyUSBDrive” in the example below, which represents the backup HDD in the drive enclosure), and check the “MyBackup” files. A small utility program called PLBackup is also added into the “MyBackup” folder so you can execute it if the external drive is connected to another PC that doesn’t have the Prolific Backup software installed.
  • Page 7 7. Inside the subfolder “PL2X7X Backup” you will find the selected folders that were copied with a date-time prefix added on the folder name. You will also see an associated “.pbi” file that is used to identify the backup folders in order to restore those folders.
  • Page 8 9. When backup is complete, the compressed backup files will be stored in the “PL2X7X Backup” subfolder. Note that each selected folder is compressed separately with a date-time folder name prefix used as a filename. Note also the associated .pbi file that you need in order to restore these files. 10.
  • Page 9 11. When you click Backup, you’ll be prompted to enter the filename to be used for the compressed backed-up files and the folder directory to store the files. Click Save to begin the backup. 12.When the backup is complete, the compressed backed-up files will be stored in the folder you specified and with the filename(s) you specified.
  • Page 10 13. The “Backup modified files only” option lets you save time by just backing up those files on the folders that were modified from your previous backup. For a first-time backup, a full backup of the selected folders in a special backup folder is needed in order to compare the files (see Step 14).
  • Page 11 14. Notice that a new subfolder — “PL2X7X OnlyBackupModify” — was created, which is where the backed-up files are stored. The next time you do a backup, the program will compare the files and only back up the files that are modified. 15.
  • Page 12 16. The next time you back up your files, the folder where the files are stored will just be updated with those files that were modified. Note that a new .pbi file will be created each time you do a backup. Always use the latest .pbi file to restore the files.

  • Page 13: Restoring Backed-Up Files

    RESTORING BACKED-UP FILES 1. When the Prolific icon displays on the desktop (below), double-click it to launch the program (or go to Start / Programs / Prolific Storage on your desktop). 2. When the backup program is opened, the Welcome screen presents two options for Backup Files: Create or Restore.
  • Page 14 4. When the desired folder is selected, the .pbi files corresponding to the backed-up files will be listed in the “Select a backup file” window. Select the backup filename you want to restore.
  • Page 15 5. When you select one of the backed- up files (.pbi file) in the backup file list, the actual backup folders will appear in the “source file” window to let you know which folders you can restore. In the “Restore Directories” panel, you can choose to restore the file to its original directory or to a new directory.

  • Page 16: Uninstalling The Backup Software

    7. Once your preferences have been set, click Restore to begin restoring the backed-up files. The files will be shown being restored to your desired restore directory. 8. After all backed-up files are restored and the “Restore succeeded!” message displays, click OK to finish and go to the intended directory folder to confirm that the restored are there.

  • Page 17: Specifications

    SPECIFICATIONS Standards and Certifications • USB 3.0 to SATA interface • CE • FCC • WEEE • RoHS General • P12771 chipset • SATA 7P + 15P internal data and power connections • DC single-post power input (power adapter included) •...

  • Page 18: Waste Electrical And Electronic Equipment

    WASTE ELECTRICAL & ELECTRONIC EQUIPMENT Disposal of Electric and Electronic Equipment (applicable in the European Union and other European countries with separate collection systems) ENGLISH This symbol on the product or its packaging indicates that this product shall not be treated as household waste.
  • Page 19 ITALIANO Questo simbolo sui prodotto o sulla relativa confezione indica che il prodotto non va trattato come un rifiuto domestico. In ottemperanza alla Direttiva UE 2002/96/EC sui rifiuti di apparecchiature elettriche ed elettroniche (RAEE), questa prodotto elettrico non deve essere smaltito come rifiuto municipale misto. Si prega di smaltire il prodotto riportandolo al punto vendita o al punto di raccolta municipale locale per un opportuno riciclaggio.

  • Page 20: Warranty Information

    ITALIANO: Per informazioni sulla garanzia, accedere a www.manhattan-products.com/ warranty. EN MÉXICO: Póliza de Garantía MANHATTAN — Datos del importador y responsable ante el consumidor IC Intracom México, S.A. de C.V. • Av. Interceptor Poniente # 73, Col. Parque Industrial La Joya, Cuautitlán Izcalli, Estado de México, C.P. 54730, México. •...

  • Page 21: Regulatory Statements

    REGULATORY STATEMENTS FCC Class B This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of Federal Communications Commission (FCC) Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 22 Wszystkie znaki towarowe i nazwy handlowe należą do ich właścicieli. Tutti i marchi registrati e le dominazioni commerciali sono di proprietà dei loro rispettivi proprietari. © IC INTRACOM. All rights reserved. MANHATTAN is a trademark of IC INTRACOM, registered in the U.S. and other countries.

This manual is also suitable for:

130349
