DRIVE ENCLOSURE
USER MANUAL
MODELS 130295 & 130349
VERSION 2

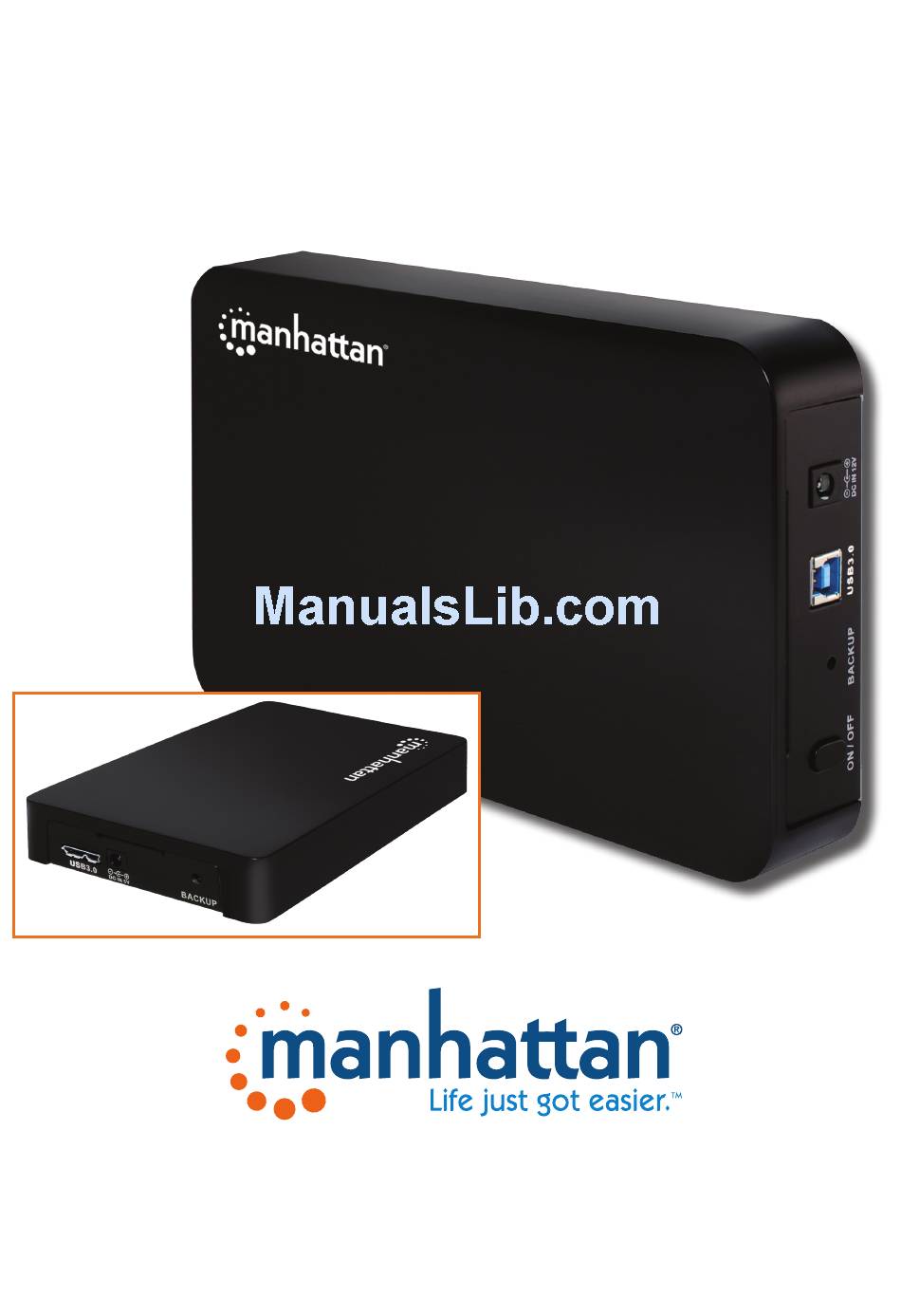

At Right: Model 130295
Below: Model 130349
manhattanproducts.com
MAN-130295/130349-UM-0515-04

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 130295 and is the answer not in the manual?

Questions and answers

Related Manuals for Manhattan 130295

Summary of Contents for Manhattan 130295

  • Page 1 DRIVE ENCLOSURE USER MANUAL MODELS 130295 & 130349 VERSION 2 At Right: Model 130295 Below: Model 130349 manhattanproducts.com MAN-130295/130349-UM-0515-04...
  • Page 2 INTRODUCTION Thank you for purchasing this Manhattan Drive Enclosure, Model 130295 ver. 2 (SuperSpeed USB 3.0 SATA 3.5”), or Model 130349 ver. 2 (SuperSpeed USB 3.0 SATA 2.5”). With support for data transfer rates of up to 5 Gbps and drives up to 1 TB (Model 130349) or 3 TB (Model 130295), this device helps you optimize high-performance computer storage applications.

  • Page 3: Hardware & Driver Installation

    HARDWARE & DRIVER INSTALLATION 1. Remove the 4 screws on the bottom of the enclosure (A) and lift off the top (B). 2. Connect the hard drive to the SATA data and power connectors on the enclosure, then secure it to the enclosure using the included screws (C). 3.

  • Page 4: Software Installation

    SOFTWARE INSTALLATION These steps are for the installation of the convenient one-touch backup software. NOTE: This software doesn’t support Mac operating systems. Some images may look different on your computer, as your software version may be slightly different than the one represented here. 1.

  • Page 5: Backing Up Files

    BACKING UP FILES 1. When the JMicron icon displays on the desktop (right), double-click it to launch the program (or go to Start / Programs / JMicron Storage on your desktop). 2. When the backup program is opened, the initial screen presents two options for Backup Files: Backup or Restore.
  • Page 6 Backup files will be stored in a sub-folder called “Backup.”   3. With the destination drive and folder selected, click Backup for a default backup. The operation will display the files being backed up as well as a status progress bar.
  • Page 7 Backup button on the enclosure to launch the Shown: Model software and begin backing up selected files. 130295   • Allow the backup to continue while the status screen is displayed. (Or click Abort if you need to interrupt or stop the process.) •...

  • Page 8: Restoring Backed-Up Files

    RESTORING BACKED-UP FILES 1. When the JMicron icon displays on the desktop (as shown on Page 5), double- click it to launch the program (or go to Start / Programs / JMicron Storage on your desktop). 2. When the backup program is opened, the Welcome screen presents two options for Backup Files: Backup or Restore.

  • Page 9: Uninstalling The Backup Software

    UNINSTALLING THE BACKUP SOFTWARE 1. Go to Control Panel / Programs / Uninstall a program / JMicron One Touch Backup. Click Uninstall or Remove to continue, then click Yes.   2. When the uninstall is complete, you’ll be prompted to restart your computer. Close all programs and click Finish to restart your computer.

This manual is also suitable for:

130349
