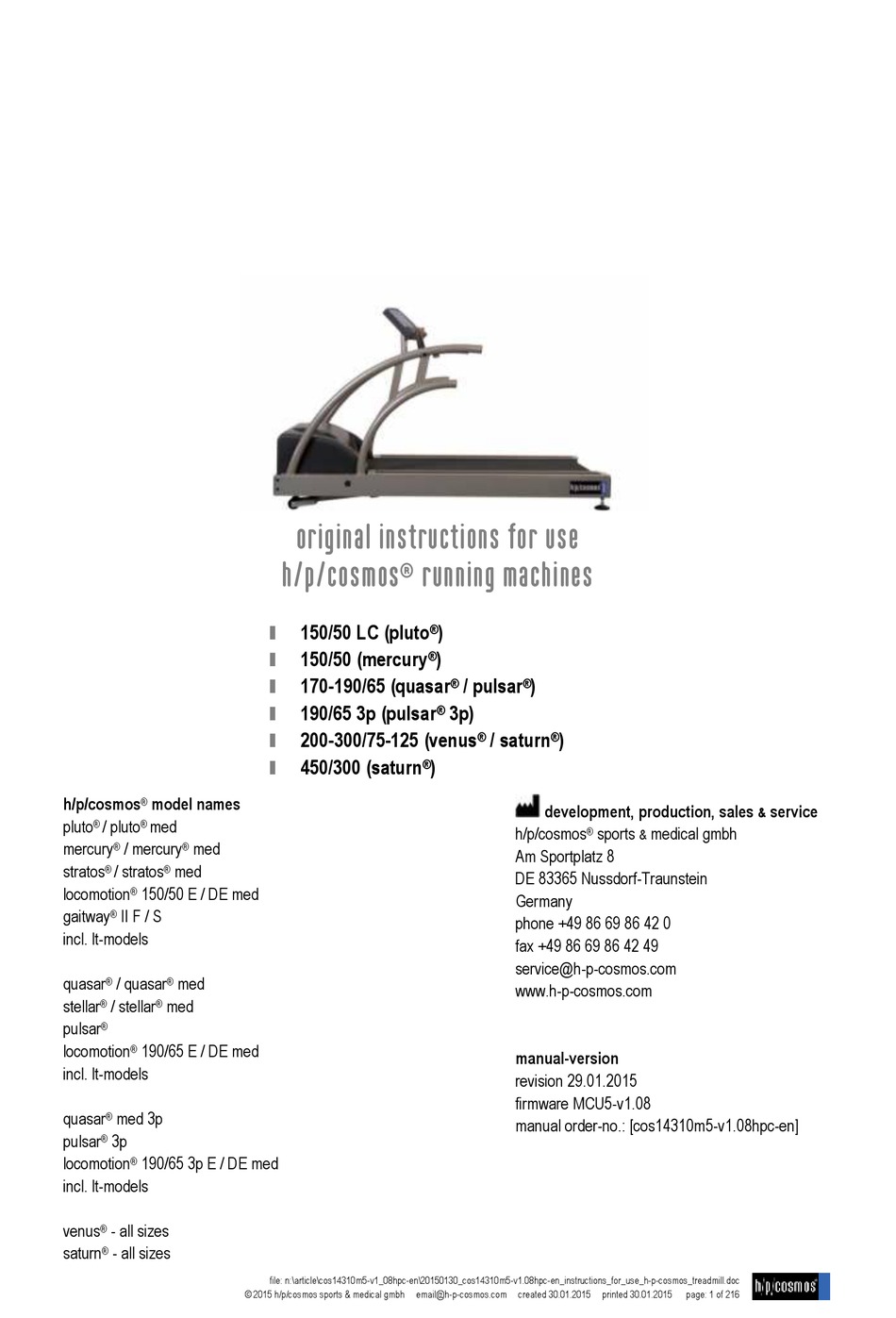

Page 1 ® locomotion 190/65 3p E / DE med ® incl. lt-models venus - all sizes ® saturn - all sizes ® file: n:\article\cos14310m5-v1_08hpc-en\20150130_cos14310m5-v1.08hpc-en_instructions_for_use_h-p-cosmos_treadmill.doc © 2015 h/p/cosmos sports & medical gmbh email@h-p-cosmos.com created 30.01.2015 printed 30.01.2015 page: 1 of 216...
Page 2 In case of alterations of the device or the additional equipment; the latest version of the manual or the corresponding additional information always should be considered. The latest manual version is always available in PDF version on the h/p/cosmos website: http://www.h-p-cosmos.com/en/company/downloads.htm...
Page 3 All kinds of installation and repair work and most maintenance work are to be performed only by trained and authorized technicians who have been certified by h/p/cosmos. The following symbols will indicate which work can be done by the customer and which work has to be done only by authorized technicians: The customer/user should perform this maintenance and monitoring work.
Page 4: Table Of Contents
Additional information for model saturn 450/300 only ....................26 Switch on procedure ............................... 28 5.3.1 Switch on procedure model range 150/50 LC (pluto) ..................28 5.3.2 Switch on procedure model range 150/50 up to 190/65 (mercury, quasar, pulsar) ........... 29 5.3.3 Switch on procedure model range 200/75 up to 300/125 (venus / saturn) ............
Page 5 7.4.7 Cable connections models 200-300/75-125 (venus / saturn) ................104 7.4.8 Cable connections model saturn 450/300 ......................104 7.4.9 Connection of external host and / or auxiliary devices via interface ............. 106 file: n:\article\cos14310m5-v1_08hpc-en\20150130_cos14310m5-v1.08hpc-en_instructions_for_use_h-p-cosmos_treadmill.doc © 2015 h/p/cosmos sports & medical gmbh author: fh email@h-p-cosmos.com created 30.01.2015 printed 30.01.2015...
Page 6 8.4.6 Refilling hydraulic oil tank ........................125 8.4.7 Resetting of oil message ........................126 Control and tightening of the running belt ......................126 file: n:\article\cos14310m5-v1_08hpc-en\20150130_cos14310m5-v1.08hpc-en_instructions_for_use_h-p-cosmos_treadmill.doc © 2015 h/p/cosmos sports & medical gmbh author: fh email@h-p-cosmos.com created 30.01.2015 printed 30.01.2015 page: 6 of 216...
Page 7 9.11 Error messages ................................140 9.12 Additional error messages at saturn 450/300 ....................... 147 Optional settings: administrator options ..................... 148 file: n:\article\cos14310m5-v1_08hpc-en\20150130_cos14310m5-v1.08hpc-en_instructions_for_use_h-p-cosmos_treadmill.doc © 2015 h/p/cosmos sports & medical gmbh author: fh email@h-p-cosmos.com created 30.01.2015 printed 30.01.2015 page: 7 of 216...
Page 8 12.5 Handrails, adjustable: Parallel bars with gas struts and locking lever ................178 12.6 Therapist’s seat and foot support, adjustable ....................... 180 12.7 Unweighting system h/p/cosmos airwalk se 135 ......................181 12.8 Unweighting systems airwalk 70/160 ........................... 182 12.9 Vests for subjects for airwalk systems.......................... 182 12.10 h/p/cosmos robowalk...
Page 9 15.8 Wiring diagram control circuit quasar med / pulsar – page 2 ..................214 ® ® Appendix 3: Symbols ..............................215 Contact ..................................216 file: n:\article\cos14310m5-v1_08hpc-en\20150130_cos14310m5-v1.08hpc-en_instructions_for_use_h-p-cosmos_treadmill.doc © 2015 h/p/cosmos sports & medical gmbh author: fh email@h-p-cosmos.com created 30.01.2015 printed 30.01.2015 page: 9 of 216...
Page 10: Model Overview
® ® quasar med 3p quasar ® ® pulsar quasar ® ® pulsar ® pulsar lt 3p ® pulsar ® file: n:\article\cos14310m5-v1_08hpc-en\20150130_cos14310m5-v1.08hpc-en_instructions_for_use_h-p-cosmos_treadmill.doc © 2015 h/p/cosmos sports & medical gmbh author: fh email@h-p-cosmos.com created 30.01.2015 printed 30.01.2015 page: 10 of 216...
Page 11 300/75r ® saturn 300/100 ® saturn 300/100r ® saturn 300/125r ® saturn 450/300rs ® saturn ® 300/125r saturn ® 450/300rs file: n:\article\cos14310m5-v1_08hpc-en\20150130_cos14310m5-v1.08hpc-en_instructions_for_use_h-p-cosmos_treadmill.doc © 2015 h/p/cosmos sports & medical gmbh author: fh email@h-p-cosmos.com created 30.01.2015 printed 30.01.2015 page: 11 of 216...
Page 12: Introduction

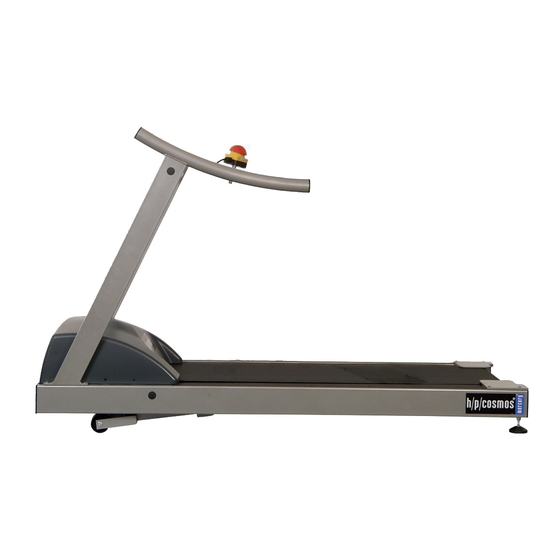

A running machine (also called “treadmill ergometer”) is an exercise device for running or walking while staying in one place. The h/p/cosmos running machines are stationary treadmills which are used for training and testing, simulating various adjustable speeds and various adjustable elevations (also called “slope” or “inclination”). The medical versions can also be used for diagnostics and therapy applications.
Page 13: Safety Equipment
Unweighting systems as an accessory (for example the h/p/cosmos airwalk) can be used for body weight support of the patient, in case the patient should not bear his full body weight on his legs.
Page 14 It can, for example, be duplicated on the opposite handrail. h/p/cosmos conforms with the norm EN 957-6: “The push-button type or pull cord safety stop actuator shall be in a reachable position in front of the user and in an area of ± 180 mm parallel to the centre line of the running surface. If the push-button type safety stop actuator is outside this area, it shall be duplicated on the opposite side except when a pull- cord actuator is provided.”...
Page 15: Intended Use / Indications, Contraindications, Risks & Forbidden Use
The h/p/cosmos medical treadmills are intended for endurance training, recreatioinal fitness training and gait training. In combination with external devices h/p/cosmos medical treadmills are intended as loading devices for EMG and ECG measuring, ergospirometry as well as diagnosis and prognosis of cardiovascular diseases by stress tests.
Page 16: Contraindications
American Heart Association - www.americanheart.org http://my.americanheart.org/idc/groups/ahaecc-internal/@wcm/@sop/documents/downloadable/ucm_423807.pdf Further contraindications may occur. This has to be evaluated by the responsible medical doctor. file: n:\article\cos14310m5-v1_08hpc-en\20150130_cos14310m5-v1.08hpc-en_instructions_for_use_h-p-cosmos_treadmill.doc © 2015 h/p/cosmos sports & medical gmbh author: fh email@h-p-cosmos.com created 30.01.2015 printed 30.01.2015 page: 16 of 216...
Page 17: Risks
Intracranial haemorrhage n.s. Thromboembolic event n.s. Transient global amnesia n.s. Arthralgia n.s. Myalgia n.s. Low back pain n.s. n.s.: not specified file: n:\article\cos14310m5-v1_08hpc-en\20150130_cos14310m5-v1.08hpc-en_instructions_for_use_h-p-cosmos_treadmill.doc © 2015 h/p/cosmos sports & medical gmbh author: fh email@h-p-cosmos.com created 30.01.2015 printed 30.01.2015 page: 17 of 216...
Page 18 Recommendation and application of weight support system and/or fall stop device, such as the h/p/cosmos safety arch with harness and automatic shut-off of the running belt. Comprehensive instruction of the patient before the start of treadmill therapy with an explanation that the drive of the running belt is very strong and does not stop automatically when the patient stops.
Page 19: Forbidden Use
A safety arch with chest belt and fall stop is also obligatory in this case. h/p/cosmos devices must not be used in environmental conditions other than those specified in the chapter „Technical specifications“ and “Environmental conditions” (e.g. in wet and humid areas, swimming pools, sauna, environmental chambers, high-pressure-, low-pressure, altitude- and oxygen-chambers, etc.).
Page 20: Safety Notes, Warnings, Precautions
Any other use than that explicitly listed in the field of application is prohibited. Use of the h/p/cosmos medical treadmills in a home environment and/or in public and/or operation by persons who are not medically trained staff is not allowed.
Page 21: Preparation Of The Patient / User
It is not allowed to run with the back to the crossbar. The front handrail crossbar should be dismounted if a safety arch with chest belt system is installed and used. file: n:\article\cos14310m5-v1_08hpc-en\20150130_cos14310m5-v1.08hpc-en_instructions_for_use_h-p-cosmos_treadmill.doc © 2015 h/p/cosmos sports & medical gmbh author: fh email@h-p-cosmos.com created 30.01.2015...
Page 22: Preparation Of The Running Machine Model Saturn 450/300
Additionally h/p/cosmos recommends the use of adjustable handrails. When using the treadmill for load tests, a medical doctor and a defibrillator are to be within reach at any time.
Page 23 If the treadmill is being controlled via ECG, pay special attention to the ECG manufacturer’s manual! The summary of clinical data and the risk management of h/p/cosmos does NOT cover any measured parameters and/or vital functions which are measured and/or detected by host devices (e.g. ECG, ergospirometry devices, EMG, etc.) which are connected to the treadmill.
Page 24: Machine Care
Setting OP 41 to value 1 affects the safety of the subject and third parties. A down movement of the elevation after pressing STOP can result in confusion leading to serious injuries. h/p/cosmos strongly recommends keeping the standard setting of this option. Stop means stop for all movements and should not activate the running machine in any way.
Page 25: Operation
The patient/subject is placed onto the correct position on the treadmill. Before using the treadmill, the patient/subject has to be carefully instructed to follow the speed of the running belt and to keep his position, but not hold the handrails during exercise. file: n:\article\cos14310m5-v1_08hpc-en\20150130_cos14310m5-v1.08hpc-en_instructions_for_use_h-p-cosmos_treadmill.doc © 2015 h/p/cosmos sports & medical gmbh author: fh email@h-p-cosmos.com created 30.01.2015 printed 30.01.2015...
Page 26: Additional Information For Model Saturn 450/300 Only
5.2 Additional information for model saturn 450/300 only The drive function for the running belt of the saturn 450/300 is the same as at the regular smaller h/p/cosmos treadmills. Controversial to the smaller treadmills, the elevation element is powered by a hydraulic system.
Page 27 “STOP” key. At the end of the treadmill training data can be stored and/or printed, depending on selected mode, connected devices and the software version. file: n:\article\cos14310m5-v1_08hpc-en\20150130_cos14310m5-v1.08hpc-en_instructions_for_use_h-p-cosmos_treadmill.doc © 2015 h/p/cosmos sports & medical gmbh author: fh email@h-p-cosmos.com created 30.01.2015...
Page 28: Switch On Procedure
5.3 Switch on procedure 5.3.1 Switch on procedure model range 150/50 LC (pluto) If the running machine is at an angle of elevation > 0 when switched on, it will automatically move to the position zero (display elevation „INIT“). Please ensure that while lowering the elevation no harm is done to persons or objects under the running machine.
Page 29: Switch On Procedure Model Range 150/50 Up To 190/65 (Mercury, Quasar, Pulsar)
[07] Make sure that the expulsion fuse at the front of the device (front terminal below the hood) is switched on. file: n:\article\cos14310m5-v1_08hpc-en\20150130_cos14310m5-v1.08hpc-en_instructions_for_use_h-p-cosmos_treadmill.doc © 2015 h/p/cosmos sports & medical gmbh author: fh email@h-p-cosmos.com created 30.01.2015 printed 30.01.2015 page: 29 of 216...
Page 30: Switch On Procedure Model Range 200/75 Up To 300/125 (Venus / Saturn)
Plug the power cord of the running machine directly into the CEE wall socket. Only the model saturn 450/300rs has a permanent connection to the mains and no power plug. file: n:\article\cos14310m5-v1_08hpc-en\20150130_cos14310m5-v1.08hpc-en_instructions_for_use_h-p-cosmos_treadmill.doc © 2015 h/p/cosmos sports & medical gmbh author: fh email@h-p-cosmos.com created 30.01.2015 printed 30.01.2015...
Page 31: Switch On Procedure Model Saturn 450/300
1 minute. 5.3.4 Switch on procedure model saturn 450/300 Illustration Description [01] Release all emergency stop buttons of the treadmill ergometer. file: n:\article\cos14310m5-v1_08hpc-en\20150130_cos14310m5-v1.08hpc-en_instructions_for_use_h-p-cosmos_treadmill.doc © 2015 h/p/cosmos sports & medical gmbh author: fh email@h-p-cosmos.com created 30.01.2015 printed 30.01.2015 page: 31 of 216...
Page 32 Now the hydraulic for the elevation system and the running machine are powered on and ready for getting started. file: n:\article\cos14310m5-v1_08hpc-en\20150130_cos14310m5-v1.08hpc-en_instructions_for_use_h-p-cosmos_treadmill.doc © 2015 h/p/cosmos sports & medical gmbh author: fh email@h-p-cosmos.com created 30.01.2015 printed 30.01.2015...
Page 33: Switch Off Procedure
5.4 Switch off procedure 5.4.1 Switch off procedure model range 150/50 LC (pluto) Illustration Description [01] Switch off the running machine by using the silver push button at the UserTerminal. The indicator light (blue) within the push button extinguishes.
Page 34: Switch Off Procedure Model Saturn 450/300
The emergency stop button is to be pressed immediately! h/p/cosmos is in compliance with the norm EN 957-6 and offers more safety features than required, as shown in the following tables. In all below mentioned cases, all displayed values will be reset to “0”.
Page 35 & shows “PULL STOP” interface active, but no start, speed or elevation signal executed keyboard inactive file: n:\article\cos14310m5-v1_08hpc-en\20150130_cos14310m5-v1.08hpc-en_instructions_for_use_h-p-cosmos_treadmill.doc © 2015 h/p/cosmos sports & medical gmbh author: fh email@h-p-cosmos.com created 30.01.2015 printed 30.01.2015 page: 35 of 216...
Page 36 The emergency stop switch (safety lanyard with actuator, pull cord and clip) of the 150/50 LC (pluto) cuts off the main power - no message is shown at the dispays Additional stop Stop button is pushed...
Page 37: Userterminal / Control Terminal
More recent computers will only have a USB interface instead of the RS232 interface. In that case, a „USB to RS232 interface adapter“ is available at h/p/cosmos under order number [cos12769-01]. For control via USB interface the processor must be a Pentium 1.8 GHz or higher. To use all functions described below and for maintenance and service, we recommend the PC software h/p/cosmos para control (Freeware).
Page 38: The Keyboard
LCD displays you will find light-emitting diodes (LED) which indicate the selected operation mode or measuring unit (LED ) Flashing displays indicate: select option (LED ) alterable parameter (LCD) interference / error file: n:\article\cos14310m5-v1_08hpc-en\20150130_cos14310m5-v1.08hpc-en_instructions_for_use_h-p-cosmos_treadmill.doc © 2015 h/p/cosmos sports & medical gmbh author: fh email@h-p-cosmos.com created 30.01.2015 printed 30.01.2015 page: 38 of 216...
Page 39 H ..Standard configuration of the LCD displays and LEDs.   LED on /  LED off file: n:\article\cos14310m5-v1_08hpc-en\20150130_cos14310m5-v1.08hpc-en_instructions_for_use_h-p-cosmos_treadmill.doc © 2015 h/p/cosmos sports & medical gmbh author: fh email@h-p-cosmos.com created 30.01.2015 printed 30.01.2015 page: 39 of 216...
Page 40: External Userterminal Control Unit
Switches the device on (only possible after switch on delay) “off”-button Switches the device off (green indicator is blinking for 1 min.) file: n:\article\cos14310m5-v1_08hpc-en\20150130_cos14310m5-v1.08hpc-en_instructions_for_use_h-p-cosmos_treadmill.doc © 2015 h/p/cosmos sports & medical gmbh author: fh email@h-p-cosmos.com created 30.01.2015 printed 30.01.2015 page: 40 of 216...
Page 41: Touchpanel
After booting up, h/p/cosmos para control will start automatically and show these safety instructions. Before the running machine can be used, the safety instructions have to be read and confirmed with a click on the respective confirm button: “I fully understand and accept”.
Page 42: External Userterminal Control Unit Model Saturn 450/300
To make the software as user-friendly as possible it has been designed in exactly the same style as the physical UserTerminal of the h/p/cosmos running machine. The great advantage is that everyone who is familiar with the running machine is also able to control the machine with h/p/cosmos para control.
Page 43 Furthermore there are a lot of additional functions like next target speed with a click on the speed display, next target elevation with a click on the elevation display, direct change of modes, cool down, quick stop, count-down, option settings, etc. For details read the manual of h/p/cosmos para control 5. file: n:\article\cos14310m5-v1_08hpc-en\20150130_cos14310m5-v1.08hpc-en_instructions_for_use_h-p-cosmos_treadmill.doc © 2015 h/p/cosmos sports & medical gmbh author: fh email@h-p-cosmos.com...
Page 44: Application: Ergometry / Cardiology Ecg Treadmill Stress Test
If controlling the treadmill via ECG, pay special attention to the ECG manufacturer’s manual! The summary of clinical data and the risk management of h/p/cosmos do NOT cover any measured parameters and/or vital functions which are measured and/or detected by host devices (e.g. ECG, ergospirometry devices, EMG, etc.) connected to the treadmill.
Page 45: Application: Gait Analysis And Rehabilitation With Force Measurement Plates
® ® Kistler force measurement plates. It is the only h/p/cosmos treadmill with these features. The system measures the vertical ground reaction forces and thereby collects a large amount of force and time-based gait parameters. The total force path can be displayed with the Kistler Gaitway software.
Page 46: Modes Of Operation (Via Keyboard Or Pc Software Para Control 4.1)
Disregard may cause injuries and serious health problems or even death. Higher precautions may be necessary in the event of identifiable risks. file: n:\article\cos14310m5-v1_08hpc-en\20150130_cos14310m5-v1.08hpc-en_instructions_for_use_h-p-cosmos_treadmill.doc © 2015 h/p/cosmos sports & medical gmbh author: fh email@h-p-cosmos.com created 30.01.2015 printed 30.01.2015...
Page 47: Acceleration Levels
The acceleration levels are accessible by pressing the "speed-keys" + and minus several times and then holding the key. The acceleration levels are also accessible via interface and optional PC software h/p/cosmos para control and h/p/cosmos para graphics ®...
Page 48: Manual Mode
5.10.2 Manual mode The following table shows the operating steps for running the treadmill via firmware or software h/p/cosmos para control. Operation of profile mode Initiation: Running belt is not moving. One of the modes LED is flashing: (manual, profile, cardio, test) Step no.
Page 49: Profile Mode
Low 2 High 3 Low 3 High 4 Low 4 High 5 Low 5 High 6 Low 6 25 min file: n:\article\cos14310m5-v1_08hpc-en\20150130_cos14310m5-v1.08hpc-en_instructions_for_use_h-p-cosmos_treadmill.doc © 2015 h/p/cosmos sports & medical gmbh author: fh email@h-p-cosmos.com created 30.01.2015 printed 30.01.2015 page: 49 of 216...
Page 50 10.0 Low 3 High 4 10.0 Low 4 High 5 10.0 Low 5 High 6 10.0 Low 6 25 min file: n:\article\cos14310m5-v1_08hpc-en\20150130_cos14310m5-v1.08hpc-en_instructions_for_use_h-p-cosmos_treadmill.doc © 2015 h/p/cosmos sports & medical gmbh author: fh email@h-p-cosmos.com created 30.01.2015 printed 30.01.2015 page: 50 of 216...
Page 51 High 4 13.0 Low 4 10.1 High 5 11.5 Low 5 10.1 High 6 11.5 Low 6 10.1 25 min file: n:\article\cos14310m5-v1_08hpc-en\20150130_cos14310m5-v1.08hpc-en_instructions_for_use_h-p-cosmos_treadmill.doc © 2015 h/p/cosmos sports & medical gmbh author: fh email@h-p-cosmos.com created 30.01.2015 printed 30.01.2015 page: 51 of 216...
Page 52 The following table shows the operating steps for running the treadmill via firmware or software h/p/cosmos para control ® Operation of profile mode Initiation: Running belt is not moving. One of the modes LED is flashing: (manual, profile, cardio, test) Step no.
Page 53 Switch to the next or previous mode. mode This is a perfect way to change the mode without stopping the belt. file: n:\article\cos14310m5-v1_08hpc-en\20150130_cos14310m5-v1.08hpc-en_instructions_for_use_h-p-cosmos_treadmill.doc © 2015 h/p/cosmos sports & medical gmbh author: fh email@h-p-cosmos.com created 30.01.2015 printed 30.01.2015 page: 53 of 216...
Page 54: Cardio Mode
On the other hand, if the max. heart rate has been reached, the elevation and then the speed will be reduced in order to relieve the subject. file: n:\article\cos14310m5-v1_08hpc-en\20150130_cos14310m5-v1.08hpc-en_instructions_for_use_h-p-cosmos_treadmill.doc © 2015 h/p/cosmos sports & medical gmbh author: fh email@h-p-cosmos.com created 30.01.2015...
Page 55 15.1 ... 30 30.1 ... 50 > 50 The following table show the operating steps to run the treadmill via firmware or software h/p/cosmos para control ® Operation of cardio mode Initiation: Running-Belt is not moving. One of the modes LED  is flashing: (manual, profile, cardio, test) Step no.
Page 56 (see separate table). [11] Stop running belt Running belt stops. (Deceleration time can be adjusted in the optional functions) file: n:\article\cos14310m5-v1_08hpc-en\20150130_cos14310m5-v1.08hpc-en_instructions_for_use_h-p-cosmos_treadmill.doc © 2015 h/p/cosmos sports & medical gmbh author: fh email@h-p-cosmos.com created 30.01.2015 printed 30.01.2015 page: 56 of 216...
Page 57 Switch to the next or previous mode. mode This is a perfect way to change the mode without stopping the belt. file: n:\article\cos14310m5-v1_08hpc-en\20150130_cos14310m5-v1.08hpc-en_instructions_for_use_h-p-cosmos_treadmill.doc © 2015 h/p/cosmos sports & medical gmbh author: fh email@h-p-cosmos.com created 30.01.2015 printed 30.01.2015 page: 57 of 216...
Page 58: Test Mode
Proper warm-up and cool-down periods have to be considered. Use a safety arch with chest belt system when making max. load and max. heart rate tests. The following table shows the operating steps to run the treadmill via firmware or software h/p/cosmos para control Operation of test mode Initiation: running machine is in standby mode.
Page 59: Standard Ergometric Tests
Index”. For correct calculation of the UKK fitness index, the following parameters have to be entered: gender, age, weight and height. The following table shows the operating steps to run the treadmill via firmware or software h/p/cosmos para control ®...
Page 60 Note the index and used time. [14] Cool-down approx. 5 min, then End of the UKK 2 km walking test stop manually. file: n:\article\cos14310m5-v1_08hpc-en\20150130_cos14310m5-v1.08hpc-en_instructions_for_use_h-p-cosmos_treadmill.doc © 2015 h/p/cosmos sports & medical gmbh author: fh email@h-p-cosmos.com created 30.01.2015 printed 30.01.2015 page: 60 of 216...
Page 61 „-“ button, indicates PAUS To end pause you can either press START or „+“ – see: end pause manually. file: n:\article\cos14310m5-v1_08hpc-en\20150130_cos14310m5-v1.08hpc-en_instructions_for_use_h-p-cosmos_treadmill.doc © 2015 h/p/cosmos sports & medical gmbh author: fh email@h-p-cosmos.com created 30.01.2015 printed 30.01.2015...
Page 62 , e.g. for ECG stress test Step Duration (min) Speed (km/h) Elevation (%) 10.0 12.5 2:00 15.0 17.5 20.0 22.5 25.0 file: n:\article\cos14310m5-v1_08hpc-en\20150130_cos14310m5-v1.08hpc-en_instructions_for_use_h-p-cosmos_treadmill.doc © 2015 h/p/cosmos sports & medical gmbh author: fh email@h-p-cosmos.com created 30.01.2015 printed 30.01.2015 page: 62 of 216...
Page 63 Target speed standard: 10.0 km/h; adjustable from 0 to maximum speed of the treadmill. Time for reaching target speed in seconds: standard: 10 seconds; adjustable from 0 to 99 seconds file: n:\article\cos14310m5-v1_08hpc-en\20150130_cos14310m5-v1.08hpc-en_instructions_for_use_h-p-cosmos_treadmill.doc © 2015 h/p/cosmos sports & medical gmbh author: fh email@h-p-cosmos.com created 30.01.2015 printed 30.01.2015...
Page 64: Additional Profiles
600 m 14.5 1:30 min 600 m 15.5 1:30 min 600 m 16.5 1:30 min 600 m 17.5 1:30 min file: n:\article\cos14310m5-v1_08hpc-en\20150130_cos14310m5-v1.08hpc-en_instructions_for_use_h-p-cosmos_treadmill.doc © 2015 h/p/cosmos sports & medical gmbh author: fh email@h-p-cosmos.com created 30.01.2015 printed 30.01.2015 page: 64 of 216...
Page 65 300 m 21.0 0:45 min 400 m 19.0 1:00 min 500 m 17.0 1:15 min 600 m 15.0 1:30 min file: n:\article\cos14310m5-v1_08hpc-en\20150130_cos14310m5-v1.08hpc-en_instructions_for_use_h-p-cosmos_treadmill.doc © 2015 h/p/cosmos sports & medical gmbh author: fh email@h-p-cosmos.com created 30.01.2015 printed 30.01.2015 page: 65 of 216...
Page 66 300 m 20.0 0:45 min 300 m 20.0 0:45 min 300 m 20.0 0:45 min 300 m 20.0 0:45 min file: n:\article\cos14310m5-v1_08hpc-en\20150130_cos14310m5-v1.08hpc-en_instructions_for_use_h-p-cosmos_treadmill.doc © 2015 h/p/cosmos sports & medical gmbh author: fh email@h-p-cosmos.com created 30.01.2015 printed 30.01.2015 page: 66 of 216...
Page 67 2:00 2:00 11.0 1:00 11.0 1:00 11.0 1:00 11.0 1:00 11.0 1:00 11.0 1:00 12.0 2:00 12.0 2:00 12.0 file: n:\article\cos14310m5-v1_08hpc-en\20150130_cos14310m5-v1.08hpc-en_instructions_for_use_h-p-cosmos_treadmill.doc © 2015 h/p/cosmos sports & medical gmbh author: fh email@h-p-cosmos.com created 30.01.2015 printed 30.01.2015 page: 67 of 216...
Page 68 1:00 1:00 1:00 1:00 1:00 2:00 2:00 2:00 86 ... 89 Not engaged / reserved for following extensions and up-dates file: n:\article\cos14310m5-v1_08hpc-en\20150130_cos14310m5-v1.08hpc-en_instructions_for_use_h-p-cosmos_treadmill.doc © 2015 h/p/cosmos sports & medical gmbh author: fh email@h-p-cosmos.com created 30.01.2015 printed 30.01.2015 page: 68 of 216...
Page 69 3:00 19.8 0:30 3:00 21.6 0:30 3:00 23.4 0:30 3:00 25.2 0:30 3:00 27.0 0:30 3:00 28.8 0:30 3:00 30.6 file: n:\article\cos14310m5-v1_08hpc-en\20150130_cos14310m5-v1.08hpc-en_instructions_for_use_h-p-cosmos_treadmill.doc © 2015 h/p/cosmos sports & medical gmbh author: fh email@h-p-cosmos.com created 30.01.2015 printed 30.01.2015 page: 69 of 216...
Page 70 3:00 14.4 0:30 3:00 14.4 0:30 3:00 14.4 0:30 3:00 14.4 0:30 3:00 14.4 0:30 3:00 14.4 0:30 3:00 14.4 file: n:\article\cos14310m5-v1_08hpc-en\20150130_cos14310m5-v1.08hpc-en_instructions_for_use_h-p-cosmos_treadmill.doc © 2015 h/p/cosmos sports & medical gmbh author: fh email@h-p-cosmos.com created 30.01.2015 printed 30.01.2015 page: 70 of 216...
Page 71 2:30 13.6 2:20 10.5 0:10 12.7 1:00 18.6 1:00 14.3 2:30 14.3 2:20 11.2 0:10 13.4 1:00 19.3 1:00 15.0 file: n:\article\cos14310m5-v1_08hpc-en\20150130_cos14310m5-v1.08hpc-en_instructions_for_use_h-p-cosmos_treadmill.doc © 2015 h/p/cosmos sports & medical gmbh author: fh email@h-p-cosmos.com created 30.01.2015 printed 30.01.2015 page: 71 of 216...
Page 72: Programming Example: User-Defined Profile
Pr. 21. Up to 40 program steps can be stored per program. If more program steps are required, ask for the optional PC Software h/p/cosmos para graphics , which is able to control all functions of the ®...
Page 73 Confirm time indicates time (seconds): 2:00 is flashing [18] Select time 30 seconds [19] Confirm time indicates elevation: 0.0 is flashing file: n:\article\cos14310m5-v1_08hpc-en\20150130_cos14310m5-v1.08hpc-en_instructions_for_use_h-p-cosmos_treadmill.doc © 2015 h/p/cosmos sports & medical gmbh author: fh email@h-p-cosmos.com created 30.01.2015 printed 30.01.2015 page: 73 of 216...
Page 74 [37] Confirm acceleration level indicates speed: 0.0 is flashing indicates program step: St. 5 [38] Select der Speed 6.0 km/h file: n:\article\cos14310m5-v1_08hpc-en\20150130_cos14310m5-v1.08hpc-en_instructions_for_use_h-p-cosmos_treadmill.doc © 2015 h/p/cosmos sports & medical gmbh author: fh email@h-p-cosmos.com created 30.01.2015 printed 30.01.2015 page: 74 of 216...
Page 75 The profile can be started later on in test mode Pr. 21 5 seconds file: n:\article\cos14310m5-v1_08hpc-en\20150130_cos14310m5-v1.08hpc-en_instructions_for_use_h-p-cosmos_treadmill.doc © 2015 h/p/cosmos sports & medical gmbh author: fh email@h-p-cosmos.com created 30.01.2015 printed 30.01.2015 page: 75 of 216...
Page 76: Optional Settings: User Options
Optional settings serve for example as confirmation of error notes on the display, or for the standard setting of the device: selection of RS232 interface protocol, etc. For optional settings on devices without UserTerminal, an external UserTerminal or a connected PC with the software h/p/cosmos para control is required.
Page 77 OP01 Reset (deleting) of error messages The required maintenance work has to be performed before deleting error messages. The h/p/cosmos service department has to be contacted before one of the service displays or error codes will be deleted! Note: This option resets exclusively the causing variable.
Page 78 (this option is only available for The value of max. speed in cardio mode can be changed online by treadmill-ergometers, not for pressing ladder-ergometers) file: n:\article\cos14310m5-v1_08hpc-en\20150130_cos14310m5-v1.08hpc-en_instructions_for_use_h-p-cosmos_treadmill.doc © 2015 h/p/cosmos sports & medical gmbh author: fh email@h-p-cosmos.com created 30.01.2015 printed 30.01.2015 page: 78 of 216...
Page 79 (standard setting COM 1 and COM 2) h/p/cosmos coscom protocol see JAEGER OXYCON (up to 1995); if available use: www.coscom.org h/p/cosmos coscom (= 1). Not to be used after 21.03.2010! recommend using printer protocol (serial printer or converter required) h/p/cosmos coscom v3 protocol...
Page 80 28. Note: If the peripheral equipment sends an acceleration and deceleration command via the h/p/cosmos coscom protocol, the selected level in option number 29 is not valid for these speed commands. OP40...
Page 81 HUnG = Hungarian For correct printout, the connected printer must be compatible with PCL printer language. For special characters the ISO 8859-1 (Latin-1) font is used. file: n:\article\cos14310m5-v1_08hpc-en\20150130_cos14310m5-v1.08hpc-en_instructions_for_use_h-p-cosmos_treadmill.doc © 2015 h/p/cosmos sports & medical gmbh author: fh email@h-p-cosmos.com created 30.01.2015 printed 30.01.2015...
Page 82: Standard Settings For The User Options
0 = no single values, 1 ... 100 OP 53 Language settings for printer protocol English English, German, French, Spanish Portuguese, Hungarian file: n:\article\cos14310m5-v1_08hpc-en\20150130_cos14310m5-v1.08hpc-en_instructions_for_use_h-p-cosmos_treadmill.doc © 2015 h/p/cosmos sports & medical gmbh author: fh email@h-p-cosmos.com created 30.01.2015 printed 30.01.2015 page: 82 of 216...
Page 83: Operating Manual: Running Machines For Sports And Fitness C
Some operation modes may be locked. Safety notes, warnings, precautions All safety notes, warnings and precautions of the medical running machines have to be considered. (Chapters 4 and 7.1)”. file: n:\article\cos14310m5-v1_08hpc-en\20150130_cos14310m5-v1.08hpc-en_instructions_for_use_h-p-cosmos_treadmill.doc © 2015 h/p/cosmos sports & medical gmbh author: fh email@h-p-cosmos.com created 30.01.2015 printed 30.01.2015...
Page 84: Service Manual
All kind of installation and repair work as well as most maintenance work is to be carried out only by trained and authorized technicians who have been certified by h/p/cosmos. The following symbols will indicate which work can be done by the customer and which work has to be done by authorized technicians: The customer / user should perform this maintenance and monitoring work.
Page 85: Transport And Installation
& medical gmbh from any responsibility for the safety, reliability and performance of this equipment.
Page 86: Maintenance And Safety Inspections
Maintenance and repair of the devices (also opening of the device) have to be performed by service engineers authorized and certified by h/p/cosmos, preferably within the scope of a maintenance contract. The installation by unqualified personnel may cause electric shock or fire or other damages or electric shock or injury due to a malfunction.
Page 87: Electrical Safety Features
Frequency inverter metal housing (for shielding) Opto coupler board [cos13057] (only with analogue inverter control) Opto coupler board [cos100601] (only with digital RS485 inverter) file: n:\article\cos14310m5-v1_08hpc-en\20150130_cos14310m5-v1.08hpc-en_instructions_for_use_h-p-cosmos_treadmill.doc © 2015 h/p/cosmos sports & medical gmbh author: fh email@h-p-cosmos.com created 30.01.2015 printed 30.01.2015 page: 87 of 216...
Page 88: Medical Device Software Classification
For this reason the worst case malfunction scenario has to be taken into account. h/p/cosmos classifies the internal firmware and software components as class B due to a number of risk reducing design features and measurements.
Page 89: Installation & Commissioning
Within Germany, most devices are delivered and assembled by h/p/cosmos directly or by an authorised forwarder. If delivered by h/p/cosmos, the packaging will be removed and recycled.
Page 90: Transport
90° to the left ("lay it on the running belt"). Then the handrail is to be temporarily fixed with a special transport fuse construction (available at h/p/cosmos) in order to avoid damage during transport. Provided the right handrail is flat and temporarily fixed on the running surface, the whole machine can be turned 90°...
Page 91 Trolley with 4 wheels for max. 300 kg (660 lbs) [cos13016] Trolley with 4 wheels for max. 500 kg (1100 lbs) [cos13672] Packaging of oversize running machines 200 – 300 / 75 -125: file: n:\article\cos14310m5-v1_08hpc-en\20150130_cos14310m5-v1.08hpc-en_instructions_for_use_h-p-cosmos_treadmill.doc © 2015 h/p/cosmos sports & medical gmbh author: fh email@h-p-cosmos.com created 30.01.2015 printed 30.01.2015...
Page 92 Packaging of oversize running machines 450 / 300: Size of the treadmill box: treadmill lengh: 670cm width: 450cm high: 180cm transport by heavy load to the customer: file: n:\article\cos14310m5-v1_08hpc-en\20150130_cos14310m5-v1.08hpc-en_instructions_for_use_h-p-cosmos_treadmill.doc © 2015 h/p/cosmos sports & medical gmbh author: fh email@h-p-cosmos.com created 30.01.2015 printed 30.01.2015 page: 92 of 216...
Page 93: Storage
Store the devices at a temperature of – 20° ... + 50° C. All devices can be stored without power connection and without operation for a period of 6 – 9 months. After this period, batteries in the device may be discharged. Maintenance and/or a new setup/programming of the device by an authorized h/p/cosmos technician may be necessary file: n:\article\cos14310m5-v1_08hpc-en\20150130_cos14310m5-v1.08hpc-en_instructions_for_use_h-p-cosmos_treadmill.doc ©...
Page 94: Environmental Requirements / Room Configuration
High voltage lines must be avoided nearby the device. h/p/cosmos electrical devices with mains connections must neither be used in wet and humid areas (e.g. swimming pools, saunas, etc.) nor in environmental chambers. If not stated otherwise...
Page 95: Mechanical Installation
The transportation locks have to be removed after setup on the h/p/cosmos gaitway model with integrated force plate. Drive elevation up to max of 25 %. Loosen the four M8 screws, marked with the silver arrows on the underside of the aluminium force plates, and remove them.
Page 96: Electrical Installation
To start again, switch on the running machine at the main ”ON“ switch and press START at the keyboard. h/p/cosmos running machines are to be installed at a voltage power connection with ground wire (earthing,) including leakage-current protection switch (interrupter) and according to VDE 0100 or/and the currently valid regulations and directives.
Page 97 Please ask your electrical engineer or h/p/cosmos if you have further questions. Before installing the running machine, please compare the specifications on the name plate concerning the mains voltage and the mains frequency with your local characteristics.
Page 98: Electric Safety Measurements And "First Measured Values
(ECG, EMG, etc.) of the human body. Thus, potential equalization is also important for correct and valid measurements. file: n:\article\cos14310m5-v1_08hpc-en\20150130_cos14310m5-v1.08hpc-en_instructions_for_use_h-p-cosmos_treadmill.doc © 2015 h/p/cosmos sports & medical gmbh author: fh email@h-p-cosmos.com created 30.01.2015 printed 30.01.2015...
Page 99: Plug Assignment At The Userterminal
If the UserTerminal was disassembled during transport, please connect the cables according to the following illustration: Devices with MCU5 control unit (since manufacturing date 02/2010) file: n:\article\cos14310m5-v1_08hpc-en\20150130_cos14310m5-v1.08hpc-en_instructions_for_use_h-p-cosmos_treadmill.doc © 2015 h/p/cosmos sports & medical gmbh author: fh email@h-p-cosmos.com created 30.01.2015 printed 30.01.2015...
Page 100 Devices with MCU5 control unit (until manufacturing date 02/2010) file: n:\article\cos14310m5-v1_08hpc-en\20150130_cos14310m5-v1.08hpc-en_instructions_for_use_h-p-cosmos_treadmill.doc © 2015 h/p/cosmos sports & medical gmbh author: fh email@h-p-cosmos.com created 30.01.2015 printed 30.01.2015 page: 100 of 216...
Page 101 Devices with MCU4 control unit (until manufacturing date 12/2007) file: n:\article\cos14310m5-v1_08hpc-en\20150130_cos14310m5-v1.08hpc-en_instructions_for_use_h-p-cosmos_treadmill.doc © 2015 h/p/cosmos sports & medical gmbh author: fh email@h-p-cosmos.com created 30.01.2015 printed 30.01.2015 page: 101 of 216...
Page 102 For devices with MCU4 control unit (until manufacturing date 12/2007) and reverse belt rotation file: n:\article\cos14310m5-v1_08hpc-en\20150130_cos14310m5-v1.08hpc-en_instructions_for_use_h-p-cosmos_treadmill.doc © 2015 h/p/cosmos sports & medical gmbh author: fh email@h-p-cosmos.com created 30.01.2015 printed 30.01.2015 page: 102 of 216...
Page 103 Ground connection at the UserTerminal Cable connection for ON/OFF button and emergency stop in the UserTerminal. GRD = ground (until manufacturing date 12/2007) file: n:\article\cos14310m5-v1_08hpc-en\20150130_cos14310m5-v1.08hpc-en_instructions_for_use_h-p-cosmos_treadmill.doc © 2015 h/p/cosmos sports & medical gmbh author: fh email@h-p-cosmos.com created 30.01.2015 printed 30.01.2015...
Page 104: Cable Connections Models 200-300/75-125 (Venus / Saturn)
7.4.8 Cable connections model saturn 450/300 The above listed sockets and plugs have to be connected with the supplied cables and connectors. file: n:\article\cos14310m5-v1_08hpc-en\20150130_cos14310m5-v1.08hpc-en_instructions_for_use_h-p-cosmos_treadmill.doc © 2015 h/p/cosmos sports & medical gmbh author: fh email@h-p-cosmos.com created 30.01.2015 printed 30.01.2015...
Page 105 Potentialtrennung verwenden. Keine potentielle. Ne pas connecter de dispositif devices. Medizinprodukte an Sportgeräte médical avec un appareil de sport. anschliessen. file: n:\article\cos14310m5-v1_08hpc-en\20150130_cos14310m5-v1.08hpc-en_instructions_for_use_h-p-cosmos_treadmill.doc © 2015 h/p/cosmos sports & medical gmbh author: fh email@h-p-cosmos.com created 30.01.2015 printed 30.01.2015 page: 105 of 216...
Page 106: Connection Of External Host And / Or Auxiliary Devices Via Interface
All other interface protocols (older versions coscom v2, coscom v1, coscomekg.dll, other treadmill manufacturers, etc.) are not validated by h/p/cosmos according to the norms EN 62304 and EN 14971 and must not be used for medical applications (e.g. ergometry, stress-tests, cardiorespiratory diagnostics, performance diagnostics, etc.) since March 21,...
Page 107: Programmable, Electrical Medical Systems (Pems) / In-House Production
In case the manufacturer declares multiple sockets as valid, these must not be located on the floor in order to prevent soaking by liquids or mechanical damage. h/p/cosmos herewith informs about all above and below mentioned risks, warnings and obligations. Responsibility for system integration: The operator of ME equipment and ME systems (ME=medical-electrical) is to appoint a so-called system integrator, responsible for taking care of the tasks that result from the norm.
Page 108 PACS and WEB-based electronic image distribution server-based database for long-term ECG devices or stress test systems telemedicine applications Wi-Fi connectivity of patient monitors et. al. file: n:\article\cos14310m5-v1_08hpc-en\20150130_cos14310m5-v1.08hpc-en_instructions_for_use_h-p-cosmos_treadmill.doc © 2015 h/p/cosmos sports & medical gmbh author: fh email@h-p-cosmos.com created 30.01.2015 printed 30.01.2015 page: 108 of 216...
Page 109 Do the medical data arrive at the right place at the right destination in their complete form? May there be unforeseen changes, the user acknowledges in time? Is there a readily available documentation for all hard- and software components with all updates? file: n:\article\cos14310m5-v1_08hpc-en\20150130_cos14310m5-v1.08hpc-en_instructions_for_use_h-p-cosmos_treadmill.doc © 2015 h/p/cosmos sports & medical gmbh author: fh email@h-p-cosmos.com created 30.01.2015 printed 30.01.2015...
Page 110 As class B networks are usually radiological networks, it is difficult to define the responsibility for such a system when several manufacturers allocate different modules. file: n:\article\cos14310m5-v1_08hpc-en\20150130_cos14310m5-v1.08hpc-en_instructions_for_use_h-p-cosmos_treadmill.doc © 2015 h/p/cosmos sports & medical gmbh author: fh email@h-p-cosmos.com created 30.01.2015 printed 30.01.2015...
Page 111 In particular, the third edition of DIN EN 60601-1 is directed much more at the operator of telemedicine connections than the second edition. In order to operate a safe and high quality tele-medicine as tele-neurology network, the safety standards should be met. file: n:\article\cos14310m5-v1_08hpc-en\20150130_cos14310m5-v1.08hpc-en_instructions_for_use_h-p-cosmos_treadmill.doc © 2015 h/p/cosmos sports & medical gmbh author: fh email@h-p-cosmos.com created 30.01.2015 printed 30.01.2015...
Page 112: Installation Checklist And Instruction Of The User
Then, the h/p/cosmos employee / h/p/cosmos partner instructs the user according to the instruction protocol in appendix 2. It is important to include all people in the instruction and commissioning who are going to work with the running machine. After the instruction is completed, the instruction protocol has to be signed by the h/p/cosmos technician and all trained persons and returned, together with the signed delivery note and the registration form, to h/p/cosmos.
Page 113 Test the function of the heart rate transmission with the help of a simulator or a POLAR sender. Search for interferences and possible reasons if applicable.  accomplished file: n:\article\cos14310m5-v1_08hpc-en\20150130_cos14310m5-v1.08hpc-en_instructions_for_use_h-p-cosmos_treadmill.doc © 2015 h/p/cosmos sports & medical gmbh author: fh email@h-p-cosmos.com created 30.01.2015 printed 30.01.2015 page: 113 of 216...
Page 114: Maintenance And Safety Inspections
8.1 Preventive maintenance The h/p/cosmos authorised service engineers are happy to help you in case problems occur. Preventive maintenance can prevent future problems and is indispensable for the safety of technical devices. Therefore, ask our service department for an annual preventive maintenance contract, which is highly recommended by the manufacturer.
Page 115: Regular Inspections / Examinations
The main inspection sticker on the device (e.g. running machine) also certifies the inspection of the optional equipment and the accessories. However, inspection intervals for optional equipment and accessories (e.g. rope of h/p/cosmos airwalk unweighting system, chest belt for safety harness, compressors, etc.) may deviate significantly from inspection intervals of the main device.
Page 116: Protective Earth Resistance
0701/0702 (sports and fitness machines) or VDE 0751/IEC 60601-1 (medical devices). The measurement is equivalent to the single fault earth leakage current based on IEC 60601. file: n:\article\cos14310m5-v1_08hpc-en\20150130_cos14310m5-v1.08hpc-en_instructions_for_use_h-p-cosmos_treadmill.doc © 2015 h/p/cosmos sports & medical gmbh author: fh email@h-p-cosmos.com created 30.01.2015 printed 30.01.2015...
Page 117: Leakage Current Measurement
In the event that the device cannot be repaired accordingly and immediately, it must be marked and secured against further operation. Inform the supplier and authorized service personnel in writing immediately. file: n:\article\cos14310m5-v1_08hpc-en\20150130_cos14310m5-v1.08hpc-en_instructions_for_use_h-p-cosmos_treadmill.doc © 2015 h/p/cosmos sports & medical gmbh author: fh email@h-p-cosmos.com created 30.01.2015 printed 30.01.2015...
Page 118: Building Installation: Electric Checks, Protective Earth Function, Rcd, Leakage Current
An h/p/cosmos authorized technical service engineer will then advise what corrective action needs to be taken. Use original h/p/cosmos special oil only. The use of other oils or the failure to lubricate regularly may damage the running belt, running deck or the lubrication system and reduce warranty and liability. h/p/cosmos recommends a maintenance contract with an authorized h/p/cosmos service partner.
Page 119: Devices With Userterminal And Without Automatic Oil-Pump
Lubricant is available on request at h/p/cosmos. The running belt should be lubricated after 1000 km at the latest and/or if dry grinding noises are heard during operation.
Page 120 (See separate chapters.) Special oil 0.25 l – bottle for sliding plate with manual lubrication [cos000200008001] Syringe 10 ml for lubrication of sliding plate [cos12181] file: n:\article\cos14310m5-v1_08hpc-en\20150130_cos14310m5-v1.08hpc-en_instructions_for_use_h-p-cosmos_treadmill.doc © 2015 h/p/cosmos sports & medical gmbh author: fh email@h-p-cosmos.com created 30.01.2015 printed 30.01.2015...
Page 121: Lubrication Film Test
Based on previous experience, h/p/cosmos is able to evaluate the quantity of oil absorbed by measuring the difference in weight. However, the user should realize that this test can only show approximate values and trends and is not meant to replace the direct inspection by an authorized h/p/cosmos technician at the prescribed time intervals.
Page 122: Devices Without Userterminal And Without Automatic Oil Pump
Please contact h/p/cosmos to order the special oil. The running belt should be lubricated after 1000 km at the latest or/and if dry grinding noises are detected during operation. Special devices may have different intervals.
Page 123: Devices With Userterminal & Automatic Oil Pump (Models "R" For Cycle & Wheelchair)
For those models a lubrication test (tissue-test) according the instructions (available from h/p/cosmos) should be performed during the obligatory yearly maintenance. The test should be sent back to h/p/cosmos for evaluation.
Page 124: Refilling Oil Tank
Open the lid of the tank and refill the oil-tank with approximately 0.5 litres of the provided original oil, which can be ordered at h/p/cosmos. For devices constructed before 2002 and without an external control unit, add approximately 1 to 1.5 litres) Close the lid of the oil-tank, plug in the power plug and switch the device on.
Page 125: Refilling Hydraulic Oil Tank
Please use hydraulic oil [cos101422] The oil tank has to be filled till 160l. Warning! Do not overfill the tank, the hydraulikoil may leak during operation. file: n:\article\cos14310m5-v1_08hpc-en\20150130_cos14310m5-v1.08hpc-en_instructions_for_use_h-p-cosmos_treadmill.doc © 2015 h/p/cosmos sports & medical gmbh author: fh email@h-p-cosmos.com created 30.01.2015 printed 30.01.2015...
Page 126: Resetting Of Oil Message
8.4.7 Resetting of oil message An external UserTerminal or the PC-software h/p/cosmos para control is required for devices without ® UserTerminal. Initiation: running belt is not moving. One of the mode LEDs  is flashing: manual, profile, cardio, test...
Page 127: Adjustment (Centring) Of The Running Belt
The allen key must be pulled out of the screw immediately after usage due to risk of injury! The oversize machine h/p/cosmos saturn 450/300rs has an automatic belt tightening system with motors and sensors and does not need to be tightened manually.
Page 128 The allen key must be pulled out of the screw immediately after use due to risk of injury! The oversize machine h/p/cosmos saturn 450/300rs has an automatic belt centring system with motors and sensors and does not need to be centred manually; however, the user should observe the central belt position.
Page 129: Control Of The Driving Belt At Saturn
The outmost light barriers (channel 4 and 8) are connected to an opener. If the running belt has moved too far to one side, they are activated and the treadmill stops immediately. In this case please contact the h/p/cosmos service hotline.
Page 130: Control And Tightening Of The Driving Belt (Poly-V Belt System)
Ensure that the tension at the bottom run (see picture) is between 98 Hz and 103 Hz (frequency at oscillation). The noise at higher speeds and the correct course on the pinion should be considered. file: n:\article\cos14310m5-v1_08hpc-en\20150130_cos14310m5-v1.08hpc-en_instructions_for_use_h-p-cosmos_treadmill.doc © 2015 h/p/cosmos sports & medical gmbh author: fh email@h-p-cosmos.com created 30.01.2015 printed 30.01.2015...
Page 131: Checking The Tension Of The Driving Belt With The Frequency Test
< value 98: belt tension needs correction to higher tension. frequency > value 102: belt tension needs correction to lower tension. The driving belt must be rechecked after changing the tension of the driving belt. file: n:\article\cos14310m5-v1_08hpc-en\20150130_cos14310m5-v1.08hpc-en_instructions_for_use_h-p-cosmos_treadmill.doc © 2015 h/p/cosmos sports & medical gmbh author: fh email@h-p-cosmos.com created 30.01.2015 printed 30.01.2015...
Page 132: Driving Belt With Timing Belt System (From Running Deck Size 200/75 Upwards)
The surfaces of the treadmill can be cleaned with a light moistened cloth. For disinfection h/p/cosmos recommends Bacillol plus which can be ordered from h/p/cosmos, order number [cos12179]. Before use of cleaning and disinfection substances, always test the compatibility of the substance at poorly visible places.
Page 133: Cleaning Of The Interior
Right hand side: The distance [1] between induction sensors [2] and the cogwheel [3] must be within 0,8 mm and 1,0 mm. file: n:\article\cos14310m5-v1_08hpc-en\20150130_cos14310m5-v1.08hpc-en_instructions_for_use_h-p-cosmos_treadmill.doc © 2015 h/p/cosmos sports & medical gmbh author: fh email@h-p-cosmos.com created 30.01.2015 printed 30.01.2015 page: 133 of 216...
Page 134: Light Barrier At Belt Re-Entry Zones
8.14 Spare parts & consumables Since all kinds of installation and repair work and most maintenance work are to be performed only by trained and authorized technicians information about spare parts and consumables is only available through the h/p/cosmos service team: service@h-p-cosmos.com.
Page 135: Trouble Shooting
At the saturn 450/300 the belt will be adjusted automatically. Load cells at the left and right side of the deviation shaft control the tension of the belt. file: n:\article\cos14310m5-v1_08hpc-en\20150130_cos14310m5-v1.08hpc-en_instructions_for_use_h-p-cosmos_treadmill.doc © 2015 h/p/cosmos sports & medical gmbh author: fh email@h-p-cosmos.com created 30.01.2015...
Page 136: Fuses
Fuses in cabinet for power supply unit Fuses in UserTerminal (saturn 450/300) Fuses of saturn 450/300 (power demand) Motor circuit breaker Main Fuse file: n:\article\cos14310m5-v1_08hpc-en\20150130_cos14310m5-v1.08hpc-en_instructions_for_use_h-p-cosmos_treadmill.doc © 2015 h/p/cosmos sports & medical gmbh author: fh email@h-p-cosmos.com created 30.01.2015 printed 30.01.2015 page: 136 of 216...
Page 137: Electrostatic Discharge
Pay special attention to the advice and data in the chapter 11.6 entitled “Technical data” / “ lectromagnetic compatibility (EMC) and immunity: Guidance and manufacturer's declaration”. file: n:\article\cos14310m5-v1_08hpc-en\20150130_cos14310m5-v1.08hpc-en_instructions_for_use_h-p-cosmos_treadmill.doc © 2015 h/p/cosmos sports & medical gmbh author: fh email@h-p-cosmos.com created 30.01.2015 printed 30.01.2015...
Page 138: Voltage On The Device Housing / Electric Shock
Do not rely on the indicated values if you suspect interference. Please consult the instructions provided by the manufacturer POLAR concerning interference at www.polar.fi or at http://www.polarservicecenter.com/Frame-Troubleshooting.htm file: n:\article\cos14310m5-v1_08hpc-en\20150130_cos14310m5-v1.08hpc-en_instructions_for_use_h-p-cosmos_treadmill.doc © 2015 h/p/cosmos sports & medical gmbh author: fh email@h-p-cosmos.com created 30.01.2015 printed 30.01.2015 page: 138 of 216...
Page 139: Rs232 Interface
In case of replacement see picture for right positioning of the battery. The MCU control unit also has a number of status LEDs which can assist in diagnosis. When communicating with the h/p/cosmos headquarters during error search and trouble shooting, the authorized technician should observe the indications on these LEDs and report to the h/p/cosmos headquarters.
Page 140: Error Messages
Incorrect measurement of angle of elevation Maybe wrongly adjusted, dirty or defective elevation sensor Contact authorized service engineer file: n:\article\cos14310m5-v1_08hpc-en\20150130_cos14310m5-v1.08hpc-en_instructions_for_use_h-p-cosmos_treadmill.doc © 2015 h/p/cosmos sports & medical gmbh author: fh email@h-p-cosmos.com created 30.01.2015 printed 30.01.2015 page: 140 of 216...
Page 141 Check plug no. S6 on MCU and “inverter on – signal / RFR” from MCU board to inverter drive. Check mains power supply to frequency inverter. file: n:\article\cos14310m5-v1_08hpc-en\20150130_cos14310m5-v1.08hpc-en_instructions_for_use_h-p-cosmos_treadmill.doc © 2015 h/p/cosmos sports & medical gmbh author: fh email@h-p-cosmos.com created 30.01.2015 printed 30.01.2015...
Page 142 Running machine is still working. At MCU5 control electronic (as of manufacturing date 12/2007), this error shows low or defective a defect of the option memory (FRAM). In this case, please contact h/p/cosmos battery and request a service technician. Optional setup restores to default factory setting and device type.
Page 143 E.PUE PU disconnection E.RET Retry count excess E.CPU CPU fault Option fault CPU fault CPU fault E.13 Internal circuit fault file: n:\article\cos14310m5-v1_08hpc-en\20150130_cos14310m5-v1.08hpc-en_instructions_for_use_h-p-cosmos_treadmill.doc © 2015 h/p/cosmos sports & medical gmbh author: fh email@h-p-cosmos.com created 30.01.2015 printed 30.01.2015 page: 143 of 216...
Page 144 Check RS485 plug at the MCU5 control board. Check RS485 plug at the frequency inverter. Check RS485 plug at the opto coupler board. Contact authorized service engineer. file: n:\article\cos14310m5-v1_08hpc-en\20150130_cos14310m5-v1.08hpc-en_instructions_for_use_h-p-cosmos_treadmill.doc © 2015 h/p/cosmos sports & medical gmbh author: fh email@h-p-cosmos.com created 30.01.2015 printed 30.01.2015...
Page 145 Chipcard reader hardware error Unknown chip card malfunction. No card identified. Check chip card. Insert correct chip card. Reprogram chip card. file: n:\article\cos14310m5-v1_08hpc-en\20150130_cos14310m5-v1.08hpc-en_instructions_for_use_h-p-cosmos_treadmill.doc © 2015 h/p/cosmos sports & medical gmbh author: fh email@h-p-cosmos.com created 30.01.2015 printed 30.01.2015 page: 145 of 216...
Page 146 Reset of error messages on devices without UserTerminal The OIL message and SERVICE message are quit with OP01. Other error messages have to be quit by OP01 at the administrator level. In cases, an external UserTerminal or the software h/p/cosmos para control are needed. For further ®...
Page 147: Additional Error Messages At Saturn 450/300
Yellow light is blinking irregularly. That could be displayed during fast change of speed or high speed. No more activities. file: n:\article\cos14310m5-v1_08hpc-en\20150130_cos14310m5-v1.08hpc-en_instructions_for_use_h-p-cosmos_treadmill.doc © 2015 h/p/cosmos sports & medical gmbh author: fh email@h-p-cosmos.com created 30.01.2015 printed 30.01.2015 page: 147 of 216...
Page 148: Optional Settings: Administrator Options
10 Optional settings: administrator options The administrator options are only accessible through h/p/cosmos staff and authorised service engineers. Access is only possible with a special code which is not given here. Changing an administrator option might cause serious problems if you are not familiar with all details. Therefore the h/p/cosmos service has to be contacted before modifying administrator options.
Page 149 The standard maximum speed of the selected device type (in OPTION 03) will be indicated in the SPEED display. Example: h/p/cosmos mercury 4.0 = 22.0 km/h; h-p-cosmos discovery 4.0 = 40 m/min For safety purposes (e.g. for beginners), the max. speed of every treadmill model can be limited.
Page 150 (OP11=1). If the running machine is not equipped with a speed measuring system, this can be retrofitted easily. To activate the motor brake, some parameters of the frequency inverter must be changed. Ask the service department of h/p/cosmos sports & medical gmbh for detailed instructions. Attention!
Page 151  km is flashing, adjustment range: OFF, 100 ... 5.000 km Do not change the interval without prior communication with h/p/cosmos. For the models h/p/cosmos venus and saturn, JAEGER CareFusion LE 580 CE and larger as well as COSMED T200 and larger, OP35 has the standard setting OFF because the machines are equipped with an automatic oil pump and tank.
Page 152 A downward movement of the elevation after pressing STOP can result in a jumpy reaction and in severe injuries and contusions. h/p/cosmos strongly recommends adhering to the standard setting of this option. Stop means stop for all movements and must not result in activity or movement on the part of the running machine.
Page 153 It should be 10 V. Make a note of the voltage in the service report (not possible with digital control via RS485)! Read the speed and make a note of the value in the h/p/cosmos service report: OP 48: _____ km/h Stop the running belt with the STOP key.
Page 154 240 mm (h/p/cosmos mercury since 1997) 5 = elevation control: linear motor for 0 - 28% elevation, increment sensor, lift range 300 mm (h/p/cosmos quasar 4.0 since 2002) 6 = elevation control: linear motor for 0 - 25% elevation, increment sensor, lift range 300 mm (h/p/cosmos pulsar 4.0 since 2002)
Page 155 § and $ report: total distance in km % reports km Difference to user option 02: the displayed value can also be changed. file: n:\article\cos14310m5-v1_08hpc-en\20150130_cos14310m5-v1.08hpc-en_instructions_for_use_h-p-cosmos_treadmill.doc © 2015 h/p/cosmos sports & medical gmbh author: fh email@h-p-cosmos.com created 30.01.2015 printed 30.01.2015 page: 155 of 216...
Page 156 Repeat after 13 hours. Adjustable settings: 0 = test profile 99 locked / de-activated 1 = test profile 99 activated file: n:\article\cos14310m5-v1_08hpc-en\20150130_cos14310m5-v1.08hpc-en_instructions_for_use_h-p-cosmos_treadmill.doc © 2015 h/p/cosmos sports & medical gmbh author: fh email@h-p-cosmos.com created 30.01.2015 printed 30.01.2015 page: 156 of 216...
Page 157 OP 35 Oil interval 1.000 km (treadmills) 0 (OFF) = no supervision 100 km (ladder ergometer) 100 ... 5.000 km file: n:\article\cos14310m5-v1_08hpc-en\20150130_cos14310m5-v1.08hpc-en_instructions_for_use_h-p-cosmos_treadmill.doc © 2015 h/p/cosmos sports & medical gmbh author: fh email@h-p-cosmos.com created 30.01.2015 printed 30.01.2015 page: 157 of 216...
Page 158 0 = test 99 de-activated 0 = test profile 99 de-activated in the factory / service 1 = test profile 99 activated file: n:\article\cos14310m5-v1_08hpc-en\20150130_cos14310m5-v1.08hpc-en_instructions_for_use_h-p-cosmos_treadmill.doc © 2015 h/p/cosmos sports & medical gmbh author: fh email@h-p-cosmos.com created 30.01.2015 printed 30.01.2015 page: 158 of 216...
Page 159: List Of Running Machines Types
10.1 List of running machines types If you have questions regarding the correct device type, contact the h/p/cosmos service for authorization in writing before making any changes. OP03 OP04 OP05 OP07 OP11 OP34 OP48 OP89 Ø...
Page 160: Technical Data
11 Technical data 11.1 Running machines, 150/50 LC (pluto ®) pluto ® UserTerminal 6 LCD displays / 6 keys / display of mode and unit with LED. (display & keyboard) “lt-models“ have no UserTerminal (no display, no keyboard). Control via interface.
Page 161 ** The duty cycle of the elevation motor (6 %) converts to approx. 5 full elevation cycles. Overload can result in temporary tripping of the fuse, but can be used again after short cool down period. Treadmills of the h/p/cosmos saturn series built approx. before January 2007 have a maximum elevation of 25 %.
Page 162: Running Machines, 150/50 (Mercury)
6 LCD displays / 6 keys / display of mode and unit with LED. UserTerminal E: no Terminal “lt-models“ and “h/p/cosmos locomotion 150/50 E med“ have no UserTerminal (no display, no (display & keyboard) DE: TouchScreen keyboard). Control via interface.
Page 163 ** The duty cycle of the elevation motor (6 %) converts to approx. 5 full elevation cycles. Overload can result in temporary tripping of the fuse, but can be used again after short cool down period. Treadmills of the h/p/cosmos saturn series built approx. before January 2007 have a maximum elevation of 25 %.
Page 164: Running Machines, 170-190/65 (Quasar / Pulsar)
0.0 ... 28.0 % - 25.0 % ... + 25.0 % not applicable not applicable Definition 0.1 % 0.1 % 0.1 % file: n:\article\cos14310m5-v1_08hpc-en\20150130_cos14310m5-v1.08hpc-en_instructions_for_use_h-p-cosmos_treadmill.doc © 2015 h/p/cosmos sports & medical gmbh author: fh email@h-p-cosmos.com created 30.01.2015 printed 30.01.2015 page: 164 of 216...
Page 165 ** The time of operation of the elevation motor (TO = 15 %) converts to approx. 5 full elevation cycles. Overload can result in temporary tripping of the fuse, but can be used again after short cool down period. Treadmills of the h/p/cosmos saturn series built approx. before January 2007 have a maximum elevation of 25 %.
Page 166: Running Machines, 170-190/65 3P (Quasar 3P / Pulsar 3P)
0.0 ... 10.0 km/h or 0.0... 45.0 km/h 0.0 ... 25.0 km/h Angle of inclination** - 25.0 % ... + 25.0 % Definition 0.1 % file: n:\article\cos14310m5-v1_08hpc-en\20150130_cos14310m5-v1.08hpc-en_instructions_for_use_h-p-cosmos_treadmill.doc © 2015 h/p/cosmos sports & medical gmbh author: fh email@h-p-cosmos.com created 30.01.2015 printed 30.01.2015 page: 166 of 216...
Page 167 ** The time of operation of the elevation motor (TO = 15 %) converts to approx. 5 full elevation cycles. Overload can result in temporary tripping of the fuse, but can be used again after short cool down period. Treadmills of the h/p/cosmos saturn series built approx. before January 2007 have a maximum elevation of 25 %.
Page 168: Running Machines, Oversize 200-450/75-300 (Venus / Saturn)
Angle of inclination** -35 % ... +35 % -27 % ... +27%** (-25 %) … Definition 0.1 % 0.1 % +25 % file: n:\article\cos14310m5-v1_08hpc-en\20150130_cos14310m5-v1.08hpc-en_instructions_for_use_h-p-cosmos_treadmill.doc © 2015 h/p/cosmos sports & medical gmbh author: fh email@h-p-cosmos.com created 30.01.2015 printed 30.01.2015 page: 168 of 216...
Page 169 ** The time of operation of the elevation motor (TO = 15 %) converts to approx. 5 full elevation cycles. Overload can result in temporary tripping of the fuse, but can be used again after short cool down period. Treadmills of the h/p/cosmos saturn series built approx.
Page 170: Electromagnetic Compatibility (Emc) And Immunity: Guidance And Manufacturer's Declaration
Please pay special attention also to the other EMC related chapters of this manual: Chapters: Safety, installation, operation, POLAR heart rate monitor, troubleshooting. file: n:\article\cos14310m5-v1_08hpc-en\20150130_cos14310m5-v1.08hpc-en_instructions_for_use_h-p-cosmos_treadmill.doc © 2015 h/p/cosmos sports & medical gmbh author: fh email@h-p-cosmos.com created 30.01.2015 printed 30.01.2015...
Page 171 NOTE 1: At 80 MHz and 800 MHz, the separation distance for the higher frequency range applies. NOTE 2: These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption and reflection from structures, objects and people. file: n:\article\cos14310m5-v1_08hpc-en\20150130_cos14310m5-v1.08hpc-en_instructions_for_use_h-p-cosmos_treadmill.doc © 2015 h/p/cosmos sports & medical gmbh author: fh email@h-p-cosmos.com created 30.01.2015...
Page 172: Compatible Devices
The clinical evaluation refers only to the h/p/cosmos treadmills and the “intersection risks“ (e.g. risk during stress test until fatigue in treadmill ergometry with cardiorespiratory diagnostic) and does not refer to the optional components themselves.
Page 173: Interface Protocols
All other systems and devices which are not in the above stated list must not be connected to h/p/cosmos running machines. Please contact service@h-p-cosmos.com for the latest updated list of compatible devices and systems in writing. Only connect and/or use accessories, software and host equipment if it is approved as compatible by all manufacturers.
Page 174: Accessories And Options
12.1 Arm support The h/p/cosmos arm supports (patent no.: DE 199 16 508 A1) are applicable especially in the field of rehabilitation and walking therapy, as well as for the safety of seniors and insecure persons. Therapies can start earlier and the therapist is supported efficiently in his work.
Page 175: Additional Keyboard And Additional Stop Button For Arm Support And Remote Control
6 keys incl. 2 m spiral cord cos10106 mount for additional keyboard on arm support cos10111 h/p/cosmos additional stop button (red button on top of handgrip) for arm support right cos10107 h/p/cosmos additional stop button (red button on top of handgrip) for arm support left cos10108...
Page 176: Special Handrails
12.3 Special handrails h/p/cosmos offers a number of optional handrails and custom-made devices on request. Details and order numbers are available at the manufacturer h/p/cosmos or at your local authorized distributor. Handrail crossbar adjustable Handrail crossbar bended...
Page 177: Handrails, Adjustable With Gear Tooth Locking Elements
Stabilising elements (at the back) (at the front) h/p/cosmos adjustable handrails [cos10030] only available for the running machines with running surface 150/50cm (e.g. h/p/cosmos mercury med) ® Reproducibility of adjustments To obtain reproducibility, the individually optimal adjustments have to be determined for each subject (see scaling at the locking elements at the back) and noted accordingly (e.g.
Page 178: Handrails, Adjustable: Parallel Bars With Gas Struts And Locking Lever
If turning the UserTerminal to the outside position (only allowed if the design is dedicated for this feature!), at least one emergency stop button has to remain in reach of the subject. The use of the h/p/cosmos arm support is not possible with the adjustable bar handrails. file: n:\article\cos14310m5-v1_08hpc-en\20150130_cos14310m5-v1.08hpc-en_instructions_for_use_h-p-cosmos_treadmill.doc ©...
Page 179 © 2015 h/p/cosmos sports & medical gmbh author: fh email@h-p-cosmos.com created 30.01.2015 printed 30.01.2015...
Page 180: Therapist's Seat And Foot Support, Adjustable
Release the fixation underneath the seat to adjust the optimal seat position. [03] Fix the adjusted seat and foot support position by tightening the corresponding fixation lever. file: n:\article\cos14310m5-v1_08hpc-en\20150130_cos14310m5-v1.08hpc-en_instructions_for_use_h-p-cosmos_treadmill.doc © 2015 h/p/cosmos sports & medical gmbh author: fh email@h-p-cosmos.com created 30.01.2015 printed 30.01.2015 page: 180 of 216...
Page 181: Unweighting System H/P/Cosmos Airwalk Se 135
The training phases can be extended, which results in a more effective therapy for the patient. The “h/p/cosmos airwalk se 135” can be used for a very wide field of applications. Therapeutic applications such as functional motion therapy, rehabilitation or neurology as well as competitive sports (e.g. coordination training for athletes, etc.).
Page 182: Unweighting Systems Airwalk 70/160
35/70/160 cos13752 It is possible to use the h/p/cosmos airwalk with the running machine series with track size 150/50 cm or 170/65 cm or 190/65 cm, and as well with most running machines produced by other manufacturers.
Page 183: Wheelchair Ramp
Wheelchair stabilizer for deck length 200cm: [cos10227] 250cm: [cos10226] 300cm: [cos00096110031] Available for the h/p/cosmos running machine series with track size 200/75 cm (and bigger) with the mark “r” Adjust the range limiters properly to limit the operation range on the deck and to ensure the wheelchair does not fall off from the deck to the front or to the back.
Page 184 The length of the rope should be adjusted so that the subject cannot use the rear 30% of the running deck. Put on the chest belt so that the h/p/cosmos logo is at the front. In order to attach the carabiner, put the vertical belt (1) below the shoulder belts (2), facing the body, thereby unloading the seam at the joint (3).
Page 185: Reversible Running Belt Rotation For Downhill Walk
In most cases the readjustment of the running belt requires the same revolutions of the belt adjustment screw. Therefore we recommend noting the required revolutions. This will help to reduce the time needed for the adjustment procedure in future. file: n:\article\cos14310m5-v1_08hpc-en\20150130_cos14310m5-v1.08hpc-en_instructions_for_use_h-p-cosmos_treadmill.doc © 2015 h/p/cosmos sports & medical gmbh author: fh email@h-p-cosmos.com created 30.01.2015 printed 30.01.2015...
Page 186: Pull Cord Safety Stop Actuator
Wear appropriate clothing. 12.16 Bottle holder, drinking bottle The bottle holder is available for all h/p/cosmos running machines and can be easily fixed with a clamp on a handrail with 60 mm diameter. The position of the bottle holder should not be at the rear end of the handrail, because this end must be reachable for the subject.
Page 187: Retrofitting Userterminals / Laptop For External Control Unit
(without holder for handrail of the treadmill) [cos10002-02] UserTerminal Display Keyboard MCU5 for h/p/cosmos "lt-models", manufactured as of mid-January 2009 with MCU5 and pre-installed UserTerminal housing and blind cover. Instead of the existing blind cover on the pre-installed UserTerminal, a circuit board with 6 LCD displays (4 digits, 7-segments), 24 LEDs and a keyboard with 6 keys are installed on the UserTerminal.
Page 188: Retrofitting Emergency Stop Buttons
12.19 Safety multiple socket The stable safety multiple socket can be used for the safe connection of a medical h/p/cosmos treadmill with peripheral devices such as PCs, printer or monitors. It meets all requirements of EN60601-1 for multiple sockets for creating connections to a medical electrical system within the patients environment, i.e.
Page 189: Rs232 Interface / Usb Converter
“Technical data“. More recent computers will only have a USB interface instead of the RS232 interface. In that case a “USB to RS232 interface adapter cable“ is available at h/p/cosmos under order number [cos12769]. To control via USB interface, the processor must be a Pentium 1.8 GHz or higher.
Page 190: Polar Heart Rate Measurement System
Note: Even when using the coded senders, the transmission of the heart rate to the treadmill is still un- coded. The models h/p/cosmos locomotion, h/p/cosmos pulsar, h/p/cosmos venus and h/p/cosmos saturn are equipped with the POLAR W.I.N.D. transmitter with WearLink technology and coded transmission. The transmitter is only activated if placed correctly on the body.
Page 191: Science Port" / Raw Data Of Speed Sensor
It allows even access to falling and rising signal flank without any averaging calculation. order number: [cos101277] Please quote the model name, type and serial number in case of retrofitting request. file: n:\article\cos14310m5-v1_08hpc-en\20150130_cos14310m5-v1.08hpc-en_instructions_for_use_h-p-cosmos_treadmill.doc © 2015 h/p/cosmos sports & medical gmbh author: fh email@h-p-cosmos.com created 30.01.2015 printed 30.01.2015...
Page 192: Pc Software H/P/Cosmos Para Control ® 4.1
® well-known version 3.0. In addition to the pure remote control function of h/p/cosmos treadmill ergometers via the PC, the software now provides additional functions such as an option setting configuration tool with integrated storage function, firmware update over flash eprom, quick-stop key, cool-down key, pause key, target speed settings, target elevation settings, stop countdown, display reset, etc.
Page 193: Pc Software H/P/Cosmos Para Graphics
The treadmill can be controlled automatically. The software is not designed for medical diagnostics or evaluation. The treadmill data can support the doctor’s decision. Data can be converted by the software for data transfer to EXCEL and further evaluation e.g. by EXCEL or h/p/cosmos para analysis software.
Page 194: Pc Software H/P/Cosmos Para Analysis
The evaluation of heart rate and lactate curves after graded tests is possible on the basis of individually selected threshold value models in graphics and tables. Test data can be entered into h/p/cosmos para analysis manually or by importing from h/p/cosmos para graphics : The entry and ®...
Page 195: Pc Software H/P/Cosmos Para Motion
12.26 PC Software h/p/cosmos para motion ® The h/p/cosmos para motion is a software for recording and evaluating video analysis with individual report for printout, incl. control functions of h/p/cosmos running machines. The software is not designed for medical diagnostics or evaluation.
Page 196: Pc Software H/P/Cosmos Para Control® 5
Remote control of all running machine functions during tests or exercise via interface from the PC. Demonstrations for large groups (students, audiences, etc.) with the help of a big screen or digital projector. Control of multiple h/p/cosmos treadmill ergometers via one PC. Firmware update via upload to Flash-Eprom of MCU 5.
Page 197 ® Interface connection cable RS 232 5m [cos00097010034] Interface connection cable RS 232 10m [cos00097010035] USB to RS232 interface adapter-cable [cos12769-01] file: n:\article\cos14310m5-v1_08hpc-en\20150130_cos14310m5-v1.08hpc-en_instructions_for_use_h-p-cosmos_treadmill.doc © 2015 h/p/cosmos sports & medical gmbh author: fh email@h-p-cosmos.com created 30.01.2015 printed 30.01.2015 page: 197 of 216...
Page 198 ® well-known version 4.1. In addition to the pure remote control function of h/p/cosmos treadmill ergometers via the PC, the software now provides additional functions such as an option setting configuration tool with integrated storage function, firmware update, quick-stop key, cool-down key, pause key, target speed settings, target elevation settings, stop countdown, display reset, etc.
Page 199: Disposal
13 Disposal Upon request and at the expense of the client, h/p/cosmos might take over the disposal of old or defective devices. Please contact service@h-p-cosmos.com for a detailed offer. Note the information for possible disposal of the running machine parts or components through the client or a subcontractor.
Page 200: Appendix 1: Certificates
14 Appendix 1: Certificates Latest versions always: http://www.h-p-cosmos.com/en/company/certificates.htm 14.1 Certificate of the TSA (TÜV) according to ISO 9001 file: n:\article\cos14310m5-v1_08hpc-en\20150130_cos14310m5-v1.08hpc-en_instructions_for_use_h-p-cosmos_treadmill.doc © 2015 h/p/cosmos sports & medical gmbh author: fh email@h-p-cosmos.com created 30.01.2015 printed 30.01.2015 page: 200 of 216...
Page 201: Certificate Of The Tsa (Tüv) According To En Iso 13485
14.2 Certificate of the TSA (TÜV) according to EN ISO 13485 file: n:\article\cos14310m5-v1_08hpc-en\20150130_cos14310m5-v1.08hpc-en_instructions_for_use_h-p-cosmos_treadmill.doc © 2015 h/p/cosmos sports & medical gmbh author: fh email@h-p-cosmos.com created 30.01.2015 printed 30.01.2015 page: 201 of 216...
Page 202: Ec Certificate Of The Tsa (Tüv)
14.3 EC Certificate of the TSA (TÜV) file: n:\article\cos14310m5-v1_08hpc-en\20150130_cos14310m5-v1.08hpc-en_instructions_for_use_h-p-cosmos_treadmill.doc © 2015 h/p/cosmos sports & medical gmbh author: fh email@h-p-cosmos.com created 30.01.2015 printed 30.01.2015 page: 202 of 216...
Page 203: Calculation Of The Ukk Fitness Index
A serial printer or a PCL printer with parallel/centronics plug und converter [cos10056] can be connected directly to the h/p/cosmos running machine. Following data can be printed after the UKK Walk Test even without using any PC: UKK Fitness Index, date, time, test duration, distance, elevation, heart rate, age, gender, body mass index (BMI).
Page 204: Instruction Protocol, Checklist
After the instruction is completed, the instruction protocol is to be signed by the h/p/cosmos technician and all trained persons. Signed instruction protocol, signed delivery note and the registration form are to be sent to h/p/cosmos.
Page 205 - possibility of locking each single mode or all modes on request - possibility or necessity of locking the device against unauthorised users.  accomplished file: n:\article\cos14310m5-v1_08hpc-en\20150130_cos14310m5-v1.08hpc-en_instructions_for_use_h-p-cosmos_treadmill.doc © 2015 h/p/cosmos sports & medical gmbh author: fh email@h-p-cosmos.com created 30.01.2015 printed 30.01.2015 page: 205 of 216...
Page 206 Only connect to coscom v3 - compatible and authorized host equipment. Do not connect to equipment or software which is not explicitly declared as compatible by h/p/cosmos and by the other manufacturer. Inform about the h/p/cosmos software programs h/p/cosmos para control...
Page 207 Lubrication of running belt when "OIL"-message is indicated (quantity, intervals according to this manual, distribution of oil by "duck-walking"). Use only original h/p/cosmos lubricant authorized for this model of running machine. Observe additional lubrication requirements. After running belt lubrication, the position of the running belt must be checked once more and be adjusted if necessary.
Page 208 Advice and support documents Hand over and explain delivery papers (folder). Fill out registration form and send it to h/p/cosmos sales. Let the customer sign the delivery note and instruction protocol and send it back to h/p/cosmos sales immediately.
Page 209: Instruction Protocol, Signatures
This will furthermore result in loss of liability and warranty. Please fill out the instruction protocol and send it back to h/p/cosmos via Fax to +49 86 69 86 42 49, or via email to sales@h-p-cosmos.com or via post...
Page 210: Service Report - [Cos15531]
15.4 Service report – [cos15531] file: n:\article\cos14310m5-v1_08hpc-en\20150130_cos14310m5-v1.08hpc-en_instructions_for_use_h-p-cosmos_treadmill.doc © 2015 h/p/cosmos sports & medical gmbh author: fh email@h-p-cosmos.com created 30.01.2015 printed 30.01.2015 page: 210 of 216...
Page 211: Control Protocol - [Cos11690En-02]
15.5 Control protocol – [cos11690en-02] file: n:\article\cos14310m5-v1_08hpc-en\20150130_cos14310m5-v1.08hpc-en_instructions_for_use_h-p-cosmos_treadmill.doc © 2015 h/p/cosmos sports & medical gmbh author: fh email@h-p-cosmos.com created 30.01.2015 printed 30.01.2015 page: 211 of 216...
Page 212: Wiring Diagram Load Circuit Quasar ® Med / Pulsar
15.6 Wiring diagram load circuit quasar med / pulsar ® ® Colour Code neither US / nor Canadian standard! file: n:\article\cos14310m5-v1_08hpc-en\20150130_cos14310m5-v1.08hpc-en_instructions_for_use_h-p-cosmos_treadmill.doc © 2015 h/p/cosmos sports & medical gmbh author: fh email@h-p-cosmos.com created 30.01.2015 printed 30.01.2015 page: 212 of 216...
Page 213: Wiring Diagram Control Circuit Quasar Med / Pulsar
15.7 Wiring diagram control circuit quasar med / pulsar – page 1 ® ® Colour Code neither US / nor Canadian standard! file: n:\article\cos14310m5-v1_08hpc-en\20150130_cos14310m5-v1.08hpc-en_instructions_for_use_h-p-cosmos_treadmill.doc © 2015 h/p/cosmos sports & medical gmbh author: fh email@h-p-cosmos.com created 30.01.2015 printed 30.01.2015 page: 213 of 216...
Page 214: Wiring Diagram Control Circuit Quasar Med / Pulsar
15.8 Wiring diagram control circuit quasar med / pulsar – page 2 ® ® Colour Code neither US / nor Canadian standard! file: n:\article\cos14310m5-v1_08hpc-en\20150130_cos14310m5-v1.08hpc-en_instructions_for_use_h-p-cosmos_treadmill.doc © 2015 h/p/cosmos sports & medical gmbh author: fh email@h-p-cosmos.com created 30.01.2015 printed 30.01.2015 page: 214 of 216...
Page 215: Appendix 3: Symbols
Alternating 3-phase current (AC) with neutral line Warning of hot surfaces IEC 60417-5032-2 connection point for Neutral line Risk/Danger of stumbling IEC 60445 file: n:\article\cos14310m5-v1_08hpc-en\20150130_cos14310m5-v1.08hpc-en_instructions_for_use_h-p-cosmos_treadmill.doc © 2015 h/p/cosmos sports & medical gmbh author: fh email@h-p-cosmos.com created 30.01.2015 printed 30.01.2015 page: 215 of 216...
Page 216: Contact
& production Am Sportplatz 8 DE 83365 Nussdorf-Traunstein Building 2 (picture below) h/p/cosmos sales & service Feldschneiderweg 5 DE 83365 Nussdorf-Traunstein file: n:\article\cos14310m5-v1_08hpc-en\20150130_cos14310m5-v1.08hpc-en_instructions_for_use_h-p-cosmos_treadmill.doc © 2015 h/p/cosmos sports & medical gmbh author: fh email@h-p-cosmos.com created 30.01.2015 printed 30.01.2015 page: 216 of 216...

This manual is also suitable for:

Mercury Mercury med Stratos Quasar Stellar Pulsar

h/p/cosmos pluto Original Instructions For Use

1 Model Overview

2 Introduction

3 Intended Use / Indications, Contraindications, Risks & Forbidden Use

4 Safety Notes, Warnings, Precautions

5 Operation

6 Operating Manual: Running Machines for Sports and Fitness C

7 Service Manual

8 Maintenance and Safety Inspections

9 Trouble Shooting

10 Optional Settings: Administrator Options

11 Technical Data

12 Accessories and Options

13 Disposal

14 Appendix 1: Certificates

15 Appendix 2

16 Appendix 3: Symbols

17 Contact

Quick Links

Troubleshooting

Related Manuals for h/p/cosmos pluto

Summary of Contents for h/p/cosmos pluto

This manual is also suitable for:
