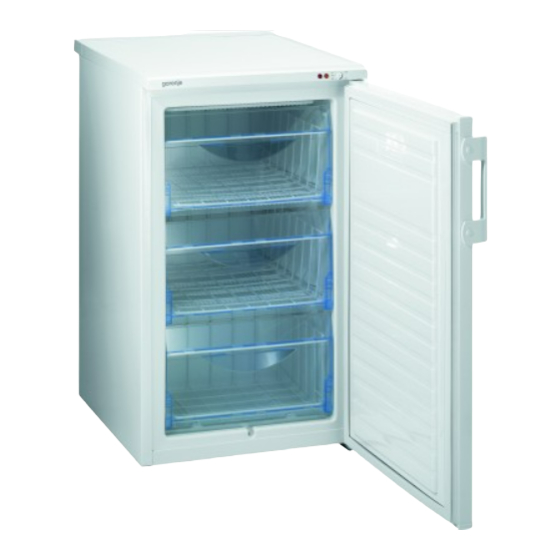

Upright freezer

Advertisement

Quick Links

Upright Freezer
Thank you for your trust and for buying this appliance. We hope it will successfully serve the
The upright freezer for domestic use is
intended for freezing fresh food and for

Before Putting Into Use .................................. 2

Instructions for Use

We Care for the Environment
Tips for Energy Saving
Important......................................................... 3
Storing Time During Power Supply
Interruption
Disposing of the Worn Out Appliance
Placing and Installation .................................. 4
Choosing the Right Place
Placing the Appliance
Connection to Power Supply
Description of the Appliance.......................... 5
Operation Control........................................... 5
Before Putting Into Use
• Before connecting the appliance to the
mains supply, leave it stand for about 2
hours which will reduce the possibility of
malfunctions in the cooling system that
might have occurred due to transport
handling.
• Clean the appliance thoroughly, especially
the interior (see Cleaning and
Maintenance).
Instructions for Use
These instructions for use were prepared for
the user. They describe the appliance and its
correct and safe use. They were prepared for
various types/models of appliances therefore
you might find in it description of some
functions and accesories that do not apply to
your appliance.
We Care for the Environment
• Our products use environmentally friendly
packaging, which can be either recycled or
disposed of in an environmentally friendly
manner. To this end, individual packaging
materials are clearly marked.
2
Downloaded from Fridge-Manual.com Manuals
purpose for many years.
longterm storing of frozen food (up to one
year, depending on the kind of food).
Mode of Operation
Red Control Light
Use..................................................................... 6
Freezing Fresh Foods
Storing Frozen Foods
Defrosting of Frozen Food
Changing the Direction of Opening the
Door .................................................................. 8
Maintenance and Cleaning............................. 9
Freezer Defrosting
Cleaning the Appliance
Switch Off the Appliance When Not in Use
Trouble Shooting Guide................................ 10
• These instructions are printed either on
recycled paper or chlorine free bleached
paper.
• When your appliance finally wears out,
please try not to burden the environment
with it; call your nearest authorised service
agent. (See Disposing of the Worn Out
Appliance)
Tips for Energy Saving
• Try not to open the door too often,
especially when the weather is wet and hot.
Once you open the door, mind to close it as
soon as possible. This is especially
important if you have an upright model.
• Every now and then check if the appliance
is sufficiently ventilated (adequate air
circulation behind the appliance).
• Turn the thermostat knob from higher to
lower setting as soon as possible (depends
on how loaded the appliance is, ambient
temperature...)
• Never use continuous operation unless
unnecessarily required; switch the operation
mode selection switch to the setting for
automatic operation as soon as possible.
Instructions for Use
EN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the F 50106 W and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Gorenje F 50106 W

  • Page 1: Before Putting Into Use

    Upright Freezer Thank you for your trust and for buying this appliance. We hope it will successfully serve the purpose for many years. longterm storing of frozen food (up to one The upright freezer for domestic use is intended for freezing fresh food and for year, depending on the kind of food).
  • Page 2 • Before freezing packages of fresh foods, • The condenser on the rear wall should be make sure they are cooled to ambient always clean, free of dust or any impurities. • Always consider instructions stated in temperature. • Ice and frost layer increase energy sections Positioning and Energy Saving consumption, so do clean the appliance as Tips, otherwise the energy consumption is...
  • Page 3: Placing And Installation

    Storing Time During Power Disposing of the Worn Out Supply Interruption Appliance Avoid opening the freezer in case of failure or • When your appliance finally wears out, power supply interruption! In case the dispose it of. If the appliance has a lock, interruption is extended over longer period of break it, in order to prevent eventual time (16 hours for ZOS 0721/6, 19 hours for...
  • Page 4: Description Of The Appliance

    Description of the Appliance for the months the package was loaded into Freezing Compartment (1) the appliance. is used for freezing fresh foods. Defrost Water Outlet (5) Storing Compartment (2) (See Cleaning and Maintenance). is used for storing packages of frozen foods. Tray Control Panel (3) for storage of frozen food...
  • Page 5: Temperature Selection

    Mode of Operation Continuous operation - the yellow light is on. The cooling system operates continuously continuously - the Super function. This mode is selected when you want to freeze large We recommend setting the thermostat on amounts of fresh foods and in case you want positions towards max only in case you want to deep freeze already frozen foods.
  • Page 6: Storing Frozen Foods

    • If you want to freeze larger amount of fresh To allow the required circulation of cool food, set the thermostat knob to the position air, do not place any food above the for continuous operation (yellow light is on). indicated line –...
  • Page 7: Changing The Direction Of Opening The Door

    Changing the Direction of Opening the Door • Plug the remaining holes with decorative If you find the direction of opening the door on your appliance inconvenient, you can change caps. it. Holes on the opposite side have already • Check the gasket, it shouldn't be creased been prepared in the factory and are now and it should seal well.
  • Page 8: Maintenance And Cleaning

    1 Lower hinge with foot 2 Lower hinge washer 3 Foot 4 Fastener 5 Handle Maintenance and Cleaning remove any cleanser agent remaining after Freezer Defrosting cleaning. • Clean the exterior of the appliances with Frost and ice layer, depositing on the inner walls of the freezer should be defrosted when water and liquid detergent.
  • Page 9: Troubleshooting Guide

    Trouble Shooting Guide During the service, you can come across open. The reason why this happens is, that some troubles that in most cases result from when you open the door, warm air gets into improper handling of the appliance and can the appliance and when it is cooling, the easy be eliminated.
