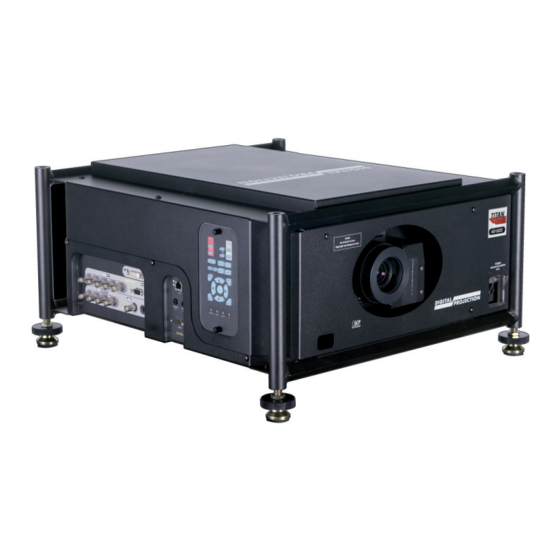

Summary of Contents for Digital Projection TITAN HD-600

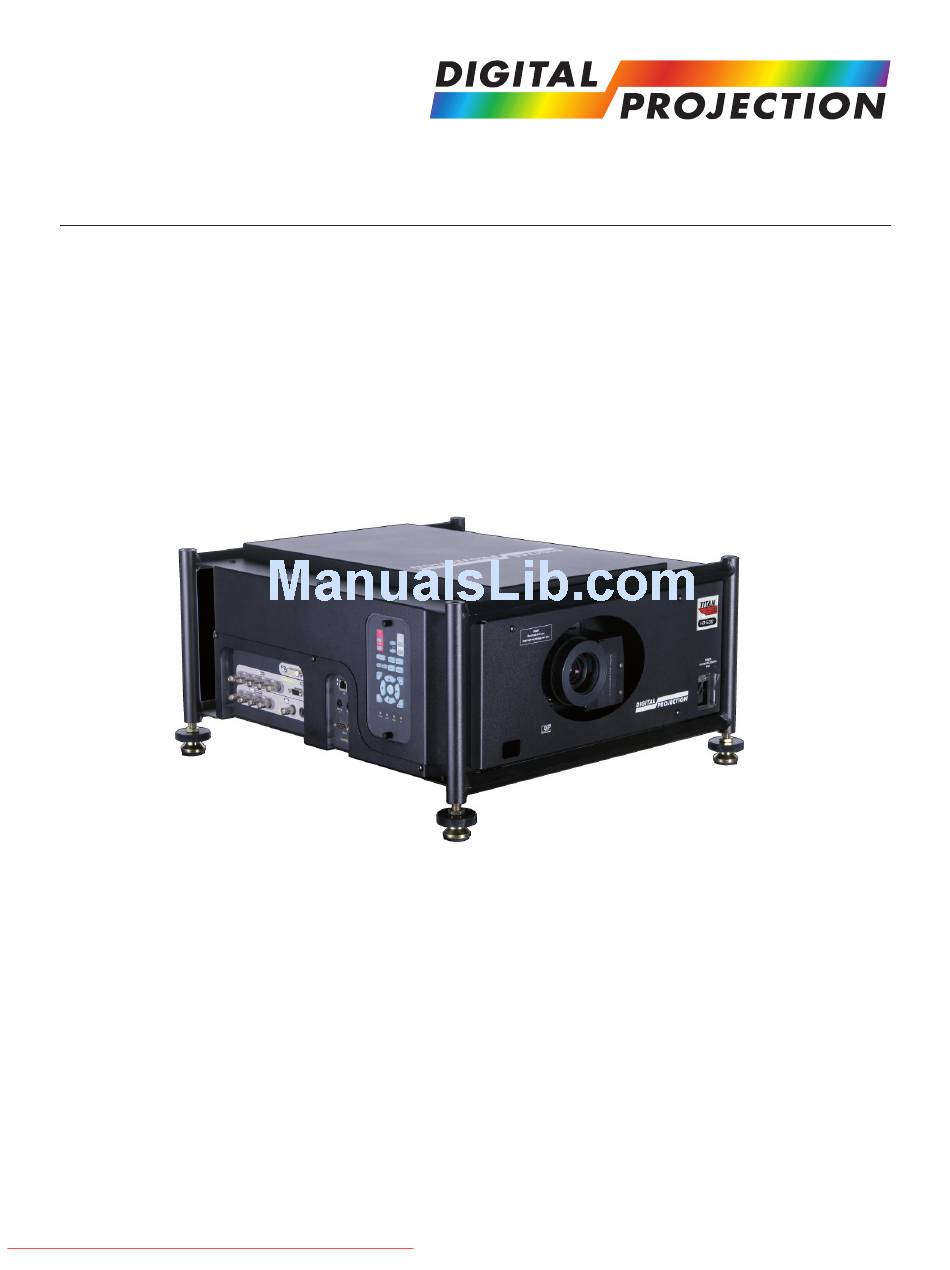

  • Page 1 TITAN HD-600 High Brightness Digital Video Projector 16:9 widescreen display User Manual 108-452A Downloaded From projector-manual.com Digital Projection Manuals...
  • Page 2 Digital Projection TITAN HD-600 User Manual Downloaded From projector-manual.com Digital Projection Manuals...
  • Page 3: Declaration Of Conformity

    Details of these special measures are available on request, and are also contained in the product manuals. Downloaded From projector-manual.com Digital Projection Manuals...
  • Page 4 Digital Projection TITAN HD-600 User Manual Downloaded From projector-manual.com Digital Projection Manuals...
  • Page 5: Symbols Used In This Guide

    Product revision • Because we at Digital Projection continually strive to improve our products, we may change specifi cations and designs, and add new features without prior notice. Projectors built prior to this revision of the User Manual may therefore not include all the features described.
  • Page 6 Always allow the projector to cool for 5 minutes before disconnecting the power, moving the projector or changing the lamp. Never use strong detergents or solvents such as alcohol or thinners to clean the projector and lens. Page vi Rev A. March 2008 Downloaded From projector-manual.com Digital Projection Manuals...
  • Page 7 APPLY button. Always keep a written note of the original settings, and any changes you have made. Software update should NOT be carried out except by, or with the supervision of, Digital Projection Service personnel. Rev A. March 2008 Page vii...
  • Page 8 RF Interference The Federal Communications Commission does not allow any modifi cations or changes to the unit EXCEPT those specifi ed by Digital Projection in this manual. Failure to comply with this government regulation could void your right to operate this equipment.
  • Page 9 Web Site www.digitalprojection.co.uk Digital Projection Inc. 55 Chastain Road, Suite 115, Kennesaw, GA 30144. USA (USA) 770 420 1350 (USA) 770 420 1360 Email powerinfo@digitalprojection.com Web Site www.digitalprojection.com Rev A. March 2008 Page ix Downloaded From projector-manual.com Digital Projection Manuals...
  • Page 10 Important Information Digital Projection TITAN HD-600 User Manual Page x Rev A. March 2008 Downloaded From projector-manual.com Digital Projection Manuals...
  • Page 11: Introduction

    Choosing a lens using the lens charts ......................2.11 Choosing a lens by calculation Useful lens calculations ........................2.12 Fitting the lens ........................... 2.13 Shifting the image ..........................2.14 continued Rev A. March 2008 Page xi Downloaded From projector-manual.com Digital Projection Manuals...
  • Page 12: Table Of Contents

    Input status indicators The control panel ..........................4.8 ........................... 4.8 Keypad layout ........................4.8 Projector status indicators The remote control ..........................4.9 ............................. 4.9 Layout ............................4.9 Timeout continued Page xii Rev A. March 2008 Downloaded From projector-manual.com Digital Projection Manuals...
  • Page 13 Brightness ............................4.21 Contrast ............................4.21 Saturation ............................... 4.21 .......................... 4.22 Gamma Correction ......................... 4.22 Parametric Gamma ............................4.22 Phase ........................... 4.23 Aspect Ratio ............................4.23 Sharpness continued Rev A. March 2008 Page xiii Downloaded From projector-manual.com Digital Projection Manuals...
  • Page 14: Table Of Contents Digital Projection Titan

    ..........................4.40 Communication ............................4.41 Network ..........................4.46 Restore Defaults Information menu ..........................4.47 ........................4.47 Projector Information .......................... 4.47 Source Information ......................4.48 Digital Projection Information continued Page xiv Rev A. March 2008 Downloaded From projector-manual.com Digital Projection Manuals...
  • Page 15 LAN connection .......................... 7.14 Serial control input Remote communications protocol ....................7.15 ............................ 7.15 Introduction .......................... 7.15 Message Structure ......................7.18 Operation Command examples ........................7.23 Quick Reference chart Rev A. March 2008 Page xv Downloaded From projector-manual.com Digital Projection Manuals...
  • Page 16 Table of Contents Digital Projection TITAN HD-600 User Manual Page xvi Rev A. March 2008 Downloaded From projector-manual.com Digital Projection Manuals...
  • Page 17 ......................1.4 ......................1.4 Front panel, – lens and power ......................1.4 Rear panel – lamp and air fi lter ....................1.5 Side panel – connection and control Rev A. March 2008 Page 1.1 Downloaded From projector-manual.com Digital Projection Manuals...
  • Page 18: What's In The Box?

    Power cable 13A United Kingdom Europe North America (102-180) (102-163) (102-165) Remote cable 5m User manual on CD 4x AAA batteries Important Information Remote control (105-923) (105-922) (108-467) (102-162) (105-023) Page 1.2 Rev A. March 2008 Downloaded From projector-manual.com Digital Projection Manuals...
  • Page 19: Key Features Of The Projector

    1. Introduction Key features of the projector Notes Congratulations on your purchase of the Digital Projection Titan HD-600 projector. Digital Projection International, Texas Instruments’ fi rst DLP™ partner and the original innovator of the 3-chip DLP™ projector, proudly introduces the Titan HD.
  • Page 20: Getting To Know The Projector

    fi lter, see section 6. Maintenance. Air inlet Rear door: Air outlet (access to Rear Infra-red window Lamp compartment (remote control) and Air fi lters) Page 1.4 Rev A. March 2008 Downloaded From projector-manual.com Digital Projection Manuals...
  • Page 21: Side Panel - Connection And Control

    4. Controlling the projector. Adjustable Input Control foot connections For information about how to connections mount and stack projectors, see section 2. Installation. Rev A. March 2008 Page 1.5 Downloaded From projector-manual.com Digital Projection Manuals...
  • Page 22 1. Introduction Digital Projection TITAN HD-600 User Manual Page 1.6 Rev A. March 2008 Downloaded From projector-manual.com Digital Projection Manuals...
  • Page 23 Signal Inputs .................. 2.18 EDID handshaking on the DVI and RGB2 inputs ......................2.19 Control connection examples ..........................2.19 LAN connection ......................... 2.19 RS232 connection ........................... 2.20 Power connection Rev A. March 2008 Page 2.1 Downloaded From projector-manual.com Digital Projection Manuals...
  • Page 24: Installation

    Images displayed full height 5:4 = 1.25:1 = 900 pixels 4:3 = 1.33:1 = 960 pixels 1.66:2 (Vista) = 1195 pixels 16:9 = 1.78:1 = 1280 pixels (native resolution) Page 2.2 Rev A. March 2008 Downloaded From projector-manual.com Digital Projection Manuals...
  • Page 25: Diagonal Screen Sizes

    (D x .02m) H = D x 0.6in (D x .015m) 5:4 = 1.25:1 W = D x 0.78in (D x .02m) H = D x 0.625in (D x .016m) Rev A. March 2008 Page 2.3 Downloaded From projector-manual.com Digital Projection Manuals...
  • Page 26: Fitting The Image To The Screen

    H = W x 0.6 4:3 = 1.33:1 W = H x 1.33 H = W x 0.75 5:4 = 1.25:1 W = H x 1.25 H = W x 0.8 Page 2.4 Rev A. March 2008 Downloaded From projector-manual.com Digital Projection Manuals...
  • Page 27: Positioning The Screen And Projector

    Rear installation is generally more complicated and advice should be sought from your local dealer before attempting it. Rev A. March 2008 Page 2.5 Downloaded From projector-manual.com Digital Projection Manuals...
  • Page 28: Choosing A Lens

    TRF = 1.33 5:4 = 1.25:1 900 x 720 pixels TRF = 1.42 Method two: by calculation See the calculations, on the page immediately following the lens chart. Page 2.6 Rev A. March 2008 Downloaded From projector-manual.com Digital Projection Manuals...
  • Page 29: Choosing A Lens Using The Lens Charts

    001-736 001-737 001-738 001-739 001-740 33 10 0.96 : 1 fi xed lens 001-735 0.64 : 1 fi xed lens 001-734 30 metres 98 feet Throw distance Rev A. March 2008 Page 2.7 Downloaded From projector-manual.com Digital Projection Manuals...
  • Page 30: Full Height Image 1.66:1 (Vista)

    001-736 001-737 001-739 001-740 001-738 33 10 0.96 : 1 fi xed lens 001-735 0.64 : 1 fi xed lens 001-734 30 metres 98 feet Throw distance Page 2.8 Rev A. March 2008 Downloaded From projector-manual.com Digital Projection Manuals...
  • Page 31: Full Height Image 4:3

    001-736 001-739 001-740 001-737 001-738 33 10 0.96 : 1 fi xed lens 001-735 0.64 : 1 fi xed lens 001-734 30 metres 98 feet Throw distance Rev A. March 2008 Page 2.9 Downloaded From projector-manual.com Digital Projection Manuals...
  • Page 32: Full Height Image 5:4

    001-736 001-737 001-738 001-739 001-740 33 10 0.96 : 1 fi xed lens 001-735 0.64 : 1 fi xed lens 001-734 30 metres 98 feet Throw distance Page 2.10 Rev A. March 2008 Downloaded From projector-manual.com Digital Projection Manuals...
  • Page 33: Choosing A Lens By Calculation

    2.4 - 3.6 : 1 zoom lens 001-739 • Throw ratio required = = 2.22 6.5 x 1.25 3.6 - 5.6 : 1 zoom lens 001-740 • Choose the 1.8 - 2.4 zoom lens. Rev A. March 2008 Page 2.11 Downloaded From projector-manual.com Digital Projection Manuals...
  • Page 34: Useful Lens Calculations

    Lens extension is measured when the lens is focused at infi nity, and fully extended. At other focus settings, the extension could be up to 10mm less Page 2.12 Rev A. March 2008 Downloaded From projector-manual.com Digital Projection Manuals...
  • Page 35: Fitting The Lens

    Zoom drive connector Be careful not to scratch the lens surfaces. If you do accidentally touch a lens, then clean the surface using a lens paper. Locating hole Fixing screws Rev A. March 2008 Page 2.13 Downloaded From projector-manual.com Digital Projection Manuals...
  • Page 36: Shifting The Image

    It is physically possible to shift the lens further than this, however there will be some vignetting of the image beyond the ranges specifi ed above. combined shift without distortion is reduced Page 2.14 Rev A. March 2008 Downloaded From projector-manual.com Digital Projection Manuals...
  • Page 37: Mounting The Projector

    Secure the rigging frame to the projector using the screws supplied, as shown ±12° in the pictures below. Three screws secure each of the adjuster brackets to its corner post. ±12° Fixing screws Rev A. March 2008 Page 2.15 Downloaded From projector-manual.com Digital Projection Manuals...
  • Page 38: Adjusting The Rigging Frame

    ±12° in either direction when in use, as this may cause serious lamp failure, damage the lamp module and cause extra cost on Vertical replacement. adjusters ±12° Horizontal adjuster ±12° Page 2.16 Rev A. March 2008 Downloaded From projector-manual.com Digital Projection Manuals...
  • Page 39: Stacking Projectors

    Align the images from the projectors, following the instructions on the previous page and those in section 3. Getting started, Adjusting the lens and Adjusting the projected image. Rev A. March 2008 Page 2.17 Downloaded From projector-manual.com Digital Projection Manuals...
  • Page 40: Connecting The Projector

    1280 x 720 or the nearest suitable setting. Switch off the source, connect to the projector, then switch the source back on again. Page 2.18 Rev A. March 2008 Downloaded From projector-manual.com Digital Projection Manuals...
  • Page 41: Control Connection Examples

    LAN cable projector see section 4. Using the menus. Computer Computer Un-crossed LAN cables Wired remote Hub or Serial RS232 TITAN TITAN RS232 connection TITAN Null-modem cable Computer Rev A. March 2008 Page 2.19 Downloaded From projector-manual.com Digital Projection Manuals...
  • Page 42: Power Connection

    Ground connection, as this equipment MUST be earthed. Handle the power cable carefully and avoid sharp bends. Do not use a damaged power cable. Power connection Page 2.20 Rev A. March 2008 Downloaded From projector-manual.com Digital Projection Manuals...
  • Page 43: Getting Started

    .............................. 3.3 Focus ............................... 3.3 Zoom ..............................3.3 Shift Adjusting the projected image ......................3.4 ..........................3.4 Picture settings ..........................3.4 Geometry settings Switching the projector off ....................... 3.4 Rev A. March 2008 Page 3.1 Downloaded From projector-manual.com Digital Projection Manuals...
  • Page 44: Switching The Projector On

    If you have no video source connected to the projector, then you can display a test pattern as follows: • Press on the remote control, to select a test pattern. Page 3.2 Rev A. March 2008 Downloaded From projector-manual.com Digital Projection Manuals...
  • Page 45: Adjusting The Lens

    - to end the adjustment before 10 seconds has elapsed, press key. - all other adjustments will be locked out until the Lens adjustment is ended. Rev A. March 2008 Page 3.3 Downloaded From projector-manual.com Digital Projection Manuals...
  • Page 46: Adjusting The Projected Image

    3 seconds, to switch the projector OFF. - disconnecting the power - moving the projector - changing the lamp Page 3.4 Rev A. March 2008 Downloaded From projector-manual.com Digital Projection Manuals...
  • Page 47: Overview

    ..........................4.13 Picture settings ........................... 4.13 Geometry settings ..........................4.14 Magnify and pan ........................4.14 On-screen-display size ........................4.14 Remote control address ......................... 4.14 Remote control backlight continued Rev A. March 2008 Page 4.1 Downloaded From projector-manual.com Digital Projection Manuals...
  • Page 48: Controlling The Projector

    Colour Temperature ............................4.29 RGB Lift ............................4.29 RGB Gain ..........................4.29 Component Type ............................... 4.30 Trim ........................4.30 Trim RGB Lift and Gain ........................4.30 Global Colourimetry continued Page 4.2 Rev A. March 2008 Downloaded From projector-manual.com Digital Projection Manuals...
  • Page 49 LAN Gateway Mask ............................4.45 Channel ............................4.45 SSID ..........................4.46 Restore Defaults Information menu ..........................4.47 ........................4.47 Projector Information .......................... 4.47 Source Information ......................4.48 Digital Projection Information Rev A. March 2008 Page 4.3 Downloaded From projector-manual.com Digital Projection Manuals...
  • Page 50 Other features, eg zoom and focus, are controlled using the control keys at the top of the remote control and keypad. For more information about using the control keys, see later in this section, Using the control keys. Control keys Page 4.4 Rev A. March 2008 Downloaded From projector-manual.com Digital Projection Manuals...
  • Page 51: Input Modes And Settings

    (picture, geometry and colour), will be copied from the mode library to the mode history. Mode Mode library history mode defaults NTSC detected SDTV defaults 480p HDTV defaults 1080p defaults SVGA Rev A. March 2008 Page 4.5 Downloaded From projector-manual.com Digital Projection Manuals...
  • Page 52: Input Presets

    If the detected input settings SVGA redetected 3) settings mode does not match, then input applied settings from the mode history switched or mode library will be applied. Page 4.6 Rev A. March 2008 Downloaded From projector-manual.com Digital Projection Manuals...
  • Page 53: Indicators

    = input not selected green = input selected, signal detected and in range fl ashing green = input selected, but signal not detected or out of range Rev A. March 2008 Page 4.7 Downloaded From projector-manual.com Digital Projection Manuals...
  • Page 54: The Control Panel

    Lamp 2 off = OFF fl ashing red = LAMP ERROR green = ON (100%) amber = (80 - 99%) fl ashing green/amber = LAMP COOL-DOWN or WARM-UP Page 4.8 Rev A. March 2008 Downloaded From projector-manual.com Digital Projection Manuals...
  • Page 55: The Remote Control

    There is a 10 second timeout for the three Lens adjustment keys (see note on next page). There is a separate, adjustable timeout for the On Screen Menus (see On Screen Display, in Setup Menu, later in this section). Rev A. March 2008 Page 4.9 Downloaded From projector-manual.com Digital Projection Manuals...
  • Page 56: Using The Control Keys

    - all other adjustments will be locked out until the Lens adjustment is ended. For more information about the amount of lens shift available, see section 2. Installation. Page 4.10 Rev A. March 2008 Downloaded From projector-manual.com Digital Projection Manuals...
  • Page 57: Auto-Detect Input Mode

    5. Composite Video 6. S-Video 7. Component • Or press the numbered keys 1–7 to change directly to the input: Input 4. is not used on this projector. Rev A. March 2008 Page 4.11 Downloaded From projector-manual.com Digital Projection Manuals...
  • Page 58: Input Presets

    Input modes • The modal settings will be saved to the selected preset, and the following and settings. earlier in this message will be displayed. section. Page 4.12 Rev A. March 2008 Downloaded From projector-manual.com Digital Projection Manuals...
  • Page 59: Red, Green And Blue

    DMD: - the keys will still function, but the controls will not be visible on screen. Rev A. March 2008 Page 4.13 Downloaded From projector-manual.com Digital Projection Manuals...
  • Page 60: Magnify And Pan

    00 and 99. (leading zeros must be used for numbers less than 10) Remote control backlight • Press to switch the backlight on and off. Page 4.14 Rev A. March 2008 Downloaded From projector-manual.com Digital Projection Manuals...
  • Page 61: Using The Menus

    Setup Menu, later in this section).) Main menu: Input Input 4. is not used on this projector. • To select a menu, press , for example the Setup menu: Main menu: Setup Rev A. March 2008 Page 4.15 Downloaded From projector-manual.com Digital Projection Manuals...
  • Page 62 There may be up to three levels of submenu, so to return to the top level, you may have to press up to three times. • To close the menu display completely, press Page 4.16 Rev A. March 2008 Downloaded From projector-manual.com Digital Projection Manuals...
  • Page 63: Menu Controls

    Parameter list To select from a list of parameters, press Rev A. March 2008 Page 4.17 Downloaded From projector-manual.com Digital Projection Manuals...
  • Page 64: Input Menu

    7. Component resolution etc. • To force the projector to re- Press to confi rm your selection. detect the input mode settings, press Page 4.18 Rev A. March 2008 Downloaded From projector-manual.com Digital Projection Manuals...
  • Page 65: Presets

    For Presets J to S, select Recall Preset J ~ S then press to open the J~S submenu. Press to select the Preset. • Press to confi rm your selection. The Preset parameters will be loaded. Rev A. March 2008 Page 4.19 Downloaded From projector-manual.com Digital Projection Manuals...
  • Page 66: Save Presets

    OK or Cancel. Press to confi rm your selection. The parameters will be saved to the selected preset, and the following message will be displayed. Page 4.20 Rev A. March 2008 Downloaded From projector-manual.com Digital Projection Manuals...
  • Page 67: Picture Menu

    Adjusts the color balance from green to blue, using the red level as a reference. The Hue slider is available for • Press to select Hue. NTSC inputs only. Press to adjust the slider (0 to 255). Rev A. March 2008 Page 4.21 Downloaded From projector-manual.com Digital Projection Manuals...
  • Page 68: Gamma Correction

    Phase adjustment can be found in both the Picture and Press to adjust the slider (0 to 31). Geometry menus, and is available for RGB1 and RGB2 inputs only. Page 4.22 Rev A. March 2008 Downloaded From projector-manual.com Digital Projection Manuals...
  • Page 69: Aspect Ratio

    1280 x 720 or cropped if larger. The Sharpness slider is Sharpness available for Composite, S-Video and Component SD • Press to select Sharpness. inputs only. Press to adjust the slider. Rev A. March 2008 Page 4.23 Downloaded From projector-manual.com Digital Projection Manuals...
  • Page 70: Geometry Menu

    DMD. This is then stretched to 2.35:1 by the lens. Native The image will be displayed pixel for pixel. The image will be centred, with a black border if smaller than native resolution or cropped if larger. Page 4.24 Rev A. March 2008 Downloaded From projector-manual.com Digital Projection Manuals...
  • Page 71: User Horizontal Aspect Ratio

    fi ne text. Geometry menus, and is available for graphics based • Press to select Phase. RGB sources only. Press to adjust the slider (0 to 32). Rev A. March 2008 Page 4.25 Downloaded From projector-manual.com Digital Projection Manuals...
  • Page 72: Resolution

    Input Standard. Input Standard is available • Press to select from: only if Input Detection is set to Manual. 720p XGA+ SXGA- SXGA SXGA+ 1080p UXGA NTSC SVGA Page 4.26 Rev A. March 2008 Downloaded From projector-manual.com Digital Projection Manuals...
  • Page 73: Blanking

    Blanked. when Blanking is turned On. Press to adjust the slider (0 to 200). Set to zero for no blanking, eg the top edge in this example. Rev A. March 2008 Page 4.27 Downloaded From projector-manual.com Digital Projection Manuals...
  • Page 74: Colour Menu

    Copies the settings made in the Global Colourimetry menu Temperature Set the colour temperature using the slider User Set the Red, Green and Blue Lift and Gain using the sliders Peak Preset high brightness setting Page 4.28 Rev A. March 2008 Downloaded From projector-manual.com Digital Projection Manuals...
  • Page 75: Colour Mode

    Component Type • Press to select Component Type. The Component Type selection Press to select from: is available for RGB1, RGB2 and Component inputs only. YPrPb Rev A. March 2008 Page 4.29 Downloaded From projector-manual.com Digital Projection Manuals...
  • Page 76: Trim

    This is a shortcut to the Global Colourimetry submenu, described later in this section, in Setup Menu. Press to select Global Colourimetry. Press to open the Global Colourimetry submenu. Page 4.30 Rev A. March 2008 Downloaded From projector-manual.com Digital Projection Manuals...
  • Page 77: Setup Menu

    When using the menus, press to hide or Press to open the Setup menu. The blue highlight moves to the fi rst item in reveal the On-Screen-Display. the menu. Setup Menu Rev A. March 2008 Page 4.31 Downloaded From projector-manual.com Digital Projection Manuals...
  • Page 78: Projector

    Control Panel Backlight • Press to select Backlight. Press to select from: Component Video Sync • Press to select Component Video Sync. Press to select from: Sync On Green Separate Page 4.32 Rev A. March 2008 Downloaded From projector-manual.com Digital Projection Manuals...
  • Page 79: Keystone

    (shows outlines of various aspect ratios) Chequerboard Colour Bars 0% Field (black) 20% Field 100% Field (white, affected by colour settings) 100% Field (Peak White) (white, unaffected by colour settings) Rev A. March 2008 Page 4.33 Downloaded From projector-manual.com Digital Projection Manuals...
  • Page 80: Global Colourimetry

    Copies the settings made in the Global Colourimetry menu Temperature Set the colour temperature using the slider User Set the Red, Green and Blue Lift and Gain using the sliders Peak Preset high brightness setting Page 4.34 Rev A. March 2008 Downloaded From projector-manual.com Digital Projection Manuals...
  • Page 81: Colour Mode

    User Mode Press to adjust the slider. is selected. RGB Gain • Press to select the parameter to be adjusted. Press to adjust the slider. Rev A. March 2008 Page 4.35 Downloaded From projector-manual.com Digital Projection Manuals...
  • Page 82: Lamp

    The middle row shows the current lamp setting. Setup Menu Lamp Change Lamp Setting • Press to select Change Lamp Setting. Press to open the Lamp Setting control box. continued Page 4.36 Rev A. March 2008 Downloaded From projector-manual.com Digital Projection Manuals...
  • Page 83: Lamp Power

    Lamp 2 off = OFF fl ashing red = LAMP ERROR green = ON (100%) amber = (80 - 99%) fl ashing green/amber = LAMP COOL-DOWN or WARM-UP Rev A. March 2008 Page 4.37 Downloaded From projector-manual.com Digital Projection Manuals...
  • Page 84: On Screen Display

    0 to 255 in 1 second steps (when set to zero, the OSD never times out) is pressed again, the menus will reopen at the same point they were last viewed. Page 4.38 Rev A. March 2008 Downloaded From projector-manual.com Digital Projection Manuals...
  • Page 85: Password

    0 to 9 then move to the next digit. to select from Press to enter the password controlled area. or Cancel Press to exit without applying the password. Rev A. March 2008 Page 4.39 Downloaded From projector-manual.com Digital Projection Manuals...
  • Page 86: Communication

    Projector Address. or Cancel Press to exit without making the change. 2 Set the remote control address as shown in Using the control keys, earlier in this section. Page 4.40 Rev A. March 2008 Downloaded From projector-manual.com Digital Projection Manuals...
  • Page 87: Network

    For example, if a Wired Connection is selected: Press to select from: Wifi , Channel and SSID will be Wired unavailable. Wireless Press to apply the new Connection setting. Rev A. March 2008 Page 4.41 Downloaded From projector-manual.com Digital Projection Manuals...
  • Page 88: Dhcp

    Apply Press to apply the new LAN IP Address. or Cancel Press to exit without making the change. Page 4.42 Rev A. March 2008 Downloaded From projector-manual.com Digital Projection Manuals...
  • Page 89: Lan Subnet Mask

    255.0.0.0 (selected when setting is Automatic and IP class is A) to select from Apply Press to apply the new LAN Subnet Mask. or Cancel Press to exit without making the change. Rev A. March 2008 Page 4.43 Downloaded From projector-manual.com Digital Projection Manuals...
  • Page 90: Lan Gateway Mask

    Apply Cancel Press to apply the new LAN Gateway Mask, or to exit without making the change. Page 4.44 Rev A. March 2008 Downloaded From projector-manual.com Digital Projection Manuals...
  • Page 91: Channel

    Apply Press to apply the new Channel number. or Cancel Press to exit without making the change. SSID • Projector’s ID - for information only. Rev A. March 2008 Page 4.45 Downloaded From projector-manual.com Digital Projection Manuals...
  • Page 92: Restore Defaults

    When complete, all settings will be restored to factory condition and all user settings will be removed except for downloaded colour and gamma parameters. Page 4.46 Rev A. March 2008 Downloaded From projector-manual.com Digital Projection Manuals...
  • Page 93: Information Menu

    Source Information submenu. Input SOURCE INFORMATION Picture Input: DVI Information Menu Geometry Standard: 720p 60 Source Information Colour Frequency V: 60Hz H: 45.0KHz Setup Information Rev A. March 2008 Page 4.47 Downloaded From projector-manual.com Digital Projection Manuals...
  • Page 94: Digital Projection Information

    Press to select Digital Projection. When using the menus, press to hide or Press to see the DP Information screen. reveal the On-Screen-Display. Information Menu DP Contact Information Page 4.48 Rev A. March 2008 Downloaded From projector-manual.com Digital Projection Manuals...
  • Page 95: Userware

    5. Userware Contents Rev A. March 2008 Page 5.1 Downloaded From projector-manual.com Digital Projection Manuals...
  • Page 96 5. Userware Digital Projection TITAN HD-600 User Manual Page 5.2 Rev A. March 2008 Downloaded From projector-manual.com Digital Projection Manuals...
  • Page 97: Maintenance

    6. Maintenance Contents Changing the lamp module ......................6.2 Changing the air fi lter ........................6.3 Cleaning ..............................6.4 ............................6.4 Projector ..............................6.4 Lens ........................... 6.4 Lamp module Rev A. March 2008 Page 6.1 Downloaded From projector-manual.com Digital Projection Manuals...
  • Page 98: Changing The Lamp Module

    The projector cannot be • Re-fi t the rear door, making sure that the door tether is not trapped, and tighten operated until the door is fully the four screws. closed. Page 6.2 Rev A. March 2008 Downloaded From projector-manual.com Digital Projection Manuals...
  • Page 99: Changing The Air Fi Lter

    Re-fi t the rear door, making sure that the door tether is not trapped, and tighten the four screws. The projector cannot be operated until the door is fully closed. Rev A. March 2008 Page 6.3 Downloaded From projector-manual.com Digital Projection Manuals...
  • Page 100: Cleaning

    Lamp module Use a blower or lens paper to clean ONLY the glass window, taking care not to scratch the glass. NEVER touch the lamp or refl ector. Page 6.4 Rev A. March 2008 Downloaded From projector-manual.com Digital Projection Manuals...
  • Page 101: Appendix

    Operation Command examples ..........................7.18 Power (0102) ..........................7.19 Source (3702) ........................7.20 Brightness (E502) ........................... 7.21 Contrast (E602) ........................... 7.22 Shutter (CF02) ........................7.23 Quick Reference chart Rev A. March 2008 Page 7.1 Downloaded From projector-manual.com Digital Projection Manuals...
  • Page 102: Troubleshooting

    See section 4. Controlling the projector, Picture or Geometry menus Uneven image quality. Check that the projector is parallel to the screen. Check that the screen is fl at, and securely mounted. Page 7.2 Rev A. March 2008 Downloaded From projector-manual.com Digital Projection Manuals...
  • Page 103 See section 4. Controlling the projector, Communication menu In the event that this troubleshooting guide has not solved the problem, then contact your Digital Projection dealer or service centre. Rev A. March 2008 Page 7.3 Downloaded From projector-manual.com Digital Projection Manuals...
  • Page 104: Specifi Cations

    2000 hours in dual lamp mode, 4000 in single lamp mode Brightness 8000 ANSI lumens (±10%) in dual lamp mode Colour temperature Native: 7500°K (±1000°K), White balance adjustment: 3000°K - 10000°K Page 7.4 Rev A. March 2008 Downloaded From projector-manual.com Digital Projection Manuals...
  • Page 105: Electrical

    0 to 40°C Storage Temperature -10 to 50°C Thermal Dissipation 2900 BTU/hr Operating Humidity 20% to 80% non-condensing Weight approximately 31 kg (68 lbs) FCC WIFI ID R68WIPORT Rev A. March 2008 Page 7.5 Downloaded From projector-manual.com Digital Projection Manuals...
  • Page 106: Lens Data

    At other focus settings, the extension could be up to 10mm less. It is important for calculating throw distance accurately (see Useful lens calculations, in section 2. Installation). Page 7.6 Rev A. March 2008 Downloaded From projector-manual.com Digital Projection Manuals...
  • Page 107 At other focus settings, the extension could be up to 10mm less. It is important for calculating throw distance accurately (see Useful lens calculations, in section 2. Installation). Rev A. March 2008 Page 7.7 Downloaded From projector-manual.com Digital Projection Manuals...
  • Page 108: Dimensions

    7. Appendix Digital Projection TITAN HD-600 User Manual Dimensions M10 thread All dimensions in mm unless otherwise stated 600.5 619.5 645.5 217.0 281.5 226.5 291.0 Page 7.8 Rev A. March 2008 Downloaded From projector-manual.com Digital Projection Manuals...
  • Page 109: Input Modes Supported

    60.02 SXGA-85 1280 x 960 1011 85.98 SXGA60 1280 x 1024 1066 64.02 SXGA75 1280 x 1024 1072 80.32 SXGA85 1280 x 1024 1072 91.16 RGB colourspace only Rev A. March 2008 Page 7.9 Downloaded From projector-manual.com Digital Projection Manuals...
  • Page 110: Input Connections

    15 way D-type connector pin view of female connector unused Digital Ground (H Sync) R Ground B Ground G Ground Digital Ground (V Sync/DDC) unused H Sync V Sync Page 7.10 Rev A. March 2008 Downloaded From projector-manual.com Digital Projection Manuals...
  • Page 111: Dvi-D Input

    EDID is available even when the projector is switched off. Operational means that the projector is powered up. Non operational states are powered down and some self test and reprogramming modes. Rev A. March 2008 Page 7.11 Downloaded From projector-manual.com Digital Projection Manuals...
  • Page 112: Not Used In This Projector)

    Chrominance (C) 7. Component video input 4 x 75 ohm BNC Used for standard defi nition interlaced signals only RGsB RGBS YCrCb G + Sync Y + Sync Sync Page 7.12 Rev A. March 2008 Downloaded From projector-manual.com Digital Projection Manuals...
  • Page 113: Control Connections

    White / Green stripe White / Orange stripe Blue Blue White / Blue stripe White / Blue stripe Green Orange White / Brown stripe White / Brown stripe Brown Brown Rev A. March 2008 Page 7.13 Downloaded From projector-manual.com Digital Projection Manuals...
  • Page 114: Serial Control Input

    (used to connect the projector to a computer) GND 5 Serial port settings • Baud rate 19,200 bps • Data length 8 bits • Stop bits • Parity none • Flow control none Page 7.14 Rev A. March 2008 Downloaded From projector-manual.com Digital Projection Manuals...
  • Page 115: Remote Communications Protocol

    Operation commands and Enhanced commands, contact Message Structure Digital Projection at one of the addresses printed near the front The data type for all data is raw hexadecimal, and all data larger than 1 byte is of this manual, and ask for a formatted little endian i.e.
  • Page 116: Operation Messages

    Execute executes the current operation (specifi c commands only). Spaces in the example messages are for visual clarity and should not be sent as part of the message. Page 7.16 Rev A. March 2008 Downloaded From projector-manual.com Digital Projection Manuals...
  • Page 117: Enhanced Messages

    For full details of all the For full details of all the Operation commands and Enhanced commands, contact Digital Projection and ask for a copy of the Titan Projector Series External Control Protocol. Rev A. March 2008 Page 7.17 Downloaded From projector-manual.com Digital Projection Manuals...
  • Page 118: Operation Command Examples

    BEEF 03 1900 5858 02 0102 0000 00000000 00000000 00000000 00000000 00000000 Response (Projector in Standby) 1E BEEF 03 1900 5858 02 0102 0000 00000000 04000000 00000000 00000000 00000000 Page 7.18 Rev A. March 2008 Downloaded From projector-manual.com Digital Projection Manuals...
  • Page 119: Source (3702)

    Get Source BEEF 03 1900 5858 02 3702 0000 00000000 00000000 00000000 00000000 00000000 Response (SVideo) 1E BEEF 03 1900 5858 02 3702 0000 00000000 05000000 00000000 00000000 00000000 Rev A. March 2008 Page 7.19 Downloaded From projector-manual.com Digital Projection Manuals...
  • Page 120: Brightness (E502)

    Decrement Brightness BEEF 03 1900 5858 04 E502 0000 00000000 00000000 00000000 00000000 00000000 Response 1E BEEF 03 1900 5858 04 E502 0000 00000000 00000000 00000000 00000000 00000000 Page 7.20 Rev A. March 2008 Downloaded From projector-manual.com Digital Projection Manuals...
  • Page 121: Contrast (E602)

    Decrement Contrast BEEF 03 1900 5858 04 E602 0000 00000000 00000000 00000000 00000000 00000000 Response 1E BEEF 03 1900 5858 04 E602 0000 00000000 00000000 00000000 00000000 00000000 Rev A. March 2008 Page 7.21 Downloaded From projector-manual.com Digital Projection Manuals...
  • Page 122: Shutter (Cf02)

    1E BEEF 03 1900 5858 02 CF02 0000 00000000 01000000 00000000 00000000 00000000 Response (Open) 1E BEEF 03 1900 5858 02 CF02 0000 00000000 00000000 00000000 00000000 00000000 Page 7.22 Rev A. March 2008 Downloaded From projector-manual.com Digital Projection Manuals...
  • Page 123: Quick Reference Chart

    Digital Projection TITAN HD-600 User Manual 7. Appendix Quick Reference chart Rev A. March 2008 Page 7.23 Downloaded From projector-manual.com Digital Projection Manuals...
  • Page 124 Digital Projection TITAN HD-600 User Manual Downloaded From projector-manual.com Digital Projection Manuals...

Table of Contents
