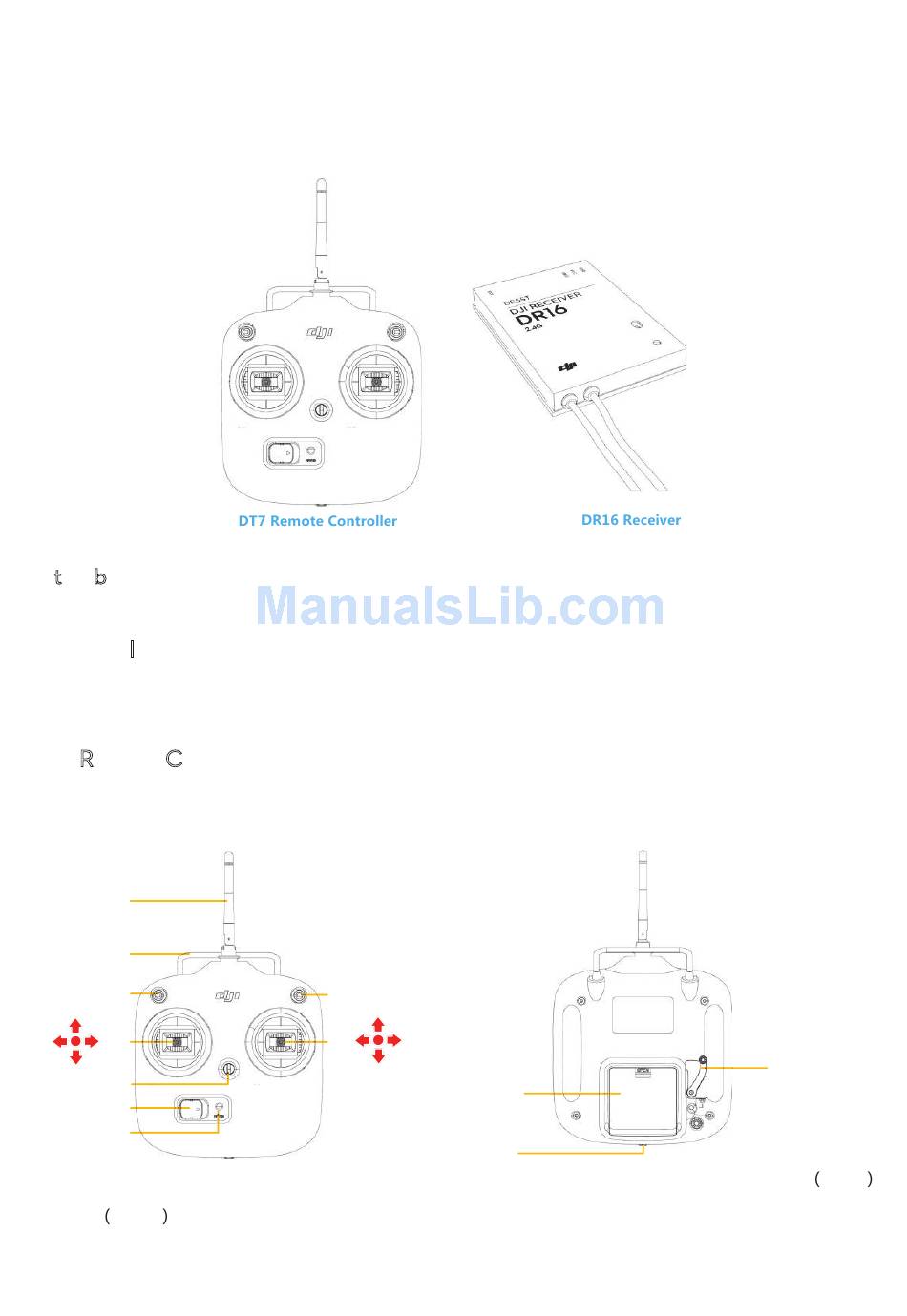

DT7&DR16 2.4G RC System User Manual
Congratulations on purchasing your new DJI product. Please read this manual carefully to ensure you can get the
most out of it.
In the box
DT7 Remote Controller, DR16 Receiver, 3-Pin cable.
Required Items
4 AA batteries, Micro-USB cable, flight control system, multi-rotor etc.

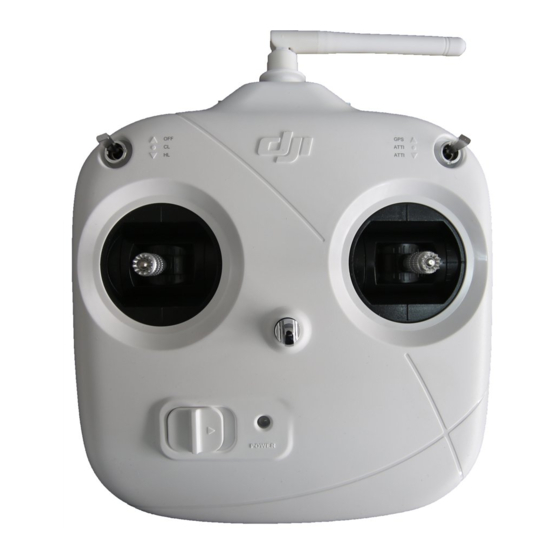

DT7 Remote Controller
The DT7 remote controller is a wireless communication device using the 2.4GHz frequency band. It is only
compatible with the DR16 receiver.
[1]
]
[2]
]
[4]
4]
J3
[6]
6]
J4
[7]
]
[8]
]
[9]
]
[1] Antenna
[2] Carrying Handle
[6] Stick2 J3;J4
[10] Slide Lever
[11] Micro-USB Port
©2013 DJI Innovations. All Rights Reserved.
- 1 -
[3]
J2
[5]
[3] 3-Position Switch S1
[7] Neck Strap Attachment
[12] Battery Compartment
J1
[12]
[11]
[4] 3-Position Switch S2
[8] Power Switch
V1.00
[5] Stick1
[9] Power LED Indicator
[10]
J1;J2
Advertisement
Table of Contents
Related Manuals for dji DT7
Summary of Contents for dji DT7
- Page 1 DT7&DR16 2.4G RC System User Manual V1.00 Congratulations on purchasing your new DJI product. Please read this manual carefully to ensure you can get the most out of it. In the box DT7 Remote Controller, DR16 Receiver, 3-Pin cable. Required Items 4 AA batteries, Micro-USB cable, flight control system, multi-rotor etc.
- Page 2 DR16 Receiver The DR16 is a 16 channel receiver working at the 2.4GHz frequency band. It is compatible with the DT7 remote controller. Antenna LED Indicator Link Button DBUS EXP. Default Channel Mappings of DT7&DR16 MODE 1 MODE 2 Slider Lever...
- Page 3 3. Poke the link button with a thin object and hold it until the LED indicator on the receiver blinks red, then release 4. When the LED indicator becomes solid green, the link between the DT7 remote controller and the DR16 receiver has been successfully established.
-
Page 4: Remote Controller
General 2-stick, 7-channel Working Current 100mA@6V Battery Required 4 AA Batteries DJI Receiver 16 General 2.4GHz D-BUS System Receiving Sensitivity 1%PER -97dBm Working Current 145mA@5V Power Supply 4~8.4V Size 41mmX29mmX5mm Weight ©2013 DJI Innovations. All Rights Reserved. - 4 -... - Page 5 Rechtliche Hinweise Konformitätserklärung Hiermit erklärt die Globe Flight GmbH, dass dieses Gerät den produktspezifisch geltenden EU- Richtlinien entspricht. Durch die Kennzeichnung dieses Gerätes mit dem CE-Symbol wird die Konformität mit diesen Richtlinien zum Ausdruck gebracht. Diese RC Funkfernsteuerung verwendet das 2,4GHz ISM-Frequenzband im Bereich von 2400MHz bis 2483,5MHz (anmelde- und gebührenfrei).
- Page 6 Entsorgung von Batterien Dieses Gerät enthält einen Lithium-Polymer-Akku. Dieser darf keinesfalls über den Hausmüll entsorgt werden! Bitte suchen Sie hierfür eine kommunale Sammelstelle oder einen Recyclinghof auf. Gemäß Batterieverordnung sind auch Fachhändler und Hersteller zur Rücknahme und Entsorgung verpflichtet. Ansprechpartner / Importeur Globe Flight GmbH - vertreten durch Geschäftsführer Sebastian Seidel - Borsigstrasse 9...
