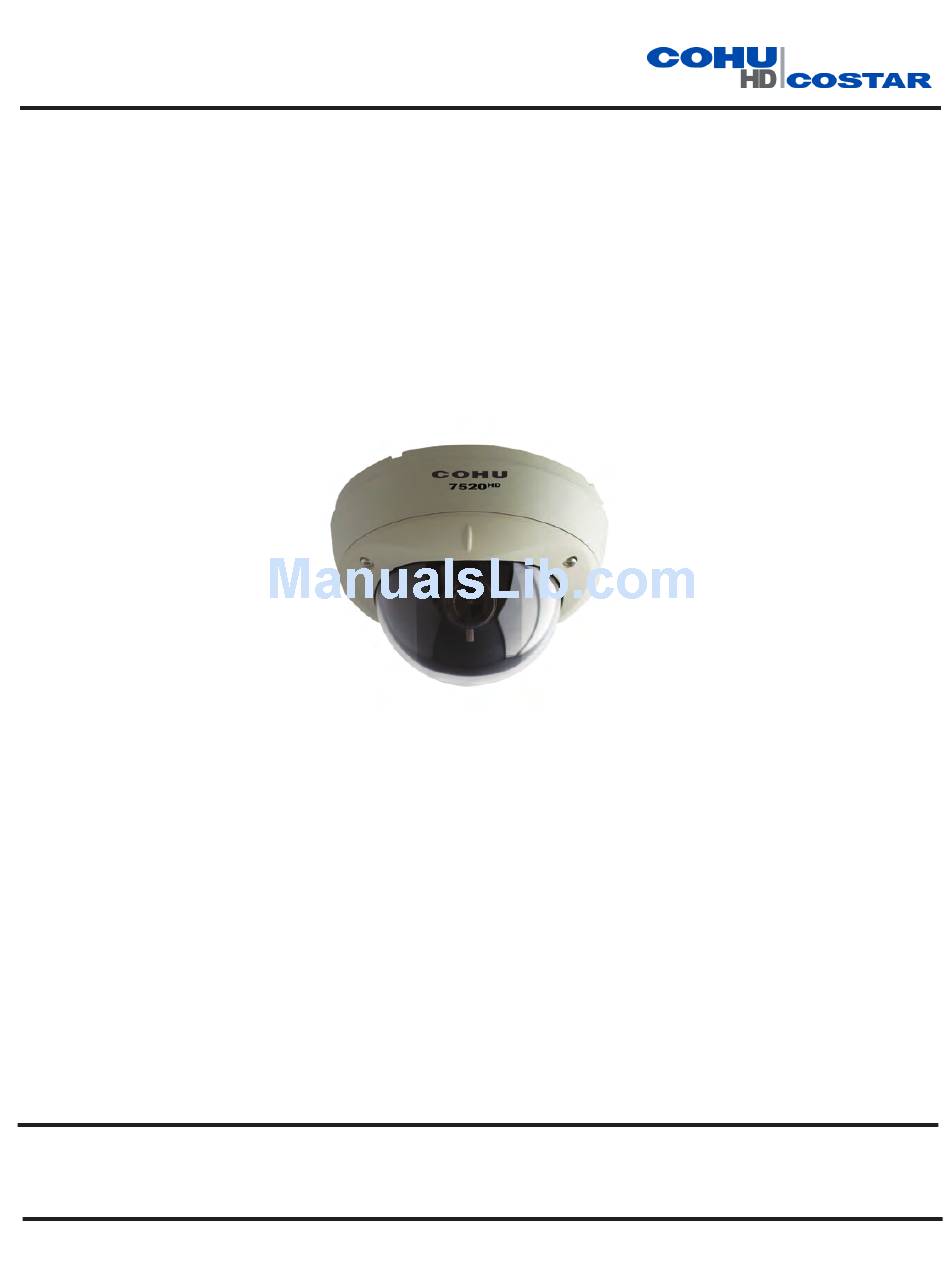

- Page 1 Products Helios Series INSTALLATION MANUAL 7520 Fixed Camera System camera is configured for DHCP The 7520 (If a DHCP server is not available, the camera IP address will need to be configured.) Technical Manual 6X-1102C www.CohuHD.com July 15, 2014 info@CohuHD.com...
-
Page 2: Table Of Contents
Contents About this document Additional information and documents related to the camera system Copyright/Intellectual property rights statement FCC compliance Support services Returns Safety instructions 1.0 Unpacking 2.0 Product Description 2.1 Parts List 3.0 Mounting Options 4.0 Removal of Dome Cover 5.0 Mounting the Enclosure, Camera, and Lens Assembly 6.0 Connect Camera 7.0 Camera Positioning, Field-of-View, Set-up and Focus... -
Page 3: About This Document
About this document This manual contains information on installation and quick start for the 7520 dome camera system. Please read this manual carefully prior to installation to prevent any accidental damage or misuse. A CD, including this manual, is shipped with the Camera. The manual is also available from the CohuHD website at: http://www.CohuHD.com/Files/install_manuals/7520_IM.pdf. -
Page 4: Returns
Returns This item was thoroughly tested and carefully packed at the factory prior to shipping. Upon acceptance by the carrier, the carrier assumes responsibility for the item’s safe arrival. Should you receive the item in a damaged condition, apparent or concealed, a claim for damage must be made to the carrier. If a visual inspection shows damage upon receipt of this shipment, it must be noted on the freight bill or express receipt and the notation signed by the carrier’s agent. -
Page 5: Safety Instructions
Safety instructions • Installation should be done only by qualified installers and conform to all local codes. • It is the user’s responsibility to ensure that the mounting methods are safe and adequate for the location. • Use appropriate hardware to fasten the mount to an indoor surface. •... -
Page 6: Unpacking
1.0 Unpacking Unpack carefully. This is an electromechanical device and should be handled carefully. Check to ensure the following items are included: • 7520 Camera Assembly • Torx T-20 Security Wrench • ½” NPT Plug (installed in the side NPT mount of the enclosure) •... -
Page 7: Product Description
2.0 Product Description The 7520 series is the latest addition to CohuHD’s expanding family of HDTV products, offering best-in-class image quality, event management processing and network stability you can rely on. The performance standards of the 7520 series are ideal for requirements encountered in security surveil- lance and remote monitoring applications. -
Page 8: Mounting Options
3.0 Mounting Options The camera is designed to be used in one of the following configurations. 1. Surface mounted to a plenum or other durable ceiling surface. 2. Surface mounted to any interior / exterior durable wall surface. 3. Mounted to the optional interior / exterior wall mount adapter. NOTE: This guide covers installation of an 7520 dome camera without the optional wall mount adapter. -
Page 9: Removal Of Dome Cover
4.0 Removal of Dome Cover 1. Using the supplied Torx T-20 security wrench, loosen the three tamper-proof screws holding the dome cover to the enclosure assembly (Figure 3.0). Note that these screws are captive, and held to the dome cover. These screws should not be removed from the dome cover trim ring. Loosen the three Dome trim ring &... - Page 10 4. To ensure the gasket is sealed gently pull back on the Ethernet cable as shown in Figure 4.3 before mount- ing the enclosure to the wall or ceiling. 5. Attach the enclosure to the wall or ceiling by tightening the four screws with sealing washers (Figure 4.4). NOTE: Be sure to use the supplied screws and sealing washers.
-
Page 11: Connect Camera
6.0 Connect Camera 1. For the 7520 series cameras attach the supplied ferrite clamp to the Ethernet cable, and connect the cable to the Ethernet connector port in the camera as shown in Figure 5.1. Figure 5.1 2. Route and connect the optional (not supplied) audio cable when using an external microphone and pow- ered loudspeaker (not supplied) to the 7520 dome camera as shown in Figure 5.3. -
Page 12: Factory Reset
8.0 Factory Reset 1. Press and hold the “Reset” button for 10 seconds as illustrated in Figure 7.0. Figure 7.0 9.0 Complete the Dome Camera Installation 1. Attach the tether from the dome trim ring to the tether mounting point in the enclosure as shown in Figure 8.1. -
Page 13: Pc Configuration Of 7520
10.0 PC Configuration of 7520 Cameras Installation and testing of the Camera can be performed with the built-in 7520 Series web interface applica- tion. 10.1 System Requirements In order to test the Camera you need the following items: • laptop or desktop computer (for recommended computer requirements see section 10.2 of this chapter) •... - Page 14 CAT5e Router/PoE Switch Router/Switch Cable Network Switch Figure 9. Interconnection Diagram with PoE-enabled switch Router/ CAT5e non-PoE Switch Router/Switch Cable PoE Injector Network 100-240 V AC Switch Power Figure 10. Interconnection Diagram with non-PoE Switch Series specifications NOTE: PoE injector can be ordered from CohuHD. Please refer to the CohuHD website in the 7520 section for ordering information.
-
Page 15: Accessing The Camera
10.4 Accessing the Camera NOTE: The default user name for 7500 Series is “Admin” and the default password is “Camera”. The 7500 cameras are configured for DHCP and will have an IP address assigned if a DHCP server is on the network. -
Page 16: Using The Cohuonvifdiscovery Software To Discover The Camera
10.4.3 Using the CohuONVIFDiscovery Software to Discover the Camera • Insert the CohuHD 7500 Series CD into the CD drive of the PC or download the software from the http://www.CohuHD.com/content/downloads. link: Under Software & Protocol Downloads see the Helios and 7500 Camera Series discovery tool. Click “download here.” •... -
Page 17: Change The Camera Ip Network Address
10.4.4 Change the camera IP network address • Open a browser (IE recommended) and enter the IP address of the 7520 camera in the address field of the browser. The “Live” page will be displayed. • If prompted, install the ActiveX control. •... -
Page 18: Assigning The Static Ip Address
10.4.5 Assigning the Static IP Address Set your computer IP address to the same subnet as the Camera IP address. • Go Start > Control Panel > Network connections > Local Area Connection (Windows XP). • Go Start > Control Panel > Network and Sharing Center > Local Area Connection (Windows 7). 1. - Page 19 3. You will see the “Internet Protocol (TCP/IP) dialog box. In the “General” tab the “Use the follow- ing IP address” button should be selected. Enter IP and subnet addresses. Click “OK” to close the “Internet Protocol (TCP/IP). “Use the following IP address” General Tab button is selected Enter an IP address which is not used...
-
Page 20: Video Streaming
10.4.6 H.264 Video Streaming To prepare the camera to serve the H.264 stream, select “H.264” from the drop-down menu. To view the H.264 stream in full screen mode (without ‘Live’ page controls), double click on the video window. Double- click on the video window again to return back to the ‘Live’ page. NOTE: For information on the camera system operation and configuration, please see the camera system built-in help. -
Page 21: Warranty
11.0 Warranty Please refer to the CohuHD website for product warranty information: http://www.CohuHD.com/warranty/WarrantyStatement.pdf. Revision History Revision Date Comments Rev A 10/1/2012 Initial release Rev B 10/19/12 p3 - website address was changed • the manual is revised to change company name Rev C 7/15/14 6X-1102C...
