Page 1: User Guide

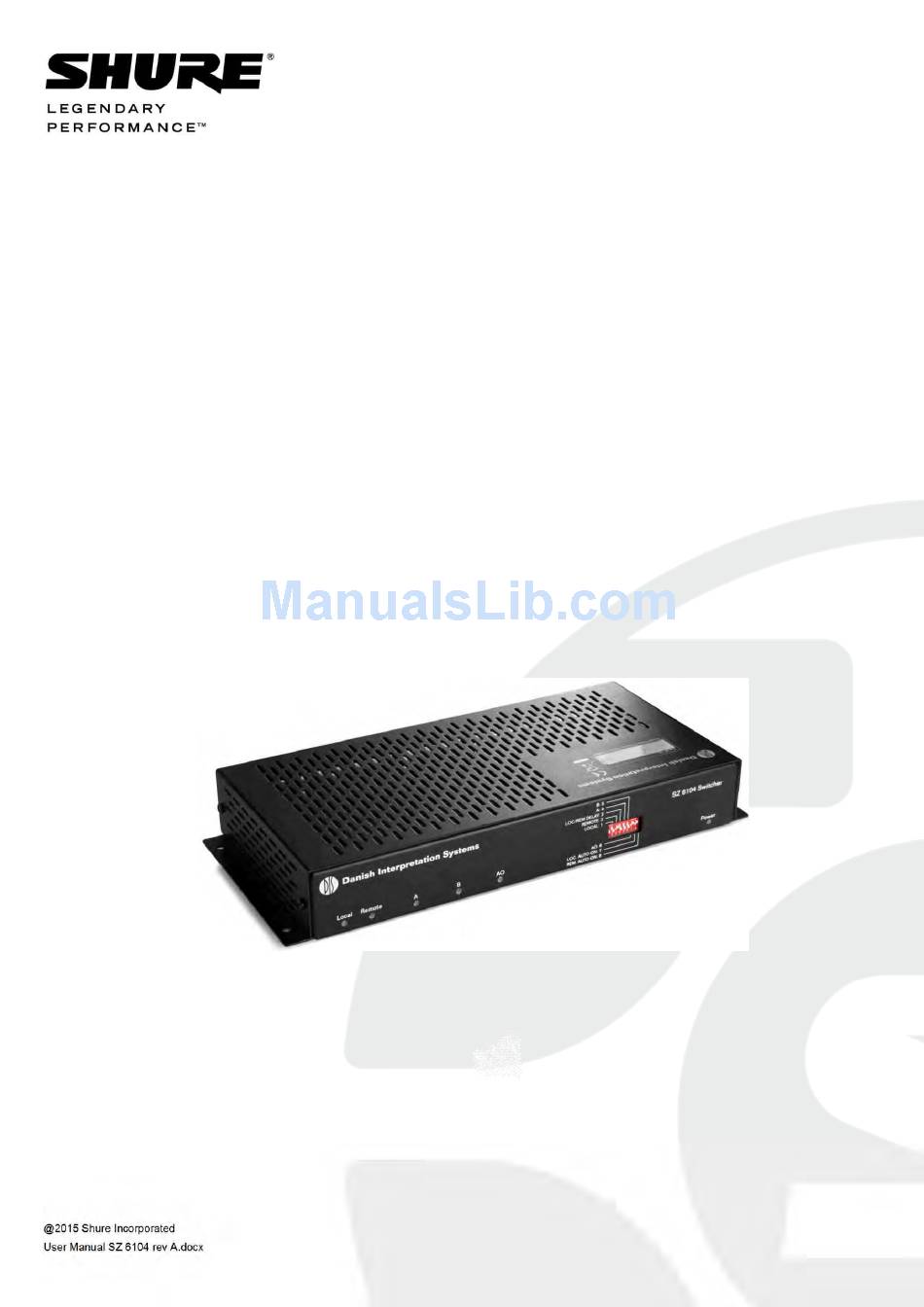

Conferencing and Discussion Systems SZ 6104 DCS-LAN Switcher USER GUIDE @2015 Shure Incorporated User Manual SZ 6104 rev A.docx... -
Page 2: Table Of Contents
System Specification ......14 System components ......6 Connection Details ......15 Central equipment etc......6 Accessories ......... 15 Interpreter equipment ......6 Conference units and Ch. selectors ..6 @2015 Shure Incorporated User Manual SZ 6104 rev A.docx... -
Page 3: Important
Changes or modifications not expressly approved and on, the user is encouraged to try to correct by Shure Incorporated could void your authority the interference by one or more of the following to operate this equipment. -
Page 4: Warranty
DIS Digital Conference System User Manual Warranty The individual units in the DCS 6000 system are minimum covered by 24 months warranty against defects in materials or workmanship. -
Page 5: Your Dcs 6000 Conference System
DCS 6000 Digital Conference System User Manual Your DCS 6000 Conference System The DCS 6000 system • DCS 6000 Digital Conference System is a system to Delayed switching on of power to the two be used at meetings, where a number of people are DCS-LAN chains, to minimize the total ‘in- addressing the ‘Floor’... -
Page 6: System Components
Repeater for four chains two delegate Buttons DV 6501 F Voting Unit JB 6104 Junction Box with 4 outputs AM 6040 Ambient Microphone Unit SZ 6104 DCS-LAN Switcher CS 6340 FV/FH Channel Selector (flush Interpreter equipment mounted) IS 6132 P... -
Page 7: General

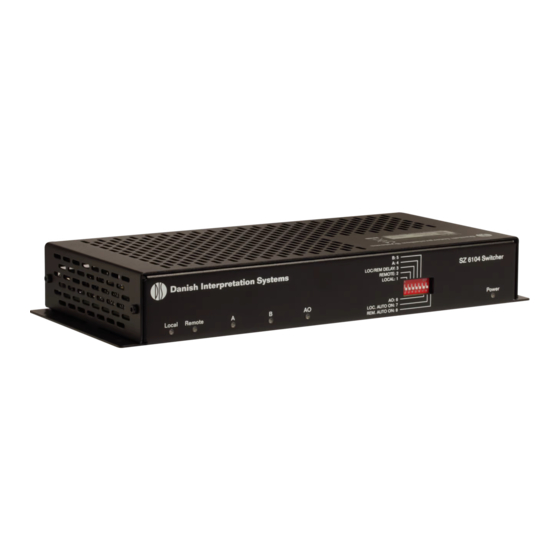

DCS 6000 Digital Conference System User Manual General The SZ 6104 is designed to be used in DCS 6000 a master and spare central unit is demanded. system utilizing DCS-LAN bus for connecting units The unit has one selector for Local/Remote... -
Page 8: Operating Instructions
”From Local CU” and ”From used as the first unit after the Local/Remote Remote CU” will power the whole SZ 6104 plus all switch. The DC power supplied to the SZ 6104 units connected to the SZ 6104 ”To Local System”. -
Page 9: Local/Remote Delay
”To Local CU” and/or ”To Remote CU” for remotely (It is only possible to have up to 16 the SZ 6104 to function. These three switches are language booths on either an A or B channel.). The meant to be used for one A-chain, one B-chain and... -
Page 10: Redundancy Switching
Close AO connected Redundancy switching SZ 6104 can also be used for switching between a See below. Also set LOC/REM DELAY on (other master central unit and a spare in case the master switches off). Can also be connected to 0V in fails. -
Page 11: Use Of Patch Panel In Operators Room
DCS 6000 Digital Conference System User Manual Redundancy switching with more than 16 languages: Use of patch panel in Operators Room On next page is a set-up with 3 meeting rooms other as faulty ground connections may cause (several is possible) using a patch panel in a ground loops which again can result in corrupted central operators room for selecting the room data communication of the chains. - Page 12 DCS 6000 Digital Conference System User Manual Above they are shown with one room as master are needed if there are longer distances or and two rooms as slaves. Note that there are RP possibility of a load of several EX 6010’s. 6604 Repeaters and PS 6000 Power Supplies in Below the same set-up is shown with two rooms the Operators Room.
- Page 13 DCS 6000 Digital Conference System User Manual...
-
Page 14: Technical Specifications
DCS 6000 Digital Conference System User Manual the above menus. Technical Specifications System Specification General Power requirement ......... 24-48 V DC Specifications are subject to change without notice. Power consumption ......10W maximum Power supplied from ........CU 61xx / EX 6010 / PS 6000 Temperature to guarantee specified performance ..... -
Page 15: Connection Details
DCS 6000 Digital Conference System User Manual Connection Details How to wire a Cat5e (EIA 568-B) cable to a RJ45 DCS-LAN Chain con.: The DCS 6000 system uses shielded Cat5e, Cat6 or Cat7 F/UTP or U/FTP cables with shielded RJ45 Function Connector #1 Connector #2... - Page 16 United States, Canada, Latin Europe, Middle East, Africa: Asia, Pacific: America, Caribbean: Shure Incorporated Shure Europe Gmbh Shure Asia Limited 22/F, King's Road 5800 West Touhy Avenue Jakob-Dieffenbacher-Str. North Point, Island East, 75031 Eppingen Niles, IL 60714-4608 Hong Kong Germany...
