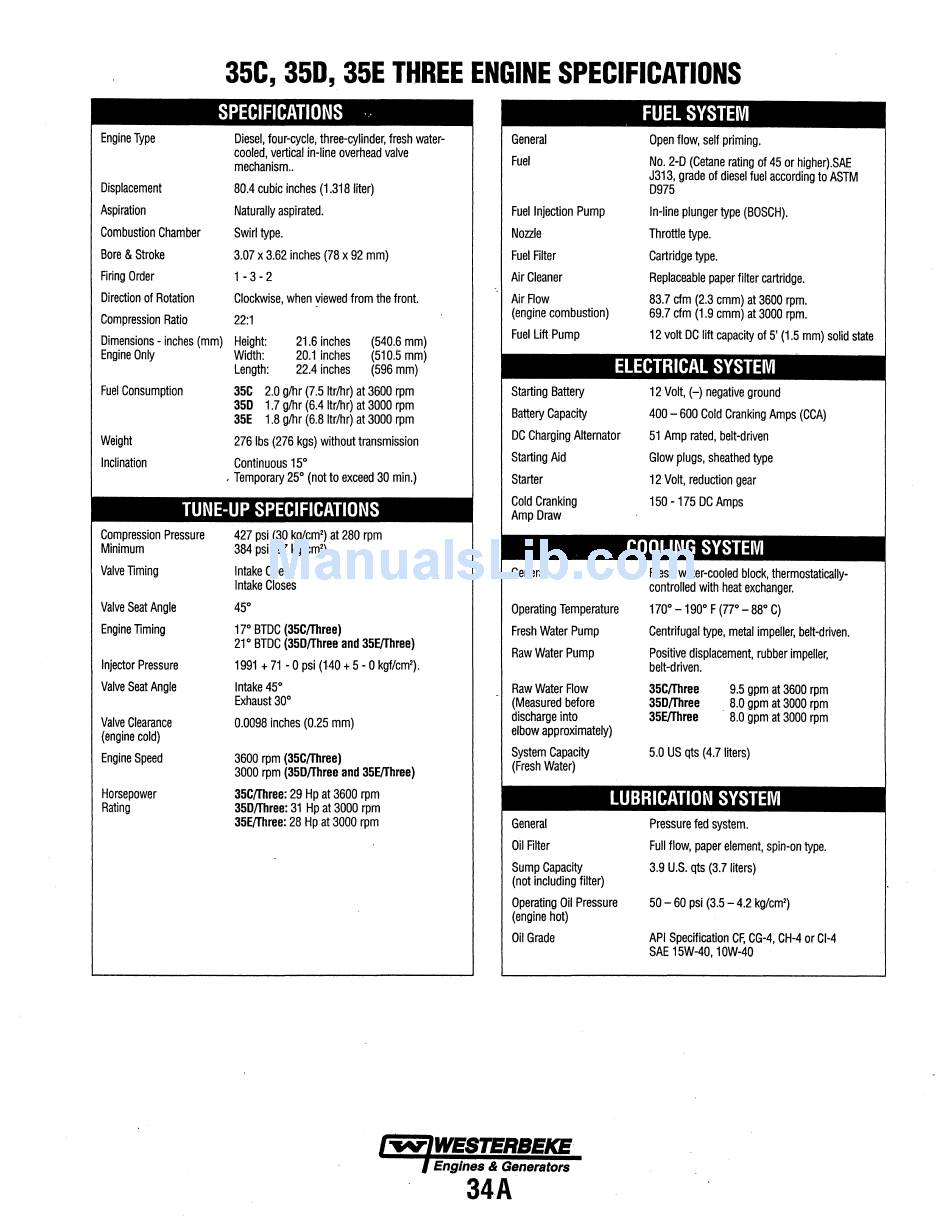

35C, 350, 35E THREE ENGINE SPECIFICATIONS
SPECIFICATIONS
Engine Type
Displacement
Aspiration
Combustion Chamber
Bore & Stroke
Firing Order
Direction of Rotation
Compression Ratio
Dimensions - inches (mm)
Engine Only
Fuel Consumption
Weight
Inclination
Diesel, four-cycle, three-cylinder, fresh water-
cooled, vertical in-line overhead valve
mechanism ..
80.4 cubic inches (1.318 liter)
Naturally aspirated.
Swirl type.
3.07 x 3.62 inches (78 x 92 mm)
1 -3-2
Clockwise, when yiewed from the front.
22:1
Height: 21.6 inches (540.6 mm)
Width: 20.1 inches (510.5 mm)
Length: 22.4 inches (596 mm)
35C 2.0 g/hr (7.5 ltr/hr) at 3600 rpm
350 1.7 g/hr (6.4 ltr/hr) at 3000 rpm
35E 1.8 g/hr (6.8 ltr/hr) at 3000 rpm
276 lbs (276 kgs) without transmission
Continuous 15°
• Temporary 25° (not to exceed 30 min.)
TUNE-UP SPECIFICATIONS
Compression Pressure 427 psi (30 kg/em') at 280 rpm
Minimum 384 psi (27 kg/em')
Valve liming Intake Opens
Intake Closes
Valve Seat Angle
45°
Engine liming 17° BTDC (35C/Three)
21
o
BTDC (350/Three and 35E/Three)
Injector Pressure 1991 + 71 - 0 psi (1-40 + 5 - 0 kgf/cm').
Valve Seat Angle Intake 45°
Exhaust 30°
Valve Clearance 0.0098 inches (0.25 mm)
(engine cold)
Engine Speed 3600 rpm (35C/Three)
3000 rpm (350/Three and 35E/Three)
Horsepower 35C/Three: 29 Hp at 3600 rpm
Rating
350/Three: 31 Hp at 3000 rpm
35E/Three: 28 Hp at 3000 rpm
General
Fuel
Fuel Injection Pump
Nozzle
Fuel Filter
Air Cleaner
AirFlow
(engine combustion)
Fuel Lift Pump
FUEL SYSTEM
Open flow, self priming.
No. 2-D (Cetane rating of 45 or higher).SAE
J313, grade of diesel fuel according to ASTM
D975
In-line plunger type (BOSCH).
Throttle type.
Cartridge type.
Replaceable paper filter cartridge.
83.7 cfm (2.3 cmm) at 3600 rpm.
69.7 cfm (1.9 cmm) at 3000 rpm.
12 volt DC lift capacity of 5' (1.5 mm) solid state
ElECTRICAl SYSTEM
Starting Battery
Battery Capacity
DC Charging Alternator
Starting Aid
Starter
Cold Cranking
Amp Draw
General
Operating Temperature
Fresh Water Pump
Raw Water Pump
Raw Water Row
(Measured before
discharge into
elbow approximately)
System Capacity
(Fresh Water)
12 Volt, (-) negative ground
400 - 600 Cold Cranking Amps (CCA)
51 Amp rated, belt-driven
Glow plugs, sheathed type
12 Volt, reduction gear
150-175 DC Amps
COOLING SYSTEM
Fresh water-cooled block, thermostatically-
controlled with heat exchanger.
170• -190° F
(n•-
88° C)
Centrifugal type, metal impeller, belt-driven.
Positive displacement, rubber impeller,
belt-driven.
35C/Three
350/Three
35E/Three
9.5 gpm at 3600 rpm
8.0 gpm at 3000 rpm
· 8.0 gpm at 3000 rpm
5.0 US qts (4.71iters)
lUBRICATION SYSTEM
General
Oil Filter
Sump Capacity
(not including filter)
Operating Oil Pressure
(engine hot)
Oil Grade
Pressure fed system.
Full flow, paper element, spin-on type.
3.9 U.S. qts (3.7 liters)
50 - 60 psi (3.5 - 4.2 kg/em')
API Specification CF, CG-4, CH-4 or Cl-4
SAE 15W-40, 10W-40
