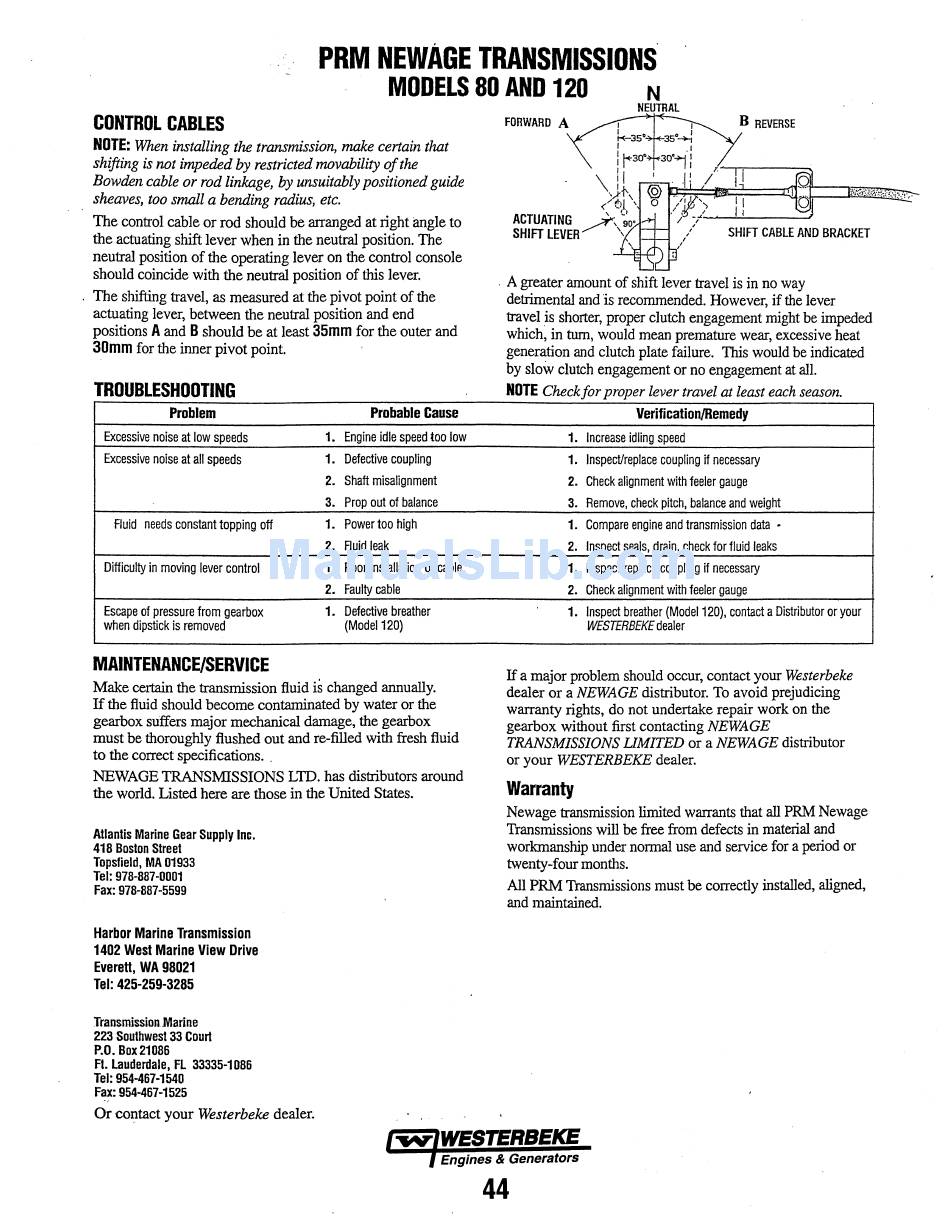

PRM NEWAGE TRANSMISSIONS
MODELS 80 AND 120
N
CONTROL CABLES
NOTE:
When installing the transmission, moke certain that
shifting is oot impeded by restricted movability of the
Bowden cable or rod linkage, by wu;uitably positioned guide
sheaves, too small a bending radius, etc.
The control cable or rod should be arranged at right angle to
the actuating shift lever when in the neutral position. The
neutral position of the operating lever on the control console
should coincide with the neutral position of this lever.
The shifting travel, as measured at the pivot point of the
actuating lever, between the neutral position and end
positions A and B should be at least 35mm for the outer and
3Dmm for the inner pivot point
TROUBLESHOOTING
Problem Probable Cause
Excessive noise at low speeds 1. Engine idle speed too low
Excessive noise at all speeds 1. Defective coupling
2. Shaft misalignment
3. Prop out of balance
Fluid needs constant topping off 1. Power too high
2. Auid leak
Difficulty in moving lever control
1. Poor installation of cable
2. Faulty cable
Escape of pressure from gearbox
1. Defective breather
when dipstick is removed {Model120)
MAINTENANCE/SERVICE
Make certain the transmission fluid is changed annually.
If the fluid should become contaminated by water or the
gearbox suffers major mechanical damage, the gearbox
must be thoroughly flushed out and re-filled with fresh fluid
to the correct specifications. .
NEW AGE TRANSMISSIONS LID. has distributors around
the world. Listed here are those in the United States.
Atlantis Marine Gear Supply Inc.
418 Boston Street
Topsfield, MA 01933
Tel: 978-887-0001
Fax: 978-887-5599
Harbor Marine Transmission
1402 West Marine View Drive
Everen, WA 98021
Tel: 425·259-3285
Transmission .Marine
223 Southwest 33 Court
P.O. Box 21086
Ft. Lauderdale, FL 33335-1086
Tel: 954-467-1540
Fax: 954-467-1525
.,
Or co11tact your Westerbeke dealer.
NEUTRAL
SHIFT CABLE AND BRACKET
. A greater amount of shift lever travel is in no way
detrimental and is recommended. However, if the lever
travel is shorter, proper clutch engagement might be impeded
which; in tum, would mean premature wear, excessive heat
generation and clutch plate failure. This would be indicated
by slow clutch engagement or no engagement at all.
NOTE
Check for proper lever travel
at
least each season.
VerificationJRemedv
1. Increase idling speed
1. Inspect/replace coupling if necessary
2. Check alignment with feeler gauge
3. Remove, check pitch, balance and weight
1. Compare engine and transmission data •
2. Inspect seals, drain, check for fluid leaks
1. Inspect/replace coupling if necessary
2. Check alignment with feeler gauge
1. Inspect breather {Model120), contact a Distributor or your
WESTERBEKE dealer
If
a major problem should occur, contact your Westerbeke
dealer or a
NEWAGE
distributor. To avoid prejudicing
warranty rights, do not undertake repair work on the
gearbox without first contacting
NEW AGE
TRANSMISSIONS liMITED
or a
NEW AGE
distributor
or your
WESTERBEKE
dealer.
Warranty
Newage transmission limited warrants that all PRM Newage
Transmissions will be free from defects in material and
worlananship under normal use and service for a period or
twenty-four months.
All
PRM
Transmissions must be correctly installed, aligned,
and maintained.
