Summary of Contents for Chauvet Freedom Strip HEX-4

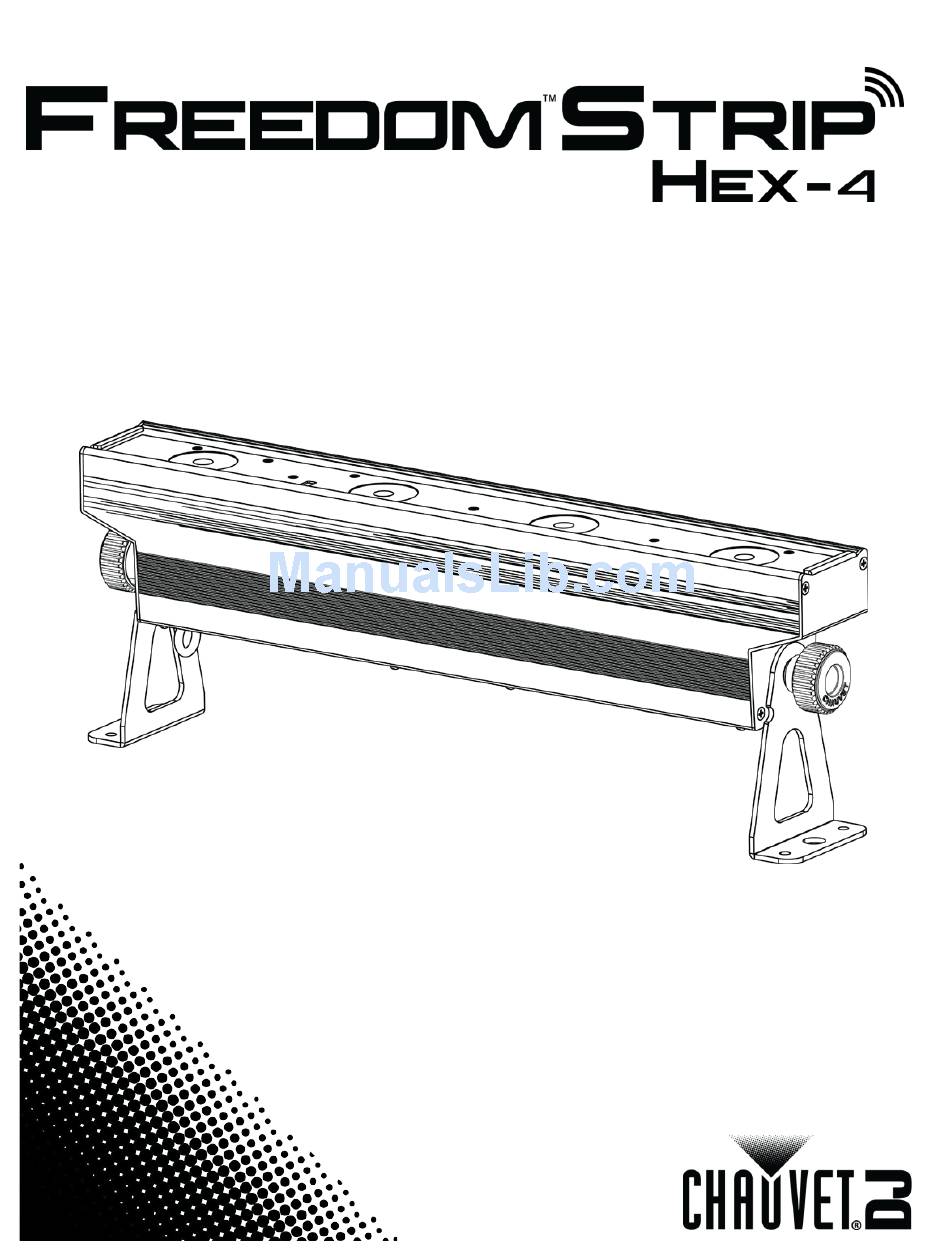

- Page 1 User Manual...
-
Page 2: Table Of Contents
ABLE OF ONTENTS 1. Before You Begin ......................4 What Is Included ..........................4 Unpacking Instructions ........................4 Claims ..............................4 Text Conventions ..........................4 Symbols ............................4 Disclaimer ............................4 Product at a Glance ........................5 Safety Notes ............................ 5 2. - Page 3 IRC-6 Infrared Remote Control ..................... 20 IRC-6 Operation............................ 21 5. Maintenance .........................22 Product Maintenance ........................22 6. Technical Specifications ....................23 Returns ............................24 Contact Us ........................25 Freedom™ Strip Hex-4 User Manual Rev. 1 Page 3 of 25...
-
Page 4: Before You Begin
Chauvet assumes no responsibility or liability for any errors or omissions that may appear in this manual. Chauvet reserves the right to update the existing document or to create a new document to correct any errors or omissions. -
Page 5: Product At A Glance
Product at a Use on Dimmer Auto Programs Outdoor Use Auto-ranging Power Supply Glance Sound-Active Replaceable Fuse User-Serviceable Master/Slave Safety Notes Please read the following Safety Notes carefully before working with the product. The Notes include important safety information about installation, usage, and maintenance. ·... -
Page 6: Introduction
2. I NTRODUCTION Product Overview Charging Mounting Hole On/Off Fuse Display Indicator LEDs (M12) Switch Holder Back Panel View D-Fi™ AUTO Safety Loop Microphone Menu Buttons DMX In/Out Power In/Out Sync/Clear Button IR Sensor Front View Lenses Page 6 of 25 Freedom™... -
Page 7: Product Dimensions
Product Dimensions 6.8 in 173 mm 19.7 in 500 mm 3.3 in 82 mm Freedom™ Strip Hex-4 User Manual Rev. 1 Page 7 of 25... -
Page 8: Setup
3. S ETUP AC Power The Freedom™ Strip Hex-4 has an auto-ranging power supply and it can work with an input voltage range of 100 to 240 VAC, 50/60 Hz. To determine the product’s power requirements (circuit breaker, power outlet, and wiring), use the current value listed on the label affixed to the product’s back panel, or refer to the product’s specifications chart. -
Page 9: Power Linking
The power linking diagram corresponds to the North American version of the product ONLY! If using the product in other markets, you must consult with the local Chauvet distributor as power linking connectors and requirements may differ in your country or region. -
Page 10: Battery Power
The Freedom™ Strip Hex-4 comes with a rechargeable lithium battery for cable-free Battery Power operation. Charging the The battery charges whenever the product is plugged into a power source. If the product is plugged in and not in operation, make sure the On/Off switch is in the Off position. Battery For optimal battery life, charge the Freedom™... -
Page 11: Mounting
The bracket adjustment knobs allow for directional adjustment when aiming the product to the desired angle. Only loosen or tighten the bracket knobs manually. Using tools could damage the knobs. Mounting Clamp (such as the CLP-15N from Chauvet) Safety Cable (such as CH-05 from Chauvet) Mounting Diagram... -
Page 12: Operation
4. O PERATION Control Panel To access the control panel functions, use the four buttons located underneath the display. Please refer to the Product Overview to see the button locations on the control panel. Operation Button Function <MENU> Exits from the current menu or function Navigates upwards through the menu list or increases the numeric value when <UP>... -
Page 13: Dmx
Freedom™ Strip Hex-4 is fully compatible with the D-Fi™ 2.4 GHz wireless transceiver (transmitter/receiver) from Chauvet (sold separately). For more detailed information about D-Fi™ 2.4 GHz functionality, refer to the D-Fi™ 2.4 GHz User Manual available at the Chauvet website www.chauvetlighting.com. Manual syncing is recommended for best results. -
Page 14: D-Fi™ 2.4 Ghz (Dmx Mode Auto Sync)
The Freedom™ Strip Hex-4 offers wireless control of 2 or more products with a single DMX D-Fi™ 2.4 GHz controller. To automatically set up D-Fi™ 2.4 GHz syncing for DMX, do the following: (DMX Mode For the receiving product(s): Auto Sync) Press <MENU>... -
Page 15: Dmx Linking
Continue connecting each subsequent product until all the products are part of the chain. Information about DMX is in the DMX Primer, which is available from the Chauvet website www.chauvetlighting.com/download/. When DMX linking Freedom™ Strip Hex-4 products for Master/Slave operation, the DMX controller is not a part of the DMX daisy chain and the master is the first product in the chain. -
Page 16: Master/Slave Mode
Master/Slave mode allows a single Freedom™ Strip Hex-4 (the master) to control the Master/Slave actions of one or more Freedom™ Strip Hex-4 products (the slaves) without a DMX Mode controller. The master will be set to operate in either an auto program or Sound-Active mode, while the slaves will be set to DMX starting address d 1. -
Page 17: Dmx Channel Assignments And Values
DMX Channel Assignments and Values 18CH Channel Function Value Percent/Setting Dimmer 000ó255 0–100% Red 1 000ó255 0–100% Green 1 000ó255 0–100% Blue 1 000ó255 0–100% Amber 1 000ó255 0–100% White 1 000ó255 0–100% UV 1 000ó255 0–100% Red 2 000ó255 0–100% Green 2 000ó255... -
Page 18: 18Ch (Cont.)
Channel Function Value Percent/Setting 18CH (cont.) 000ó010 No function 011ó025 Auto program 2 026ó050 Auto program 3 051ó075 Auto program 4 076ó100 Auto program 5 Auto and Sound 101ó125 Auto program 6 Programs 126ó150 Auto program 7 151ó175 Auto program 8 176ó200 Auto program 9 201ó240 Auto program 1 241ó255 Auto sound show... -
Page 19: 8-Ch
Channel Function Value Percent/Setting 8-CH Dimmer 1 000ó255 0–100% Red 1 000ó255 0–100% Green 1 000ó255 0–100% Blue 1 000ó255 0–100% Amber 1 000ó255 0–100% White 1 000ó255 0–100% UV 1 000ó255 0–100% 000ó010 No function Strobe 011ó255 Strobe (slow to fast) Channel Function Value... -
Page 20: Sound Sensitivity
Press <ENTER>. The Freedom™ Strip Hex-4 is compatible with the IRC-6 infrared remote control from IRC-6 Infrared Chauvet. To run the Freedom™ Strip Hex-4 in IR mode, do the following: Remote Press <MENU> repeatedly until SET shows on the display. -
Page 21: Irc-6 Operation
IRC-6 Operation Automatic Mode Automatic mode will enable you to run the automatic programs on the product. To turn on Automatic mode: Press <AUTO> on the IRC-6. Press <+> or <–> to choose between the different auto programs. To adjust the speed of the automatic program: Press <SPEED>... -
Page 22: Maintenance
5. M AINTENANCE Product Dust build-up reduces light output performance and can cause overheating. This can lead to reduction of the light source’s life and/or mechanical wear. To maintain optimum Maintenance performance and minimize wear, clean your lighting products at least twice a month. However, be aware that usage and environmental conditions could be contributing factors to increase the cleaning frequency. -
Page 23: Technical Specifications
6. T ECHNICAL PECIFICATIONS Dimensions and Length Width Height Weight Weight 19.7 in (500 mm) 3.3 in (82 mm) 6.8 in (173 mm) 7.4 lb (3.4 kg) Note: Dimensions in inches rounded to the nearest decimal digit. Power Supply Type Range Voltage Selection Power... -
Page 24: Returns
You must send the merchandise prepaid, in its original box, and with its original packing and accessories. Chauvet will not issue call tags. Clearly label the package with the RMA number. Chauvet will refuse any product returned without an RMA number. -
Page 25: Contact Us
(954) 577-4455 Email: tech@chauvetlighting.com Fax: (954) 929-5560 Toll free: (800) 762-1084 World Wide Web www.chauvetlighting.com UNITED KINGDOM AND IRELAND - Chauvet Europe Ltd. General Information Technical Support Address: Unit 1C Email: uktech@chauvetlighting.com Brookhill Road Industrial Estate Pinxton, Nottingham, UK World Wide Web www.chauvetlighting.co.uk...
