Summary of Contents for Chauvet Arena Hazer 3

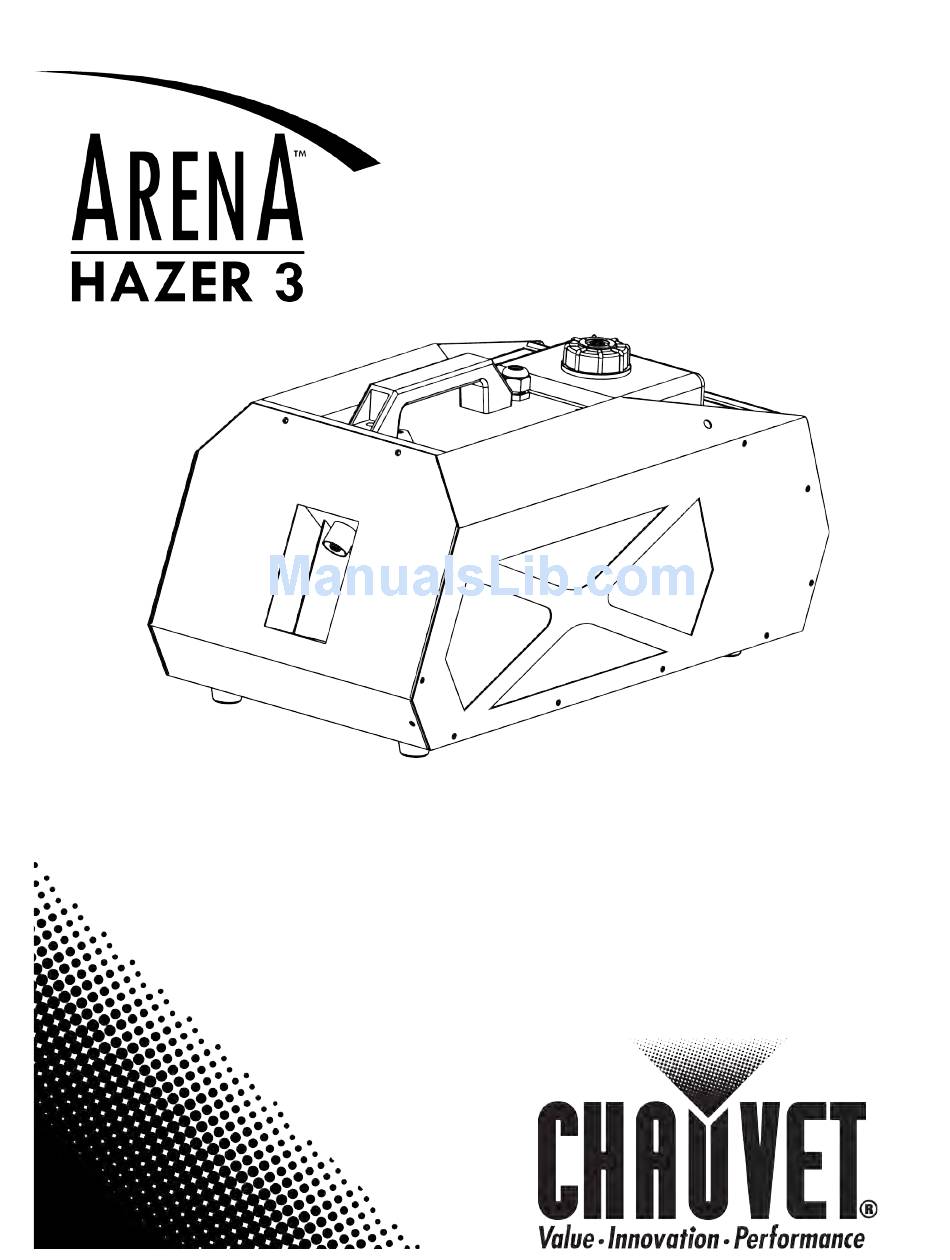

- Page 1 User Manual...
-
Page 2: Table Of Contents
ABLE OF ONTENTS 1. Before you Begin ................3 What is Included ..................3 Unpacking Instructions ................3 Text Conventions ..................3 Icons ......................3 Safety Notes ..................... 4 2. Introduction..................5 Product Overview ..................5 3. Setup ....................6 AC Power .................... -
Page 3: Before You Begin
Document Information The information and specifications contained in this document are subject to change without notice. CHAUVET® assumes no responsibility or liability for any errors or omissions that may appear in this manual. © Copyright 2011 CHAUVET®. All rights reserved Printed in P.R.C. -
Page 4: Safety Notes
Product at a Glance Use on Dimmer Auto Programs Outdoor Use Auto-ranging Power Supply Sound Activated Replaceable Fuse User Serviceable Master/Slave Duty Cycle Safety Notes Please read the following notes carefully because they include important safety information about the installation, usage, and maintenance of this product. ·... -
Page 5: Introduction
2. I NTRODUCTION Product Overview Carrying handle Fluid reservoir cover Haze output nozzle Air filter Rubber feet (4) (3-pin & 5-pin) Power Switch LCD screen (ON/OFF) (Control Panel) Power Input (NEUTRIK® powerCON® A) Main Breaker Arena™ Hazer 3 User Manual (Rev. 01d) Page 5 of 16... -
Page 6: Setup
4) Plug the fixture power cord into the power outlet and continue recommended use. In the event that the breaker will not reset (the breaker button will not remain inserted), contact CHAUVET® immediately, as this indicates a possible internal malfunction. -
Page 7: Mounting
The installer/user is responsible for ensuring that the Arena™ Hazer 3 is rigged safely, following current national, state, and local regulations. CHAUVET® recommends that the unit be inspected every 90 days. If any damage is detected, remedial action should be taken immediately! Fly point... -
Page 8: Operation
4. O PERATION Control Panel Operation To access the control panel functions, use the four buttons located underneath the display. Button Function Press to find an operation mode or to back out of the current menu <MODE/ESC> option <DOWN> Press to scroll down the list of options or to find a lower value <UP>... -
Page 9: Configuration (Dmx Mode)
Configuration (DMX Mode) Setting this product to operate in DMX mode will allow you to control it with a DMX controller. 1) Connect this product to a suitable power outlet 2) Turn this product on 3) Connect a DMX cable from the DMX output of the DMX controller to the DMX input socket of this product. -
Page 10: Configuration (Stand-Alone Modes)
Configuration (Stand-alone Modes) Timer Mode To enable the Timer mode, do the following: Connect this product to a suitable power outlet Turn this product on. Press <FUNCTION> repeatedly until Interval Set shows on the display. Use <UP> or <DOWN> to select the time in between haze. Press <FUNCTION>... -
Page 11: Technical Information
5. T ECHNICAL NFORMATION General Maintenance Do not allow the fog machine to become contaminated. After every 40 hours of continuous operation, it is recommended to run a cleaning solution composed of 80% distilled water and 20% distilled vinegar through the system to prevent the accumulation of particulate matter in the heating element. -
Page 12: General Troubleshooting
· · Terminator not connected Install a terminator, as indicated in the “DMX Primer” section. If you still experience problems after trying the above solutions, contact CHAUVET® Technical Support. Page 12 of 16 Arena™ Hazer 3 User Manual (Rev. 01d) -
Page 13: Returns Procedure
Be sure to pack the fixture properly. Any shipping damage resulting from inadequate packaging will be the customer’s responsibility. As a suggestion, proper UPS packing or double-boxing is always a safe method to use. CHAUVET® reserves the right to use its own discretion to repair or replace returned product(s). Claims The carrier is responsible for any damage incurred during shipping to this product or any part that shipped with it. -
Page 14: Dmx Primer
DMX Primer The USITT DMX512-A data transmission protocol (DMX, from now on) is based on the EIA-485 standard and it has 512 channels (001 to 512). This system requires a controller (DMX controller), one or more DMX compatible fixtures, and a DMX circuit (also known as “DMX universe”) to link the fixtures to the controller. -
Page 15: Dmx Cabling
You can purchase CHAUVET® certified DMX cables directly from a dealer/distributor or make your own DMX cable. If you choose to make your own DMX cable, you must use a data-grade cable such... -
Page 16: Technical Specifications
Edison (US market) Operation/Consumption/Capacity Heat-up Time Tank Capacity Fluid Consumption 2 min 2.5 l 18 ml / min Approved Fluids Chauvet® Pro Haze Fluid Chauvet® Haze Fluid (Gallon) (Gallon) Thermal Maximum External Temp. Cooling System 104° F (40° C) Convection...
