7 - PULL TO OPEN INSTALLATION

IMPORTANT - Never weld parts to the gate or posts when the operator circuit board is powered. Doing so may damage
the board beyond repair.
7.1 - PIVOT ARM INSTALLATION - Location of Pivot Point
The following instructions provide up to 105° of swing.
Measurements are taken from the center of pivot of the gate hinge.
The pivot arm needs to be securely mounted to the hinge post or equivalent mounting surface. It is recommended to weld
the pivot arm to a metal post. In order to achieve the correct articulation, geometry and rate of speed of the gate it is critical
that the measurements below are followed. The pivot arm may need to be cut to achieve the correct placement of the
actuator mounting hole. Measurements are taken from the center of pivot of the gate hinge.

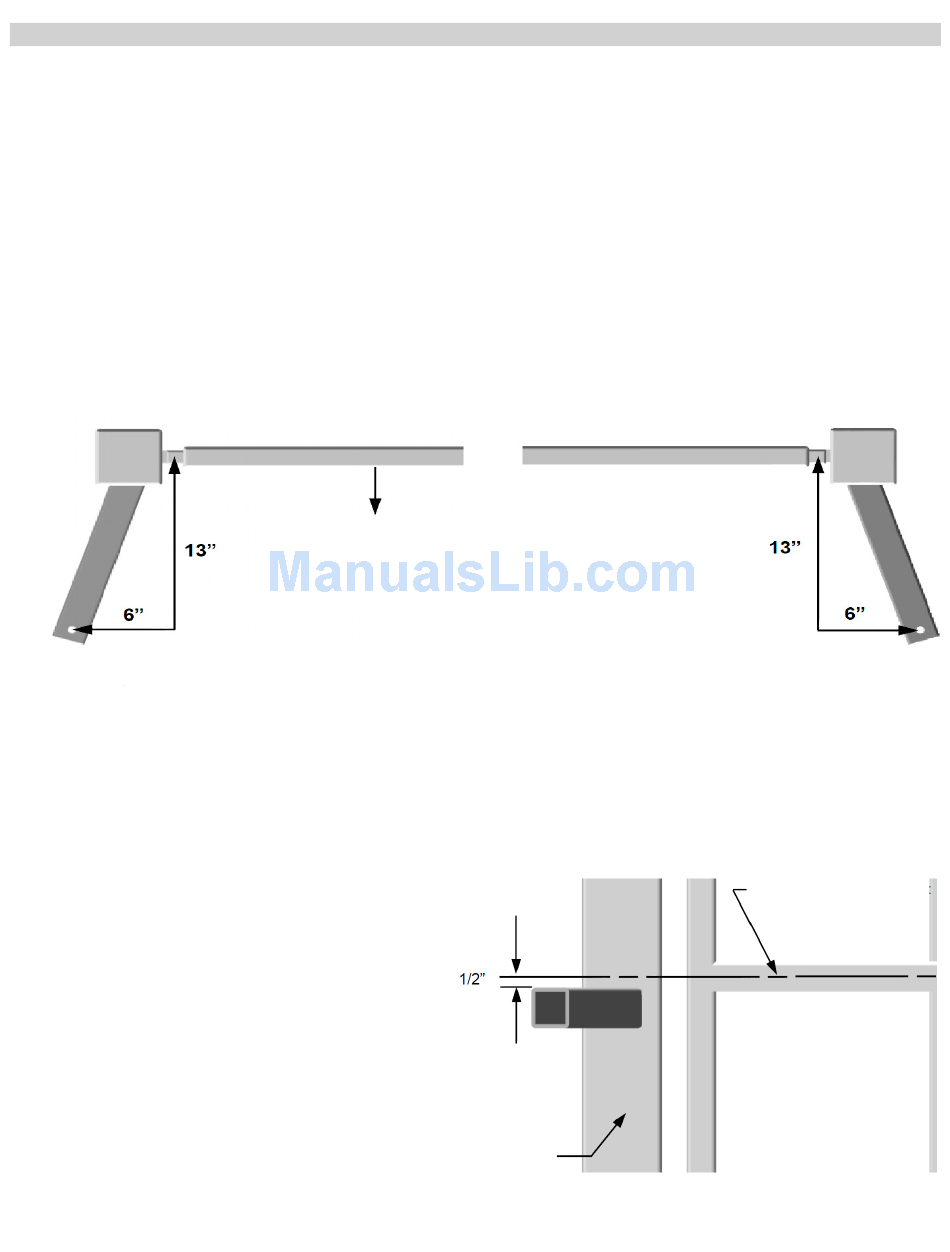

LEFT HAND SWING
NOTE: If you have columns built around your gate hinge post, check these measurements for proper clearance
before proceeding with this pull to open installation.
7.2 - Vertical position of pivot arm
The top edge of the Pivot Arm will be located 1/2"
below the center line for the gate bracket. The Pivot
Arm must be level when secured.
GATE CLOSED
DIRECTION OF OPENING
TOP VIEW
Hinge Post
RIGHT HAND SWING
Center line of
attachment point
for gate bracket
SIDE VIEW
