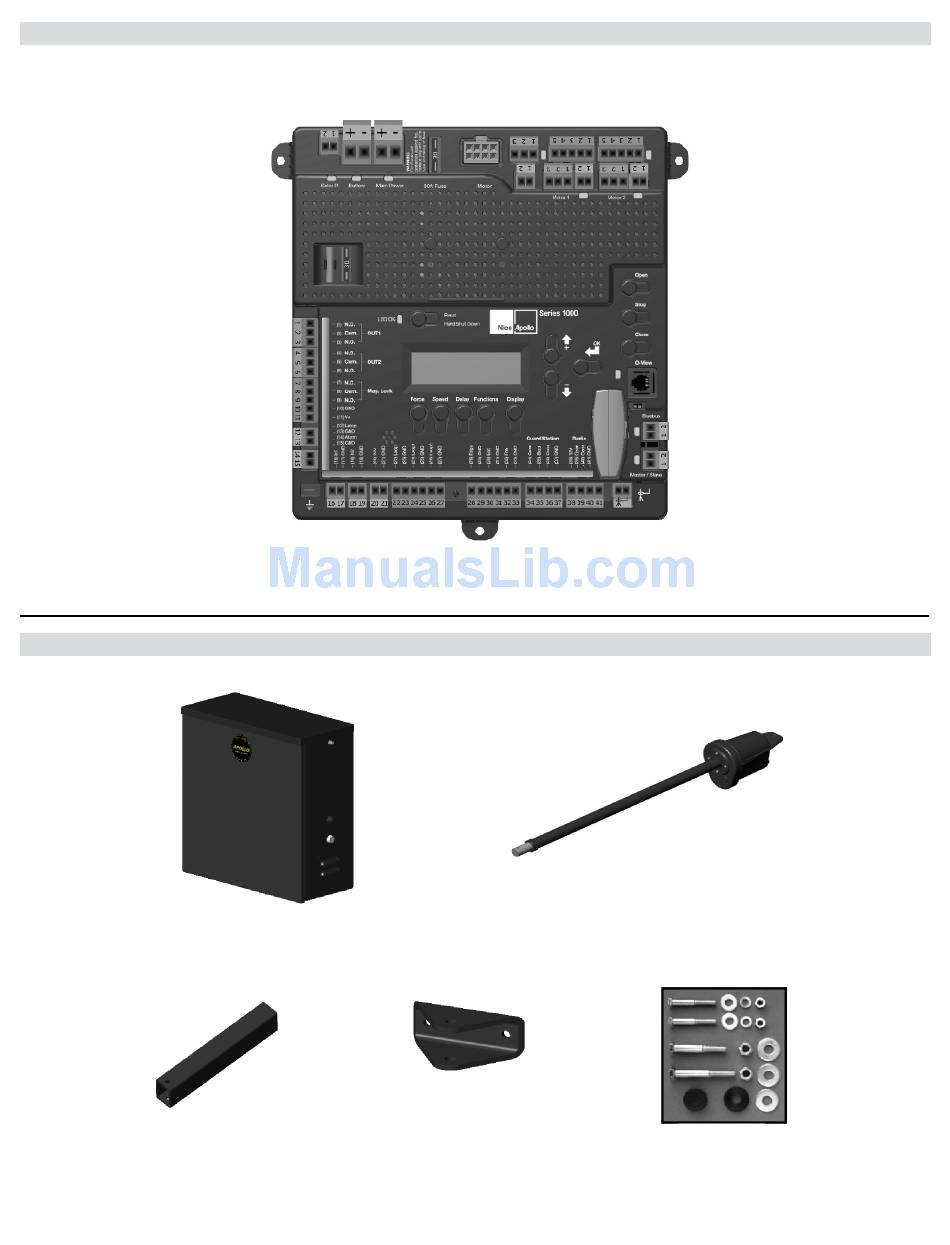

5 - CIRCUIT BOARD LAYOUT
Accessory
Output
Connections
Earth Ground
6 - PARTS IDENTIFICATION
Pivot Arm #1116
(2 with 16501K)
8
Power Input
Connections
Accessory Input Connections
Control Box
#11111B
Motor Output
Connections
816 - Actuator with 8' harness
816X - Actuator with 38' harness
(Supplied with 16501K)
Gate attach bracket
#10025215
(2 with 16501K)
BlueBus
Connection
Master / Slave
Connection
Bolt kit
(2 with 16501K)
