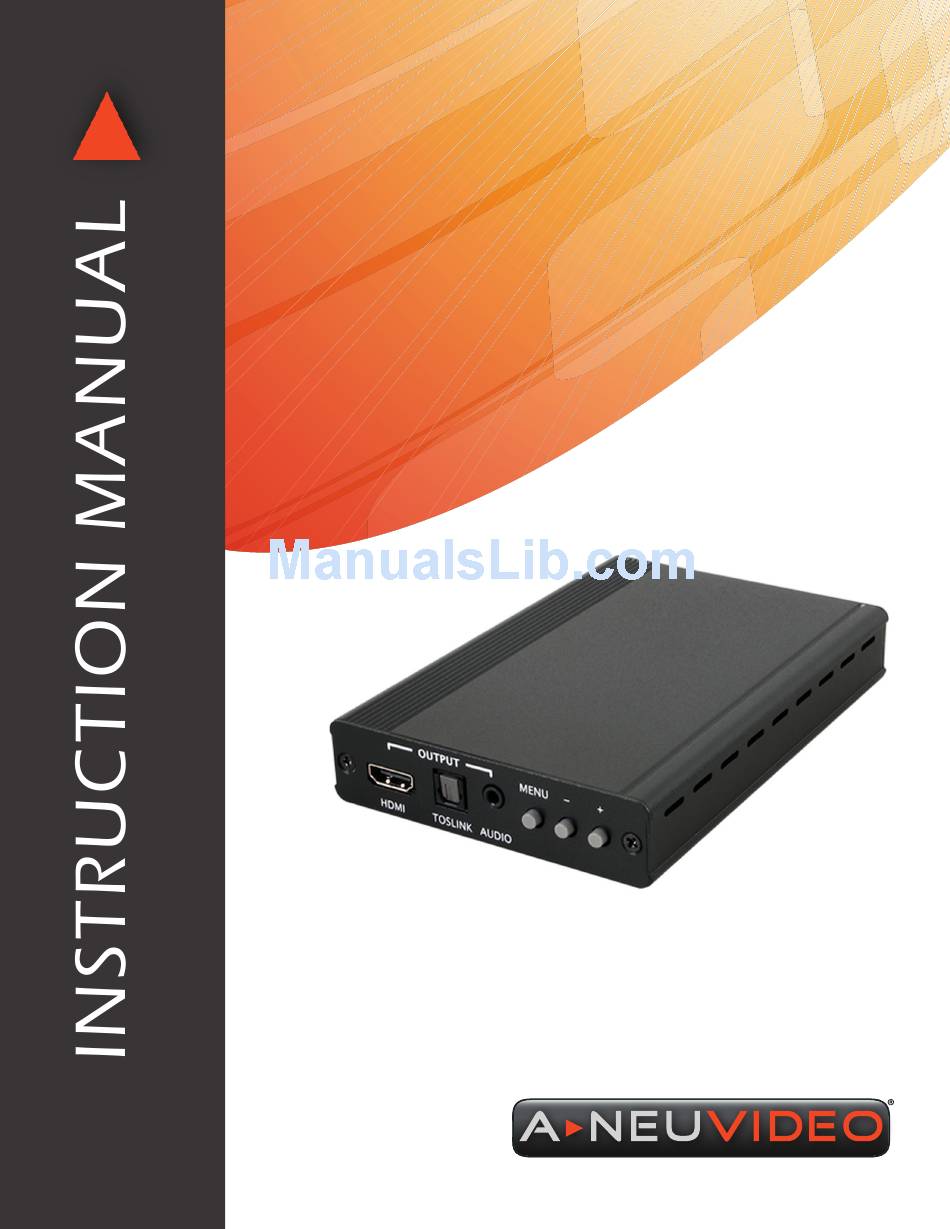

- Page 1 ANI-HPNHN HDMI to HDMI Scaler A-NeuVideo.com Frisco, Texas 75034 (317) 456-2461 V1.0 AUDIO / VIDEO MANUFACTURER...
-
Page 2: Safety Information
SAFETY INFORMATION To ensure the best results from this product, please read this manual and all other documentation before operating your equipment. Retain all documentation for future reference. Follow all instructions printed on unit chassis for proper operation. To reduce the risk of fire, do not spill water or other liquids into or on the unit, or operate the unit while standing in liquid. Make sure power outlets conform to the power requirements listed on the back of the unit. -
Page 3: Safety Precautions
NEUVIDEO TABLE OF CONTENTS CONTENTS INTRODUCTION ................1 SAFETY PRECAUTIONS PACKAGE CONTENTS ..............1 Please read all instructions before attempting to unpack, install or SYSTEM REqUIREMENTS ............1 operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this FEATURES .................. -
Page 4: Specifications
NEUVIDEO FEATURES & SPECIFICATIONS FEATURES • HDMI, HDCP and DVI compliant • Supports full range of PC resolution from VGA to WUXGA (RB) and HD resolution from 480i to 1080p • Automatically detects the display settings of the connected display and outputs the correct resolution and refresh rate when the NATIVE output option is selected •... -
Page 5: Front Panel
NEUVIDEO OPERATION CONTROLS AND FUNCTIONS FRONT PANEL HDMI OUTPUT: Connect to a HDMI equipped display or AV receiver for video and audio output. OPTICAL OUTPUT: Connect to an amplifier or active speakers with an optical cable for LPCM 2 channel digital audio output. AUDIO OUTPUT Connect to an amplifier or active speakers with a 3.5mm mini-jack cable for analog audio output. -
Page 6: Osd Operation
NEUVIDEO OPERATION CONTROLS AND FUNCTIONS OSD Operation MAIN MENU 1ST LAYER 2ND LAYER PICTURE SETTING CONTRAST 0~100 (50) BRIGHTNESS 0~100 (50) EXIT FINETUNE 0~100 (50) SATURATION 0~100 (50) SHARPNESS 0~100 (50) OFF, LOW, MIDDLE, HIGH (OFF) EXIT COLOR 0~100 (50) GREEN 0~100 (50) BLUE... -
Page 7: Connection Diagram
NEUVIDEO Resolutions AND DIAGRAM Input and Output Resolutions RESOLUTIONS INPUT OUTPUT RESOLUTIONS INPUT OUTPUT 640x480@60/72/75/85 1600x900@60RB 800x600@56/60/72/75/85 1680x1050@60 1024x768@60/70/75/85 1920x1200@60RB 1280x1024@60/75/85 480i/576i PUT SETTING 1400x1050@60 480p/576p 1600x1200@60 720p@50/60 ETTING 1280x800@60 1080i@50/60 1440x900@60 1080p@50/60 CONNECTION DIAGRAM... - Page 8 BY, THROUGH OR UNDER A-NeuVideo, INC (COLLECTIVELY, THE “PRODUCT”). By using installing or using the Product, you unconditionally signify your agreement to these Terms and Conditions. If you do not agree to these Terms and Conditions, do not use the Product and return the Product to A-NeuVideo, Inc. at the return address set forth on the Product’s packing label at your expense.
