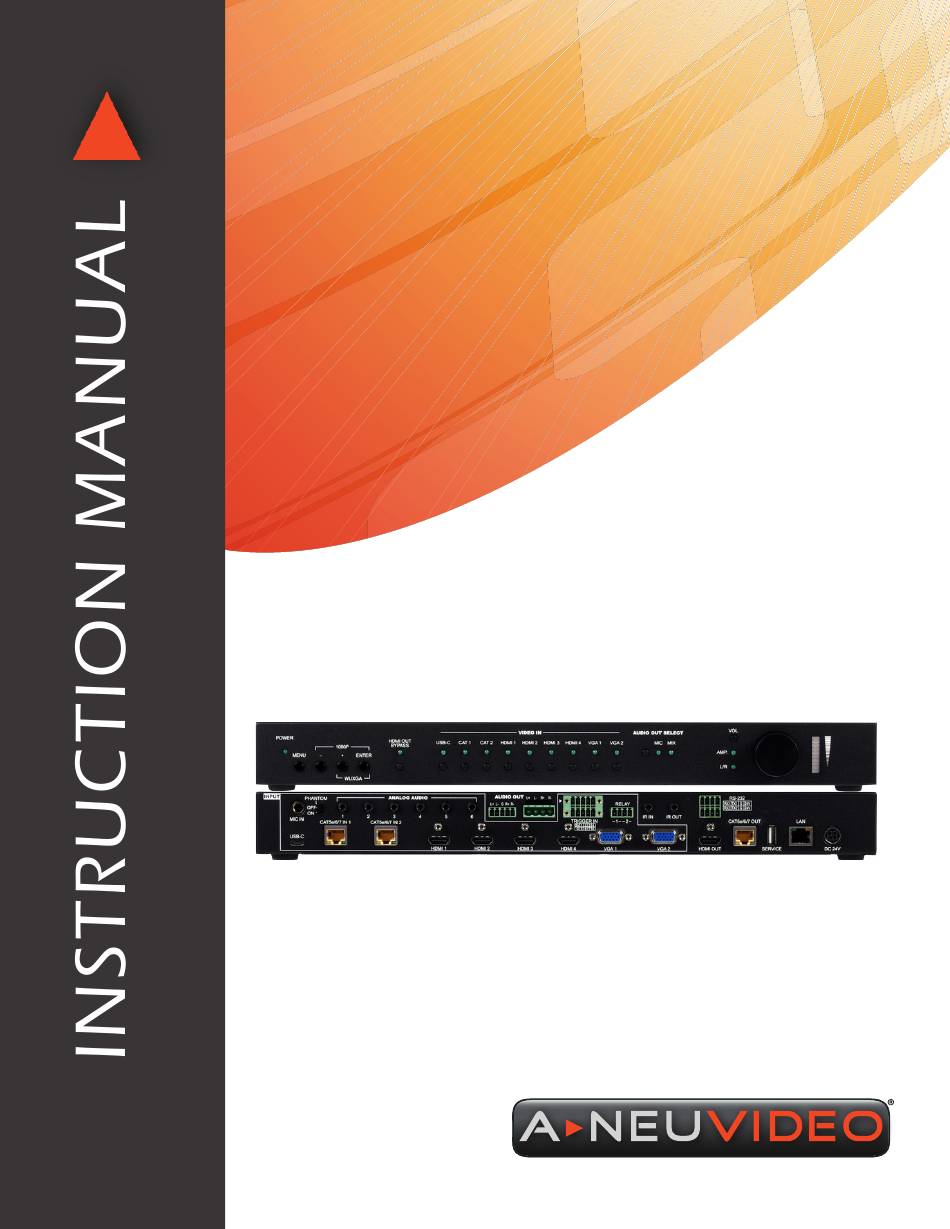

- Page 1 ANI-9X2MFS HDMI HDBaseT USB-C VGA to HDMI HDBaseT Scaler ™ ™ A-NeuVideo.com Frisco, Texas 75036 AUDIO / VIDEO MANUFACTURER...
- Page 2 SAFETY INFORMATION To ensure the best results from this product, please read this manual and all other documentation before operating your equipment. Retain all documentation for future reference. Follow all instructions printed on unit chassis for proper operation. To reduce the risk of fire, do not spill water or other liquids into or on the unit, or operate the unit while standing in liquid. Make sure power outlets conform to the power requirements listed on the back of the unit.
-
Page 3: Table Of Contents
Before attempting to use this unit, please check the packaging and make sure the following items are contained in the shipping carton: © Copyright 2019. All Rights Reserved. • ANI-9X2MFS HDMI / HDBaseT / USB-C / VGA to HDMI / ™... -
Page 4: Features
NEUVIDEO FEATURES FEATURES • HDMI 2.0 and DVI 1.0 compliant • HDCP 1.X and 2.2 compliant • (9) Video inputs (USB-C, (2) HDBaseT , (4) HDMI, (2) VGA) ™ • (2) mirrored video outputs (HDMI, HDBaseT ™ • Supports switching and scaling of all AV inputs for display over the mirrored HDMI and HDBaseT outputs ™... -
Page 5: Specifications
NEUVIDEO SPECIFICATIONS Specifications • HDMI Bandwidth: 18Gbps • USB-C Bandwidth: 21.6Gbps • VGA Bandwidth: 165MHz • HDBaseT Bandwidth: 10.2Gbps ™ • Input Ports: • USB (Type-C) • (2) HDBaseT (RJ-45) ™ • (4) HDMI (Type-A) • (2)VGA (HD-15) • (6) Stereo Audio (3.5mm) •... -
Page 6: Video Specifications
NEUVIDEO Video Specifications Bypass Output BYPASS INPUT SUPPORTED RESOLUTIONS OUTPUT (HZ) HDMI HDBT USBC HDMI HDBT 720x400p@70/85 ü ü ü ü ü ü 640x480p@60/72/75/85 ü ü ü ü ü ü 720x480i@60 ü ü ü ü ü 720x480p@60 ü ü ü ü... - Page 7 NEUVIDEO Video Specifications Bypass Output BYPASS INPUT SUPPORTED RESOLUTIONS OUTPUT (HZ) HDMI HDBT USBC HDMI HDBT 8-bit 3840x2160p@50/60 (4:2:0), HDR10 ü ü ü 3840x2160p@50/60 ü ü ü 4096x2160p@24/25/30 ü ü ü ü ü 4096x2160p@50/60 (4:2:0) ü ü ü ü ü 8-bit 4096x2160p@24, HDR10 ü...
-
Page 8: Audio Specifications
NEUVIDEO Audio Specifications Digital Audio HDMI INPUT / OUTPUT | HDBASET™ INPUT / OUTPUT | USB-C INPUT LPCM Max Channels 2 Channels (8 Channels in bypass) Sampling Rate (kHz) 32, 44.1, 48, 88.2, 96, 176.4, 192 Bitstream (Bypass Only) Supported Formats Standard &... -
Page 9: Cable Specifications / Hdbaset™ Features
NEUVIDEO Cable Specifications / HDBaseT™ Features Cable Specifications 1080P 4K30 4K60 CABLE LENGTH 8-bit 12-bit 8-bit (4:4:4) 8-bit (4:4:4) High Speed HDMI Cable ~49 ft / 15M ~33 ft / 10M ~16 ft / 5M ~10 ft / 3M HDMI Input ~49 ft / 15M ~33 ft / 10M ~16 ft / 5M... -
Page 10: Front Panel
NEUVIDEO FRONT PANEL FRONT PANEL POWER LED: This LED will illuminate to indicate the unit is on and receiving power. MENU BUTTON: Press to enter the OSD menu, or to back out from menu items. MINUS (-) BUTTON: Press to move down or adjust selections within OSD menus. PLUS (+) BUTTON: Press to move up or adjust selections within OSD menus. - Page 11 NEUVIDEO REAR PANEL REAR PANEL MIC IN PORT & 48V/OFF/5V SWITCH: Connect to a standard microphone using a 6.35mm plug. Set the switch based on the phantom power requirements of the connected microphone. Note: If no phantom power is required, this switch should remain in the “Off” position to avoid potential damage to connected equipment. ANALOG AUDIO INPUT 1~6 PORTS: Connect to the analog stereo output of a device such as an audio player or PC.
-
Page 12: Back Panel
NEUVIDEO BACK PANEL BACK PANEL VGA INPUT 1~2 PORTS: Connect to VGA source equipment such as PCs or laptops. HDMI OUT PORT: Connect to an HDMI TV, monitor, or amplifier for digital video and audio output. CAT5E/6/7 OUT PORT: Connect to a compatible HDBaseT receiver with a single CAT5e/6/7 cable for transmission of all data ™... -
Page 13: Ir Cable Pinouts & Rs-232 Pinout & Defaults
NEUVIDEO IR Cable Pinouts & RS-232 Pinout & Defaults IR Cable Pinouts RS-232 PINOUT AND DEFAULTS Serial Port Default Settings Baud Rate 19200bps Data Bits 8bit Parity Bits None Stop Bits 1bit Flow Control None RS-232 Port 1 (Unit control) RS-232 Port 2 (HDBaseT extension) ™... -
Page 14: Osd Menu
NEUVIDEO OSD Menu OSD Menu All functions of this unit can be controlled by using the OSD (On Screen Display) which is activated by MAIN MENU pressing the MENU button on the front of the unit. Use the + (PLUS), − (MINUS), and ENTER buttons Video to navigate the OSD menu. - Page 15 NEUVIDEO OSD Menu VIDEO 1. HDMI OUT BYPASS: Enable or disable the video output bypass mode. When bypass is enabled, HDR video and bitstream audio can be supported, however it will disable the unit’s scaling and video adjustment functions. Note: This setting affects both the HDMI and HDBaseT outputs.
- Page 16 NEUVIDEO OSD Menu VIDEO 2ND LEVEL 3RD LEVEL 4TH LEVEL 1280x800@60 1280x1024@60 1440x900@60 1400x1050@60 1680x1050@60 1600x1200@60 1920x1080@60 1920x1200@60RB 2560x1600@60RB 720x480p 720x576p 1280x720p50 1280x720p60 1920x1080p24 1920x1080p25 Output Resolution 1920x1080p30 1920x1080p50 1920x1080p60 3840x2160p24 3840x2160p25 3840x2160p30 3840x2160p50 3840x2160p60 3840x2160p50(420) 3840x2160p60(420) 4096x2160p24 4096x2160p25 4096x2160p30 4096x2160p50 4096x2160p60 4096x2160p50(420)
- Page 17 NEUVIDEO OSD Menu VIDEO 2ND LEVEL 3RD LEVEL 4TH LEVEL Letterbox Under 1 Aspect Under 2 Follow In Blank Freeze Auto Sync Off Auto Setting Auto Input Auto Switch ENABLED HDCP On USB-C Disabled ENABLED HDCP On HDBT 1 Disabled ENABLED HDCP On HDBT 2 Disabled...
- Page 18 NEUVIDEO OSD Menu PICTURE 1. COLOR GAIN R/G/B: Set the red, green, and blue color gain level of the scaled output. 2. COLOR OFFSET R/G/B: Set the red, green, and blue color offset level of the scaled output. 3. BRIGHTNESS/CONTRAST: Set the overall brightness and contrast of the scaled output image.
- Page 19 NEUVIDEO OSD Menu AUDIO 1. HDMI OUT BYPASS: Enable or disable HDMI audio bypass mode. When enabled, all audio will automatically behave as if in “Follow Video” mode and bitstream audio can be supported. Note: This bypass setting affects audio only. 2.
- Page 20 NEUVIDEO OSD Menu AUDIO 2ND LEVEL 3RD LEVEL 4TH LEVEL Audio On HDMI 3 [Same options as for USB-C] Audio On HDMI 4 [Same options as for USB-C] ANALOG 1 Analog 2 Analog 3 Audio On VGA 1 Analog 4 Analog 5 Follow User Setting Analog 6...
- Page 21 NEUVIDEO OSD Menu 1. H/V POSITION: Controls the position of the OSD menu. 2. TRANSPARENCY: Set the transparency level of the OSD menu’s background. The available range is from Level 0 (fully opaque) to Level 8 (fully transparent). 3) OSD MENU TIMEOUT: Set how long to wait before automatically closing the OSD menu if there is no user activity.
- Page 22 NEUVIDEO OSD Menu ETHERNET 1. IP MODE: Set the unit to Static or DHCP mode. When DHCP mode is selected, all IP address information will be assigned automatically by the local DHCP server. When Static is selected, the IP address, netmask and gateway must be set manually and additional menu items become available.
- Page 23 NEUVIDEO OSD Menu EDID 1. EDID SELECTION: Select the EDID to use with each input. Note: In most cases, assigning a new EDID to an input will cause the affected input to briefly blink out while the source adapts to the new information.
- Page 24 NEUVIDEO OSD Menu FACTORY 1. RESET ALL: Selecting “Execute” will reset all of the unit’s settings back to their factory defaults. 2. FW UPDATE FROM USB: Provides a way to update the unit’s firmware. Insert a USB thumb drive, with a valid firmware file (*.bin format) in the root directory, into the unit’s USB service port then select this option.
-
Page 25: Webgui Control
NEUVIDEO WebGUI Control Device Discovery Please obtain the “Device Discovery” software from your authorized dealer and save it in a directory where you can easily find it. Connect the unit and your PC/Laptop to the same active network and execute the “Device Discovery” software. Click on “Find Devices on Network”... - Page 26 NEUVIDEO WebGUI Control Video Tab This page provides video routing settings, I/O renaming options and control over the video output signal’s format and behavior. To begin assigning a new video route, please click an output button and then click on the button of the preferred input port. As you select each button they will change their color to orange.
- Page 27 NEUVIDEO WebGUI Control HDCP Tab Provides control over the HDCP behavior of each input. To enable or disable HDCP support on one or more inputs, select the preferred inputs on the left, and then select the HDCP mode on the right. The change will occur immediately.
- Page 28 NEUVIDEO WebGUI Control Picture Tab 3. PICTURE SETTINGS (VGA SOURCE): ■ PC Auto: Provides a way to manually activate the auto detection of the VGA source’s settings. ■ PC H/V Position: Set the horizontal and vertical position setting for the current VGA input. ■...
- Page 29 NEUVIDEO WebGUI Control Audio Tab – Fixed Analog 1~6: Forces all video sources to be paired with the selected analog audio source. Note: When HDMI audio Out Bypass is enabled, all audio will automatically behave as if in “Follow Video” mode. 2.
- Page 30 NEUVIDEO WebGUI Control EDID Tab 2. SINK EDID DOWNLOAD: To save the EDID from one of the connected displays to your local PC, select the appropriate sink from the dropdown list then press the “Download” button. Depending on your browser settings you will either be asked where to save the downloaded file, or the file will be transferred directly to the default download location on your PC.
- Page 31 NEUVIDEO WebGUI Control System Tab ■ Relay 1 & 2: Manually open or close Relay 1 and Relay 2. Selecting “ON” closes the relay, selecting “OFF” opens it. ■ RS232: Use the dropdown to select which HDBaseT port the local RS-232 port should route across. Available choices are: HDBT ™...
-
Page 32: Telnet Control / Serial & Telnet Commands
NEUVIDEO Telnet Control / Serial & Telnet Commands Telnet Control Before attempting to use Telnet control, please ensure that both the unit and the PC are connected to the same active networks. TO ACCESS THE COMMAND LINE INTERFACE (CLI) Windows 7 Click Start, type“cmd”... - Page 33 NEUVIDEO Serial & Telnet Commands Serial and Telnet Commands COMMAND DESCRIPTION AND PARAMETERS GET STATIC NETMASK 8 Show the unit’s current netmask. Set the unit’s static gateway address. SET STATIC GATEWAY N1 8 N1 = X.X.X.X [X = 0 ~ 255, gateway address] GET STATIC GATEWAY 8 Show the unit’s current gateway address.
- Page 34 NEUVIDEO Serial & Telnet Commands Serial and Telnet Commands COMMAND DESCRIPTION AND PARAMETERS [1600x1200@60] [3840x2160p25] [1920x1080@60] [3840x2160p30] [1920x1200@60RB] [3840x2160p50] [2560x1600@60RB] [3840x2160p60] [720x480p] [3840x2160p50(4:2:0)] [720x576p] [3840x2160p60(4:2:0)] [1280x720p50] [4096x2160p24] SET OUT A TIMING N1 8 [1280x720p60] [4096x2160p25] [1920x1080p24] [4096x2160p30] [1920x1080p25] [4096x2160p50] [1920x1080p30] [4096x2160p60] [1920x1080p50] [4096x2160p50(4:2:0)]...
- Page 35 NEUVIDEO Serial & Telnet Commands Serial and Telnet Commands COMMAND DESCRIPTION AND PARAMETERS GET OUT A ASPECT RATIO 8 Show the currently set aspect ratio for the video shown when the output is scaled. List all available aspect ratio options. GET OUT ASPECT RATIO LIST 8 Enable or disable the Auto Sync Off function and set the timeout length.
- Page 36 NEUVIDEO Serial & Telnet Commands Serial and Telnet Commands COMMAND DESCRIPTION AND PARAMETERS Set the PC horizontal position for the specified input (VGA inputs only). Available values for N1: SET IN N1 HPOSITION N2 8 [VGA input 1] [VGA input 2] N2 = 0~250 [Horizontal position] Show the current PC horizontal position for the specified input (VGA inputs only).
- Page 37 NEUVIDEO Serial & Telnet Commands Serial and Telnet Commands COMMAND DESCRIPTION AND PARAMETERS Set the horizontal position of the OSD menu. SET OUT A OSD HPOSITION N1 8 N1 = 0~100 [Horizontal position] GET OUT A OSD HPOSITION 8 Show the current vertical position of the OSD menu. Set the transparency level of the OSD menu.
- Page 38 NEUVIDEO Serial & Telnet Commands Serial and Telnet Commands COMMAND DESCRIPTION AND PARAMETERS Show the current volume level of the specified output’s audio. Available values for N1: [HDMI audio output] GET AUDIO OUT N1 VOLUME 8 [HDBaseT audio output] ™ [Standard analog audio output] [Amplified analog audio output] GET AUDIO IN TYPE LIST 8...
- Page 39 NEUVIDEO Serial & Telnet Commands Serial and Telnet Commands COMMAND DESCRIPTION AND PARAMETERS Set the EDID to use on the specified input. Available values for N1: [HDMI input 2] [USB-C input] [HDMI input 3] [HDBaseT input 1] [HDMI input 4] ™...
- Page 40 NEUVIDEO Serial & Telnet Commands Serial and Telnet Commands COMMAND DESCRIPTION AND PARAMETERS Open or close the specified relay. N1 = 1~2 [Relay port number] SET RELAY N1 N2 8 Available values for N2: [Closed] [Open] Show the current state of the specified relay. GET RELAY N1 8 N1 = 1~2 [Relay port number]...
-
Page 41: Connection Diagram
NEUVIDEO CONNECTION DIAGRAM CONNECTION DIAGRAM... -
Page 42: Transmitter & Receiver
NEUVIDEO TRANSMITTER & RECEIVER RECEIVER (OPTIONAL) TRANSMITTER (OPTIONAL) - Page 43 THIS PAGE IS INTENTIONALLY LEFT BLANK.
- Page 44 BY, THROUGH OR UNDER A-NeuVideo, INC (COLLECTIVELY, THE “PRODUCT”). By using installing or using the Product, you unconditionally signify your agreement to these Terms and Conditions. If you do not agree to these Terms and Conditions, do not use the Product and return the Product to A-NeuVideo, Inc. at the return address set forth on the Product’s packing label at your expense.
